DATAVIDEO Digital Intercom Belt Pack

DATAVIDEO Digital Intercom Belt Pack is built for productions where crew communication needs to stay clear, simple, and mobile. Based on the source details, this belt pack is designed for use with the ITC-300 intercom system and gives the operator a wearable communication point with talk and call controls, headset support, and tally connectivity in one compact unit.

Highlights

• Digital intercom belt pack designed for DATAVIDEO ITC-300 workflows
• 3.5 mm TRRS headset connection for headset and microphone combo use
• 3.5 mm tally output for TD-3 tally light support

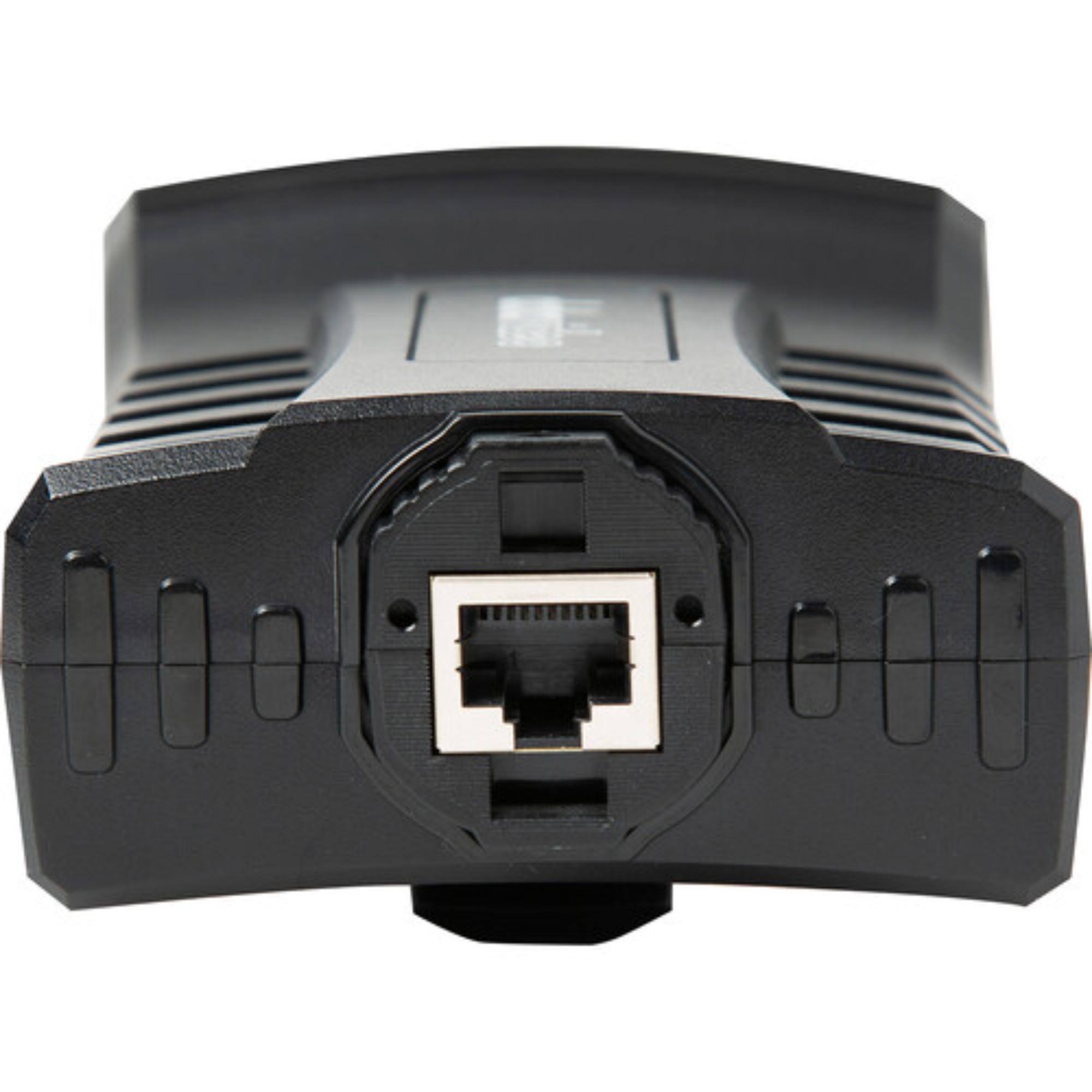

• RJ45 power input with wired operation up to 328 ft / 100 m

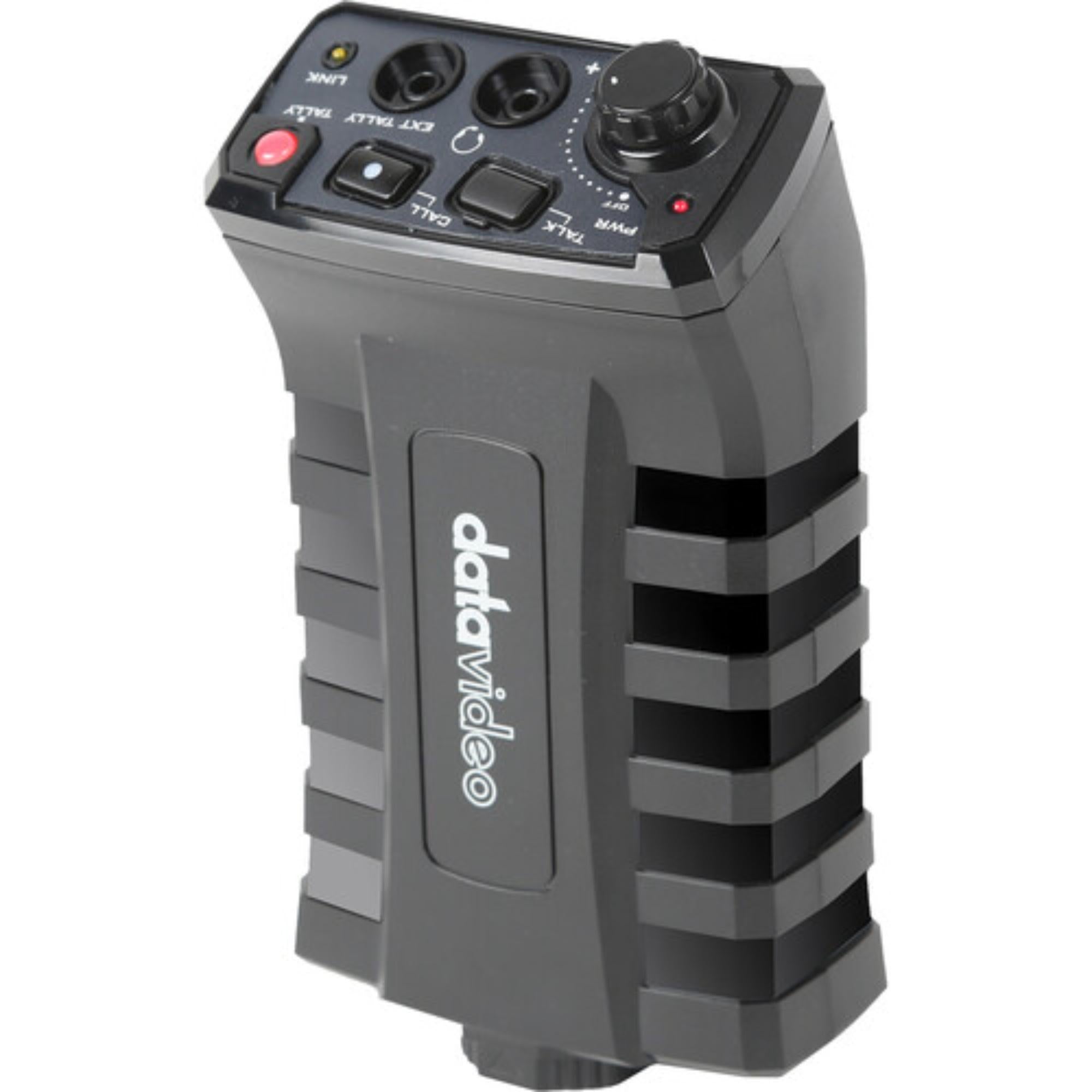

• Talk and call buttons with headphone volume control for practical on-set communication

Quick Specs & Uses

• Product name: DATAVIDEO Digital Intercom Belt Pack
• System compatibility: DATAVIDEO ITC-300 intercom system
• Mounting: hook-and-loop strap
• I/O: 1 x 3.5 mm tally jack, 1 x 3.5 mm TRRS jack, 1 x RJ45 power input
• Power: RJ45, 11 to 36 V
• Frequency response: 300 Hz to 7 kHz, ±3 dB
• THD: less than 0.1 percent at 1 kHz
• Signal-to-noise ratio: greater than 70 dB
• Operating range: up to 328 ft / 100 m
• Operating temperature: 32 to 104°F / 0 to 40°C
• Storage temperature: -4 to 140°F / -20 to 60°C
• Humidity: 10 to 80 percent non-condensing
• Dimensions: 5.6 x 3.2 x 2 in / 142.6 x 81.2 x 49.6 mm
• Weight: 8.1 oz / 230 g
• Included accessories shown: MC-1 headset/microphone, LED tally light set, GPI cable, Ethernet cable, earphone cable, hook-and-loop straps, Ethernet cable connectors

Why It Helps

In live production, communication gear has to be simple enough to use without slowing the crew down. This belt pack is designed to give the operator a wearable intercom point with local controls, headset connectivity, and tally support, which makes it easier to stay mobile while remaining part of the production communication loop.

System Characteristics

• Wearable intercom format helps crew stay connected without being tied to a fixed position
• Headset and tally support make the pack more useful in practical camera and floor workflows
• RJ45-powered operation keeps the connection path straightforward for wired systems
• Local volume and communication controls support fast on-set adjustment
• Included accessories help the unit feel closer to deployment-ready out of the box

What’s In The Box

Please refer to the Specifications tab for the exact included items.
