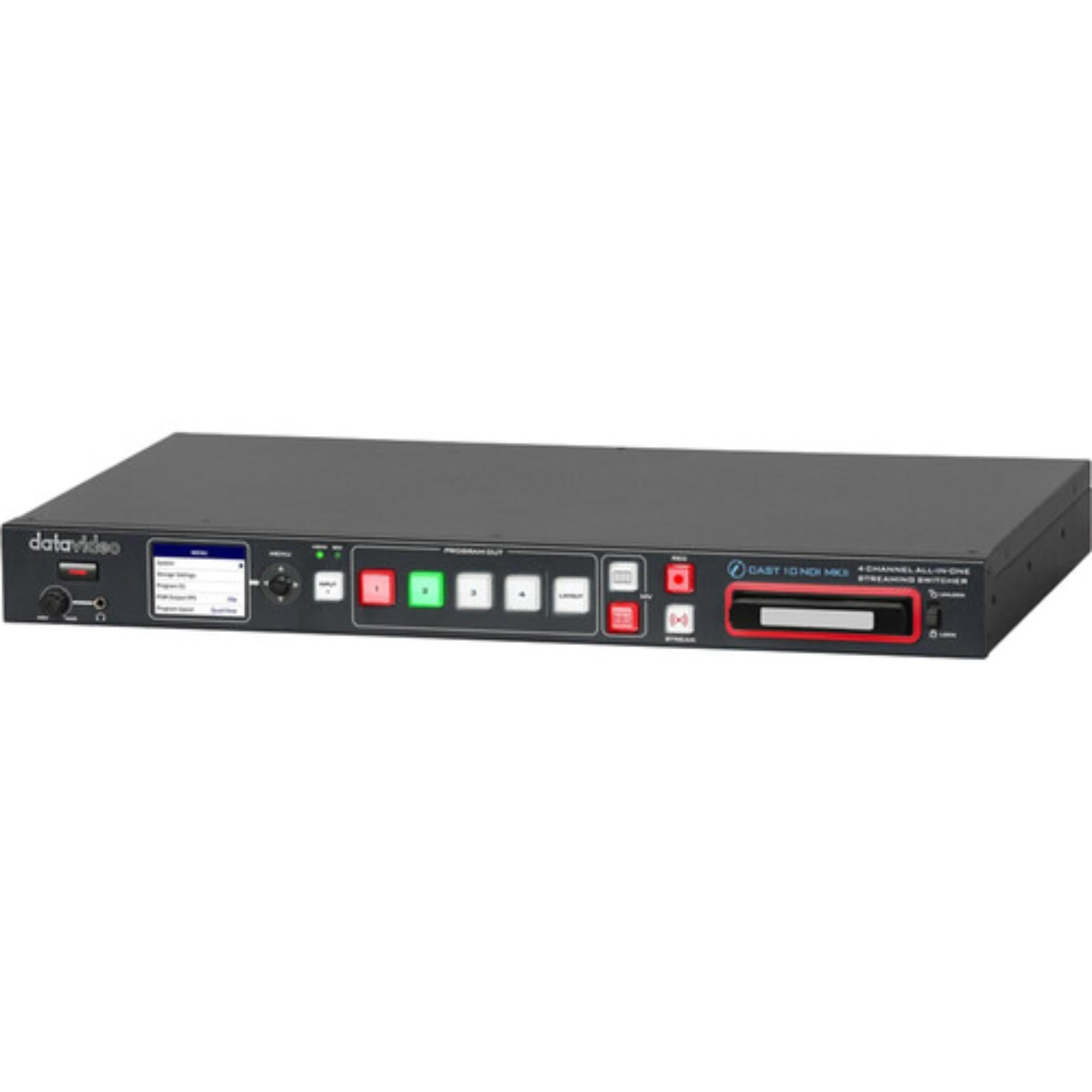

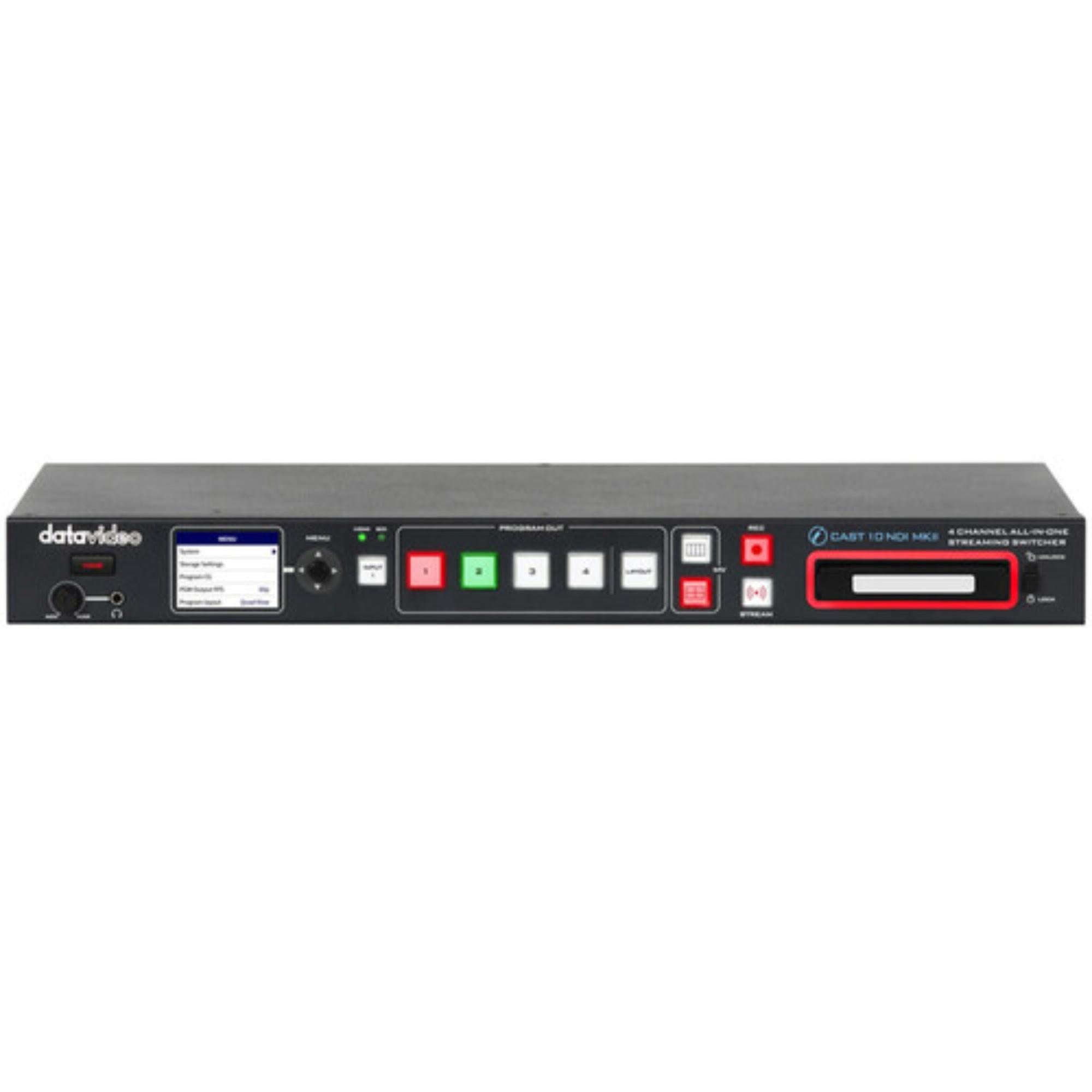

DATAVIDEO iCast 10NDI MK II 4-Channel 1080p All-in-One Streaming Switcher

DATAVIDEO iCast 10NDI MK II 4-Channel 1080p All-in-One Streaming Switcher is built for productions that need switching, streaming, recording, and source management in one compact box instead of a table full of separate devices. Based on the source details, this is a 1U rackmount live production switcher designed around 1080p workflows, with support for HDMI, 3G-SDI, and IP inputs including NDI HX, RTSP, and SRT, plus simultaneous program streaming and recording.

Highlights

• All-in-one 1080p streaming switcher built for compact live production workflows
• HDMI, 3G-SDI, and IP video input support including NDI HX, RTSP, and SRT
• Built-in streaming and recording for simultaneous program delivery and local capture
• USB UVC, multiview, PiP, and logo insertion support flexible output and presentation workflows
• Built-in audio mixer and vertical video support help the system fit modern hybrid productions

Quick Specs & Uses

• Product name: DATAVIDEO iCast 10NDI MK II 4-Channel 1080p All-in-One Streaming Switcher
• Model number: iCAST 10NDI MKII
• Video standard: HD and SD

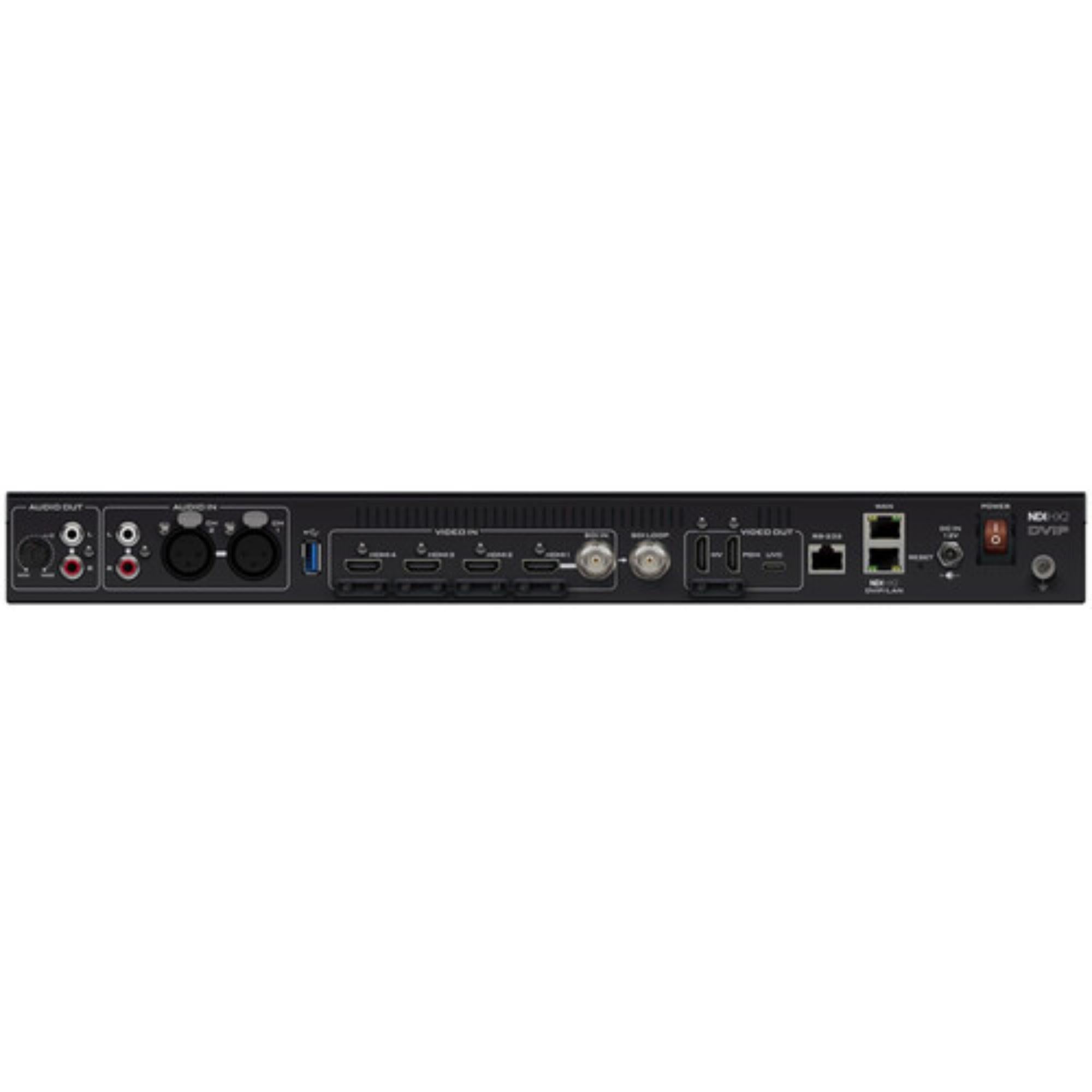

• Video inputs: 1 x 3G/HD/SD-SDI, 4 x HDMI 1.4 with channel 1 selectable as SDI or HDMI, 3 x RTSP/SRT/NDI HX via IP stream
• Input formats: 1080p, 1080i, 720p, 480i, 576i as listed in source
• Video outputs: 1 x 3G/HD/SD-SDI loop-through, 1 x HDMI 1.4, 1 x HDMI 1.4 multiview, 1 x USB 3.0 UVC, 2 x RJ45 LAN and WAN
• Output formats: 1080p 50/59.94/60, 720p 50/59.94/60
• Down-converted output: 1080p
• Streaming encode: H.264/AVC Main and High Profile
• Streaming protocols: TS over UDP, RTSP over HTTP/TCP/UDP, RTMP/RTMPS, HLS, SRT, WebRTC, NDI HX
• Network interface: 2 x RJ45 female 10/100/1000M Ethernet
• Recording storage: SATA 6Gb/s
• Recording file system: FAT, exFAT
• Recording file format: MP4
• Audio inputs: 2 x XLR balanced mic, 1 pair RCA unbalanced, SDI embedded audio, HDMI embedded audio, IP audio
• Audio output: 1 x 3.5 mm headphone PGM monitoring
• Audio delay calibration: 0 to 3000 ms per channel
• Built-in audio mixer: yes
• Special features: Web GUI title creator, PiP, logo insertion, vertical video crop or rotate, vertical video multiview
• Chassis: 1U rack mount
• Dimensions: 440 x 284 x 44 mm without rack ears, 484 x 284 x 44 mm with rack ears
• Weight: 2.926 kg
• Power: DC 12V 2A 24W
• Operating temperature: 0 to 40°C / 32 to 122°F

Why It Helps

In a real live production workflow, the hard part is rarely just switching video. It is also dealing with source variety, audio, local recording, stream delivery, and monitoring without spreading the job across too many separate devices. This switcher makes sense because it combines those functions into one compact control point, which can simplify both setup and day-to-day operation.

System Characteristics

• Hybrid local and IP input support helps the switcher fit mixed camera and network workflows
• Built-in streaming and recording support live delivery and local backup at the same time
• Multiview and USB UVC output make the unit more flexible for monitoring and conferencing workflows
• Embedded and external audio mixing reduce the need for a separate small audio device in simpler productions
• Vertical video tools make the system more useful for social and portrait-oriented content workflows

What’s In The Box

Please refer to the Specifications tab for the exact included items.
