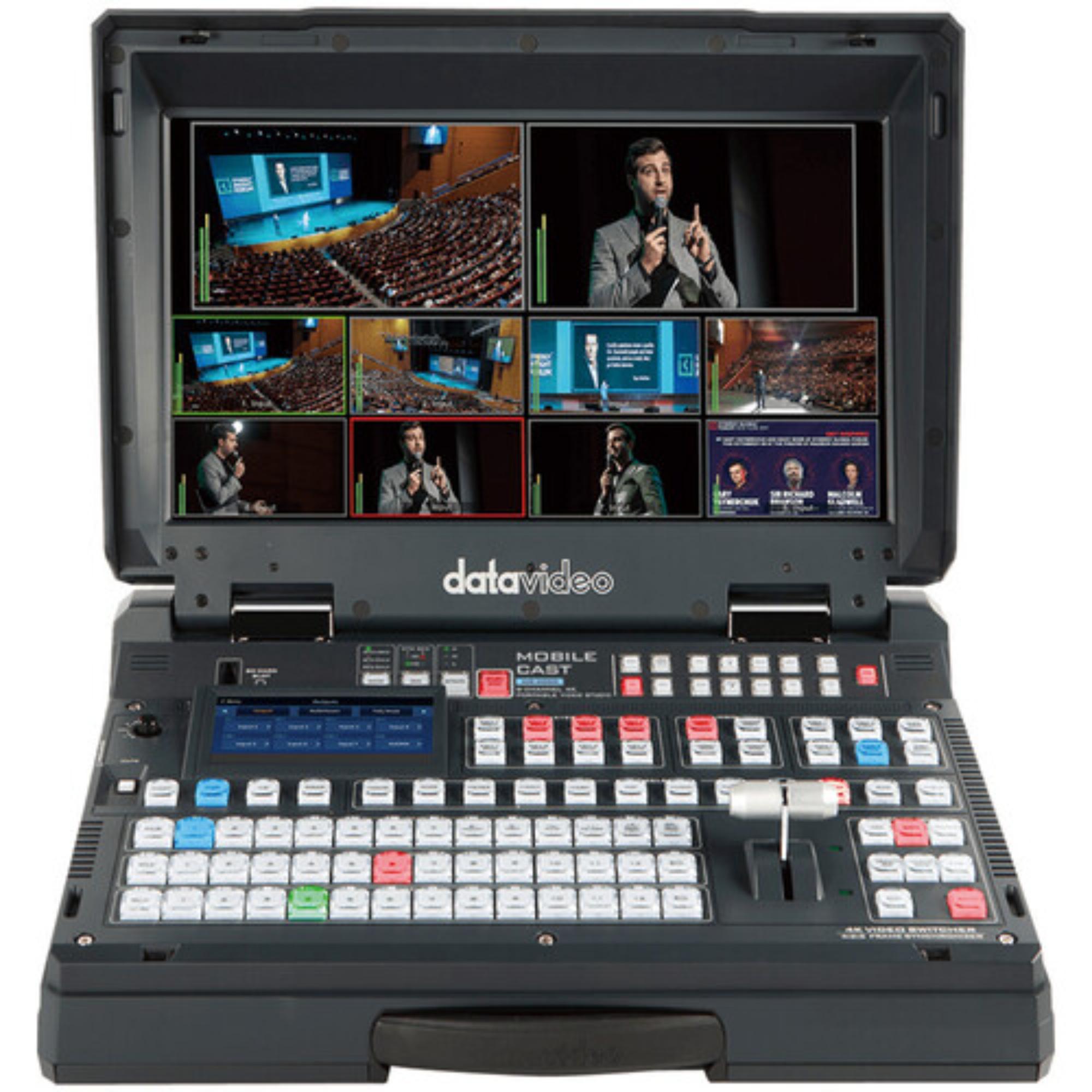

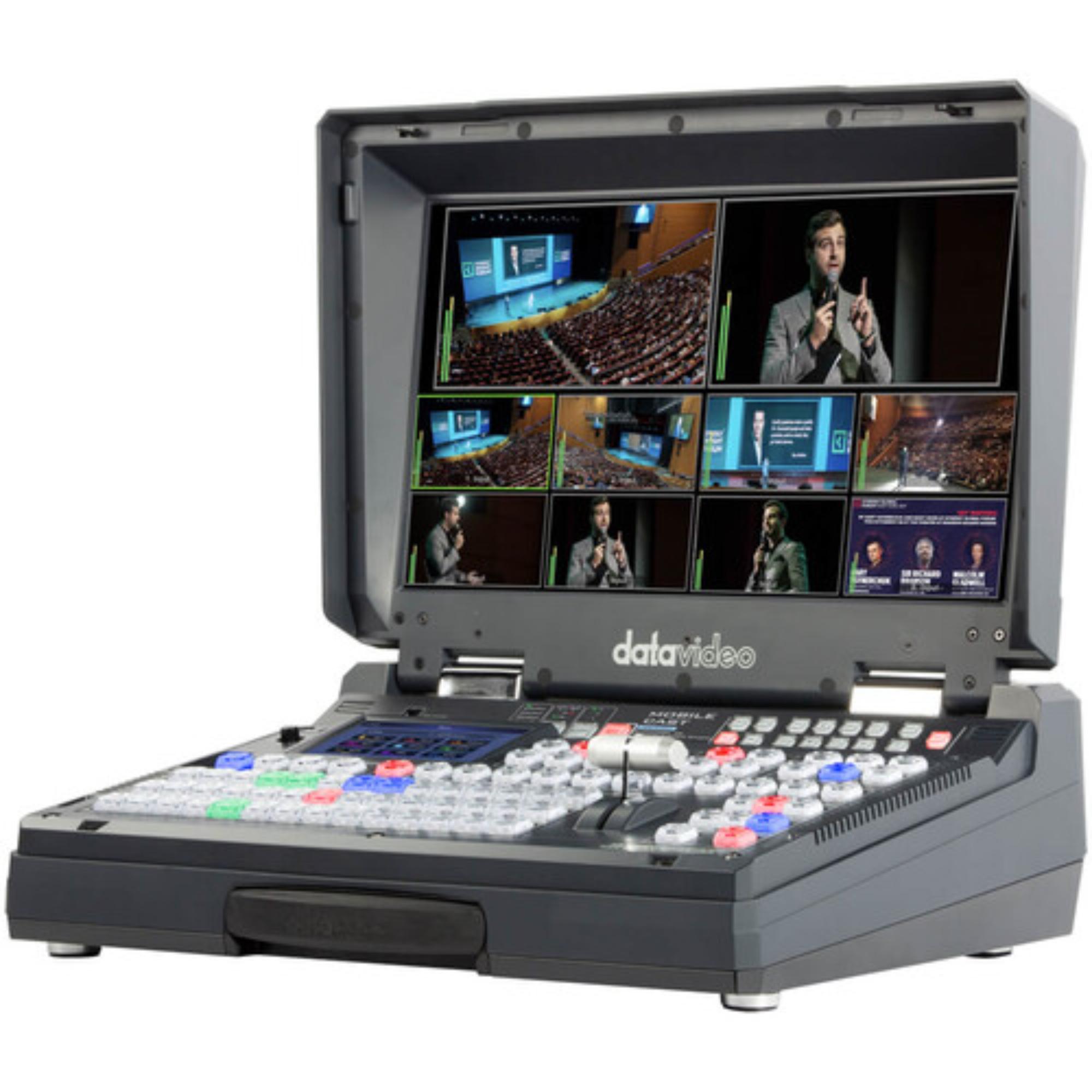

DATAVIDEO 8-Input 4K Mobile Studio with Built-In 17.3" LCD Monitor

DATAVIDEO 8-Input 4K Mobile Studio with Built-In 17.3" LCD Monitor is built for productions that want a real 4K-capable switcher workflow in a case-style portable form without having to assemble the system from separate monitors, switchers, and streaming gear. Based on the source details, this mobile studio combines 8 live inputs selected from 12 total SDI and HDMI connections, a 17.3 inch UHD 4K multiview display, a 5 inch touchscreen control panel, integrated streaming and recording, and balanced XLR audio I/O in one transportable production platform.

Highlights

• Case-style 4K mobile studio built for portable live production workflows
• 8 live inputs selected from 12 total SDI and HDMI connections for flexible source management
• 17.3 inch UHD 4K built-in monitor provides integrated multiview display
• Assignable 12G-SDI and HDMI outputs support program, preview, multiview, and clean feed routing
• Integrated streaming, recording, keying, and audio mixing reduce the need for additional boxes

Quick Specs & Uses

• Product name: DATAVIDEO 8-Input 4K Mobile Studio with Built-In 17.3" LCD Monitor
• Video standard: 4K and HD
• Supported formats: 3840 x 2160p, 1080p, 1080i as listed in source
• Input crosspoint routing: yes

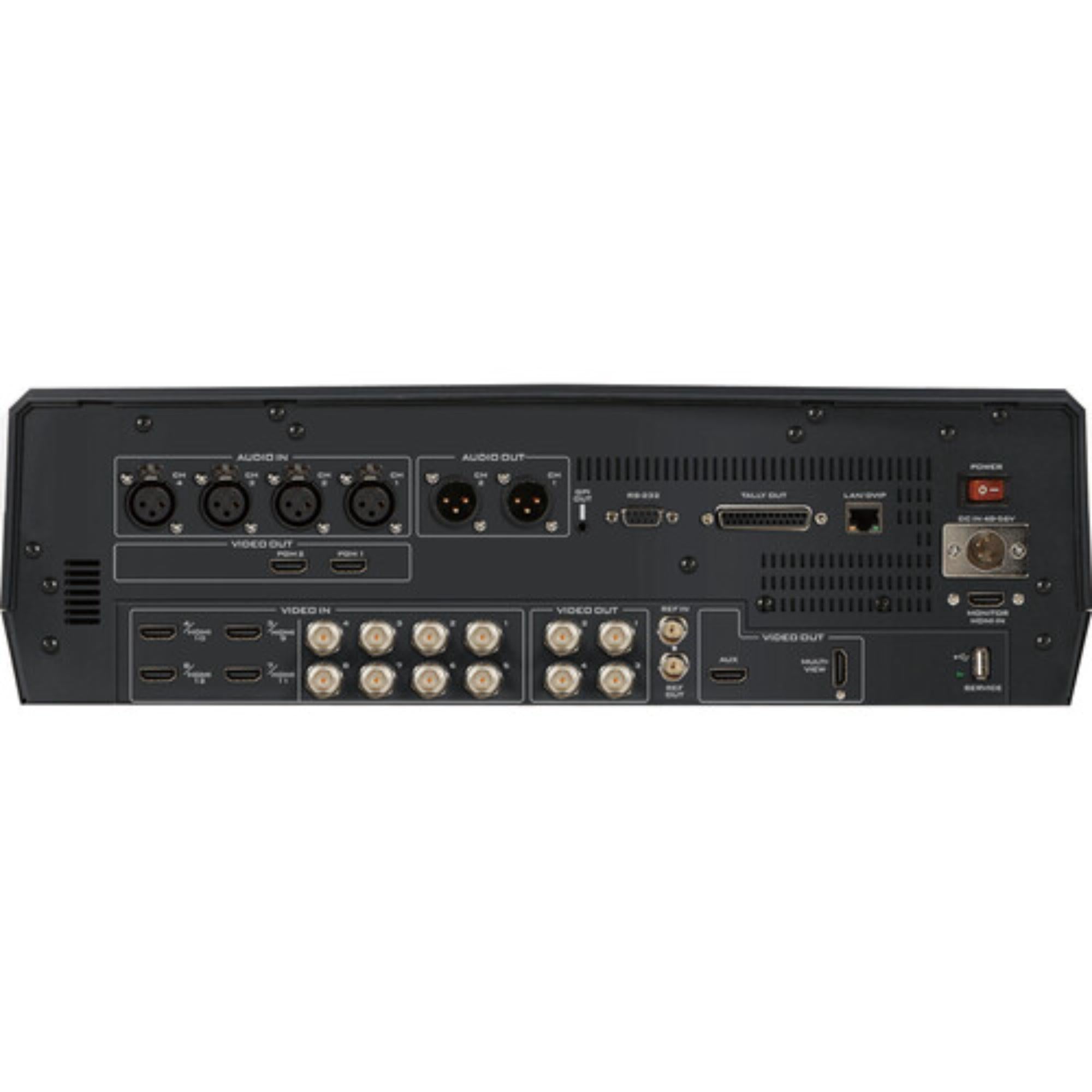

• Total video connections: 8 x 12G-SDI, 4 x HDMI
• Active live inputs: select 8 from 12
• Computer graphic interface: 4 via HDMI
• Assignable outputs: 4 x 12G-SDI, 1 x HDMI assignable for multiview, PGM, PVW, PGM + DSK, clean PGM, clean PVW, or direct inputs
• Additional outputs: 2 x HDMI PGM only, 1 x HDMI multiview
• Down-converted output: yes
• Built-in monitor: 17.3 inch 4K TFT LED backlit, 3840 x 2160
• Touch control: 5 inch touch panel
• Audio inputs: 4 x balanced XLR
• Audio outputs: 2 x balanced XLR
• Embedded audio support: input 4 channels, output 4 channels
• Audio delay calibration: up to 16 frames
• A plus V switching: yes
• USK: 4
• DSK: 2 with luma key and linear key support
• Picture in picture: 2
• Logo insertion: 2
• Built-in audio mixer: yes
• Streaming codecs: H.264 up to HD60, H.265 up to 4K60
• Streaming audio encode: AAC 2-channel, 16-bit, 48 kHz, 192 Kbps
• Streaming protocols: RTMP, SRT
• Recording file system: FAT32, exFAT
• Recording file format: MP4 with H.265 plus AAC or H.264 plus AAC
• Special features: 4 chroma-key virtual studio, streaming encoder and recorder
• Dimensions: 455 x 370 x 134 mm
• Weight: 9.2 kg
• Power: DC 56V, 4.46A
• Operating temperature: 0 to 40°C

Why It Helps

In a mobile production environment, speed and consolidation matter. The more functions the system can handle inside one case, the less time gets spent on external wiring, separate monitoring, and extra support gear. This unit makes sense because it combines source switching, multiview monitoring, audio handling, streaming, recording, and output routing into one portable production platform.

System Characteristics

• 12 total source connections with 8 live active inputs give the system more flexibility than a fixed-input portable switcher
• Built-in 17.3 inch 4K monitor keeps multiview monitoring integrated into the production surface
• Assignable outputs make it easier to route different views to different destinations
• Integrated streaming and recording allow live delivery and local capture from the same unit
• Keyers, PiP, and virtual studio support make the switcher useful beyond simple cut switching
