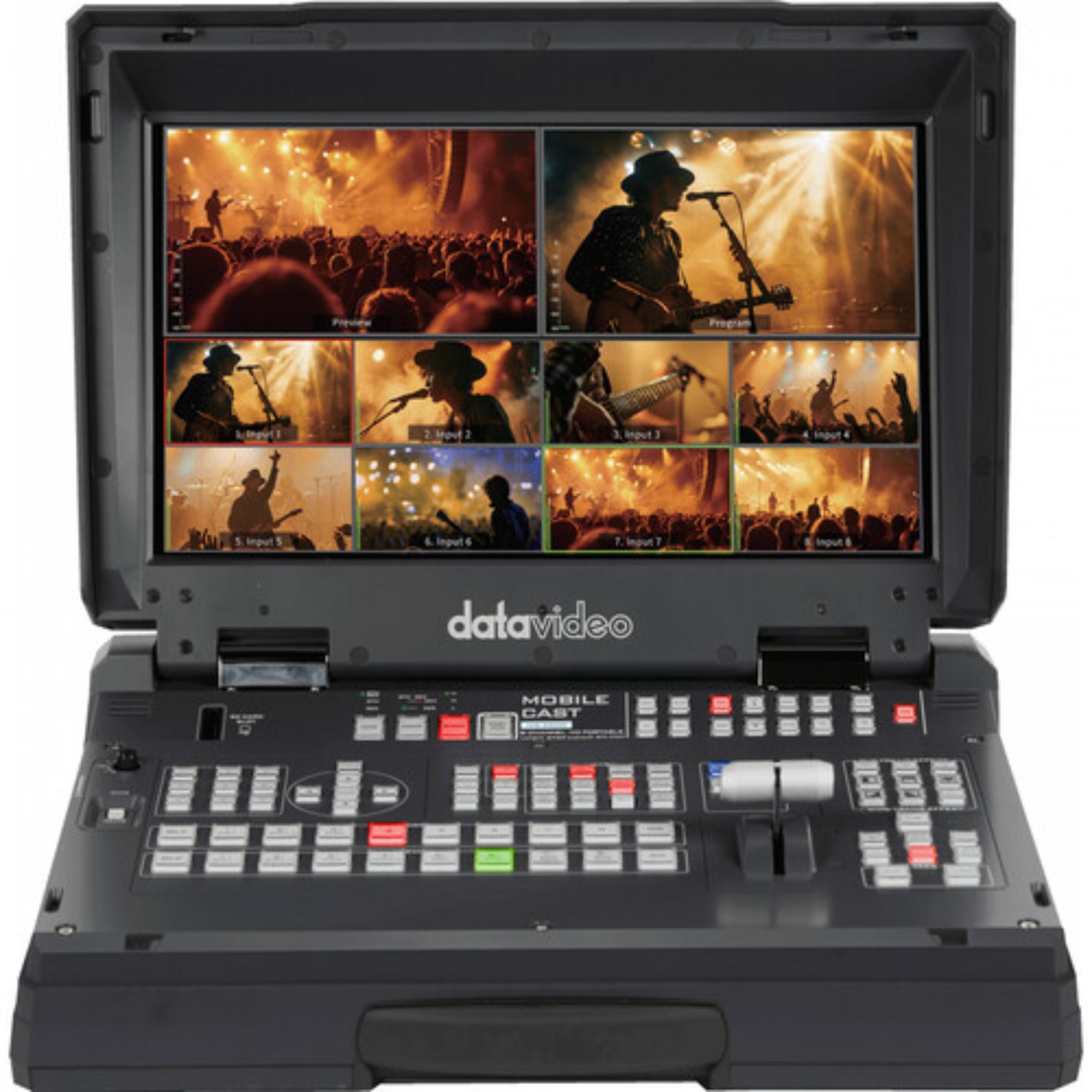

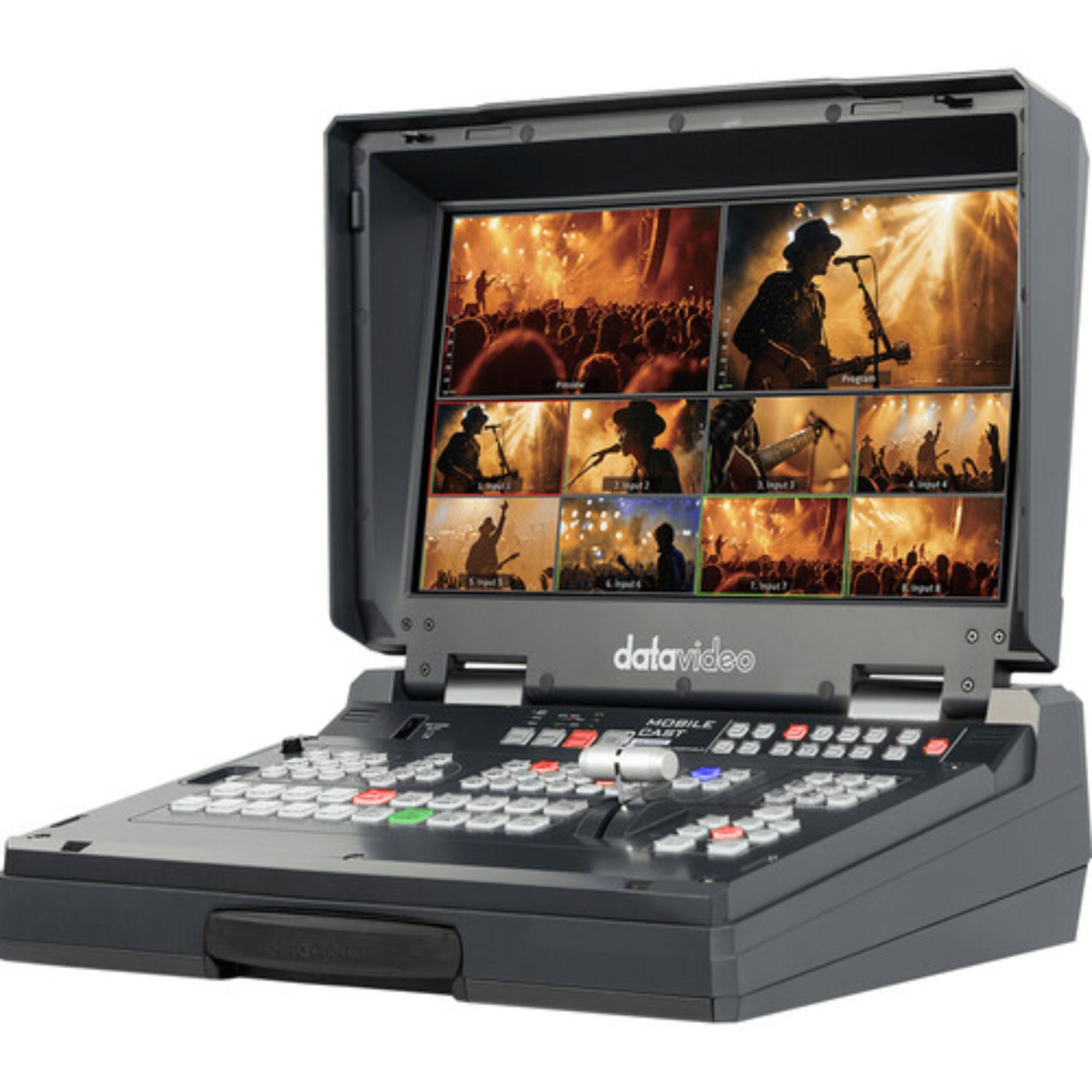

DATAVIDEO HS-2600 HD 8-Channel Portable Video Streaming Studio

DATAVIDEO HS-2600 HD 8-Channel Portable Video Streaming Studio is built for productions that want a real switcher surface, integrated monitor, streaming, and recording in one portable chassis instead of spreading the workflow across multiple separate devices. Based on the source details, this is an HD 8-channel portable video studio with 4 x 3G-SDI inputs, 4 x HDMI inputs, a built-in 17.3 inch Full HD monitor, integrated streaming and recording, and a feature set designed for more than basic event switching.

Highlights

• Portable HD live video studio built for compact production workflows
• 4 x SDI and 4 x HDMI inputs support mixed camera and presentation source setups
• Built-in 17.3 inch HD monitor keeps multiview monitoring inside the switcher surface
• Integrated streaming and recording help reduce the need for external encoder and recorder hardware
• Keyers, PiP, title creation, and chroma-key tools support more produced show builds

Quick Specs & Uses

• Product name: DATAVIDEO HS-2600 HD 8-Channel Portable Video Streaming Studio
• Model number: HS-2600
• Video standard: HD
• Supported formats: 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60
• Input routing: all 8, repeatable

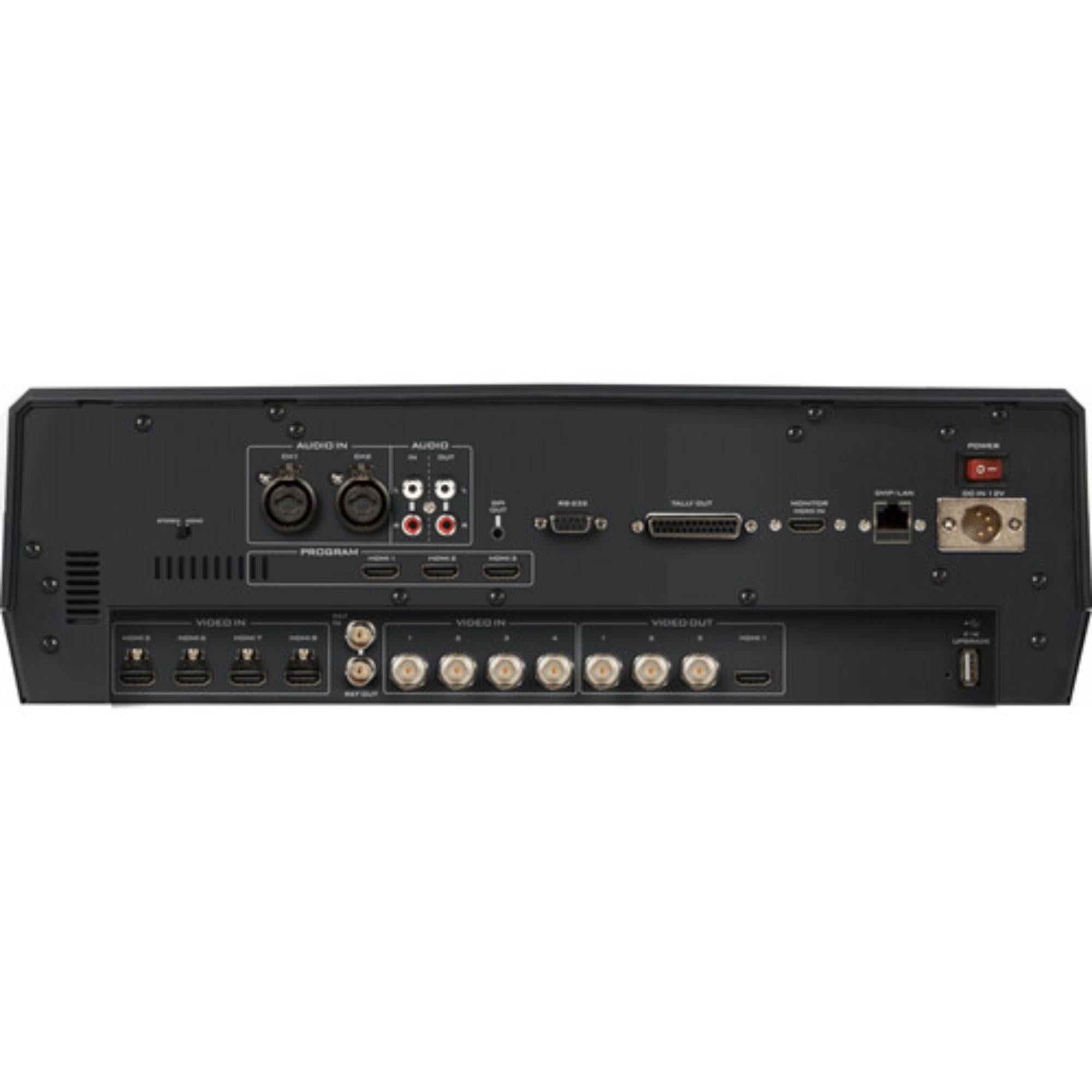

• Video inputs: 4 x 3G-SDI, 4 x HDMI
• Computer graphic interface: 4 via HDMI
• Video outputs: 3 x 3G-SDI for PGM with AUX assignable use, 1 x HDMI 1.4 for PGM with AUX assignable use, 3 x HDMI 1.4 for PGM
• Audio inputs: 2 x XLR/MIC 6.3 mm combo socket, 1 x stereo RCA audio
• Audio output: 1 x stereo RCA audio
• Embedded audio support: SDI input/output 4 channels, HDMI input/output 2 channels
• Audio delay calibration: up to 16 frames
• A plus V switching: yes
• USK: 4
• DSK: 2
• Picture in picture: 4
• Logo insertion: 2
• Title creator: yes
• Built-in monitor: 17.3 inch HD TFT LED backlit, 1920 x 1080
• Streaming codecs: H.264 max 1080p, H.265 max 1080p
• Streaming audio encode: AAC 2-channel, 16-bit, 48 kHz, 192 Kbps
• Streaming protocols: RTSP, RTMP, SRT
• Recording file system: FAT32, exFAT
• Recording file format: MP4 using H.265 plus AAC or H.264 plus AAC
• Special features: 4 chroma-key virtual studio, built-in CG title overlay system, 9 stinger transitions, 4 user presets, streaming encoder and recorder
• Dimensions: 455 x 355 x 134 mm
• Weight: 8.5 kg
• Power: DC 12V, 11A
• Operating temperature: 0 to 40°C

Why It Helps

In portable production, the biggest challenge is often not capability but consolidation. The more switching, monitoring, streaming, and graphics functions that can stay inside one case, the less time gets spent on setup and support gear. This system makes sense because it keeps those core live production functions together in a form that is easier to move and deploy.

System Characteristics

• Integrated monitor and switcher surface make the unit more practical for fast setup work
• Mixed SDI and HDMI inputs support both camera and computer-style production sources
• Built-in streaming and recording reduce dependence on separate external devices
• Layering tools including keyers, PiP, and title creation support more complete program builds
• Portable case-style design helps the switcher fit event, worship, education, and mobile studio workflows

What’s In The Box

Please refer to the Specifications tab for the exact included items.
