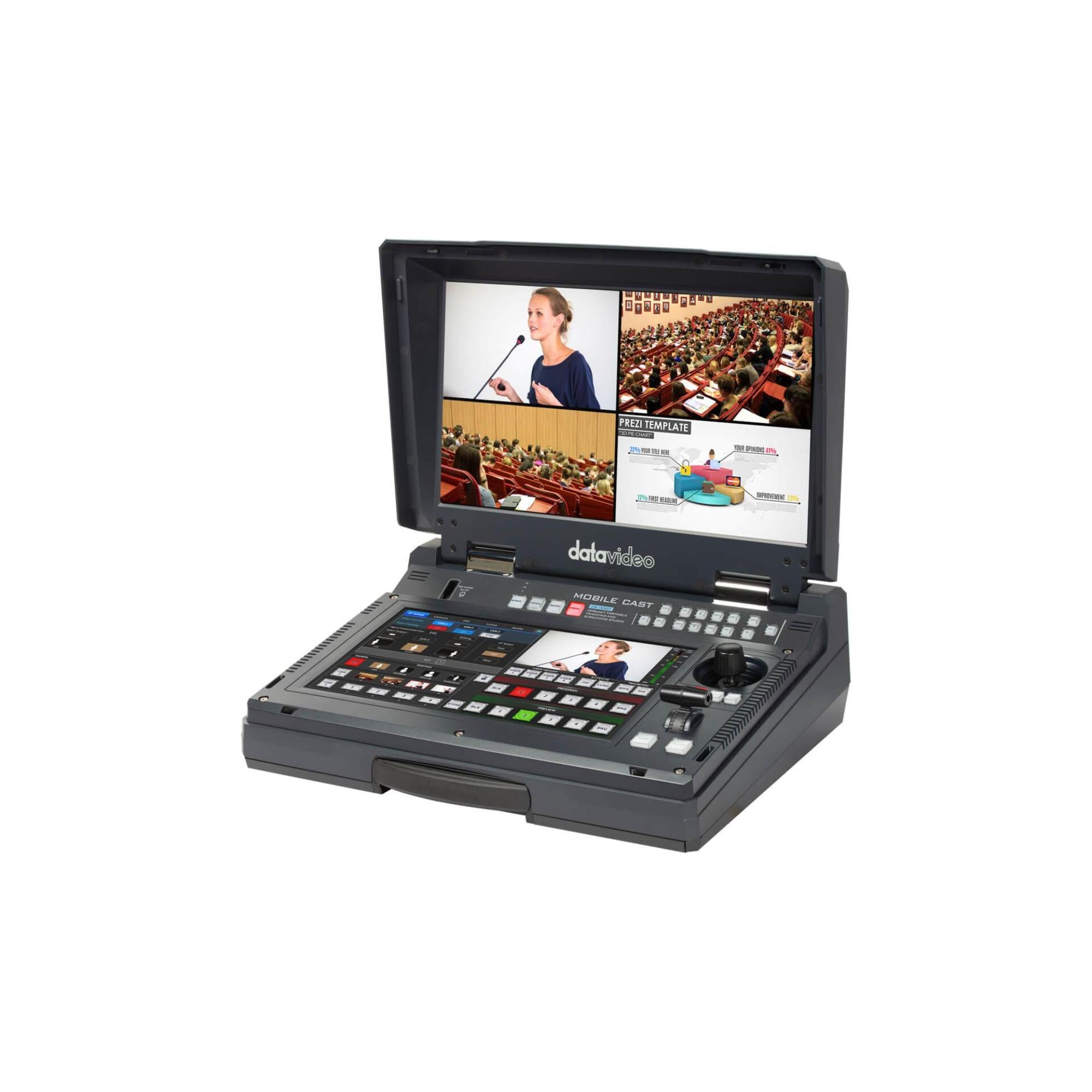

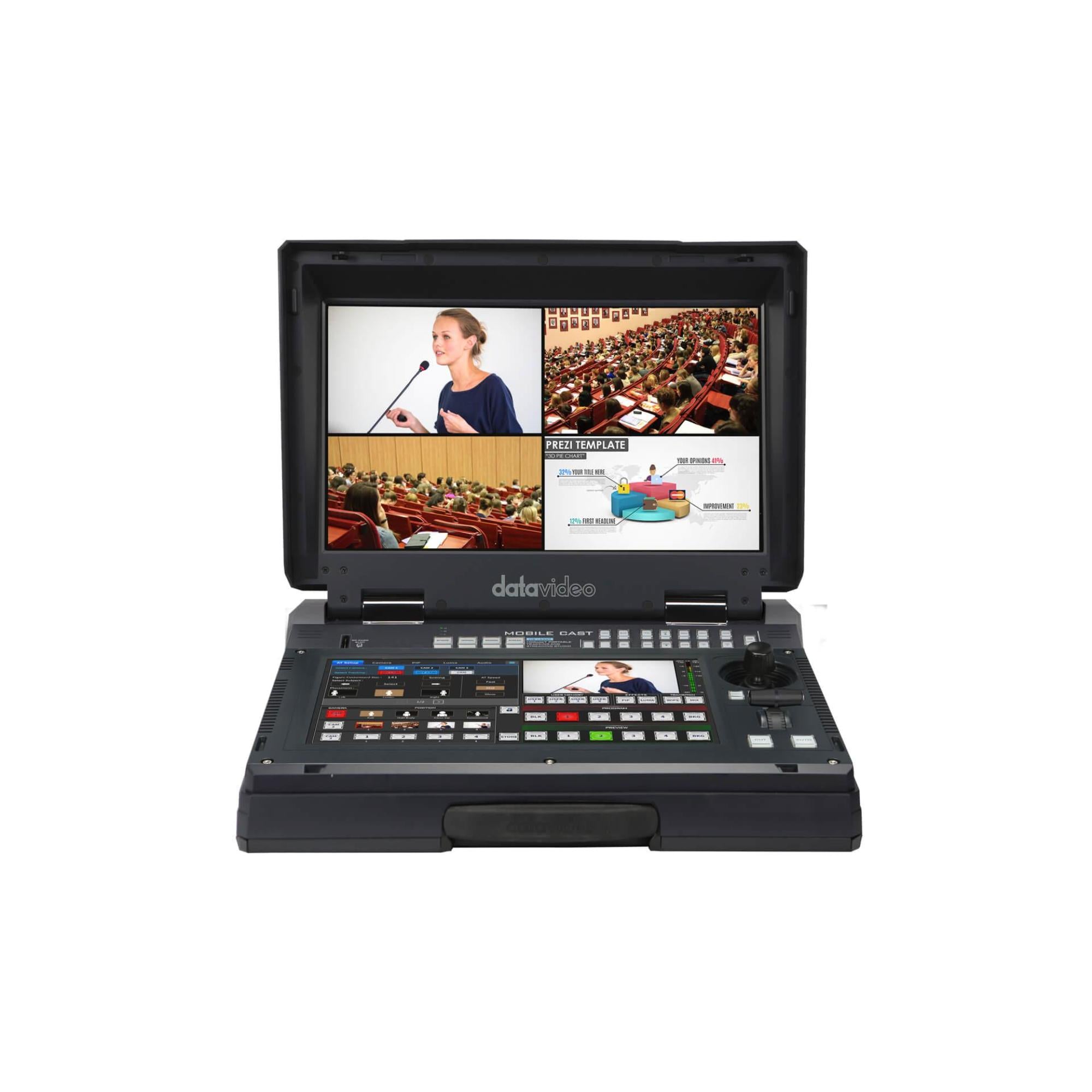

DATAVIDEO HS-1650T HDBaseT Portable Tracking and Streaming Studio

DATAVIDEO HS-1650T HDBaseT Portable Tracking and Streaming Studio is built for productions that need a compact switching, monitoring, streaming, and control workflow without breaking the system into multiple external devices. Based on the source details, this is a portable HDBaseT-based video studio with 3 x HDBaseT inputs, 1 x HDMI input, a built-in 17.3 inch Full HD monitor, integrated H.264 streaming and MP4 recording, and a feature set designed for controlled multi-camera production in a transportable format.

Highlights

• Portable HDBaseT live production studio built for compact and field-ready workflows
• 3 x HDBaseT and 1 x HDMI inputs support longer cable runs and mixed source environments
• Built-in 17.3 inch HD monitor keeps multiview and program monitoring inside the system
• Integrated streaming and recording reduce reliance on external encoders and recorders
• Built-in camera controller and audio mixer support a more complete production setup

Quick Specs & Uses

• Product name: DATAVIDEO HS-1650T HDBaseT Portable Tracking and Streaming Studio
• Model number: HS-1650T
• Video standard: HD & SD
• Supported formats: 1080p 50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60, 576i/p 50Hz, 480i/p 59.94Hz
• Video inputs: 3 x HDBaseT, 1 x HDMI
• Computer graphic interface: 1 via HDMI
• Down-converted output: yes

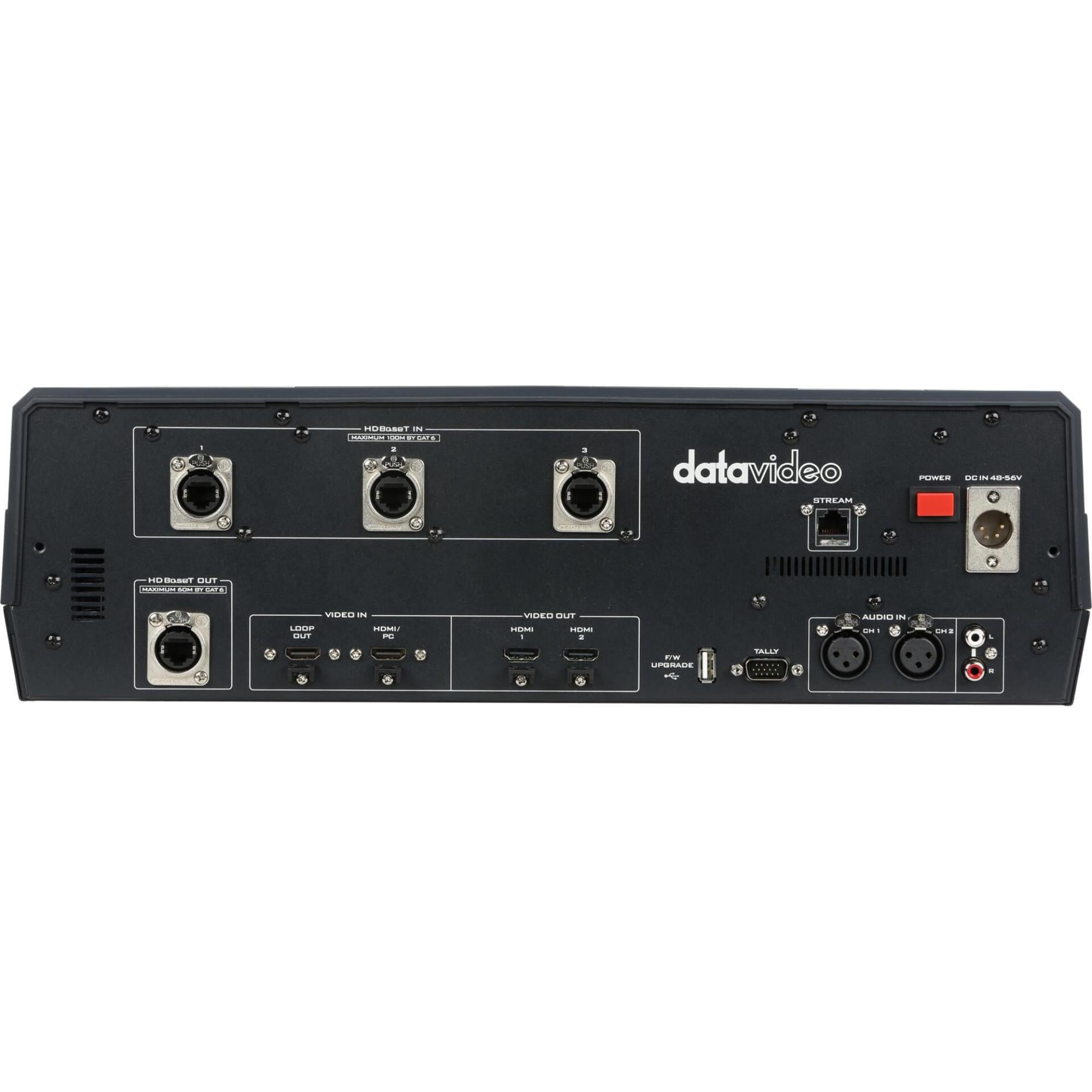

• Video outputs: 3 x HDMI PGM, 1 x HDBaseT PGM, 1 x STREAM (RJ-45)
• Audio inputs: 2 x balanced XLR, 1 x stereo RCA (L/R), de-embedded digital audio
• Audio output: 1 x stereo headphone
• Embedded audio support: input 2 channels, output 2 channels
• USK: 1 (Lumakey support)
• Picture in picture: 1
• Built-in audio mixer: yes, 4 channels
• Built-in monitor: 17.3 inch HD TFT LED backlit, 1920 x 1080
• Streaming codec: H.264 / AVC Main / High Profile, up to 10 Mbps
• Streaming audio: AAC-LC, 48 kHz, 16-bit, 32–384 Kbps
• Streaming protocols: TS over TCP/UDP, RTSP, RTMP/RTMPS, HLS, SRT
• Recording file system: FAT, exFAT, NTFS
• Recording format: MP4
• Control: web browser UI and socket commands
• Special features: built-in camera controller
• Dimensions: 455 x 355 x 134 mm
• Weight: 7.8 kg (17.2 lbs)
• Power: DC 48V, 4.16A
• Operating temperature: 0 to 40°C

Why It Helps

In smaller production environments, the real issue is not capability but how many separate devices are required just to get a system online. Switching, monitoring, streaming, recording, and camera control often end up spread across multiple boxes. This system keeps those functions inside a single chassis, which simplifies setup, reduces cable management, and makes the overall workflow easier to deploy in portable or space-limited environments.

System Characteristics

• HDBaseT input structure supports longer cable runs and cleaner camera deployment compared to HDMI-only systems
• Integrated monitor and switcher surface improve usability in mobile and temporary setups
• Built-in streaming and recording engine removes the need for separate encoding hardware
• Multi-protocol streaming support allows integration into different broadcast and streaming platforms
• Combined audio, control, and switching functions reduce system complexity in field production workflows

What’s In The Box

Please refer to the Specifications tab for the exact included items.
