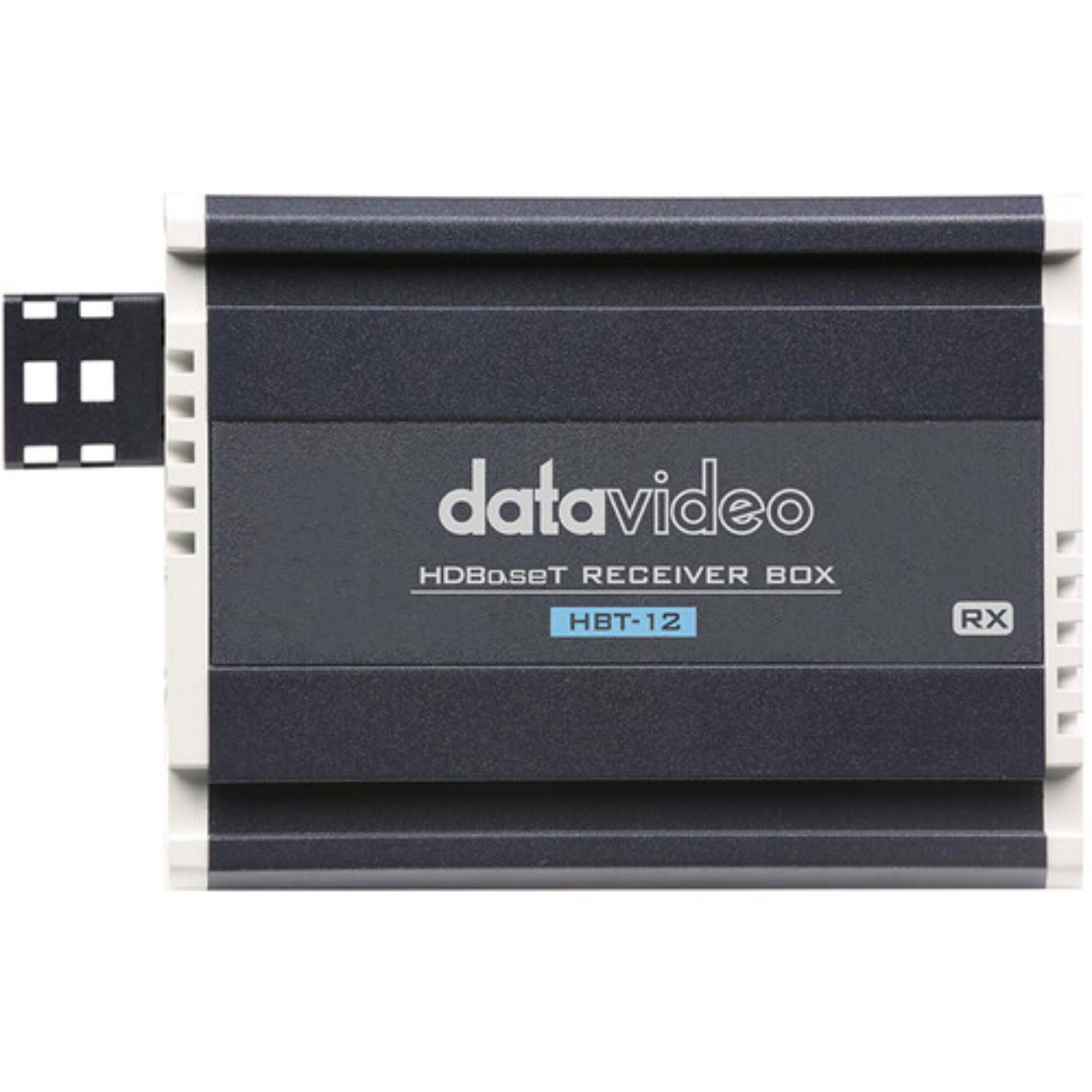

DATAVIDEO HBT-12 HDBaseT Receiver

DATAVIDEO HBT-12 HDBaseT Receiver is built for systems that need to bring a remote video feed back over a single cable and convert it to HDMI at the receiving end. Based on the source details, this is a compact HDBaseT receiver with 1 HDBaseT RJ-45 input and 1 HDMI output, supporting formats up to 3840 x 2160 at 30 fps along with standard 1080p, 1080i, and 720p production formats. It is a practical fit for installations and camera workflows where longer cable runs matter more than keeping everything close to the display or switcher.

Highlights

• Single-channel HDBaseT receiver with HDMI output for long-distance signal return
• Supports 4K up to 30 fps plus common 1080p, 1080i, and 720p formats
• Extends 1080p60 up to 100 meters and 4K30 up to 70 meters over CAT.7 cable
• DVIP and RS-422 / RS-232 input support for integrated control paths
• 65W PoE output and compact enclosure for organized system deployment

Quick Specs & Uses

• Product name: DATAVIDEO HBT-12 HDBaseT Receiver
• Video and audio input: HDBaseT RJ-45 x1
• Video and audio output: HDMI x1
• Supported 4K format: 3840 x 2160 at 30, 29.97, 25, 24, and 23.98
• Supported 1080p format: 1080p at 60, 59.94, 50, 30, 29.97, 25, 24, and 23.98
• Supported 1080i format: 1080i at 60, 59.94, and 50
• Supported 720p format: 720p at 60, 59.94, and 50
• DVIP: RJ-45 x1 input
• RS-422 and RS-232: RJ-45 x1 input
• Power input: DC 56V
• PoE output: 65W
• HDBaseT distance at 1080p60: 100 m by CAT.7 cable
• HDBaseT distance at 4K2K30: 70 m by CAT.7 cable
• Dimensions: 132 x 85 x 45 mm
• Weight: 400 g
• Operating temperature: 0 to 40°C

Why It Helps

HDMI is fine until the source has to live across the room, down the hall, or at the far end of a venue. That is where a receiver like this earns its keep. The HBT-12 gives the system a cleaner way to bring video back over structured cabling and hand it off as HDMI where it is actually needed. For installed AV, live production, education, or worship workflows, that usually means longer runs with less clutter and fewer improvised signal fixes.

System Characteristics

• Compact receiver format makes it easier to place near the destination display or switcher
• CAT.7 transmission support allows longer runs than standard local HDMI cabling
• 4K30 and HD format compatibility helps the receiver fit mixed-resolution environments
• Control connectivity over RJ-45 adds value beyond simple video transport
• 65W PoE output supports more integrated deployment in compatible systems

What’s In The Box

Please refer to the Specifications tab for the exact included items.
