DATAVIDEO GO-SHOWCAST-100-LT

DATAVIDEO GO-SHOWCAST-100-LT is built for productions that want PTZ control, switching, streaming, and long-distance camera connectivity in one transportable package instead of assembling the workflow from separate pieces. Based on the source details, this kit comes assembled and includes the SHOWCAST 100, HBT-30, and HC-SHOWCAST hard case. In real use, it is aimed at 4K auto-tracking environments where a compact, single-operator setup makes more sense than a rack full of separate hardware.

Highlights

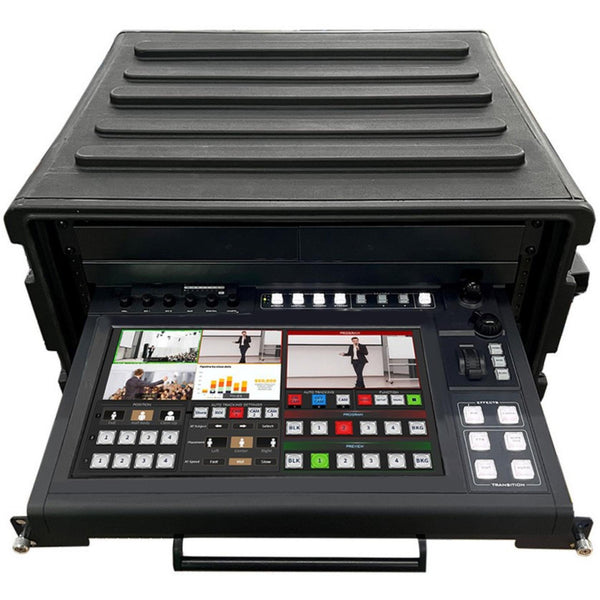

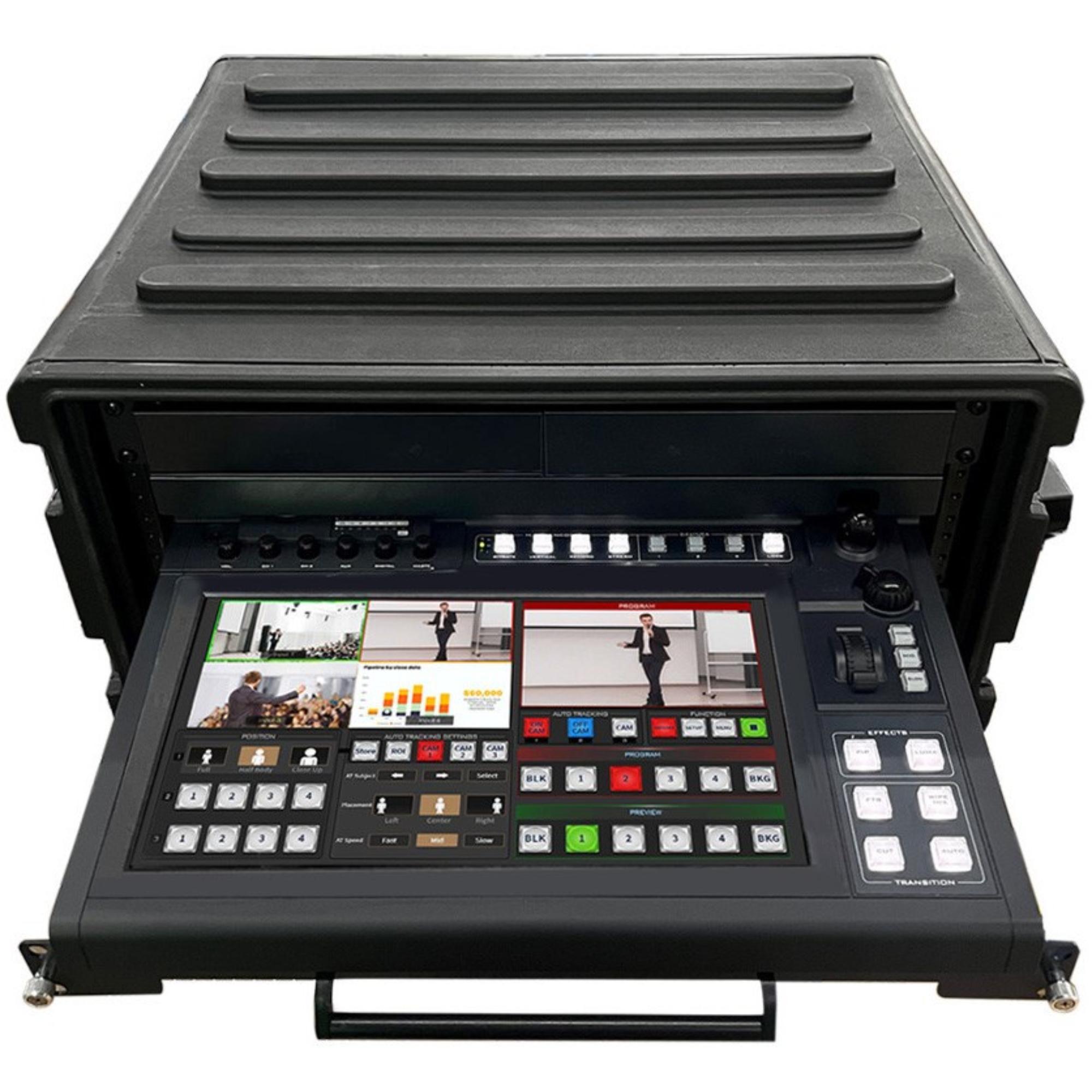

• Assembled production package built around SHOWCAST 100, HBT-30, and HC-SHOWCAST hard case
• 4K 4-channel all-in-one production studio with a 14-inch touchscreen interface
• Built-in auto-tracking control for subject selection, zoom, framing, and tracking speed adjustment
• Long-range PTZ connectivity through HBT-30 with power, 4K50/60 video, and control transport up to 100 meters
• Portable briefcase-style format built for easier setup and mobility

Quick Specs & Uses

• Product name: DATAVIDEO GO-SHOWCAST-100-LT
• Kit status: comes assembled
• Included production unit: SHOWCAST 100 4K 4-channel all-in-one production studio
• Included connectivity unit: HBT-30 3-channel HDBaseT receiver
• Included case: portable hard case, HC-SHOWCAST
• Touch panel size: 14 inch
• Main functions: video switching, text and graphics overlay, camera control, auto-tracking parameter control, live streaming, recording, and audio mixing
• Auto-tracking controls: subject selection, zoom adjustment, framing adjustment, and tracking speed control from the touchscreen
• Connectivity approach: HDBaseT technology for simplified signal and control transport
• Video inputs: 3 RJ-45 and 1 HDMI
• Video outputs: 3 HDMI and 1 HDBaseT
• PTZ camera support: up to 3 PTZ cameras
• Signal support: Ultra HD 4K50/60
• Transmission distance: up to 100 meters over a single CAT cable
• PoE support: powers PTZ cameras via PoE
• Remote control support: RS-422 or DVIP
• Use case: single-operator 4K auto-tracking production solution

Why It Helps

Small production systems get complicated fast once switching, camera control, long-distance signal transport, and tracking are all handled separately. This package pulls those jobs back into one more manageable workflow. The touchscreen production surface handles the switching side, while the HBT-30 extends power, video, and control to remote PTZ cameras over a single cable. For classrooms, stages, meeting spaces, and portable production work, that usually means less setup friction and a cleaner signal path overall.

System Characteristics

• All-in-one control approach reduces the number of separate devices needed around the production system
• Touchscreen auto-tracking control gives operators direct access to subject and camera movement settings
• HDBaseT transport through HBT-30 supports longer PTZ camera runs with signal, control, and power on one cable
• 3 PTZ camera workflow makes the package practical for multi-camera auto-tracking environments
• Portable hard case format helps the system fit mobile and temporary production deployments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
