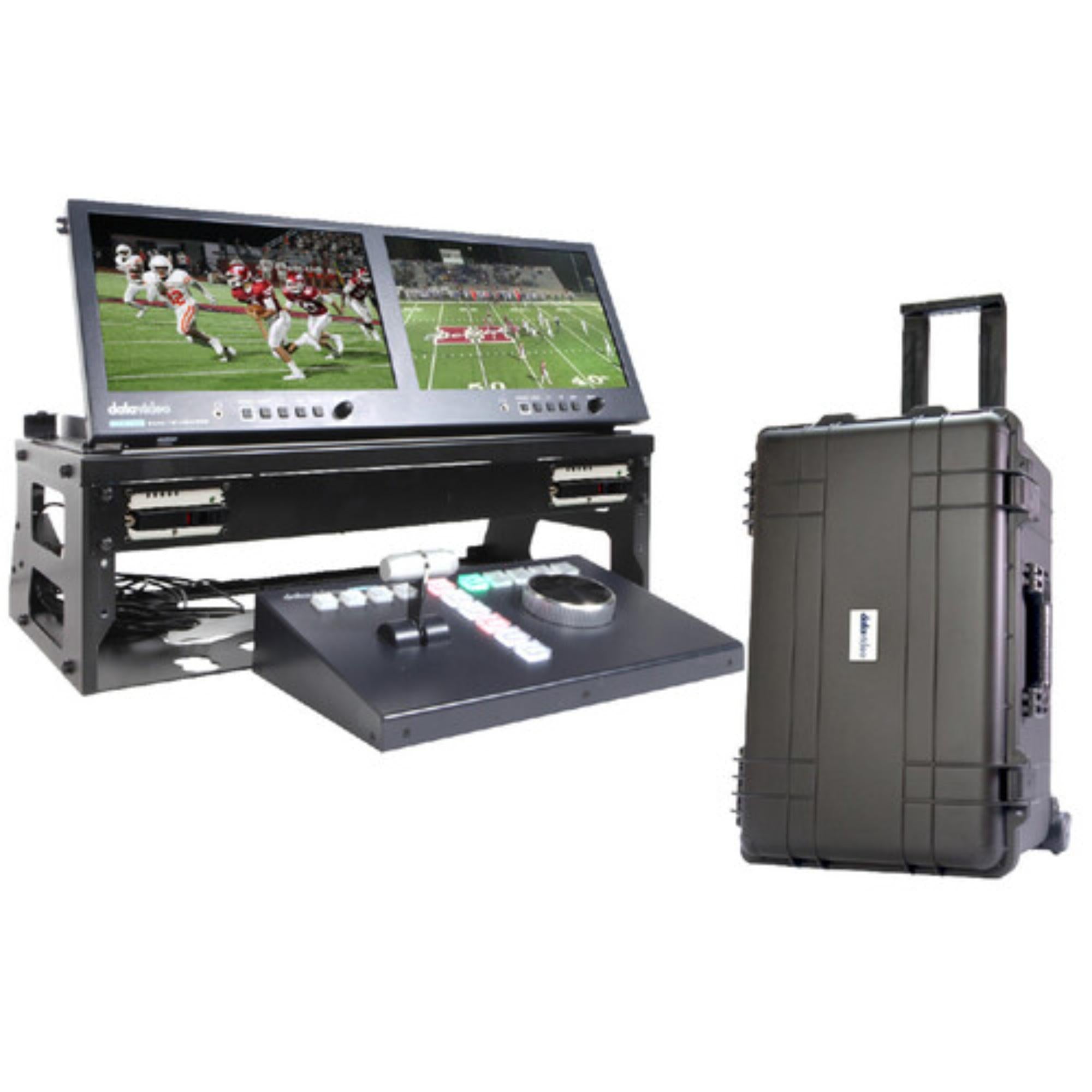

DATAVIDEO Complete Replay Kit 2 with Rolling Case

DATAVIDEO Complete Replay Kit 2 with Rolling Case is built for productions that need a ready-to-deploy replay system instead of assembling the workflow from separate pieces. Based on the source details, this package includes 2 HDR-10 instant replay processors, the RMC-400 replay controller with T-Bar, a 10 inch dual IPS LCD monitor, a rack enclosure, and an HC-800R rolling hard case. In practical use, it is a portable replay solution for sports, event coverage, live streaming support, scoreboard clip playback, and archival recording.

Highlights

• Complete replay package built around 2 HDR-10 processors, RMC-400 controller, monitor, rack, and rolling case
• Designed for sports and event replay workflows with support for highlight clipping, playback, and recording
• HDR-10 replay processors support HD and SD SDI signals with uncompressed 10-bit 4:2:2 recording
• RMC-400 controller with T-Bar gives the system a more practical dedicated replay interface
• Portable rack and wheeled hard case help the package travel more cleanly between venues and setups

Quick Specs & Uses

• Product name: DATAVIDEO Complete Replay Kit 2 with Rolling Case

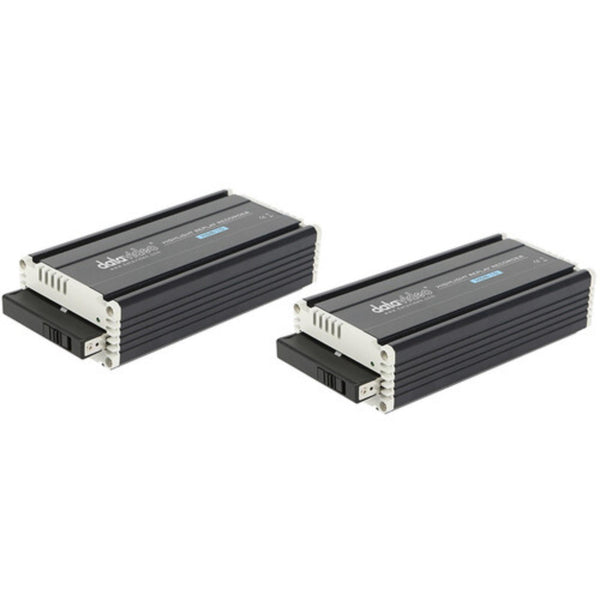

• Included replay processors: 2 x HDR-10 Highlight Replay Recorder with HD/SD-SDI Input and Output

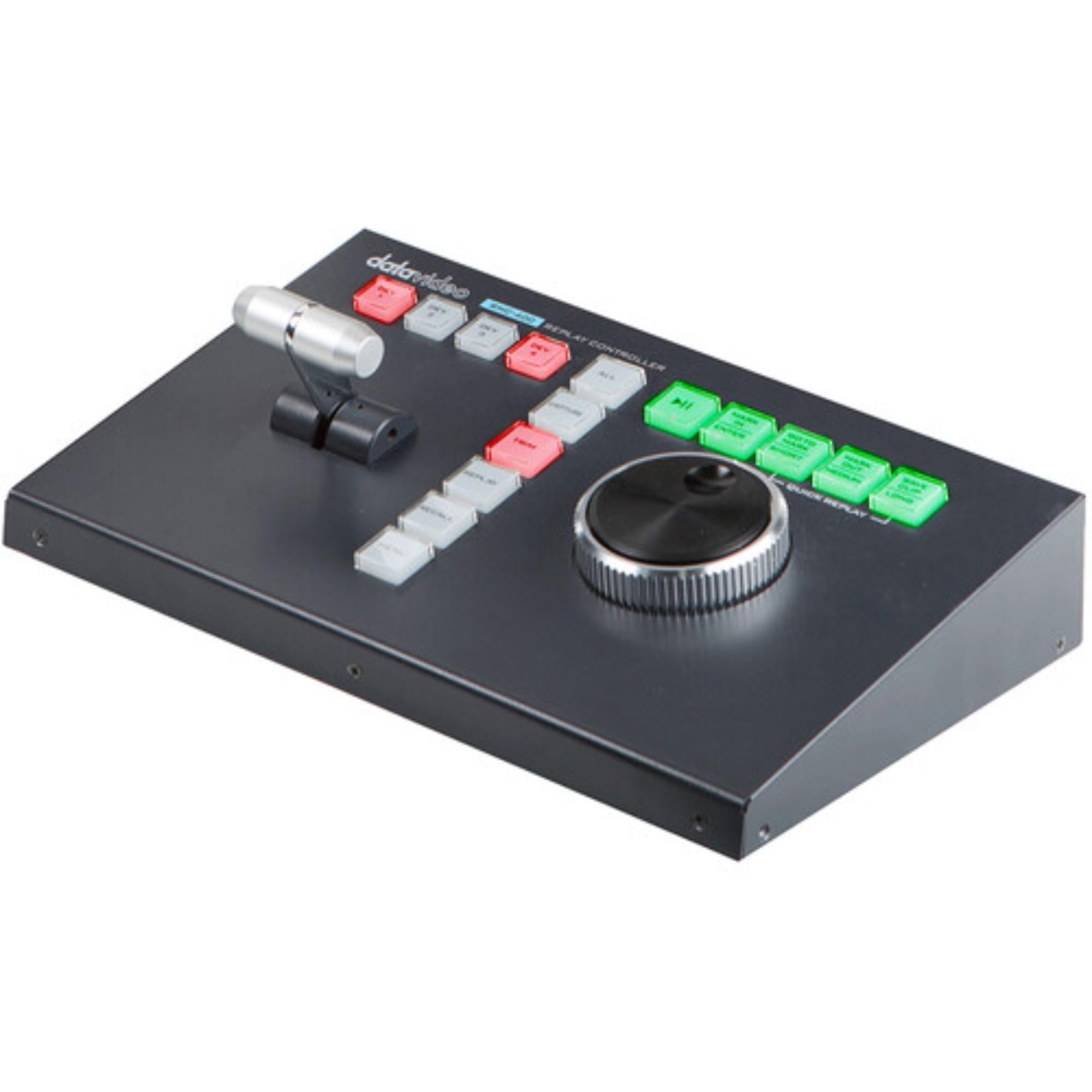

• Included controller: RMC-400 Replay Controller for HDR-10 Recorder

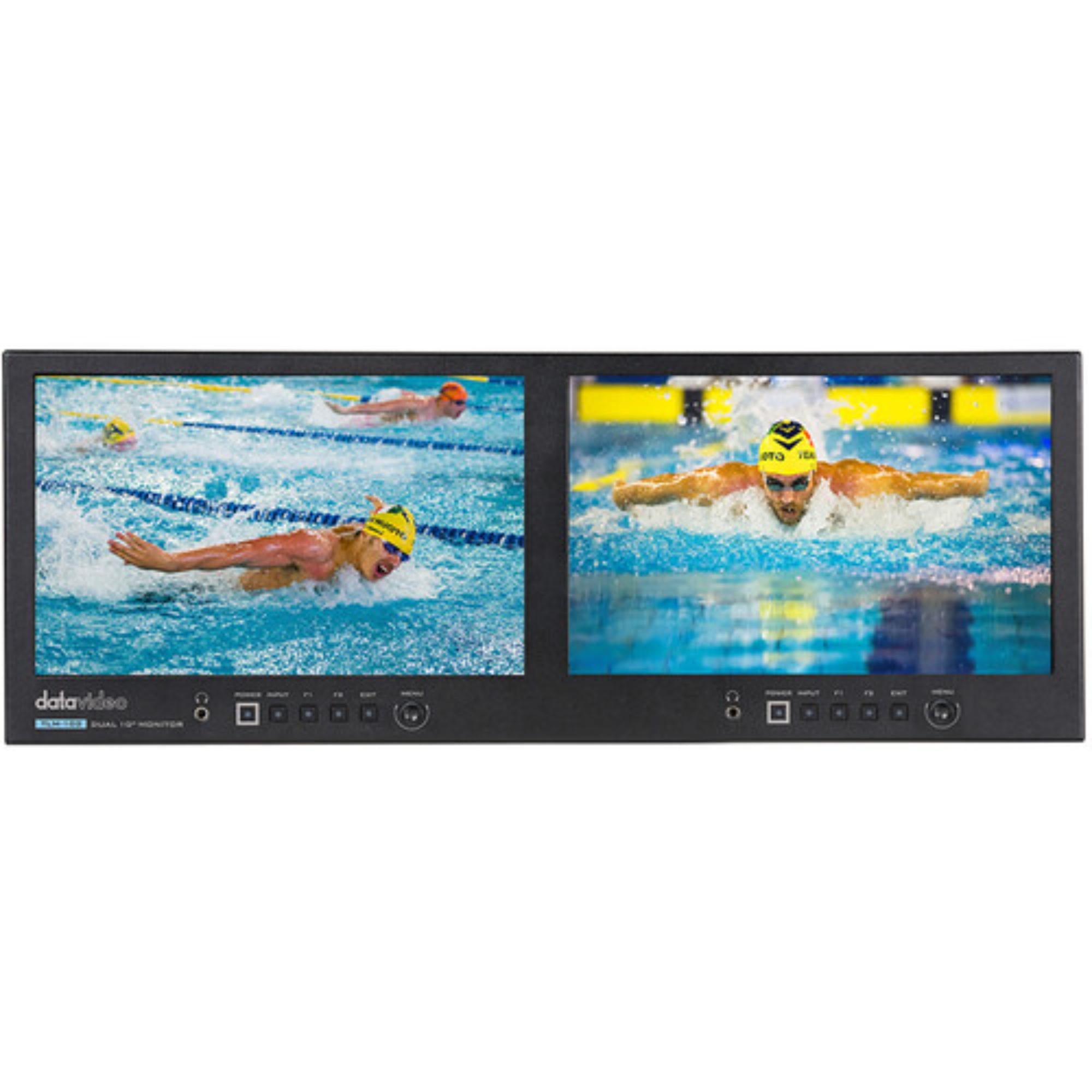

• Included monitor: DATAVIDEO 10 inch Dual IPS LCD Monitor

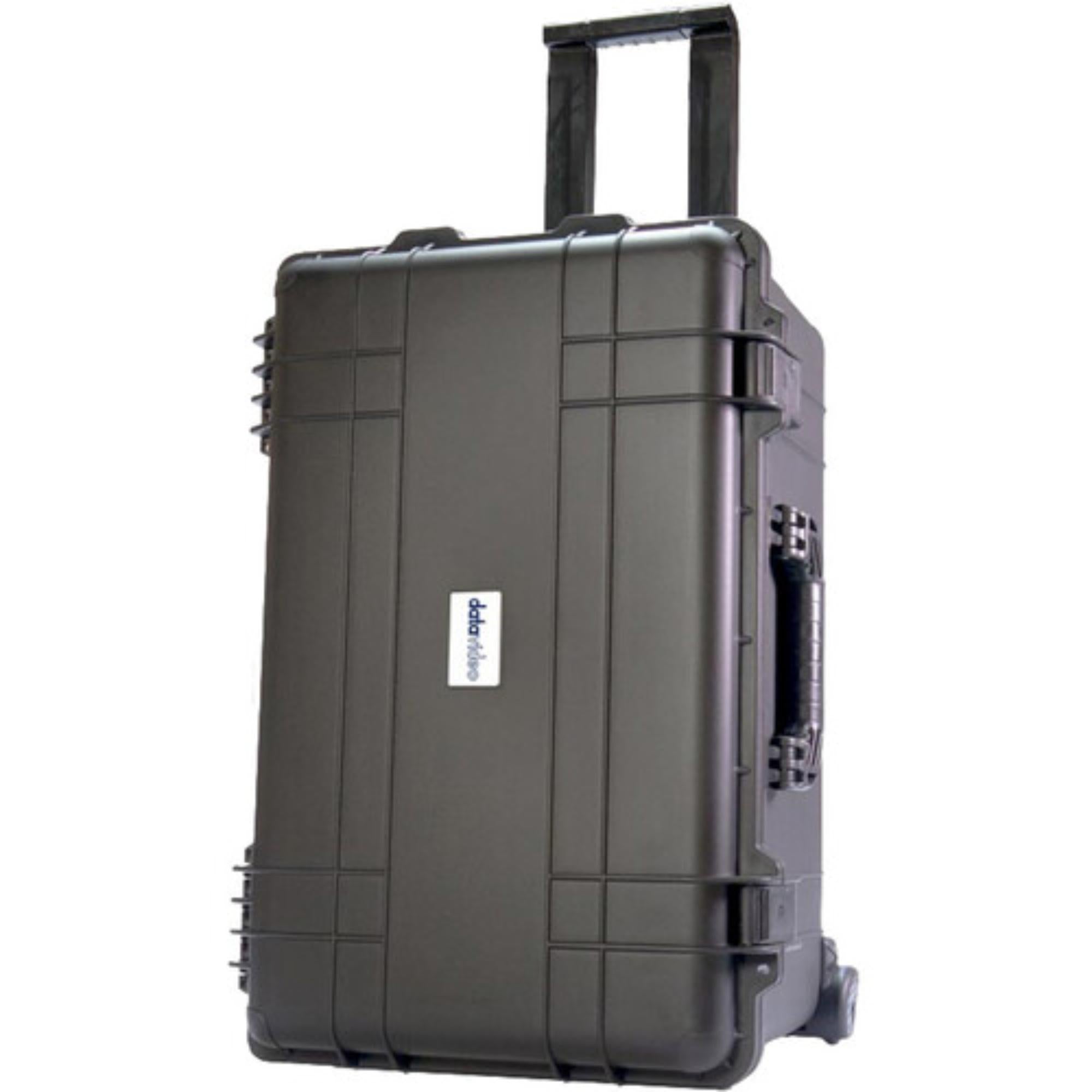

• Included case: wheeled trolley-style water-resistant case

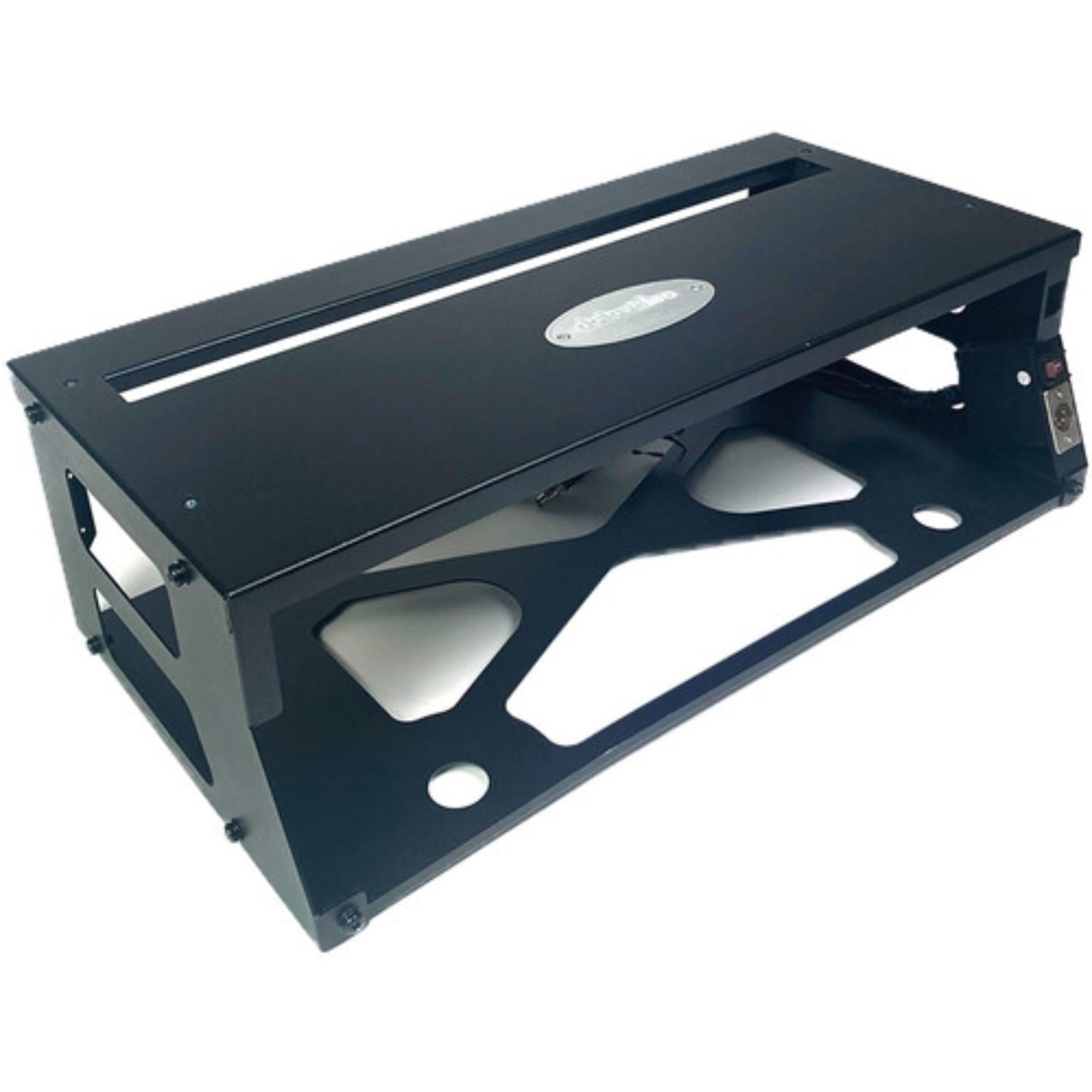

• Included support hardware: rack enclosure, set of cables, power supply
• Replay processor video standard: HD & SD
• Replay processor video formats: 720p 50/59.94/60, 1080i 50/59.94/60, 1080p 23.976/24/50/59.94/60, 480i/576i
• Replay processor input: HD/SD-SDI
• Replay processor outputs: 2 x HD/SD-SDI for monitoring and playback
• Replay processor storage: removable SSD, available separately, with USB 2.0 data transfer
• Replay processor buffer memory: 4 GB, buffers the past 30 seconds of program-out or connected ISO signal
• Replay processor file format: recorded video MOV, audio uncompressed PCM
• Replay processor bitrate: uncompressed 10-bit 4:2:2
• Replay processor timecode: via embedded SDI
• Replay processor dimensions: 6.75 x 3.5 x 2 in
• Replay processor weight: 1 lb
• Monitor display size: 10.1 inch
• Monitor native resolution: 1280 x 800
• Monitor panel type: IPS-type LCD
• Monitor video I/O: HDMI and BNC
• Monitor inputs: 2 x HDMI, 2 x BNC 3G-SDI
• Monitor loop outputs: 2 x HDMI, 2 x BNC 3G-SDI
• Monitor audio output: 3.5 mm headphone output
• Monitor other I/O: DE-9/DB-9 tally, USB-A
• Monitor rack form factor: 4 RU
• Monitor power consumption: 26 W
• Monitor dimensions: 19 x 7 x 1.5 in
• Monitor weight: 7.9 lb
• Controller connections: 4 x Mini-USB HDR-10 interfaces, 1 x USB Type-A firmware update port
• Controller power: 12 VDC, 0.5 A
• Controller operating temperature: 32 to 104°F / 0 to 40°C
• Controller dimensions: 11 x 6.9 x 2.2 in
• Controller weight: 3.3 lb
• Not included: recording media

Why It Helps

Replay systems can get messy fast when the recorder, controller, monitor, case, and support hardware all have to be sourced and packed separately. This kit removes a lot of that friction. Instead of building a replay station one piece at a time, the package gives crews a more complete setup that is already aimed at field use. For sports coverage and event production, that usually means a faster path to working replay, cleaner transport, and less time spent improvising around missing pieces.

System Characteristics

• Dual HDR-10 architecture gives the package a stronger replay-oriented workflow than a single recorder setup
• Dedicated replay controller makes clip handling and playback more practical during live production
• Dual monitor solution helps the system stay self-contained inside a compact rack format
• Removable SSD workflow keeps storage aligned with production-style media handling
• Rolling hard case and rack enclosure make the package more realistic for venue-to-venue deployment

What’s In The Box

Please refer to the Specifications tab for the exact included items.
