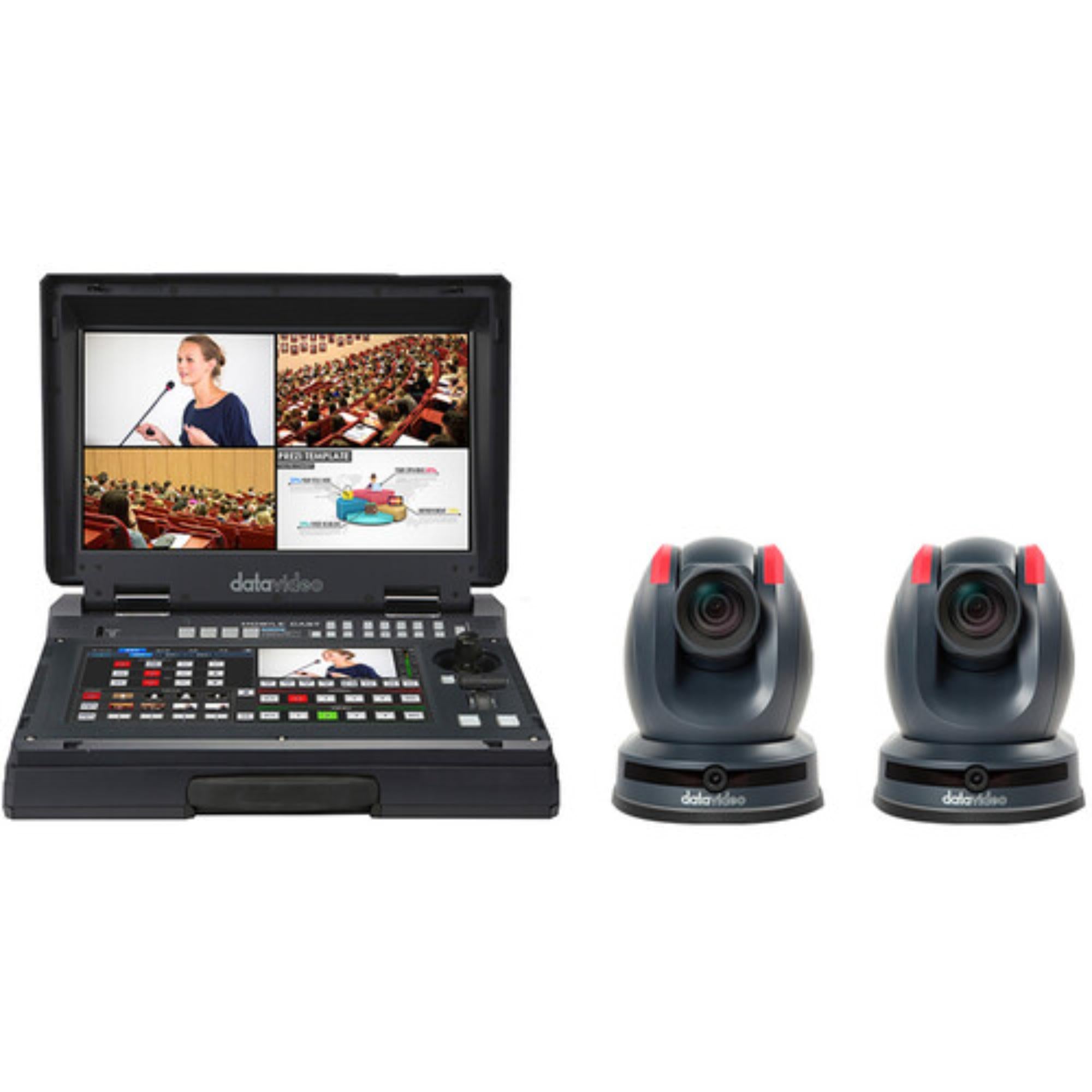

DATAVIDEO EZ Stream AI 30X Kit with Portable Streaming Studio and 2 PTZ Cameras (Black))

DATAVIDEO EZ Stream AI 30X Kit with Portable Streaming Studio and 2 PTZ Cameras (Black) is built for productions that want a complete camera, switching, and streaming workflow without building the system one part at a time. Based on the source details, this package combines the HS-1650T 4-channel HDBaseT portable streaming studio with 2 white PTC-155T auto-tracking PTZ cameras. In real use, it gives the operator a more self-contained setup for switching, streaming, recording, monitoring, audio handling, and PTZ camera control.

Highlights

• Complete portable production package built around HS-1650T and 2 black PTC-155TW PTZ cameras
• Built-in 17.3 inch 1080p TFT LED monitor with comprehensive physical controls for all-in-one operation
• 30x optical zoom and 16x digital zoom support more flexible PTZ framing in live environments
• Custom automatic object tracking helps reduce operator workload in presenter-based productions
• HDBaseT connectivity over RJ45 supports longer camera runs up to 328.1 feet or 100 meters

Quick Specs & Uses

• Product name: DATAVIDEO EZ Stream AI 30X Kit with Portable Streaming Studio and 2 PTZ Cameras (Black)
• Included studio: HS-1650T 4-channel HDBaseT portable video studio
• Included cameras: 2 x PTC-155TW HDBaseT 1080p SDI HDMI tracking PTZ camera with 30x zoom, white
• Included monitor size: 17.3 inch TFT LED
• Studio type: all-in-one live broadcasting system
• Camera image sensor: 1/2.8 inch type CMOS
• Effective sensor resolution: 2.14 megapixel
• Shutter speed: 1/10000 to 1/25 second
• Max optical zoom: 30x
• Max digital zoom: 16x
• Camera max video output: via HDMI, RJ45, SDI/BNC, and USB up to 1080p60
• Max recording modes: up to 1080p at 25, 29.97, 30, 50, 59.94, and 60 fps
• Broadcast output: NTSC and PAL
• Video streaming protocols: RTMP, RTMPS, RTSP, SRT
• Camera control protocols: IP, IR, ONVIF, Pelco-D, Pelco-P, Proprietary, RS-232, RS-422, VISCA
• IP streaming: 1920 x 1080 main stream at 20.00 Mb/s
• PoE support: yes, PoH 802.3at
• Mounting: 1 x 1/4"-20 female
• Focus control: autofocus and manual focus
• Signal-to-noise ratio: 50 dB
• Minimum illumination: 0.5 lux at f/1.8 aperture
• Flip and mirror support: image flip, vertical mirror
• White balance: auto, manual, one push
• Focal length: 5.5 to 150.4 mm
• Field of view: horizontal 54 degrees
• Maximum aperture: f/1.7 to 5
• Embedded audio: HDMI, LAN RJ45, NDI, SDI, USB
• Audio recording: yes
• Presets: 255
• Pan and tilt: pan 300 degrees, tilt 145 degrees, minus 15 to 130 degrees
• Tally light: yes
• Max cable length: 328.1 feet / 100 m over Cat 6
• Video I/O: 1 x RJ45 HDBaseT output, 1 x RJ45 NDI output, 1 x HDMI 1.3 output, 1 x BNC 3G-SDI output, 1 x USB-C 2.0 output
• Audio I/O: 1 x 3.5 mm TRS stereo mic/line input
• Other I/O: 1 x RJ45 for RS-232 and RS-422
• Power input: 1 x barrel 12VDC
• Power consumption: 21 W
• Operating conditions: 32 to 104°F / 0 to 40°C
• Certifications: CE, FCC, UKCA
• Dimensions: 7.2 x 9 x 7.6 in / 18.4 x 22.9 x 19.4 cm
• Weight: 6.2 lb / 2.8 kg, body only

Why It Helps

Portable production systems usually become harder to manage once switching, PTZ control, monitoring, and camera transport all need to happen at the same time. This kit brings those jobs together in one more practical workflow. The HS-1650T handles the studio side, while the two PTC-155TW cameras add long-range placement, auto-tracking capability, and broad control protocol support. For conference, education, worship, and event production, that usually means a cleaner setup and fewer missing pieces once the show has to go live.

System Characteristics

• Portable studio and dual PTZ package gives the system a more complete field-ready workflow than a camera-only bundle
• 30x zoom auto-tracking cameras are better suited to presenter tracking and longer framing distances
• Long-range Cat 6 transport supports cleaner camera placement away from the control position
• Broad streaming and control protocol support helps the cameras fit more easily into mixed production environments
• Integrated monitor and control surface make the switching side faster to manage in compact live production setups

What’s In The Box

Please refer to the Specifications tab for the exact included items.
