DATAVIDEO 4K SDI to HDMI Converter

DATAVIDEO 4K SDI to HDMI Converter is built for workflows that need to take an SDI source and hand it off to an HDMI display path without giving up 4K support or clean signal continuity. Based on the source details, this is a 4K SDI to HDMI converter with 1 x 12G-SDI input, 1 x HDMI 2.0 output, 1 x 12G-SDI loop output, and support for formats up to DCI 4K60 and UHD 4K60. In real system terms, it is the kind of box you use when a broadcast-style SDI source needs to feed an HDMI monitor, projector, or display without breaking the rest of the signal chain.

Highlights

• Converts 12G-SDI to HDMI for clean handoff from SDI infrastructure to HDMI display endpoints
• 1 x 12G-SDI loop output keeps the original SDI path available downstream
• Supports DCI 4K60 and UHD 4K60 along with common HD formats
• Automatic input signal detection helps reduce setup friction during deployment
• Compact rugged design with LED indicators suits field and installed workflows

Quick Specs & Uses

• Product name: DATAVIDEO 4K SDI to HDMI Converter
• Conversion type: 12G-SDI to HDMI

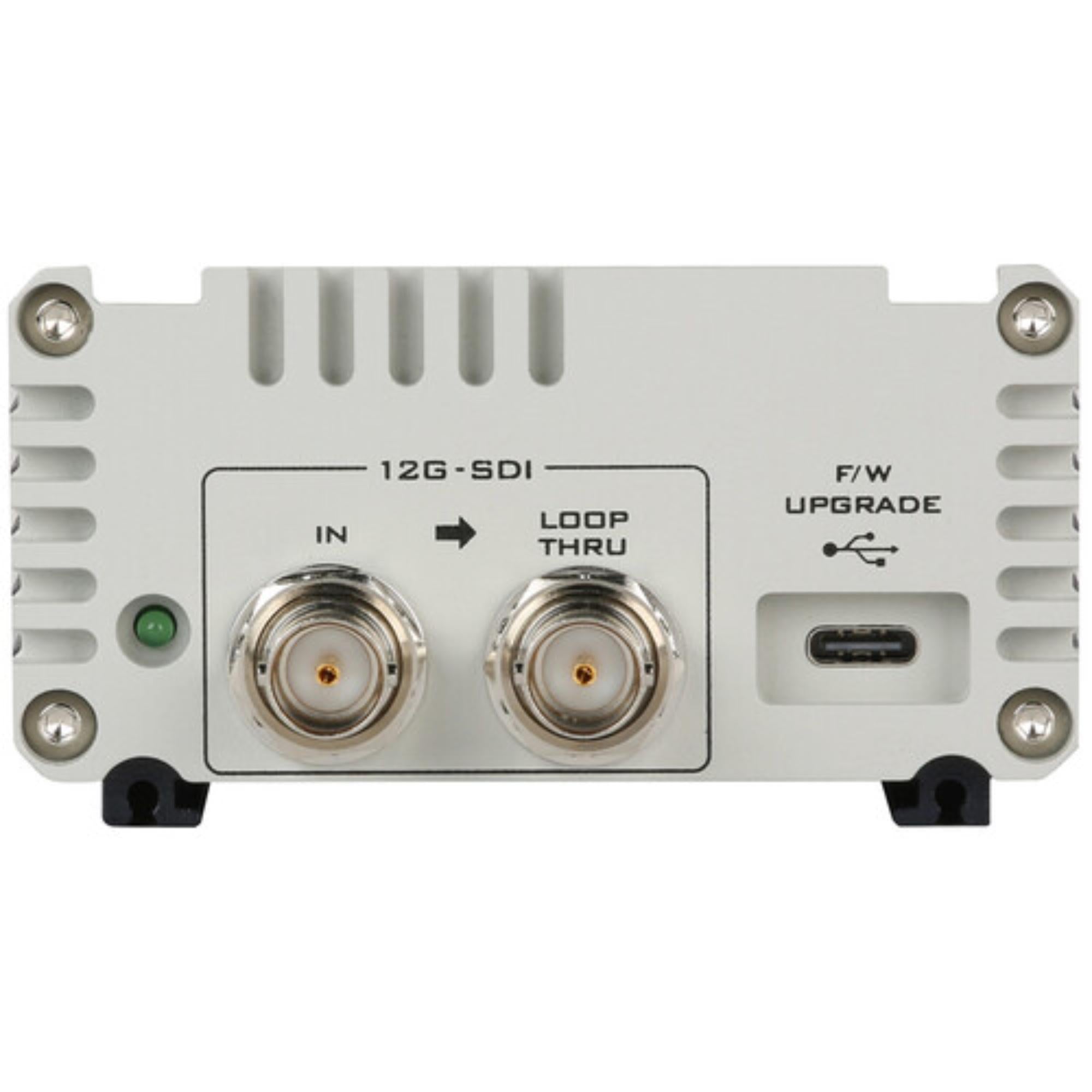

• Video input: 1 x BNC 12G-SDI female
• Audio input: none listed

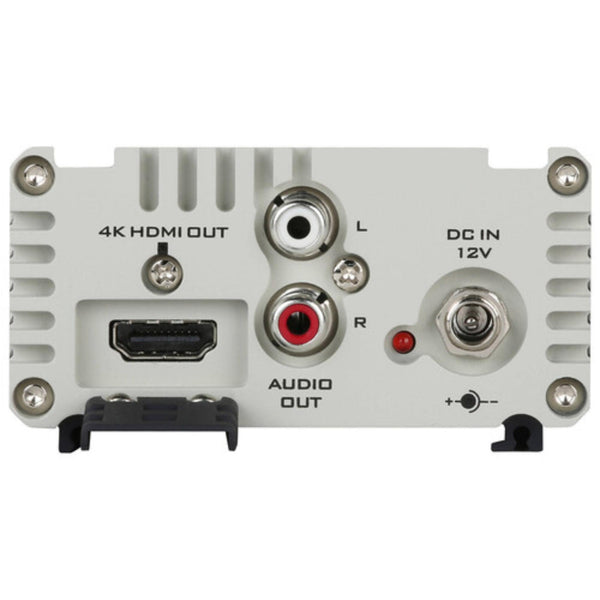

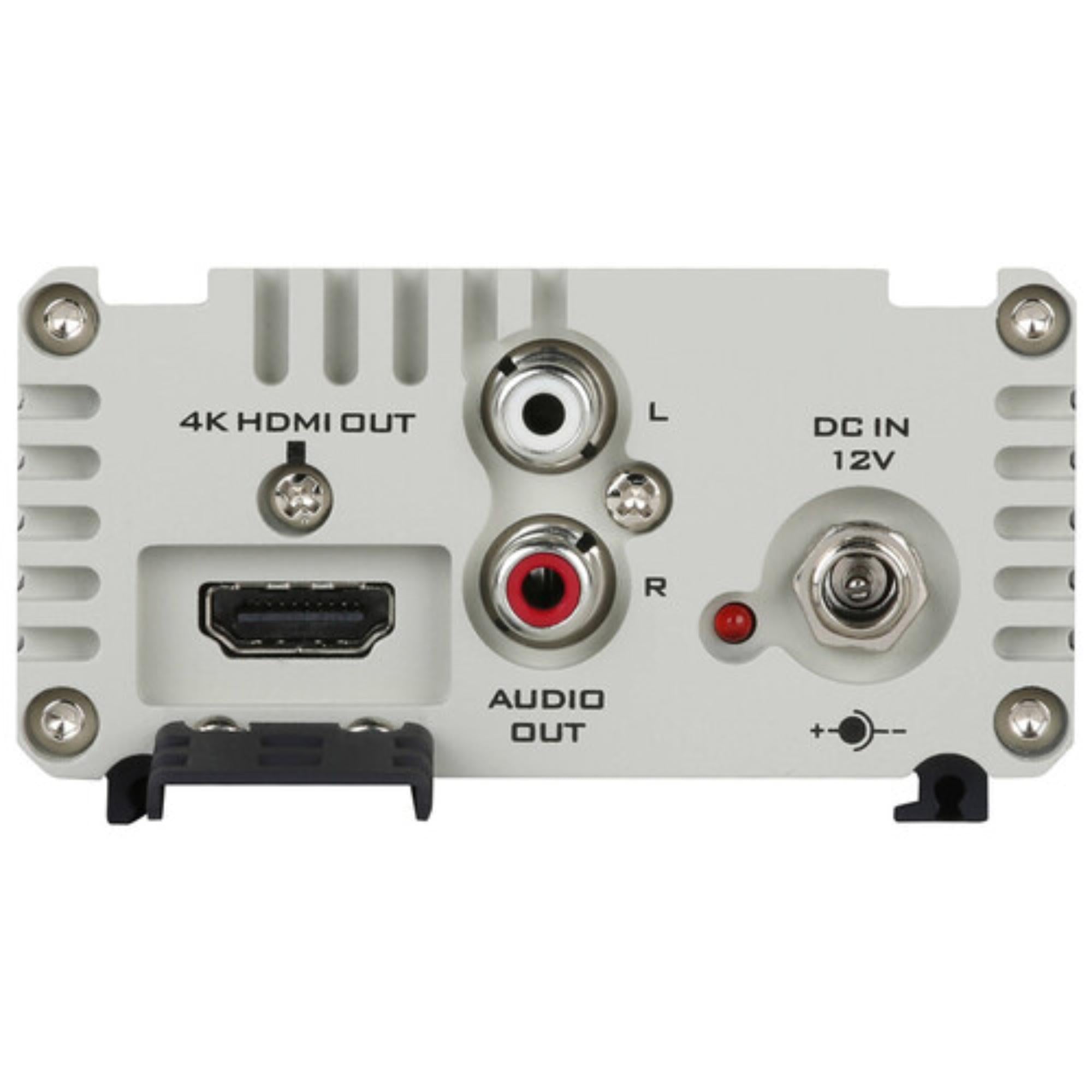

• Video outputs: 1 x HDMI 2.0 female, 1 x BNC 12G-SDI female loop output
• Audio output: 1 x 2RCA
• Other I/O: 1 x USB-C firmware input
• Supported input formats: DCI 4K 23.98/24/25/29.97/30/50/59.94/60, UHD 4K 24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60
• Supported output formats: DCI 4K 23.98/24/25/29.97/30/50/59.94/60, UHD 4K 24/25/29.97/30/50/59.94/60, 1080p 23.98/24/25/29.97/30/50/59.94/60, 1080i 50/59.94/60, 720p 50/59.94/60
• Embedded audio: HDMI/SDI 8-channel
• HDR support: not specified by manufacturer
• Power input: 1 x barrel 12 VDC input
• Power consumption: 8.64 W
• Operating temperature: 32 to 72°F / 0 to 40°C
• Dimensions: 4.4 x 3.3 x 1.8 in / 112 x 85 x 45 mm
• Weight: 10.6 oz / 300 g

Why It Helps

In real production systems, the issue is often not whether a source exists on SDI. It is how that source gets monitored or displayed when the endpoint expects HDMI. This converter solves that handoff cleanly. It converts the incoming 12G-SDI signal to HDMI, keeps the SDI source moving with a loop output, and auto-detects the input format so setup is more straightforward. That makes it useful in control rooms, flypacks, event systems, and installed environments where SDI needs to feed HDMI displays without adding unnecessary complexity.

System Characteristics

• SDI-to-HDMI conversion role makes the unit useful when broadcast signal paths need to feed consumer or presentation-style HDMI displays
• 12G-SDI loop output keeps the original SDI chain intact without requiring an extra distribution device
• 4K60 format support keeps the converter relevant in current UHD and DCI 4K workflows
• Automatic signal detection helps the unit adapt to the incoming SDI format with less manual setup
• 8-channel embedded audio support allows audio to travel with the converted video path

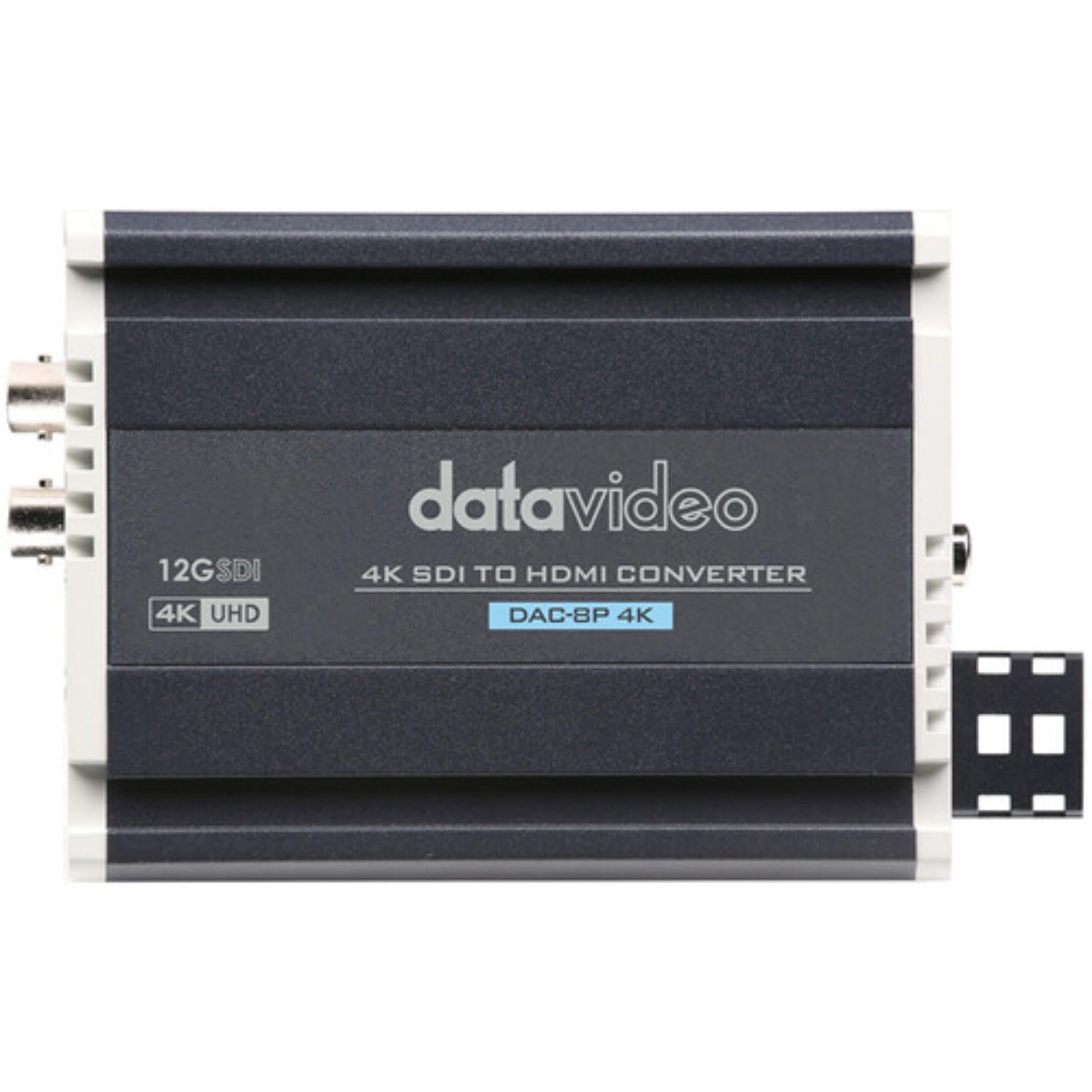

• Compact rugged housing makes the unit easier to deploy in portable kits, racks, and fixed systems
• LED video and power indicators provide quick visual confirmation during setup and troubleshooting

What’s In The Box

Please refer to the Specifications tab for the exact included items and service activation details.
