DATAVIDEO CB-31 All in One Video Cable (164' Roll)

DATAVIDEO CB-31 All in One Video Cable (164' Roll) is built for workflows that need multiple camera-side signal paths delivered in one cleaner cable run instead of being split across separate video, return, control, and tally lines. Based on the source details, this is a 164-foot / 50 meter multicore cable designed for EFP multi-camera operation with the DATAVIDEO MCU-100 and MCU-200 Multi-Camera Control Units. The cable combines HD/SD-SDI for camera video, CV for return video, RJ45 for camera control, and a 5-pin XLR line for talkback and tally. In real system terms, it is the kind of cable you use when a camera position needs several signal paths delivered together in one more manageable field run.

Highlights

• All-in-one multicore cable design for cleaner multi-camera field wiring
• Built for MCU-100 and MCU-200 workflows in EFP multi-camera operation
• Combines camera video, return video, control, and talkback/tally in one cable assembly
• 164-foot / 50 meter length for longer field and venue runs
• Dedicated signal and control cable with no power connection included

Quick Specs & Uses

• Product name: DATAVIDEO CB-31 All in One Video Cable (164' Roll)
• Product type: all-in-one multicore video/control cable
• Designed for: DATAVIDEO MCU-100, DATAVIDEO MCU-200
• Application type: EFP multi-camera operation
• Video path 1: HD/SD-SDI for camera
• Video path 2: CV for return video
• Control path: RJ45 for camera control
• Communication path: 5-pin XLR for talkback and tally

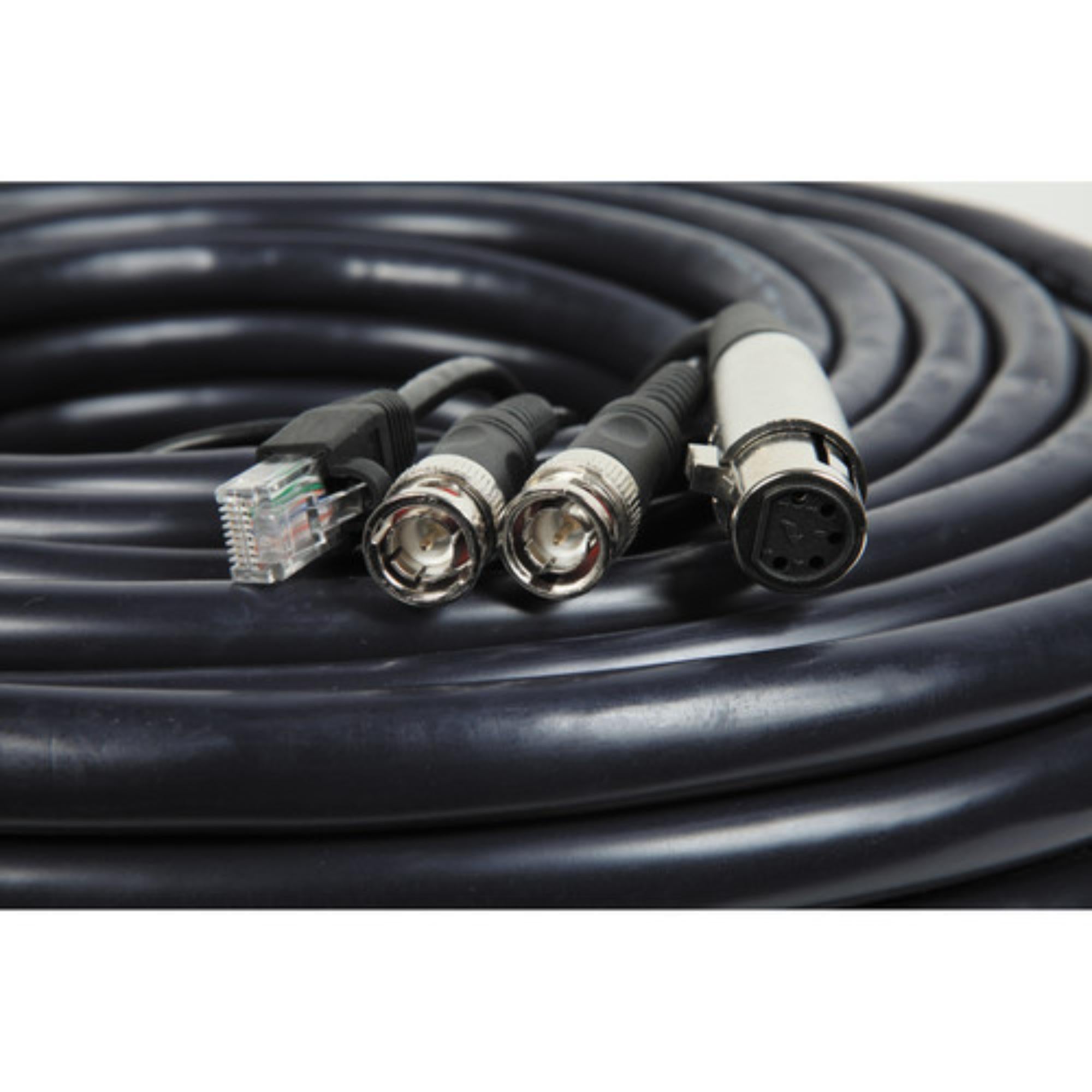

• Connector 1: 2 x BNC male, 1 x RJ45 male, 1 x XLR 5-pin male
• Connector 2: 2 x BNC male, 1 x RJ45 male, 1 x XLR 5-pin female
• Cable length: 164 ft / 50 m
• Color: black
• Power note: this cable does not provide a power connection

Why It Helps

In multi-camera field production, the problem is often not whether video, return feed, control, and tally can all reach the camera. It is how cleanly they get there. Running all of those functions separately adds setup time, extra clutter, and more chances for a patching mistake. This cable helps by combining those paths into one managed run, which makes the camera position easier to wire and the overall layout easier to manage. The source also clearly notes that power is not included, which is an important planning detail for real deployments.

System Characteristics

• Multicore all-in-one role makes the cable more efficient than separate single-purpose runs
• 164-foot / 50 meter reach makes it useful in longer field, venue, and studio layouts
• HD/SD-SDI camera video path supports the outbound camera signal listed in the source
• CV return video path adds a dedicated return feed to the same cable assembly
• RJ45 camera control path supports MCU-100/200 integration in the intended workflow
• 5-pin XLR talkback and tally path keeps operator communication and tally functions tied into the same camera run
• No power connection included keeps the product positioned as a signal/control cable rather than a full camera power solution

What’s In The Box

Please refer to the Specifications tab for the exact included items and service activation details.
