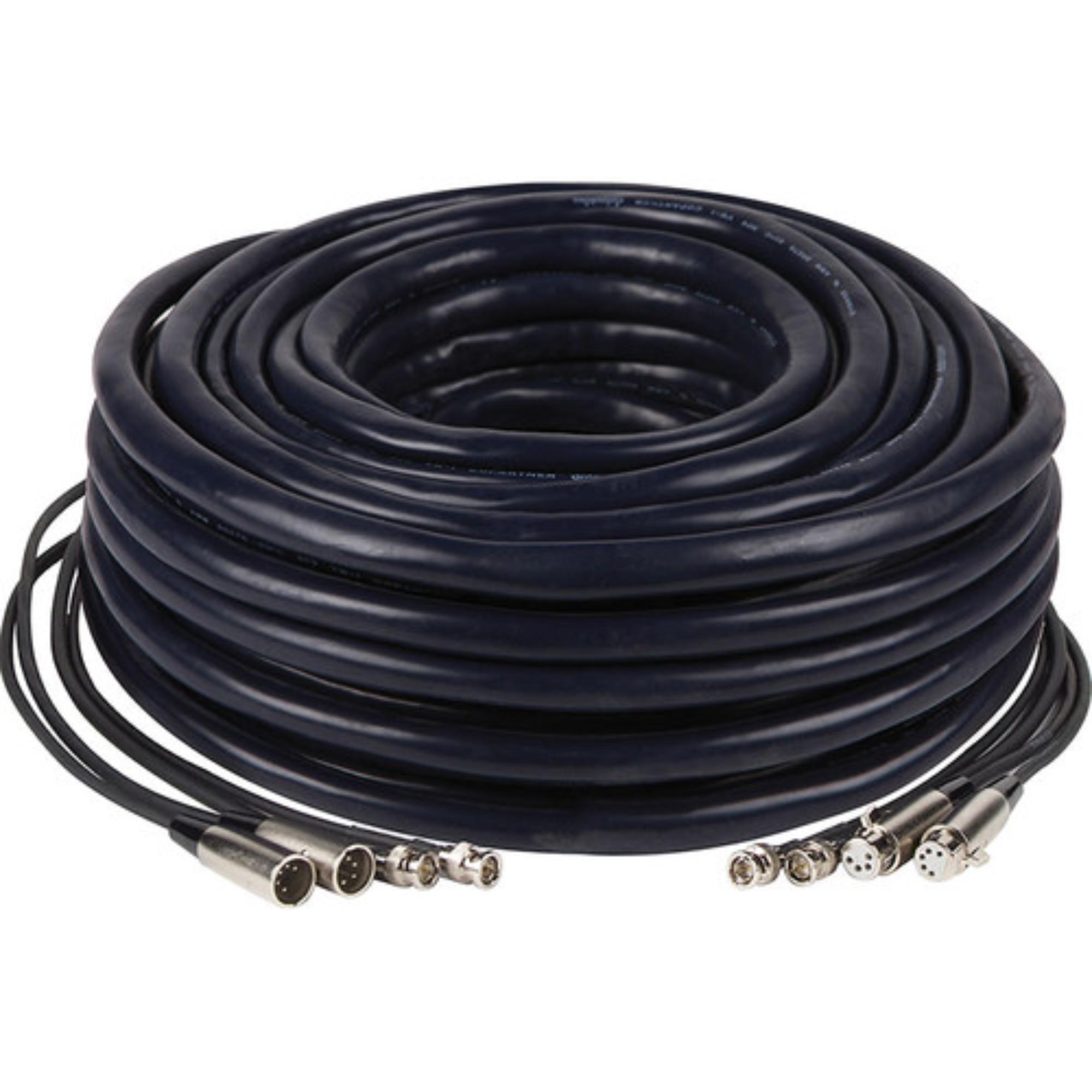

DATAVIDEO CB-23H All-in-One Snake Cable (164 ft)

DATAVIDEO CB-23H All-in-One Snake Cable (164 ft) is built for workflows that need multiple camera-side signal paths delivered in one cleaner cable run instead of being split across separate video, tally, and power lines. Based on the source details, this is a 164-foot / 50 meter four-in-one snake cable that combines HD-SDI video, composite video, 5-pin XLR tally, and 4-pin XLR 12 VDC power in a single assembly. The listed interface is HD-SDI/Composite, with support up to 1920 x 1080. In real system terms, it is the kind of cable you use when a camera position needs several signal paths delivered together in one more manageable field run.

Highlights

• All-in-one snake cable design for cleaner field and production wiring
• Combines HD-SDI video, composite video, tally, and 12 VDC power in one cable assembly
• 164-foot / 50 meter length for longer camera-position runs
• Includes BNC and XLR connector paths for direct field hookup
• Supports up to 1920 x 1080 based on the listed source specifications

Quick Specs & Uses

• Product name: DATAVIDEO CB-23H All-in-One Snake Cable (164 ft)
• Product type: all-in-one snake cable
• Interface: HD-SDI / Composite
• Connector 1: 2 x BNC male, 1 x XLR 4-pin male
• Connector 2: 2 x BNC male, 1 x XLR 4-pin female
• Additional signal paths listed: 5-pin XLR male to female tally cable, 4-pin XLR male to female 12 VDC power cable
• Cable length: 164 ft / 50 m
• Maximum resolution support: 1920 x 1080
• Color: black
• Primary use: combined video, tally, and power connection to a field camera position

Why It Helps

In live production, the issue is often not whether video, tally, and power can all reach a camera. It is how cleanly they get there. Running separate cables for each function usually adds clutter, takes longer to deploy, and increases the chance of patching mistakes. This cable helps by combining those paths into one managed run, which makes the camera position easier to wire and the overall layout easier to manage.

System Characteristics

• Four-in-one cable role makes the assembly more efficient than separate single-purpose runs
• 164-foot / 50 meter reach makes it useful in field, venue, and studio layouts
• HD-SDI and composite video paths support dual video-related signal routes listed in the source
• 5-pin XLR tally path adds dedicated tally connectivity alongside video and power
• 4-pin XLR 12 VDC power path adds camera-side power delivery within the same cable assembly
• Single-run cable format helps keep the camera position cleaner than managing separate video, tally, and power cables

What’s In The Box

Please refer to the Specifications tab for the exact included items and service activation details.
