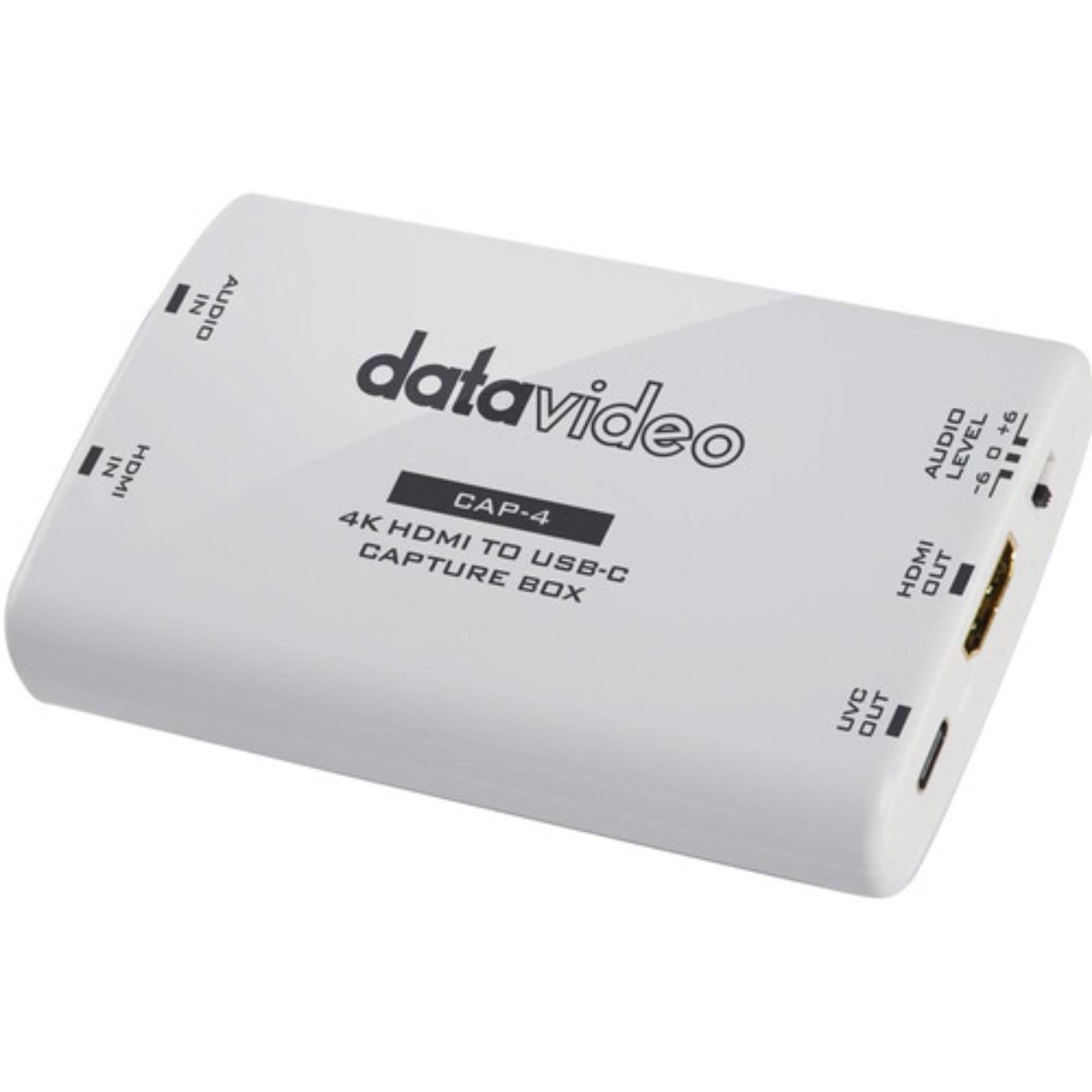

DATAVIDEO CAP-4 4K HDMI to USB-C Capture Box

DATAVIDEO CAP-4 4K HDMI to USB-C Capture Box is built for workflows that need to move HDMI sources into a computer without breaking the rest of the signal chain. With HDMI 2.1 input, HDMI loop output, USB-C host connectivity, and support up to UHD 4K60, it gives you a practical way to handle capture, monitoring, and local signal pass-through in one compact unit.

Highlights

• Captures up to UHD 4K60 over a compact USB-C workflow
• 1 x HDMI 2.1 input with 1 x HDMI 2.1 loop output
• Supports 1080p up to 120 fps
• Includes 3.5 mm TRS stereo analog input alongside HDMI audio
• Compatible with Windows, macOS, and Linux

Quick Specs & Uses

• System connection: USB-C 3.1 / 3.2 Gen 2

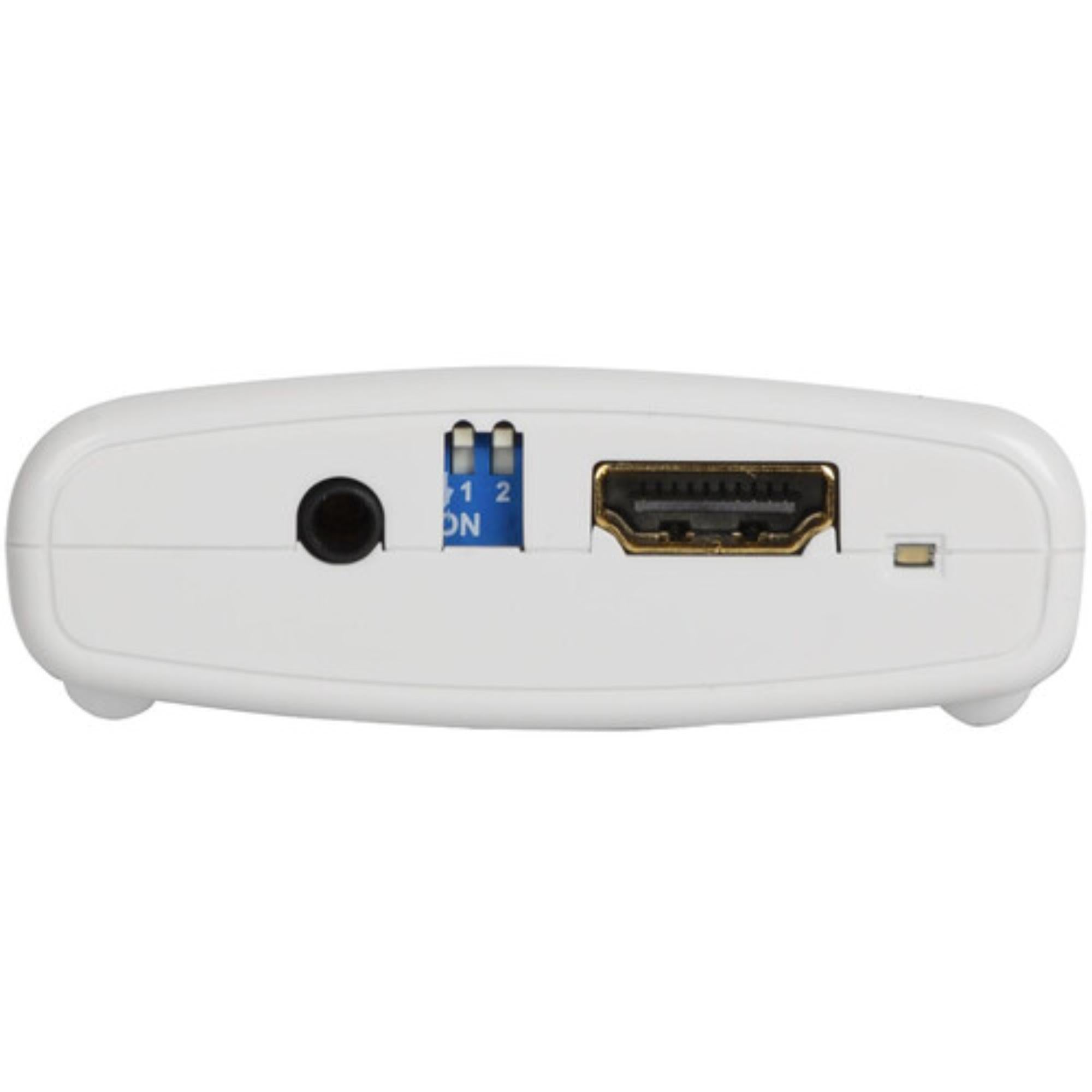

• Video input: 1 x HDMI 2.1 female

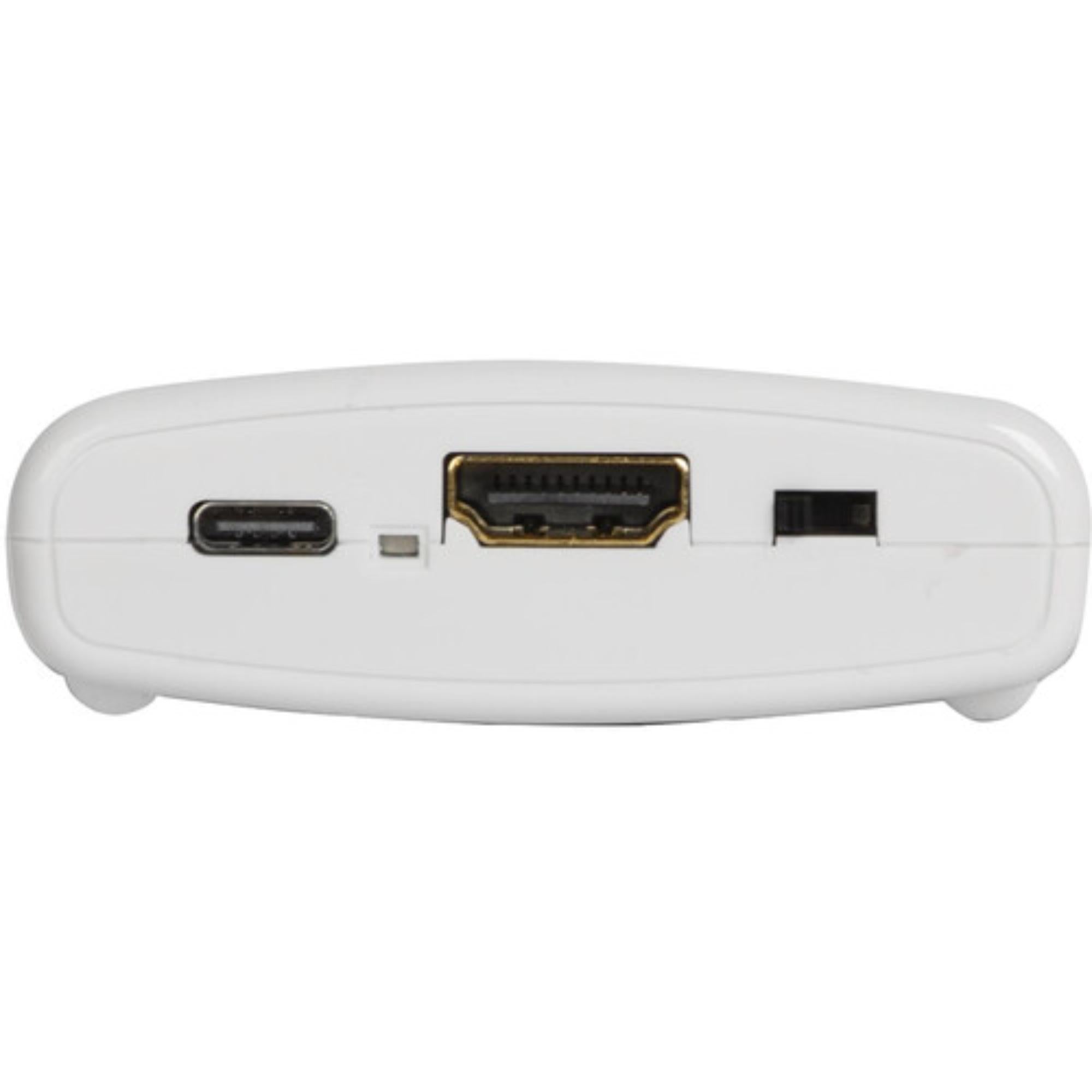

• Video outputs: 1 x HDMI 2.1 female (loop), 1 x USB-C
• Audio input: 1 x 3.5 mm TRS stereo analog female
• HDMI support: up to 3840 x 2160 at 60 fps
• USB-C output support: up to 3840 x 2160 at 60 fps
• Embedded audio: HDMI, 2-channel
• OS support: Windows 10 or later, macOS 10.13 or later, Linux
• Power draw: 5 VDC / 4.5 W
• Dimensions: 4.13 x 2.68 x 0.91 in / 105 x 68 x 23 mm

Why It Helps

Many compact capture devices handle ingest well enough, but they make monitoring and signal pass-through harder than they need to be. This model helps by keeping a looped HDMI path available while also sending the source to the computer over USB-C. That makes it easier to build a cleaner workflow for streaming, recording, switching, presentation capture, or software-based production.

System Characteristics

• HDMI loop-through design helps preserve local monitoring and downstream signal flow
• 4K60 support keeps the box aligned with modern UHD workflows
• 1080p120 support adds flexibility for higher-frame-rate HD use cases
• Separate analog audio input gives more flexibility than HDMI-only audio capture
• Cross-platform host compatibility makes deployment easier across mixed computer environments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
