Product Highlights
- Up to 40Gbps Thunderbolt 3 throughput
- 164-foot / 50-meter optical cable
- Supports 5K and dual 4K display workflows
- All-dielectric design with galvanic isolation

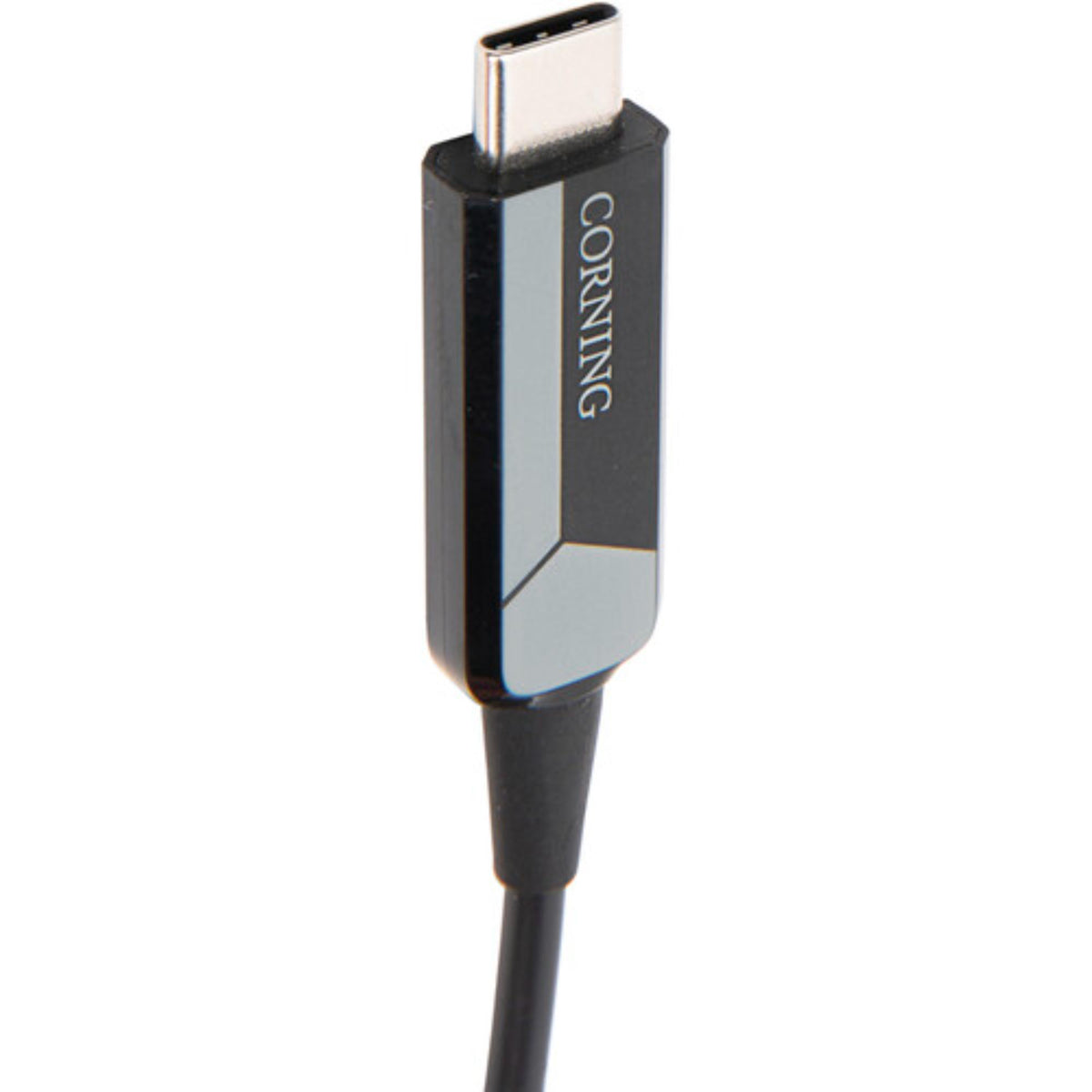

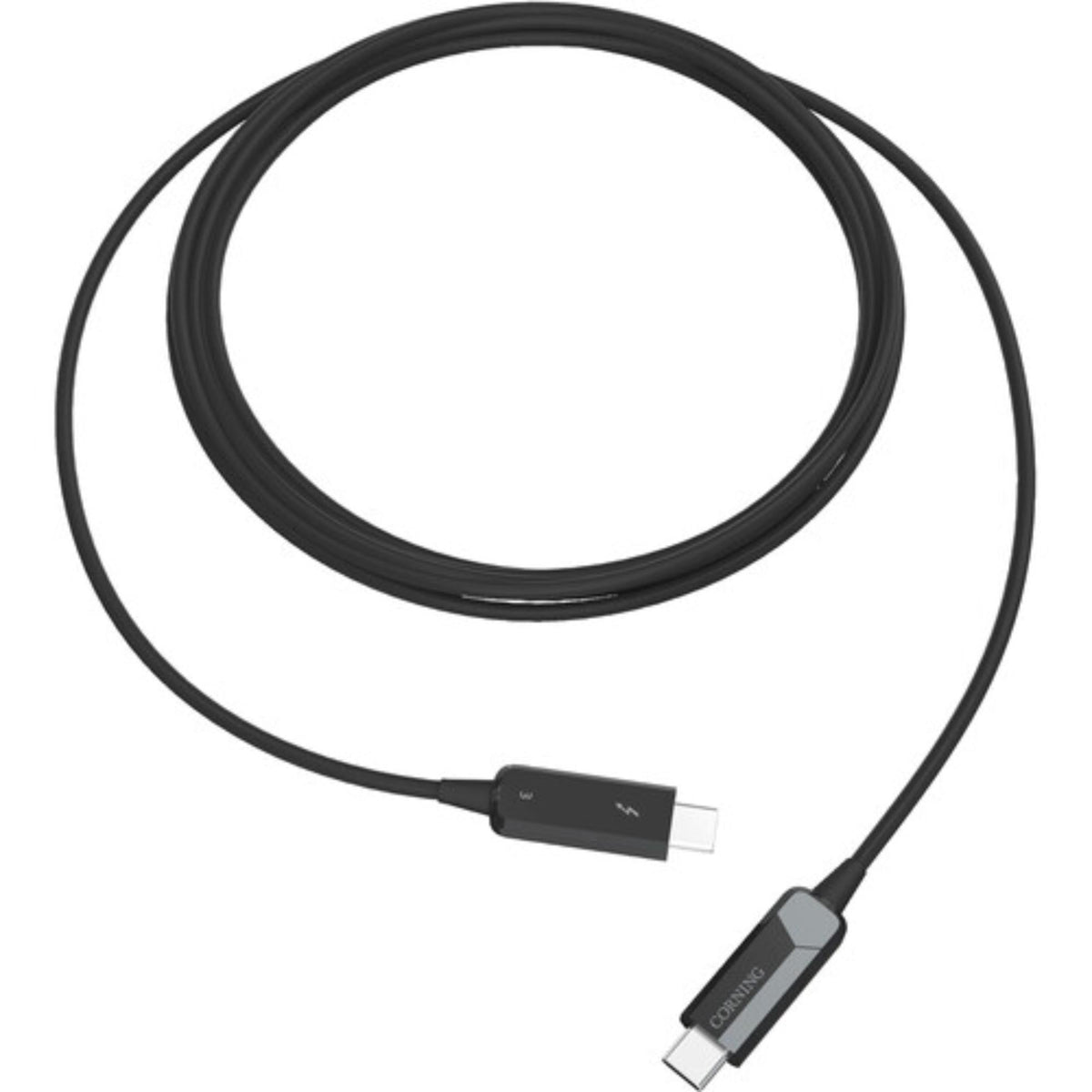

Corning Thunderbolt 3 Optical Cable 50m 40Gbps
- SKU:
- COR-AOC-CCU6JPN050M20
- MPN:
- AOC-CCU6JPN050M20
Ships in 1-3 Business Day
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
Product Inquiry Form
Description
Product Overview
Corning Thunderbolt 3 Optical Cable extends compatible Thunderbolt connectivity across a 50 m / 164 ft run while supporting data transfer rates up to 40 Gb/s. Its thin, lightweight optical construction uses an all-dielectric design for enhanced galvanic isolation and added protection from electrical interference. Male-to-male Thunderbolt 3 connectors make it suitable for professional macOS workstations, high-resolution displays, storage, and other self-powered Thunderbolt devices.
40 Gb/s Thunderbolt 3 Performance
Transfer data at up to 40 Gb/s between compatible Thunderbolt 3 devices. The optical signal path carries high-bandwidth Thunderbolt connectivity across the full cable run. This makes it suitable for storage, display, post-production, and other data-intensive professional workflows.
164-Foot Long-Range Optical Connection
The 50 m / 164 ft optical cable allows computers and compatible Thunderbolt peripherals to be installed across large studios, machine rooms, and technical spaces. Equipment can be separated from the operator position without relying on a short copper Thunderbolt connection.
All-Dielectric Optical Construction
Corning uses an all-dielectric optical design that provides enhanced galvanic isolation between connected equipment. This construction helps protect the signal path from electrical interference while maintaining high-speed Thunderbolt transmission across the long run.
5K and Dual 4K Display Support
Compatible Thunderbolt systems can support one 5K display or two 4K displays through the optical connection. This gives editing, graphics, monitoring, and desktop workflows more flexibility when positioning high-resolution displays away from the host computer.
Thunderbolt Daisy Chaining
Male-to-male Thunderbolt 3 connectors support compatible daisy-chain workflows with self-powered Thunderbolt devices. Storage, docks, displays, and other supported peripherals can be incorporated into a professional workstation configuration across the long optical run.
Abrasion Resistance and Thermal Shutdown
The cable features a durable, abrasion-resistant construction for professional installations and repeated routing. Integrated thermal shutdown helps protect internal components from damage caused by prolonged exposure to elevated temperatures.
macOS Recommended
Corning recommends using this Thunderbolt 3 optical cable with macOS systems.
Self-Powered Devices
Designed for compatible self-powered Thunderbolt peripherals because the optical cable does not deliver bus power.
No Native USB
Although both connectors use the USB-C physical form factor, native USB operation is not supported.
No Native DisplayPort
Native DisplayPort operation is not supported. Display signals must operate through a compatible Thunderbolt connection.
Post-Production Workstations
Extend compatible Thunderbolt storage, docks, displays, and other peripherals away from editing and finishing systems.
Machine Rooms
Keep computers and other self-powered Thunderbolt equipment away from the operator while maintaining a high-bandwidth connection.
High-Resolution Displays
Connect compatible 4K and 5K display workflows across longer physical distances in professional media environments.
Professional Mac Systems
Built for macOS-based Thunderbolt environments that require high-bandwidth connectivity across large studios or technical spaces.
Corning Manufacturer Support
This model includes a limited one-year manufacturer warranty. Contact Coremicro for current warranty coverage and product support details.
| Specification | Detail |
|---|---|
| Product | Thunderbolt 3 Optical Cable |
| Manufacturer Part Number | COR-AOC-CCU6JPN050M20 |
| Interface | Thunderbolt 3 |
| Maximum Throughput | 40 Gb/s |
| Connector 1 | 1 × USB-C male, Thunderbolt 3 |
| Connector 2 | 1 × USB-C male, Thunderbolt 3 |
| Cable Length | 164 ft / 50 m |
| Cable Construction | Optical, all-dielectric |
| Display Support | One 5K display or two 4K displays |
| Daisy Chaining | Supported with compatible self-powered Thunderbolt devices |
| Galvanic Isolation | Enhanced through all-dielectric optical construction |
| Durability | Abrasion-resistant cable design |
| Thermal Protection | Thermal shutdown protection |
| Recommended Platform | macOS |
| Bus Power | Not supported |
| Native USB Support | Not supported |
| Native DisplayPort Support | Not supported |
| Maximum Tensile Strength | 100 N / 22 lb |
| Operating Temperature | 32 to 122°F / 0 to 50°C |
| Color | Black |
| Package Weight | 1.33 lb |
| Package Dimensions | 5.3 × 5.2 × 4.2 in |
| Warranty | Limited 1-year manufacturer warranty |
| In the Box | 1 × Optical Cables by Corning Thunderbolt 3 Optical Cable, 164 ft / 50 m |
What is the Corning 50 m Thunderbolt 3 optical cable used for?
It extends compatible Thunderbolt 3 connectivity across 50 m / 164 ft. Typical applications include post-production systems, storage, docks, displays, audio equipment, and other self-powered Thunderbolt peripherals.
Does the cable support 40 Gb/s over 164 feet?
Yes. Corning rates the cable for Thunderbolt 3 data transfer rates up to 40 Gb/s. Actual workflow performance also depends on the host and connected peripheral hardware.
Can it support 4K and 5K displays?
Yes. Compatible Thunderbolt systems can support one 5K display or two 4K displays through the optical connection. Host and display capabilities should be confirmed before installation.
Can this be used as a normal USB-C cable?
No. Although the connectors use the USB-C physical form factor, native USB operation is not supported. The cable is designed for compatible Thunderbolt 3 connections.
Does the cable provide bus power?
No. The cable does not provide bus power and is intended for compatible self-powered Thunderbolt devices.
Is this Thunderbolt optical cable recommended for Windows?
Corning recommends using this Thunderbolt 3 optical cable with macOS systems. Compatibility with other operating systems and hardware platforms should be confirmed before deployment.
Need a 50 Meter Corning Thunderbolt 3 Connection?
Coremicro is an authorized Corning dealer supporting professional post-production, storage, display, audio, and Thunderbolt workstation workflows. Contact our team to confirm host, peripheral, display, and cable compatibility before deployment.
