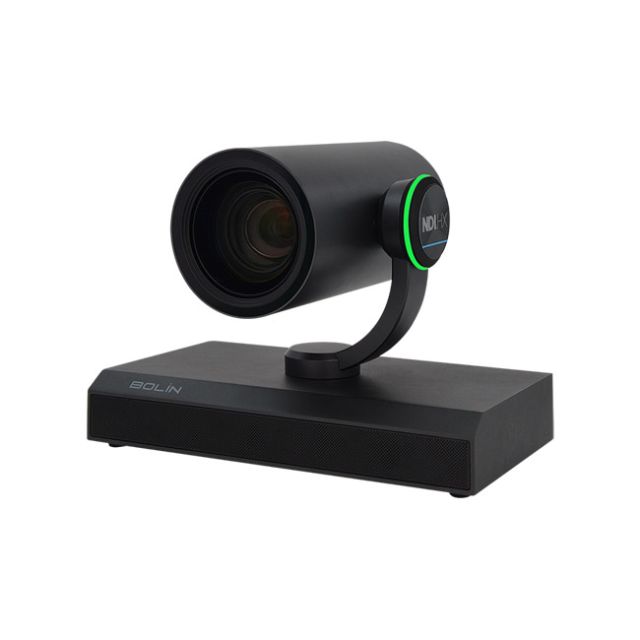

Bolin Technology N6-420X 4K60 FHD NDI|HX3 PTZ Camera

The Bolin Technology N6-420X NDI HX3 4K60 PTZ Camera delivers professional UHD 4K video at up to 60 fps for broadcast production, live streaming, video conferencing, education, and houses of worship. Featuring a 1/2.8-inch 8.29MP CMOS sensor and 20x optical zoom, it combines detailed imaging with smooth, quiet PTZ movement and flexible connectivity through NDI HX3, HDMI 2.0, USB-C 3.0, and IP streaming.

Bolin's AI-powered face analysis helps maintain accurate focus and exposure, while wide dynamic range, noise reduction, and image stabilization improve picture quality in challenging environments. With PoE support, remote PTZ control, and programmable camera presets, the N6-420X integrates easily into professional video workflows.

Highlights

• UHD 4K60 Video With 1/2.8-Inch 8.29MP CMOS Sensor
• 20x Optical Zoom With AI-Powered Focus And Exposure
• NDI HX3, HDMI 2.0, USB-C 3.0, And IP Video Output
• Smooth, Quiet PTZ Movement With Remote Preset Control
• PoE Support For Simplified Network Installation

Professional UHD 4K Imaging

The 1/2.8-inch CMOS sensor captures UHD 4K video at up to 60 fps. A 20x optical zoom and 78.6-degree field of view provide flexibility for wide shots and close-ups. Wide dynamic range, 2D/3D noise reduction, and image stabilization help deliver consistent results in different lighting conditions.

NDI HX3 And Flexible Connectivity

NDI HX3 enables low-latency IP video transmission over Ethernet for compatible production systems. HDMI 2.0 supports conventional video equipment, while USB-C 3.0 with UVC compatibility provides a convenient connection to computers for streaming, conferencing, and recording. Dual IP streaming supports additional network distribution workflows.

AI-Powered Focus And Exposure

Bolin's AI-powered face analysis helps maintain accurate focus and exposure as subjects move. Manual adjustments are also available for iris, shutter speed, white balance, gamma, focus, and other image settings.

Precision PTZ Control

Quiet pan-and-tilt motors provide smooth camera movement with adjustable speeds. The N6-420X supports VISCA-over-IP, ONVIF, RS-232/RS-422, and IR control. Store up to 255 camera presets with a compatible serial controller or six presets using the included IR remote.

Audio And Installation

A 3.5mm mic/line input supports embedded audio in compatible video outputs and streams. Power the camera through PoE or the included adapter. Its aluminum housing and optional mounting accessories make it suitable for permanent installations and portable production setups.

Quick Specs

• Image Sensor: 1/2.8-Inch 8.29MP CMOS
• Maximum Resolution: UHD 4K60
• Optical Zoom: 20x
• Digital Zoom: 16x
• Field Of View: Up To 78.6 Degrees
• Pan Range: +/-170 Degrees
• Tilt Range: -30 To +90 Degrees
• Video Output: NDI HX3, HDMI 2.0, USB-C 3.0, IP
• Audio Input: 3.5mm Mic/Line
• Control: VISCA-over-IP, ONVIF, RS-232/RS-422, IR
• Camera Presets: Up To 255 Via Serial, 6 Via IR
• Power: PoE Or Included Power Adapter
• Color: Dark Gray
