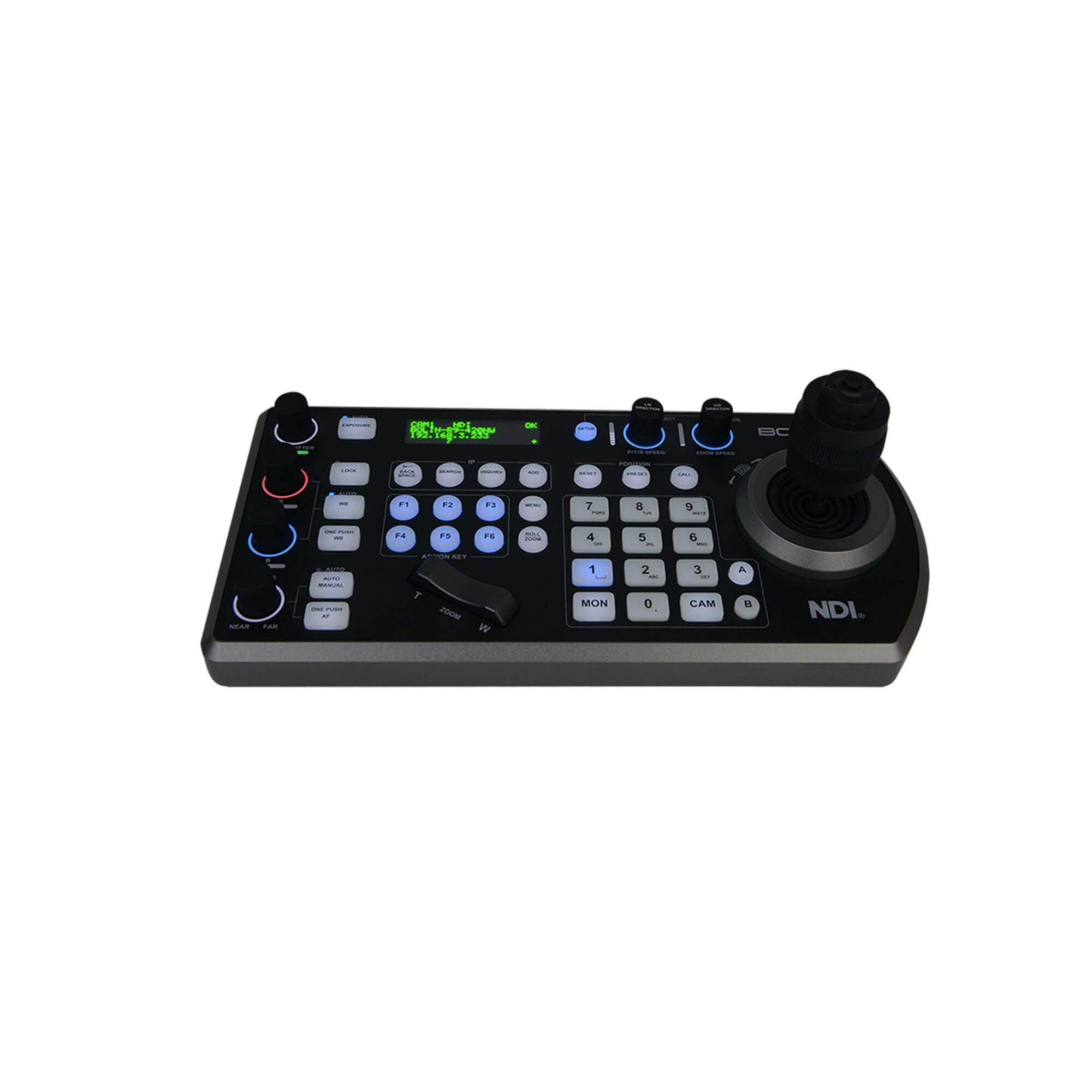

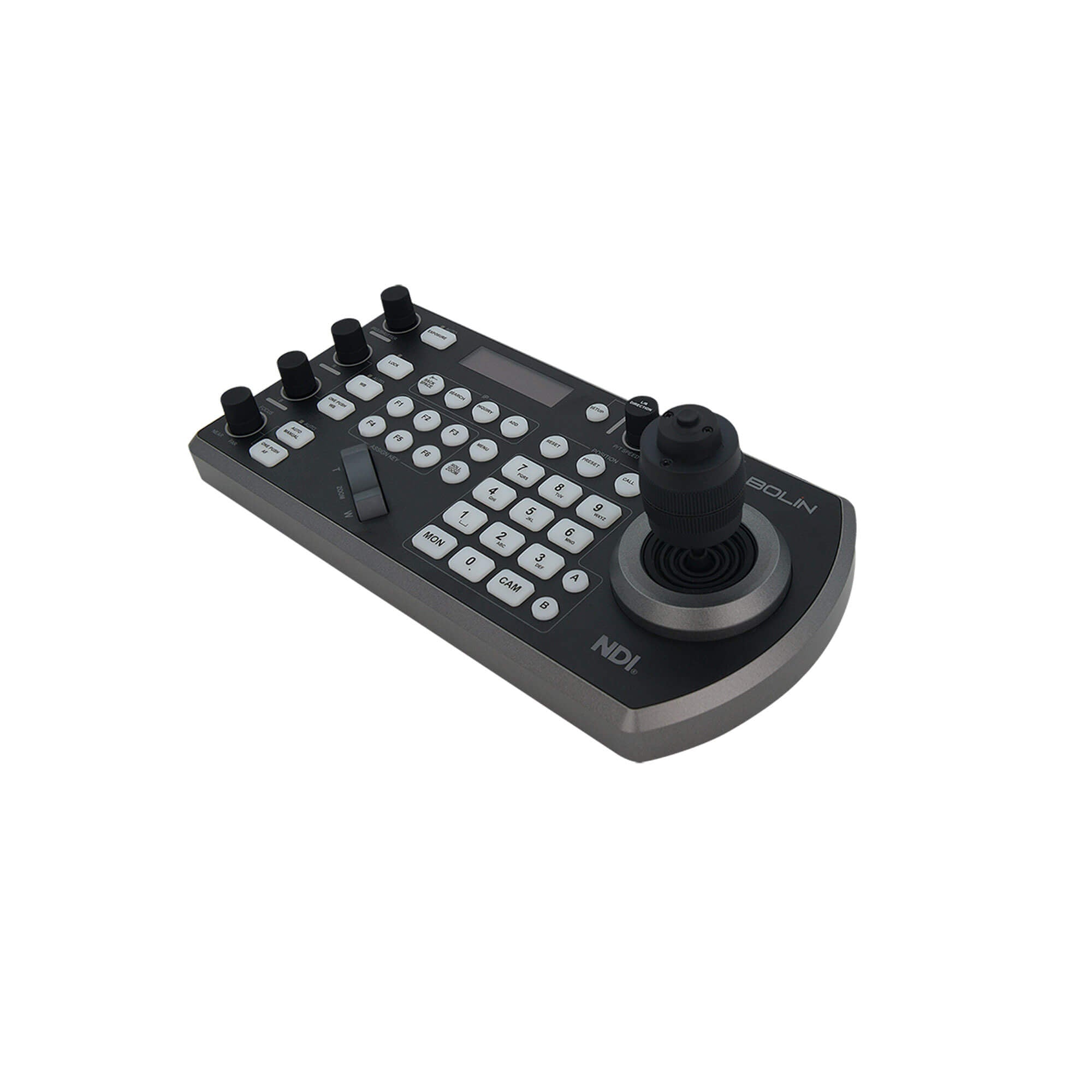

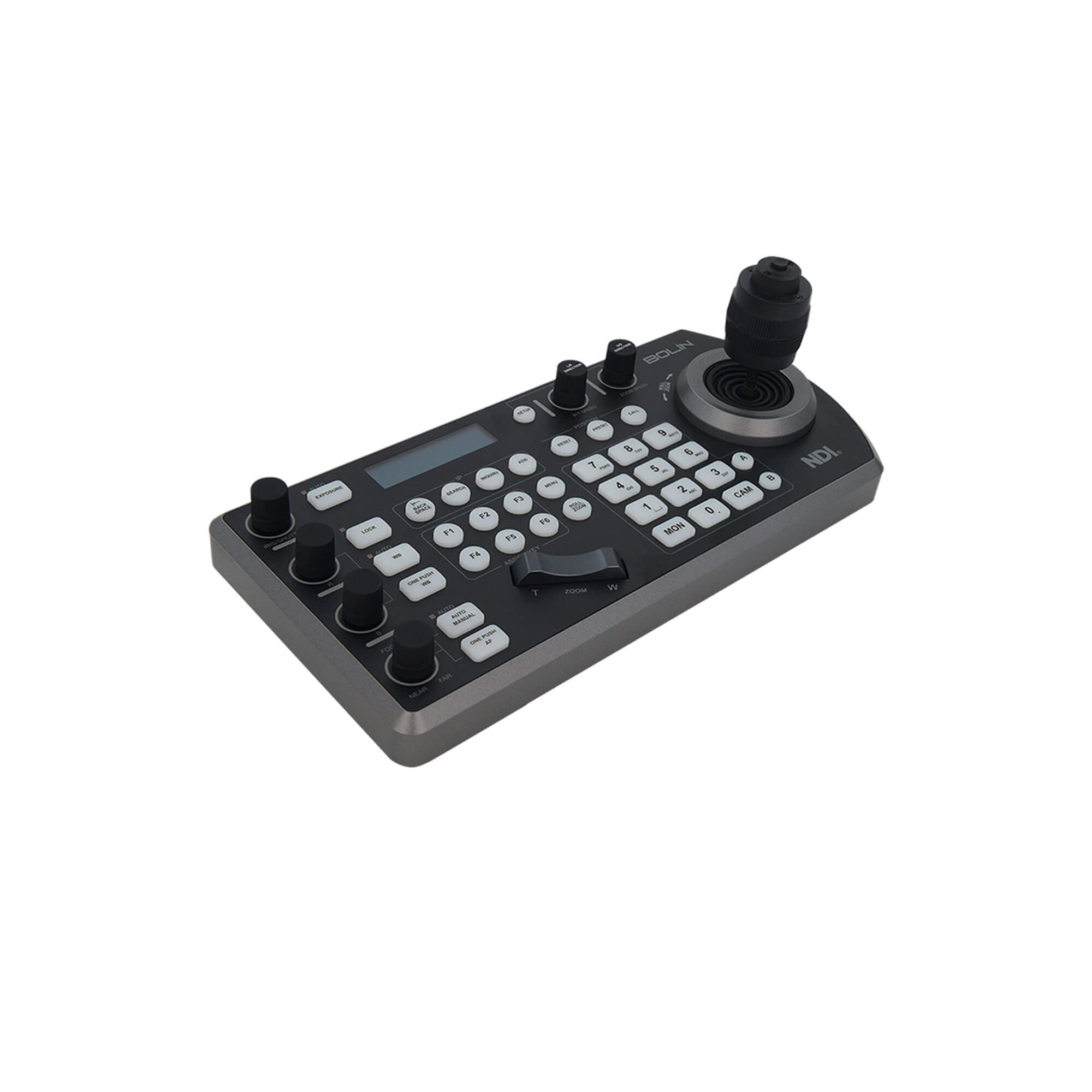

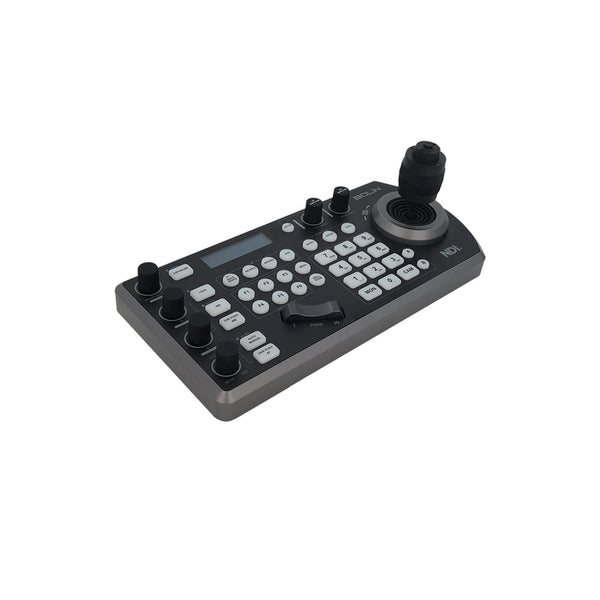

Bolin Technology KBD-1020N Universal NDI PTZ Camera Controller

Newly upgraded KBD-1020N NDI PTZ Controller from Bolin is ergonomically designed to make critical PTZ camera functions easy to find and use. Details like dedicated knobs for PTZ variable speed control and for fine control over iris/shutter, red and blue adjustment, and focus, with auto/manual toggle. It has illuminated push buttons for camera selection and a three-axis joystick for smooth, precise camera movements.

The KBD-1020N is a universal NDI PTZ controller capable of camera discovery and transmitting serial and IP network control commands including  serial Pelco P/D and VISCA as well as IP control protocols like  VISCA over IP, ONVIF and NDI simultaneously within the same network.

The power, flexibility, and intuitive, precise camera controls of the KBD-1020N make it an ideal partner for multiple PTZ camera setups in live NDI production environments such as broadcast studios, education and video conferencing spaces, concerts, and Houses of Worship.

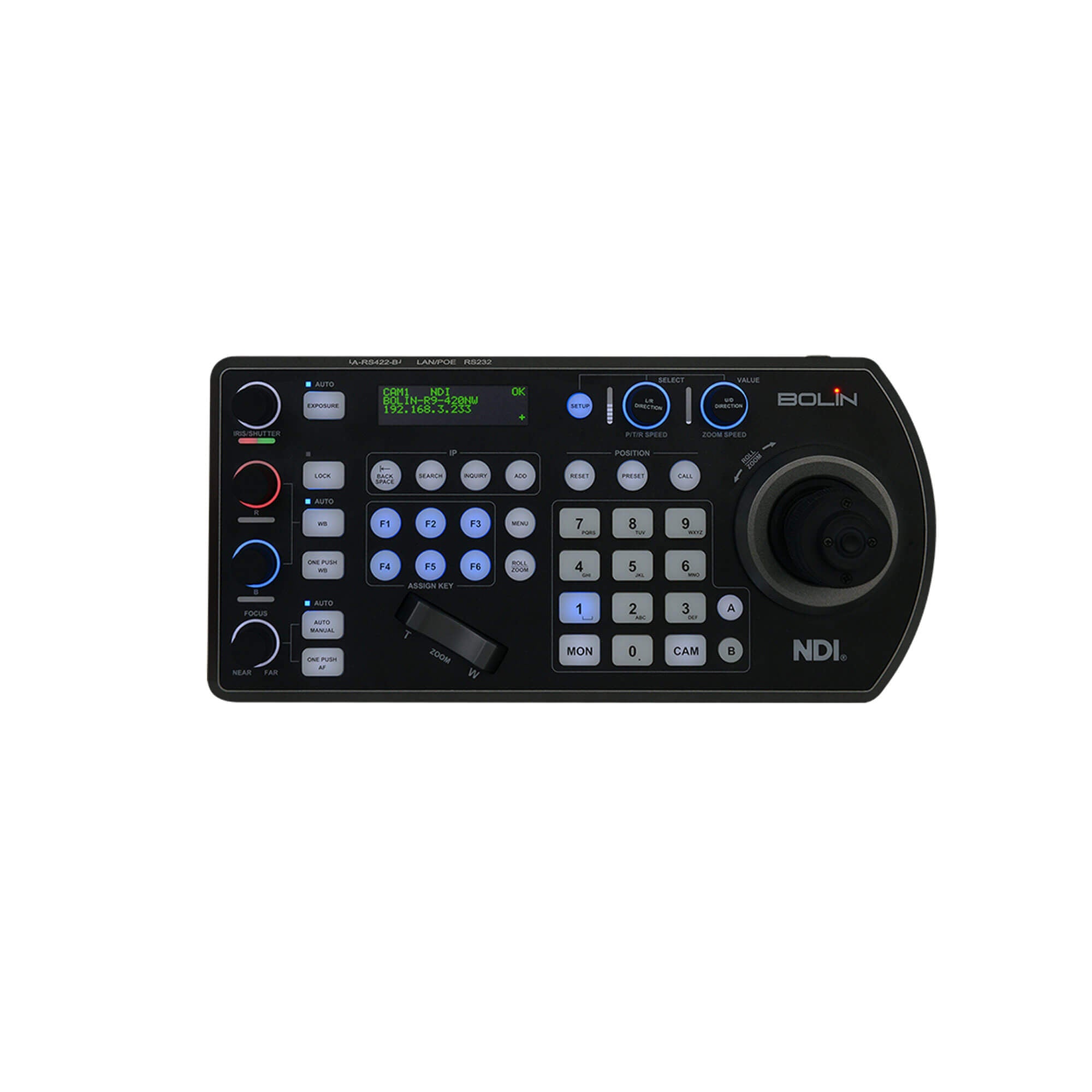

Quick Access Controls

Dedicated knobs for quick access features include control for exposure, shutter speed, iris, compensation, white balance, focus, PT speed, and zoom speed. Toggle between auto and manual control modes, utilize the illuminated buttons for camera selection, and the 3-axis joystick for precise camera movements.

Selectable ASSIGN Items

ASSIGN keys allow you to select additional functions and assign them for one-key quick actions. Potential actions include camera flicker, status display, AE level, SRZ, Tele Convert mode, trace memory, ND filter, Picture Profile settings, rain wiper on/off, camera power, etc.

Other PTZ Control Features

• Supports Bolin image rolling adjustment control
• Pan, tilt, zoom 3-way simultaneous joystick control
• Seesaw lever zoom control
• Instant variable speed adjustment for PTZ
• Trace Memory allows sequence of camera moves to be stored and recalled whenever required
• Instant camera focusing by manually fine tuning and One Push focus

Transfer Keyboard & Camera Configuration Data

Use IP software tools to modify and organize the controller's configuration and export/import existing PTZ camera registration data via IP network to make setup a breeze, especially when you have multiple controllers in a single system.

Image Parameter Controls

Control image color and exposure related settings via VISCA protocols. Settings include black levels, white balance, auto/manual exposure level, iris, gain, and shutter speed, which can be adjusted directly without using the camera menus.

Direct IP PTZ Assignment

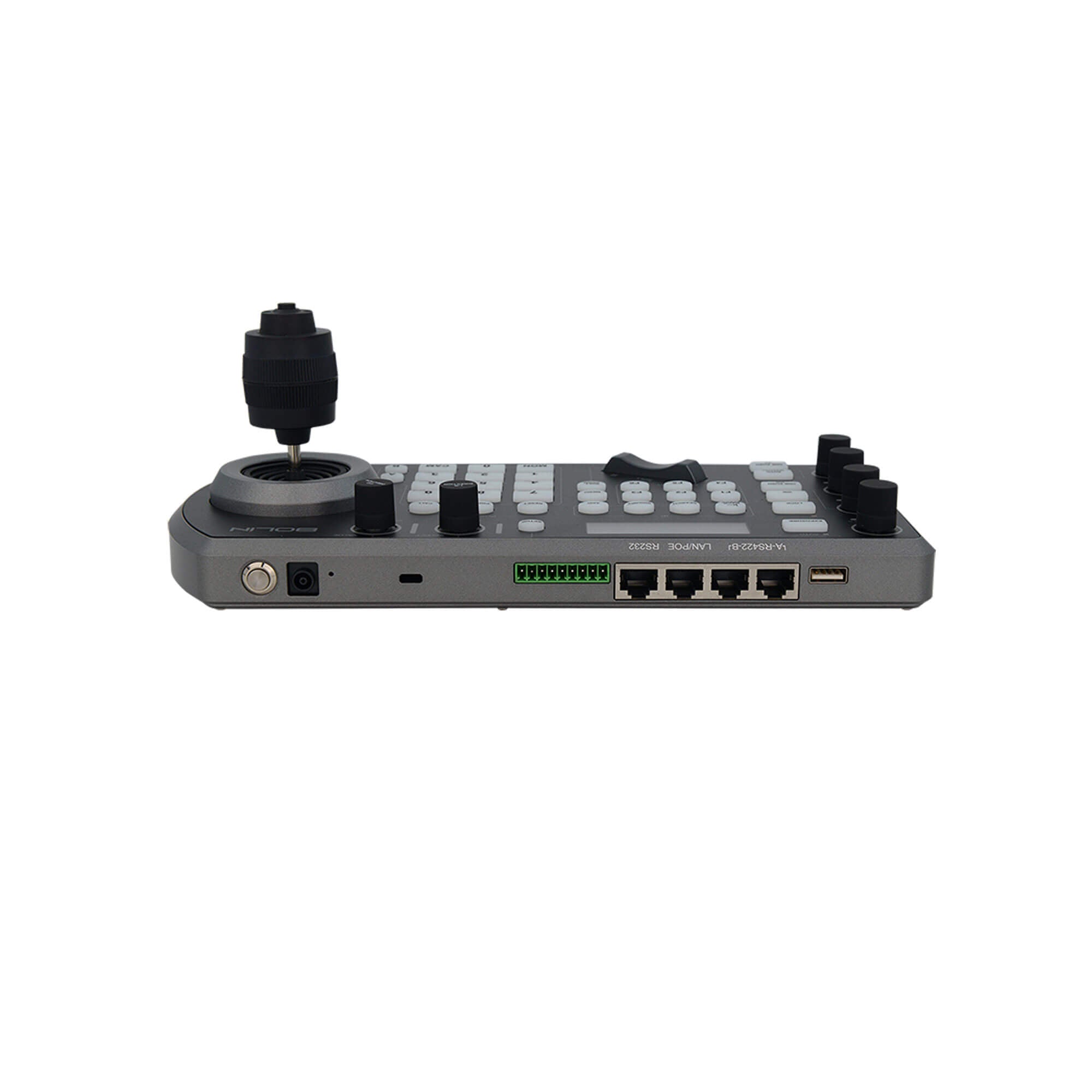

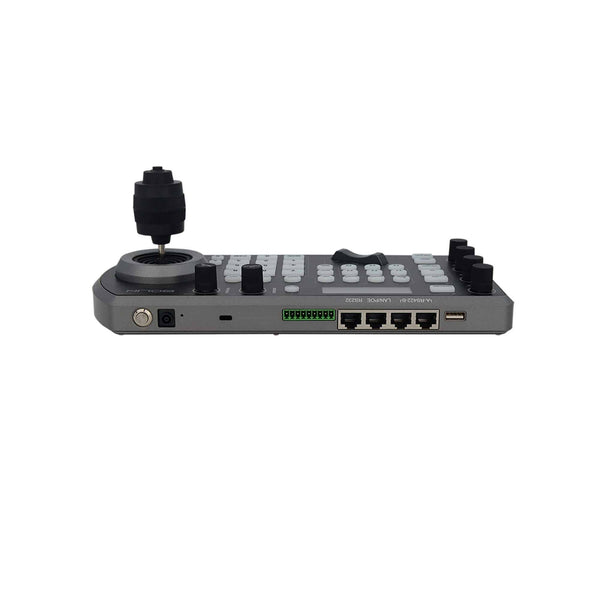

Automatically search available IP cameras in the network. Assign IP addresses and facilitate camera registration with ease. The PoE+ port provides power over serial control cable to keep the back-panel wired connections organized.

Store and Recall Camera Presets

Camera presets with position, zoom, and image parameter settings can be stored and recalled using the numeric keypad.

Wide Power Voltage Tolerance

With a voltage tolerance of 6 to 48V, the controller can support longer distance power runs, making it suitable for vehicles or mobile equipment carts.

Switch Video Router

The controller is compatible with the Blackmagic SDI video router for simultaneous PTZ control and camera/monitor switching.

Easily Upgradeable

Perform firmware upgrades via USB/IP to keep your controller up to date.

Mix Different Camera Brands

VISCA over IP port can be used with any brand of compatible cameras for a single shared system with no conflicts.

What's In The Box

• Bolin Technology KBD-1020N NDI-Enabled IP PTZ Camera Controller
• RS-422 RJ45 Adapter
• Serial Control Junction Box
• Power Supply (12V, 2A)
