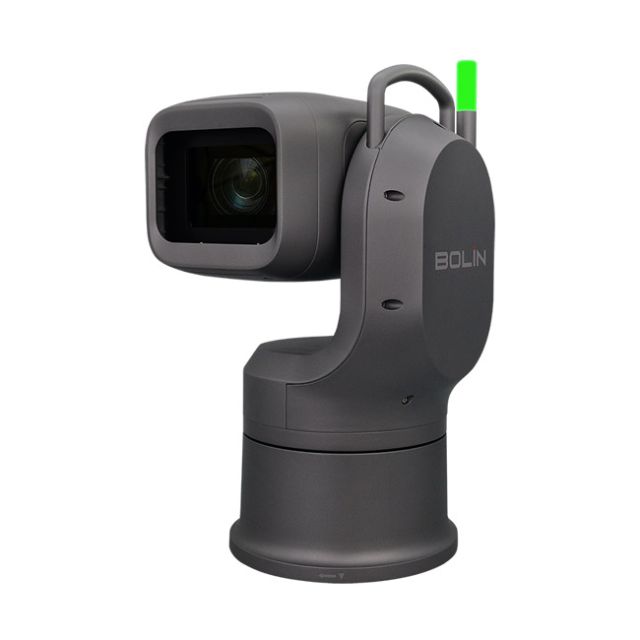

Bolin Technology EXU248N Outdoor NDI 6-Ready High-Bandwidth 1'' PTZ Camera (Dark Gray)

Bolin Technology EXU248N Outdoor NDI 6-Ready High-Bandwidth 1'' PTZ Camera (Dark Gray)

Bring UHD 4K quality video to your production with the dark gray EXU248N Outdoor NDI 6-Ready High-Bandwidth 1" PTZ Camera from Bolin. This versatile PTZ camera outputs up to UHD 4K30 via 6G-SDI, HDMI, and IP streaming using a large 1" Sony Exmor R CMOS sensor with 14.2MP. This model also supports NDI transmission, which allows the camera to fit right into an existing NDI network, and it is NDI 6 ready. It captures video using a Zeiss Vario-Sonnar T lens that features 48x zoom in 1080p, 18x zoom in 4K, and a wide 64.6° angle-of-view. This outdoor camera features an IP67-rated, nitrogen-filled housing, a wiper, a heater, and a defroster, and the lens features a salt-resistant coating for use in all weather conditions.

A tally light can be added and removed for use in multi-camera environments. The camera can output two simultaneous IP streams via RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to UHD 4K30. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the LEMO-type audio port. An optional fiber-based SDI module can be added using the SFP slot. The camera can be powered using PoE++ or via an optional power adapter.

Â

Features

• Large 1" CMOS Sony Exmor R sensor, 14.2MP
• NDI, HDMI, 6G-SDI, and IP output up to UHD 4K30
• Vario-Sonnar T lens with 48x zoom in HD/1080p, 18x zoom in 4K
• Outdoor design features IP67 housing with a wiper, heater, and defroster
• Large, removable tally light
• 10-pin LEMO-type audio input/output, with embedding
• Maximum 60°/s pan/tilt in high-speed mode
• Live streaming via RTMP, RTSP, RTP, MP2TS over UDP, TS over RTP/SRT, WebRTC
• On-screen character generator
• PoE++ and 24 VDC power supply options
• Optional laser IR illuminator
• Optional single-mode LC fiber module via SFP slot

Â

What’s In The BoxÂ

• Bolin Technology EXU248N Outdoor NDI 6-Ready High-Bandwidth 1" PTZ Camera (Dark Gray)
• Power Adapter
• IR Remote Control
• Tally Light Attachment
• Camera Cover
• Cable Cover
• Screw Set
