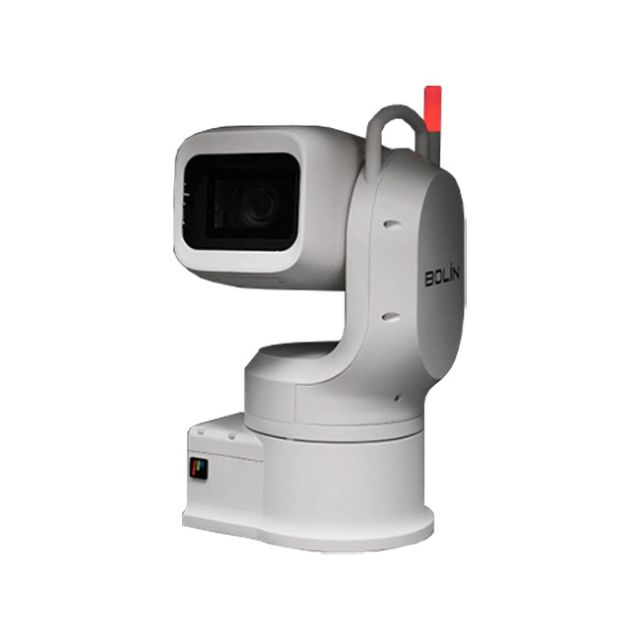

Bolin Technology EXU230NXW Outdoor NDI|HX3 PTZ Camera (White)

Bolin Technology EXU230NXW Outdoor NDI|HX3 PTZ Camera (White)

Bring HD quality video to your production with the white EXU230NXW Outdoor NDI|HX3 PTZ Camera from Bolin. This versatile PTZ camera outputs up to 1080p60 via 3G-SDI, HDMI, and IP streaming, and this model also features high-quality, low-latency NDI|HX3 streaming. It features a large 1/1.8" CMOS sensor with 4.17MP image capture, a 30x optical zoom, an additional 12x digital zoom, and a wide 58.1° angle-of-view. This outdoor camera features an IP67-rated, nitrogen-filled housing, a wiper, a heater, and a defroster, and the lens features a salt-resistant coating for use in all weather conditions.

A tally light can be added and removed for use in multi-camera environments. The camera can output three simultaneous IP streams via RTP, RTMP, RTSP, or SRT using H.264, H.265, MJPEG formats, and streaming supports up to 1080p60. The camera can be controlled via the included IR remote or via IP using ONVIF or VISCA-over-IP, and via serial using VISCA, Pelco-P or Pelco-D, or via FreeD with an optional firmware upgrade. Audio can be embedded or de-embedded from the stream using the 10-pin LEMO-type audio port. An optional fiber-based SDI module can be added using the SFP slot. The camera can be powered using PoE++ or via an optional power adapter.

Â

Features

• Designed for outdoor use in all weather environments
• Large 1/1.8" CMOS sensor, 4.17MP
• HDMI, 3G-SDI, and IP output up to 1080p60
• High-resolution, low-latency NDI|HX3 support
• 30x optical, 12x digital zoom
• IP67 waterproof, dustproof
• Built-in heater and defroster
• Large, removable tally light
• Mini-XLR audio input/output, with embedding
• Maximum 100°/s pan/tilt in high-speed mode
• Live streaming via RTMP, RTSP, RTP, MP2TS over UDP, TS over RTP/SRT, WebRTC
• On-screen character generator
• PoE++ and 24 VDC power supply options
• Optional laser IR illuminator
• Optional single-mode LC fiber module via SFP slot

Â

Â

What’s In The BoxÂ

• Bolin Technology EXU230NXW Outdoor NDI|HX3 PTZ Camera (White)
• Power Adapter
• IR Remote Control
• Tally Light Attachment
• RJ45 RS-422 Adapter
• Mount Cover Set
• Rainproof Tripod Mount Cover
• Camera Cover
• Lock
• Tripod Mount Screw Set (1/4"-20, 3/8"-16)
