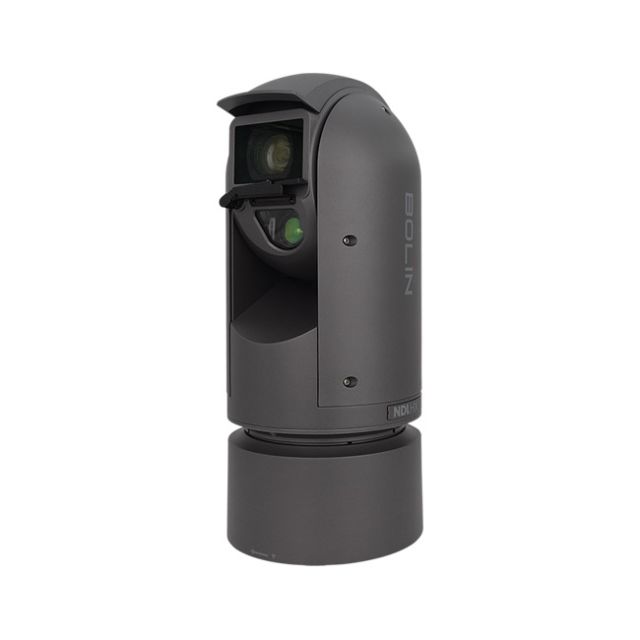

Bolin Technology EX1030NX Outdoor NDI|HX3 PTZ Camera

Bolin Technology EX1030NX Outdoor NDI|HX3 PTZ Camera

The EX1030NX Outdoor NDI|HX3 PTZ Camera uses the latest Sony 1/2.8-type Full HD color image sensor Full HD, which offers high sensitivity with a minimum illumination of 0.009 lx. The combination of these three Core technologies provides an overwhelming sense of resolution, and the advanced AF / AE / AWB functions reproduce faithful images even in low-light environments.

• 1/2.8 inch STARVIS II sensor
• Enhanced High Resolution image quality
• 30X High Resolution optical zoom lens
• Advanced AF performance, Spot Focus Spot AE · Spot AWB
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super low light in color performance
• Super image stabilizer

Â

True Dual-Output

Simultaneously output SDI, and NDI HX3, which can be set to independent formats for different application use.

Â

EX1030NX Various Control Methods

• IP Control
• Serial Control
• Rest API

Â

Control Protocol:

• NDI
• VISCA Over IP
• ONVIF
• VISCA
• PELCO P/D

Â

PTZ Movement-Smooth, Accurate and Quiet

• PAN: 360° continuous; Fully proportional 0.05°〜60°/S
• TILT: 210° (-30° to +180°); Fully proportional, speed 0.01° to 75°/s
• Preset: 255 positions, Speed 100°/s, 0~5 Level Adjustable, Accuracy: 0.03°
• Picture Profile Preset
• Motionless Preset
• PTZ Trace Memory
• Auto-Flip
• Quietness less than NC35
• ZDP (Zero Deviation Positioning), Position Deviation optical self-correction
• Smooth and Accurate Movement

Â

EX1030 Gen 3rd Upgraded

• New Sony Image Block
• Expanded 255 VISCA Steps for finer PT Movement and Control Accuracy
• New Adjustable Roll-Axis
• FreeD Control Protocol Enabled
• Image Character Generator
• Added Rain Wiper
• Environment Temperature Sensor
• Quick Install and Release Mount

Â

Equipped with New Sony Image Block

• Full HD STARVIS II Sensor
• Enhanced High Resolution Image Quality
• 30X High Resolution Optical Zoom Lens
• Advanced AF Performance
• Wide Dynamic Range (Wide-D)
• Visibility Enhancer (VE)
• Super Low Light in Color Performance
• Super and Super+ Image Stabilizer

Â

Roll-Axis Functionality

• Pan, Tilt, Zoom, + NEW Roll Axis
• Roll-Axis Adjustment
• 1-15° horizontal adjustment capability allows to image to be leveled with the horizon and/or subject, or to capture unique angle

Â

RUGGED & DURABLE

• Made for Extreme Weather Condition
• Dustproof and Waterproof IP67 Rated
• Nitrogen Filled to keep inside free of moisture and condensation
• Wind Load Durability, Non-Destructive and Steady Operation at 60 m/s or less
• –40 °C to 60 °C (-40°F to 140°F) Operational
