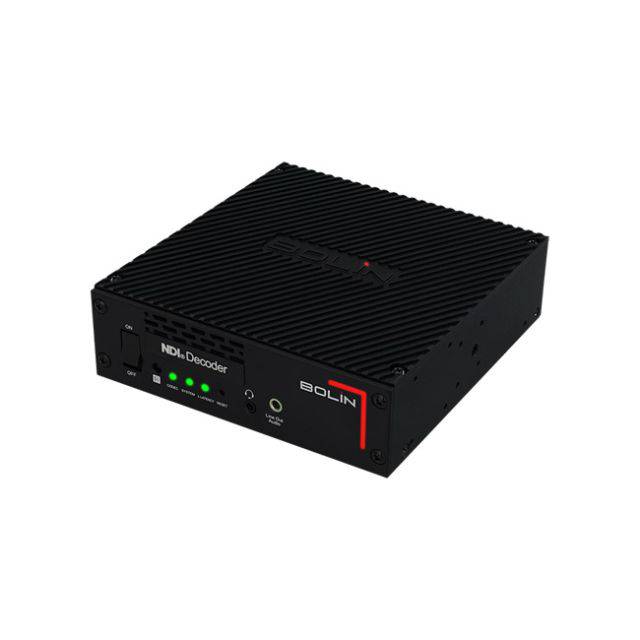

Bolin Technology EG40N NDI to 12G-SDI/HDMI 2.0 Decoder

Bolin Technology EG40N NDI to 12G-SDI/HDMI 2.0 Decoder

Send NDI audio and video to your displays with this High-Bandwidth NDI Decoder from Bolin Technology. The EG40N features high-bandwidth NDI Ethernet input and HDMI 2.0 and 12G-SDI output for monitors. Both HDMI and 12G-SDI output ports support up to UHD 4K60 video for demanding conference room, house of worship, live event, or education applications.

The decoder features full NDI 6 and NDI|HX3 support, including discovery, management via NDI software, and it easily fits into your NDI network with its plug-and-play setup. It supports all Bolin NDI PTZ cameras, scaling from 720p to UHD 4K60, and transport in H.264/AVC and H.265/HEVC formats. The compact design allows you to mount it into a standard 1 RU rack, and it can be powered using the included power adapter or via your PoE+ network.

Â

Quick Features

• Fast H.265/HEVC and H.264/AVC codecs
• NDI high-bandwidth, NDI 6 ready
• NDI|HX3 supported
• Supports up to UHD 4K60
• HDMI 2.0 and 12G-SDI video output
• True dual-output
• Upscalable from 720p up to 4K60
• All video with audio embedded
• Audio intercom with front-end device
• On-screen character generator
• All firmware upgrade via IP
• PoE+ and 12 VDC power input

Â

High-Quality, Low Bandwidth Video Output

The EG40N outputs up to UHD 4K60 video with low latency and very low bandwidth across an NDI network, giving customers additional flexibility and network management options.

Â

NDI Compatible

Full compatibility with all Bolin NDI cameras and encoders and all NDI-enabled mixers, audio devices, and encoders, with support for stereo audio or Dante AV-H audio embedded in the HDMI video output.

Â

HDMI and SDI Output

Support for simultaneous HDMI 2.0 and 12G-SDI outputs to monitors.

Â

IP Decode Support

There is FPGA FAST HEVC decoding support for RTSP, SRT, MPEGTS IP streams, HEVC, and FAST HEVC, making it compatible with Bolin's FAST HEVC cameras, decoders, and all standard HEVC streams.

Â

Production Audio Support

The TRRS Audio intercom port on the front provides support for live production intercom.

Â

Full NDI Support

Device discovery, management, routing, monitoring, and firmware upgrades are enabled through familiar NDI software, providing a simple, plug-and-play experience. It is NDI 6 ready and supports NDI|HX3 transport.

Â

Video Upscalable

Upscales lower resolution HDMI and SDI video to maximum from 720p up to UHD 4K60 output. Downscaling is available.

Â

Flexible Power Options

Power the unit via PoE+ (Power over Ethernet) and 12 VDC power input (a power adapter is supplied).

Â

Convenient Mounting Options

The small, 1/3 RU form factor offers a variety of horizontal and vertical mounting options, including rackmount, DIN rail, panel and wall mounts, VESA mounts, and tripod support.

Â

Â

What’s In The BoxÂ

• Bolin Technology High-Bandwidth NDI Decoder
• Power Adapter
• IR Remote Controller
• HDMI Cable Mount
• Base Mount
