Bolin N7-220X Full HD NDI HX3 PTZ Camera 20x HDMI 3G‑SDI (White)

The Bolin N7-220X Full HD NDI HX3 PTZ Camera 20x HDMI 3G‑SDI (White) delivers crisp 1080p60 video, smooth PTZ moves, and flexible connectivity for modern production. Use it for video conferencing, education, worship, and live events where image quality and reliability matter.

At its core is a low‑noise 1/2.8" 2.13MP CMOS sensor with advanced 2D/3D noise reduction. You get clean images with a high signal‑to‑noise ratio, even in challenging light. A 20x optical zoom and 16x digital zoom cover wide classrooms and tight speaker close‑ups with ease. The 55.8° angle of view, ±170° pan, and +90°/‑30° tilt give you broad framing options without moving the camera.

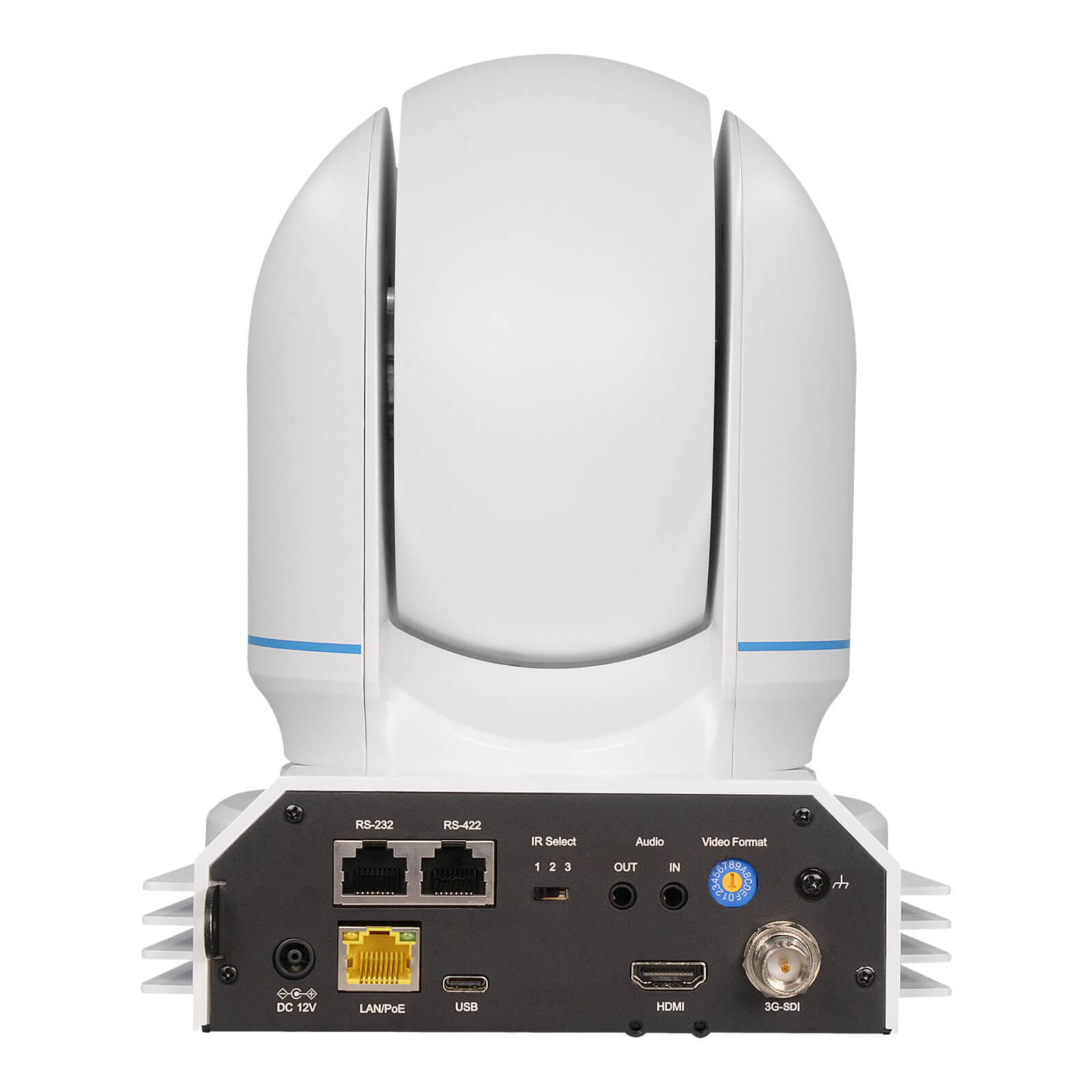

Connectivity is simple and flexible. The N7‑220XW outputs over HDMI and 3G‑SDI for baseband workflows, USB‑C with UVC for direct computer capture, and IP with simultaneous dual streaming via Gigabit RJ45. NDI|HX3 low‑latency streaming lets you integrate into NDI® networks with broadcast‑grade performance. You can embed audio on every output path, and the rear 3.5mm input accepts mic‑ or line‑level sources for easy sound integration.

Install fast with PoE+ single‑cable installation that carries power, control, and IP video on one run. The durable magnesium‑alloy, dome‑style housing looks clean on set and stands up to daily use. Firmware updates are free and easy over IP, so your N7-220XW NDI|HX3 Full HD PTZ Camera stays current with new features and improvements.

Control is smooth and quiet. Use the included IR remote, VISCA‑over‑IP, ONVIF, or serial RS‑232/RS‑422 with VISCA, Pelco‑D, and Pelco‑P. Store up to 255 presets via a serial controller (six via IR) for fast shot recall. Adaptive speed modes support precise framing, including super‑slow moves for on‑air adjustments that your audience will not notice.

Image control is comprehensive. Tweak exposure, iris, shutter, white balance, gamma, and WDR to match your scene. Bolin’s AI face analytical engine powers smart focus and smart exposure to keep talent sharp and well‑lit in mixed lighting. Flip/mirror settings make ceiling or wall installs straightforward, and picture profile presets let you standardize looks across multiple rooms.

In real‑world use, the N7-220XW NDI|HX3 Full HD PTZ Camera fits a wide range of tasks. In worship spaces, it captures sermons and music with smooth pans and reliable autofocus. In classrooms and training rooms, USB‑C UVC support connects directly to conferencing apps while NDI|HX3 feeds your campus AV. For city meetings and corporate events, HDMI/SDI integrate with switchers, while IP streams go straight to your CDN or platform of choice.

Key advantages include 20x optical zoom for flexible framing, NDI|HX3 low‑latency streaming for IP workflows, and PoE+ single‑cable installation to simplify deployment. Add the quiet PTZ drive, 255 presets, and robust control options, and you have a camera that saves time on setup and delivers consistent results show after show.

If you need a Full HD PTZ that blends image quality, connection choices, and easy control, the Bolin Technology N7-220XW NDI|HX3 Full HD PTZ Camera is ready for your system—today and as your workflow grows.
