Bolin N7-220X Full HD NDI HX3 PTZ Camera 20x HDMI 3G‑SDI (Black)

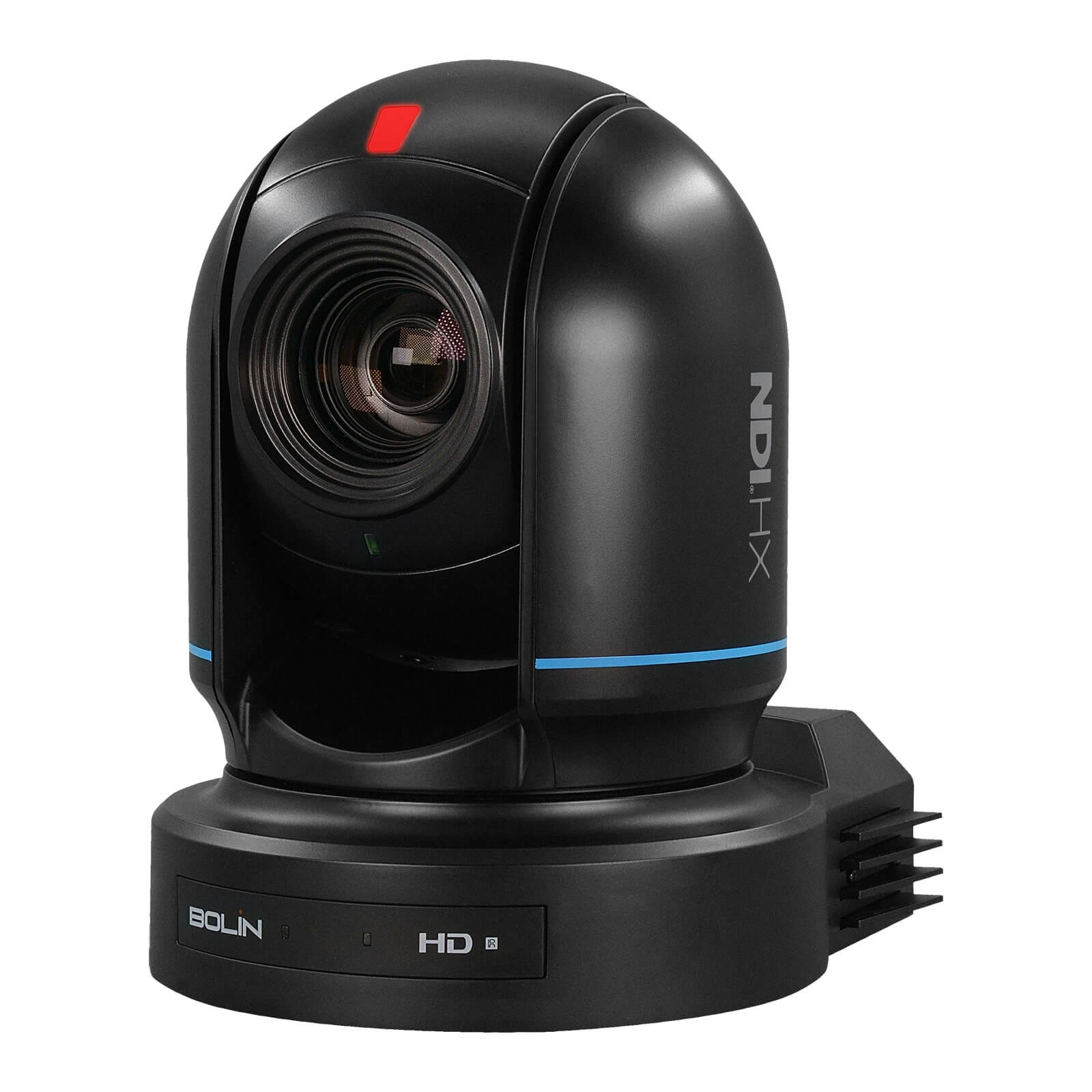

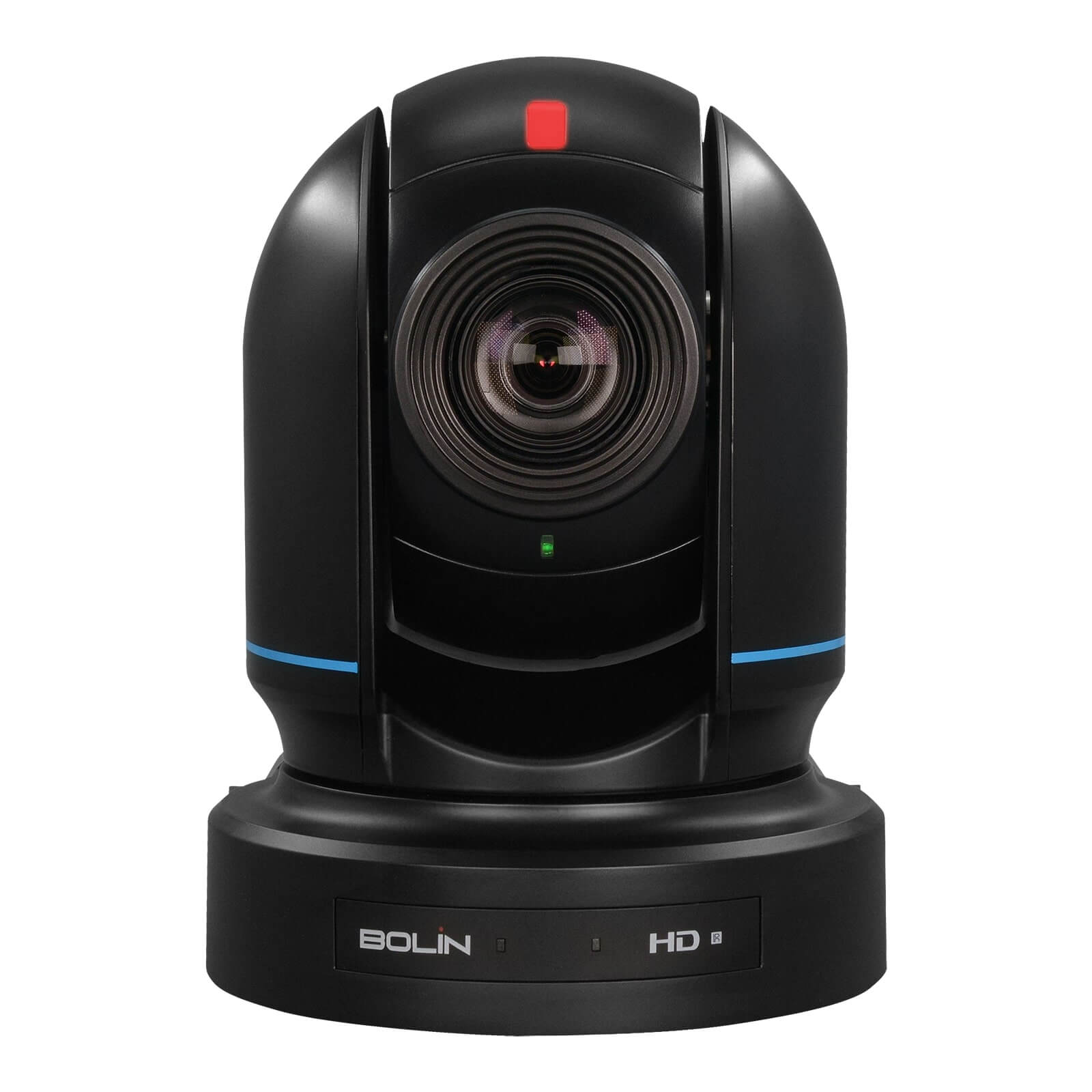

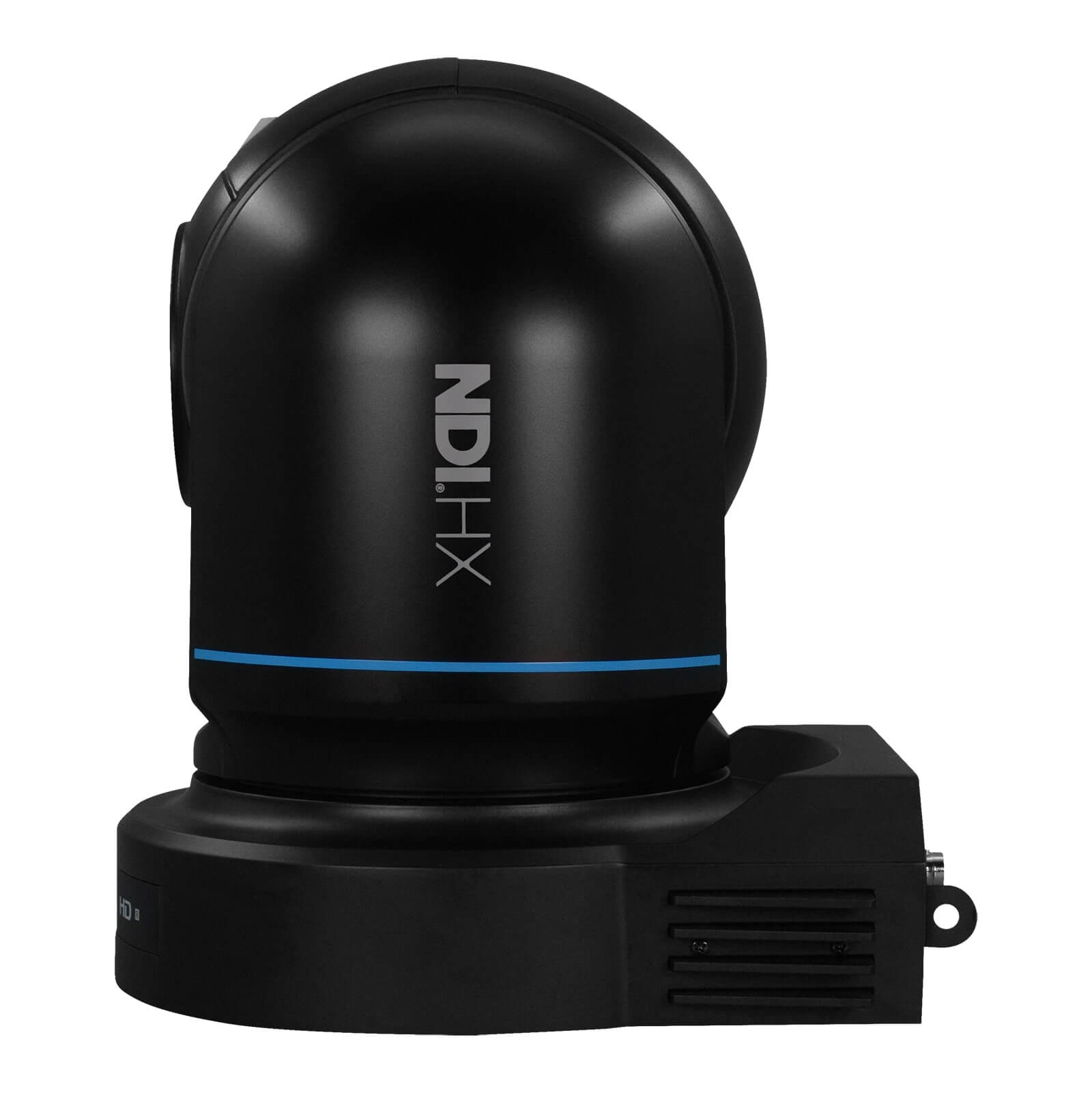

The black Bolin N7-220X Full HD NDI HX3 PTZ Camera 20x HDMI 3G‑SDI delivers professional video performance for broadcast, streaming, and conferencing. Built with precision optics and advanced image processing, this PTZ solution is ideal for education, house of worship, corporate training, and live production environments.

High-Quality Imaging

Equipped with a 1/2.8" 2.13MP CMOS sensor, the N7-220X captures sharp 1080p60 video with rich detail and accurate color. Advanced 2D/3D noise reduction ensures clean images even in low-light conditions. A 20x optical zoom lens paired with 16x digital zoom offers flexible framing from wide shots to close-ups, while a wide 55.8° angle of view provides excellent coverage in classrooms, sanctuaries, or meeting spaces.

Flexible Output Options

This PTZ camera supports multiple simultaneous outputs for maximum workflow flexibility. It delivers high-quality NDI|HX3 streaming with low latency, making it easy to integrate into any IP-based production environment. Local HDMI and 3G-SDI outputs provide reliable connections for broadcast and live production. USB-C with UVC support allows seamless integration with popular conferencing software, while dual IP streaming via Gigabit Ethernet ensures smooth remote workflows.

Smart Image Control

The N7-220X includes intelligent image adjustments such as auto or manual exposure, white balance, shutter speed, gamma, and wide dynamic range. Built-in AI-powered face detection enhances smart focus and exposure, keeping subjects sharp and well-lit in dynamic environments.

Smooth PTZ Operation

With quiet motors and precise control, the N7-220X enables smooth pan, tilt, and zoom movements. Operators can store up to 255 preset positions with an optional serial controller or six presets via the included IR remote. Variable speed settings and adaptive motion control make the camera easy to use in professional and live scenarios.

Audio Integration

The camera features a 3.5mm mic/line input for direct audio capture. Audio is embedded into all outputs, including NDI|HX3, HDMI, 3G-SDI, USB, and IP streams, ensuring clear sound alongside high-quality video.

Remote Control and Setup

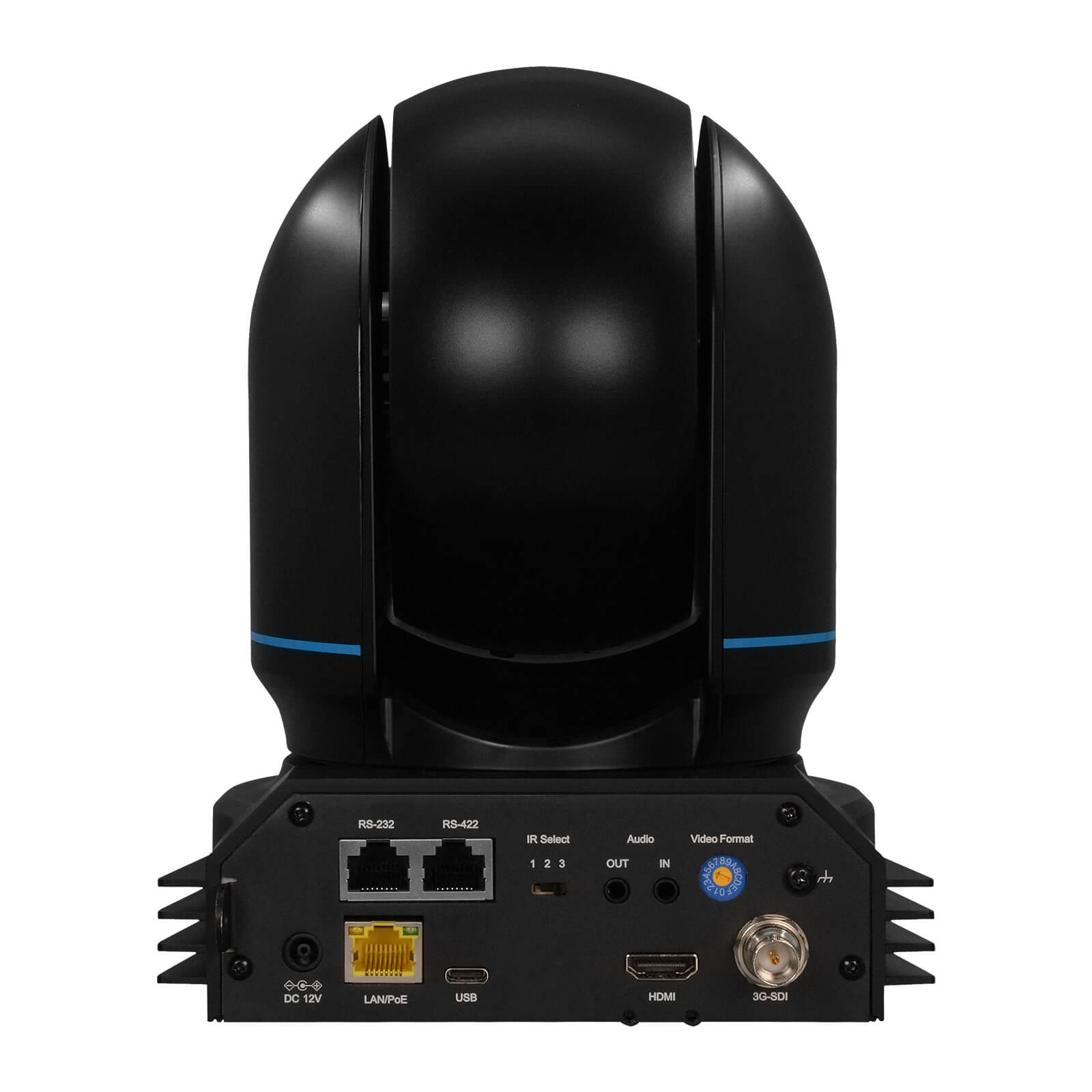

Control options include RS-232/RS-422 serial, VISCA-over-IP, ONVIF, Pelco-D, and Pelco-P protocols. The RJ45 port allows remote setup and configuration, while PoE+ support simplifies installation by powering the camera through a single network cable.

Durable Design and Easy Updates

Built with a magnesium alloy housing, the N7-220X is rugged enough for daily professional use. Firmware updates are easily applied via the IP interface, keeping the camera secure and up to date with the latest features.

Ideal Applications

The Bolin N7-220X PTZ Camera is designed for video conferencing, streaming, education, houses of worship, corporate training, and ProAV productions. With its professional connectivity, smooth PTZ movement, and Full HD output, it delivers reliable performance in demanding environments.
