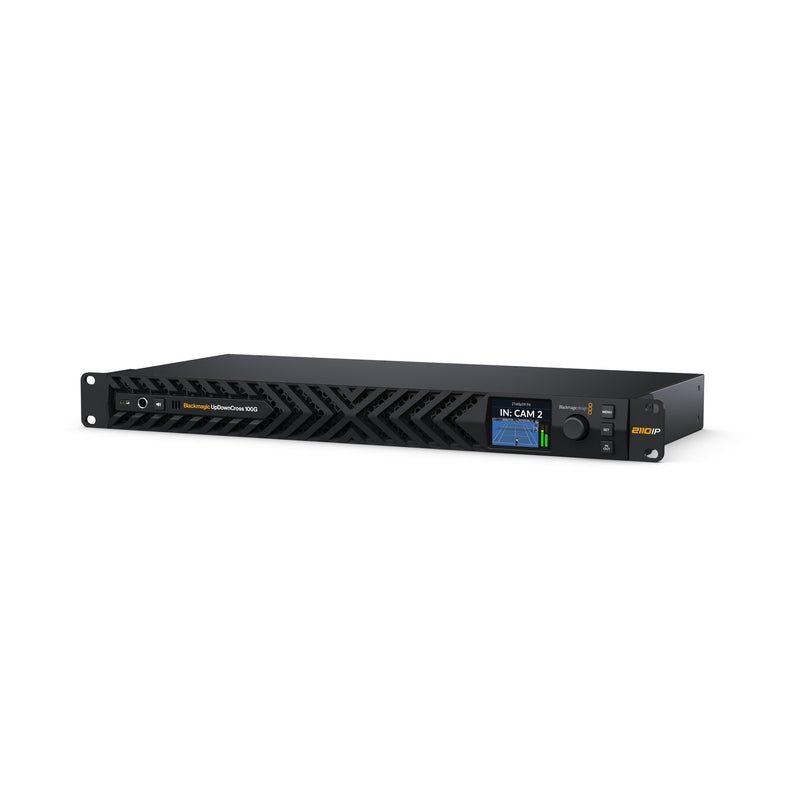

Blackmagic Design UpDownCross 100G IP converter showing front and angled views with ports and controls.

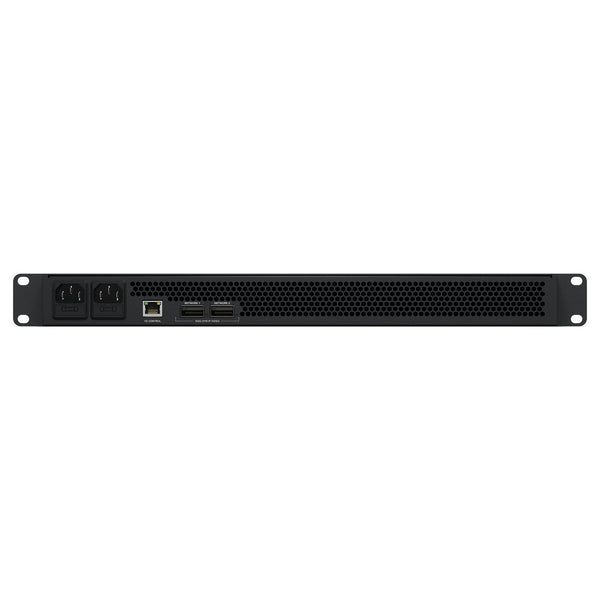

Rear view of Blackmagic Design UpDownCross 100G IP converter showing ports and connection interfaces.

Blackmagic Design UpDownCross 100G IP converter device with front view showing ports and controls.

Product Highlights

8 channels of Up, Down and Cross conversion
100G Ethernet with full SMPTE-2022-7 redundancy
Supports SD, HD and Ultra HD up to 2160p60
Dedicated NMOS connection for routing IP sources
Dual redundant AC power supplies for broadcast reliability

Blackmagic UpDownCross 100G

SKU:: CONVNVIPJ/STG/100G
MPN:: CONVNVIPJ/STG/100G

Pre-Order

Regular price $2,679.00

Add to Wishlist Enquiry

New Item - Secure Your Order Now

Free Expedited Shipping

Secure payment

Manufacturer Warranty

Authorized Dealer

Description

Product Overview

Blackmagic Design — Standards Conversion

Blackmagic UpDownCross 100G — 8-Channel IP Standards Converter

Convert up to 8 independent channels of SD, HD, and Ultra HD video simultaneously over redundant 100G Ethernet — SMPTE-2110 native, SMPTE 2022-7 compliant, in a single broadcast 1RU chassis.

SMPTE-2110 Native SMPTE 2022-7 Ready 1RU Form Factor Up to 2160p60

8ch

Simultaneous
conversions

100G

Dual Ethernet
ports

2160p60

Max Ultra HD
standard

1RU

Rack unit
height

Product description

The Blackmagic UpDownCross 100G standards converter is engineered for modern IP broadcast facilities, live production trucks, and high-density post-production environments. It delivers 8 fully independent channels of simultaneous Up, Down, and Cross conversion — covering every SD, HD, and Ultra HD format up to 2160p60 — all through a single 100G Ethernet connection.

Built on native SMPTE ST 2110 transport, it integrates directly into managed broadcast IP networks, carrying 10-bit video, audio, and ancillary data with frame-accurate PTP clock synchronization. Dual 100G ports enable full SMPTE 2022-7 Seamless Protection Switching — continuously comparing RTP packet sequences across two independent network paths so your broadcast never drops a frame, even during a network failure.

A dedicated NMOS IS-04/IS-05 control port isolates routing traffic from your media network. Dual redundant AC power supplies and front-to-back quiet cooling make this a reliable 24/7 broadcast-grade workhorse. A front panel LCD, speaker, and headphone output let operators monitor video and audio directly on-unit. Available in 13 languages for global deployment.

How SMPTE 2022-7 Seamless Protection Switching works: Two identical media streams travel over separate 100G connections simultaneously. The converter compares RTP packets by sequence number in real time and reconstructs every frame from whichever packet arrives first — the switchover is instantaneous and totally invisible to downstream equipment.

Key features & benefits

8 independent channels of Up, Down & Cross conversion
Replace an entire rack of legacy converters — one device handles every SD, HD, and Ultra HD standard simultaneously up to 2160p60.
Native 100G SMPTE-2110 with full SMPTE 2022-7 redundancy
Dual 100G Ethernet ports deliver seamless protection switching across separate network paths — zero dropped frames, broadcast-grade resilience.
Dedicated NMOS control port for clean IP routing
Isolate IS-04/IS-05 management traffic onto its own interface, keeping control completely separate from your high-bandwidth media flows.
Dual redundant AC power & quiet 1RU cooling
Built for 24/7 continuous operation — redundant power supplies and front-to-back airflow in a compact single rack unit.
Front panel A/V monitoring & 13-language support
LCD display, built-in speaker, and headphone output for instant on-unit checks. Localized for 13 languages for international broadcast workflows.

Blackmagic UpDownCross 100G standards converter panel view

Technical specifications

Connections — 100G IP Network

100G QSFP28

2 x 100G QSFP28 ports with ST 2022-7 redundant delivery across two SMPTE-2110 networks

Senders & Receivers

Per 100G connection

8 x Ultra HD or HD simultaneous streams

Control Network — 1G

1G RJ45

1 x 1G RJ45 for NMOS control, configuration and firmware updates

SMPTE ST 2110 — IP Audio Inputs

Embedded audio in

16 ch embedded audio on each 2110 IP video stream over 100G Ethernet

SMPTE ST 2110 — IP Audio Outputs

Embedded audio out

16 ch embedded audio on each 2110 IP video stream over 100G Ethernet

Analog Audio Output

Headphone jack

1 x 6.35 mm (1/4") headphone jack on front panel

Computer Interface

USB-C

1 x USB-C for configuration and firmware updates

Power

Dual AC inputs

2 x IEC C14 power inputs with dual redundant AC power supplies

Blackmagic UpDownCross 100G
Welcome wallet with QR code for software download

Product Specifications
Video Inputs	2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. Senders and Receivers per 100G Camera 8 x Ultra HD or HD.
Audio Inputs	SMPTE ST 2110 IP Audio Inputs 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
Video Outputs	2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. Senders and Receivers per 100G Camera 8 x Ultra HD or HD.
Audio Outputs	SMPTE ST 2110 IP Audio Outputs 16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet Analog Audio Outputs 1 x 6.35 mm headphone jack.
Video Standards	Video Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30 Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 SMPTE Compliance SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7 Audio Sampling Television standard sample rate of 48 kHz and 24 bit. Color Precision 10-bit 4:2:2 YUV Color Space Rec. 709, Rec. 2020 IP Video Compliance SMPTE 2110-20 (Uncompressed Video) IGMP v2 SMPTE 2110-21 (Traffic Shaping) Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous SMPTE 2110-30 (PCM) Audio Conformance level: Level C SMPTE 2110-40 (Ancillary Data) Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. Codec Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. Precision Time Protocol IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 NMOS IS-04 Discovery and Registration v1.3.2 Peer-to-peer via mDNS/DNS-SD NMOS IS-05 Connection Management v1.1.2 NMOS BCP-002-01 Natural Grouping NMOS BCP-004-01 Receiver capabilities
Product Specific	Display Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel. Control Built in Control Panel 2.2 inch color display, 3 button control panel and spin knob for source and destination setup and menu settings. External Control RJ-45 Ethernet and USB-C.
Network	1G Control Network 1 x 1G RJ45 for NMOS control, configuration and firmware updates.
Computer Interface	1 x USB-C for configuration and firmware updates.
Power Specifications
Power I/O	Power 2 x IEC C14 power inputs Power Supply 2 x 100 ‑ 240V AC 50/60Hz internal power supplies. Power Inputs 2 x IEC C14 sockets. Power Usage TBC
Physical / Environmental Specifications
Dimension	Dimensions: 19 × 8.58 × 1.74 in (48.26 × 21.79 × 4.42 cm) Weight: TBC (TBC)
Environment	Operating Temperature: 0° C to 40° C (32° ‑ 104°F) Storage Temperature: -20° to 45° C (-4° to 113° F) Relative Humidity: 0% to 90% non‑condensing
Warranty	1 Year Limited Manufacturer’s Warranty.
UPC / GTIN	9338716010596
