Blackmagic StudioBridge 100G

Blackmagic StudioBridge 100G

Bridge one or two 100G SMPTE 2110 cameras into a fully redundant dual 100G broadcast network — with automatic SMPTE-2022-7 protection switching built in.

100G

per camera input

2×100G

redundant outputs

16ch

embedded audio

4K60

max video standard

1RU

compact form factor

The redundancy layer your 100G IP system is missing

If you are running a modern SMPTE 2110 infrastructure and need to onboard high-frame-rate cameras like the URSA Cine 12K 100G into a redundant broadcast backbone, the Blackmagic Design StudioBridge 100G was designed for exactly that gap. One or two 100G camera feeds bridge into two independent network paths — if either fails, the downstream system switches instantly with no visible interruption.

One rack unit. NMOS IS-04/IS-05 control. Front-panel LCD with knob navigation. Dual redundant power supplies. Infrastructure-grade hardware built to disappear into your rack and just work.

SIGNAL FLOW — REDUNDANT PATH ARCHITECTURE

SMPTE-2022-7: identical streams travel separate physical paths. Downstream switcher selects cleanly on failure — zero visible glitch.

Connect one or two 100G Ethernet cameras simultaneously. Combined bandwidth must not exceed 100 Gb/s. Pairs natively with the URSA Cine 12K 100G for HFR live production at frame rates that leave 10G behind.

Two independent 100G output paths carry identical streams across separate physical networks. Automatic protection switching with no glitch — the reliability live broadcast demands on every show.

Dedicated 1GbE RJ45 NMOS port for IS-04 discovery and IS-05 connection management. Works inside software-defined broadcast control layers without proprietary workarounds.

Each 100G stream carries 16 channels of embedded audio — keeping your audio workflow cleanly inside IP infrastructure with no separate audio bridge required.

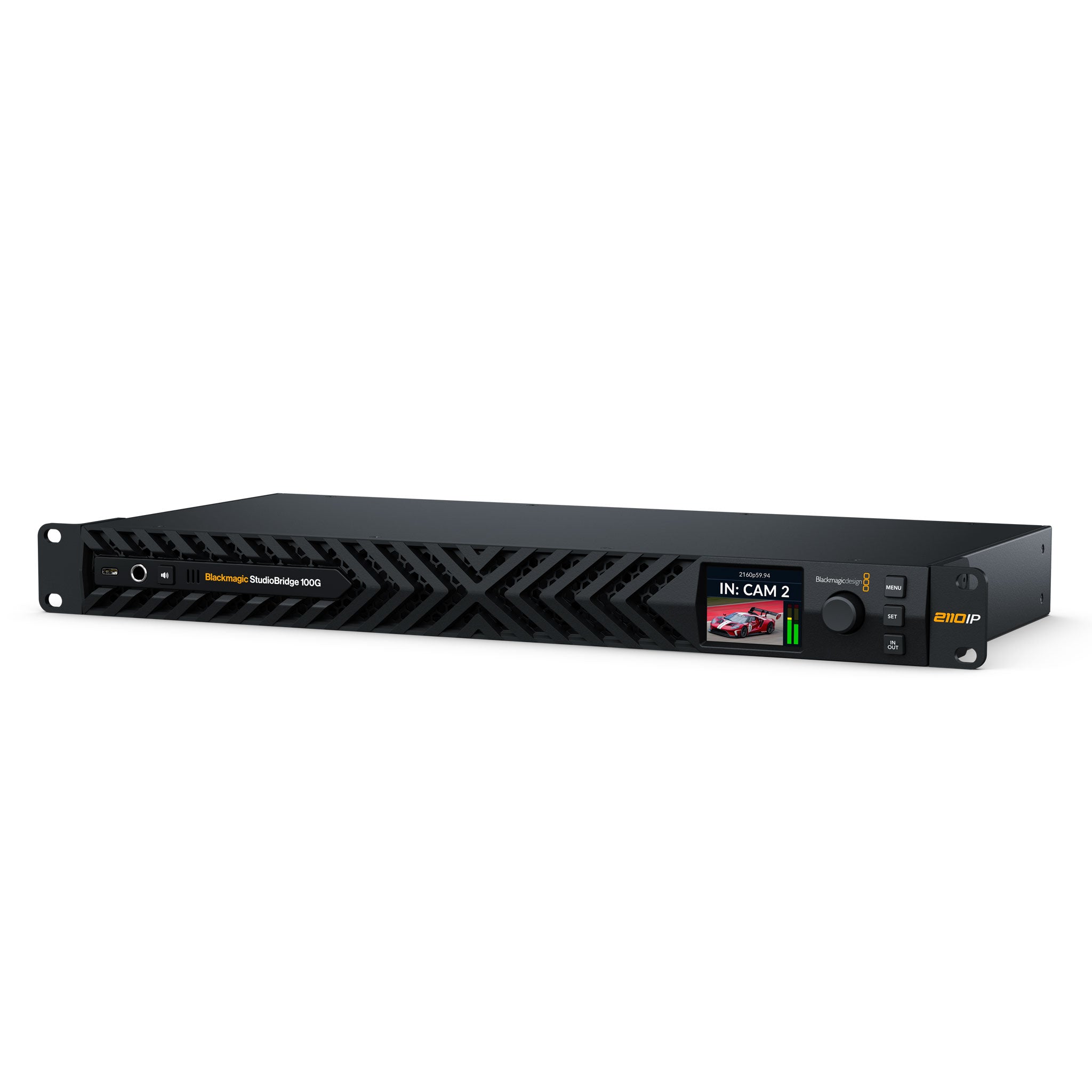

2.2-inch LCD display with control knob and navigation buttons. Monitor input status, configure routing, and run diagnostics directly from the front panel — no external controller needed.

Two independent PSU paths protect against supply failure. Standard in mission-critical broadcast — especially OB trucks running off generator power with variable supply stability.

Live studio

Bridge 100G IP cameras directly into a redundant studio backbone alongside ATEM Constellation IP switchers and 100G Ethernet switches.

OB truck

Compact 1RU fits tight rack builds. Dual PSU and SMPTE-2022-7 redundancy handle generator-supply instability common in field production.

Central facility

Camera ingest node in centralized IP production. NMOS IS-04/IS-05 makes it a proper citizen in software-defined broadcast control systems.

HFR live production

100G throughput supports 4K high-frame-rate output from the URSA Cine 12K 100G — data rates a 10G link simply cannot carry.
