Blackmagic Ethernet Switch 820

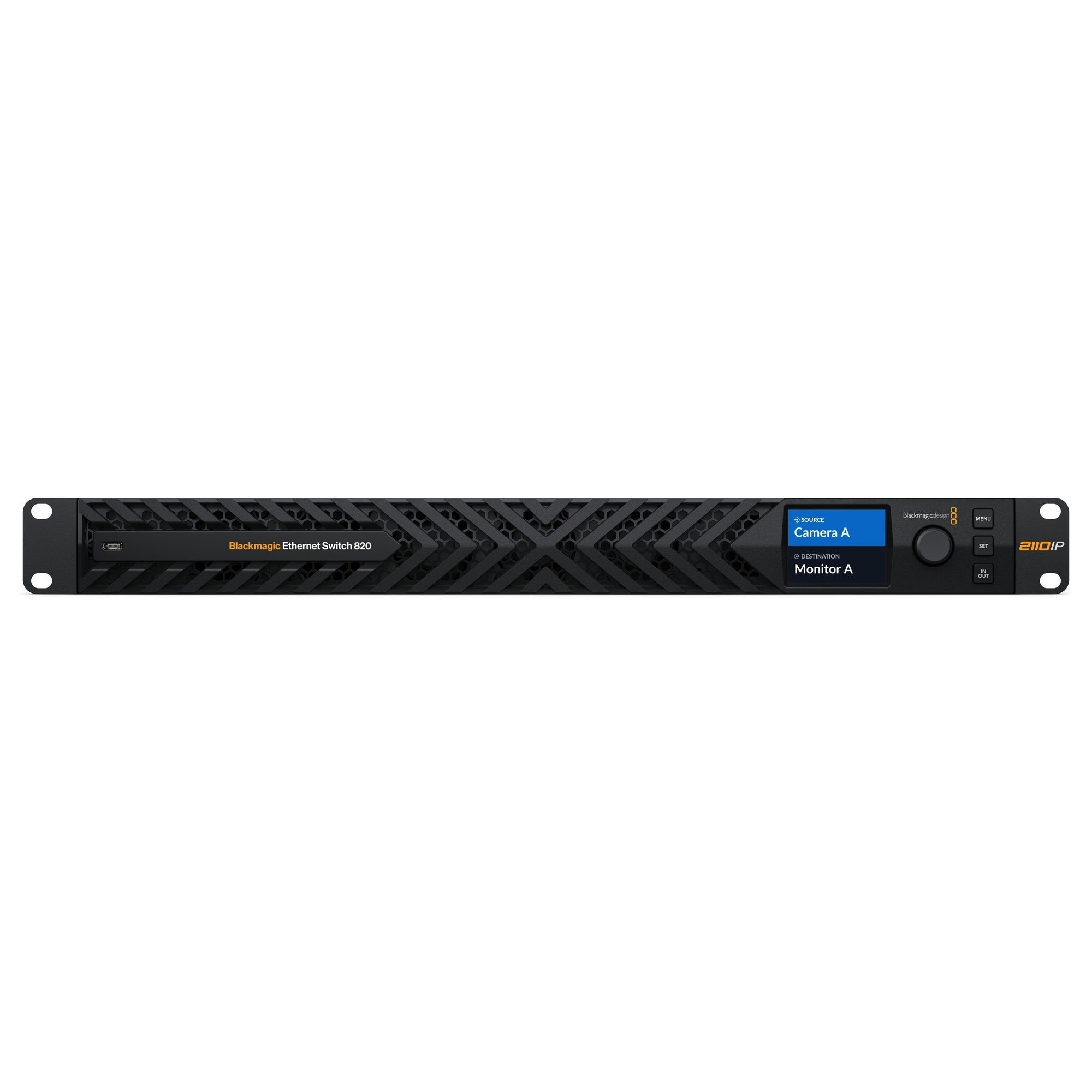

Most broadcast engineers dread the SMPTE-2110 configuration rabbit hole — IGMP snooping, VLAN tagging, multicast settings managed by someone in another building. The 820 sidesteps that entirely. NMOS IS-04 handles device discovery automatically. Plug in a new 2110 camera and it appears in your routing list within seconds. The front-panel LCD and spin knob handle source and destination assignment without opening a laptop. That is not a simplified workflow — it is the right workflow.

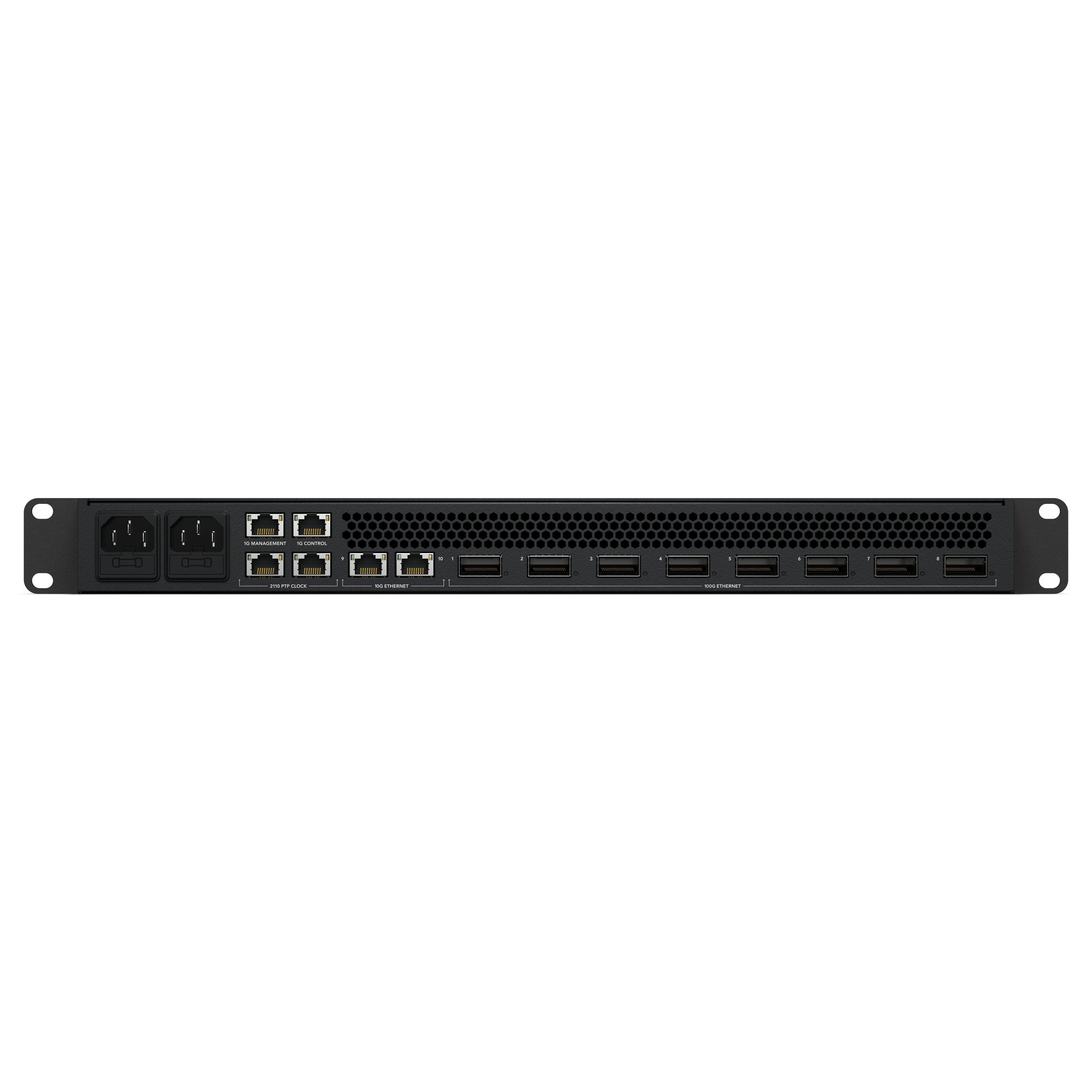

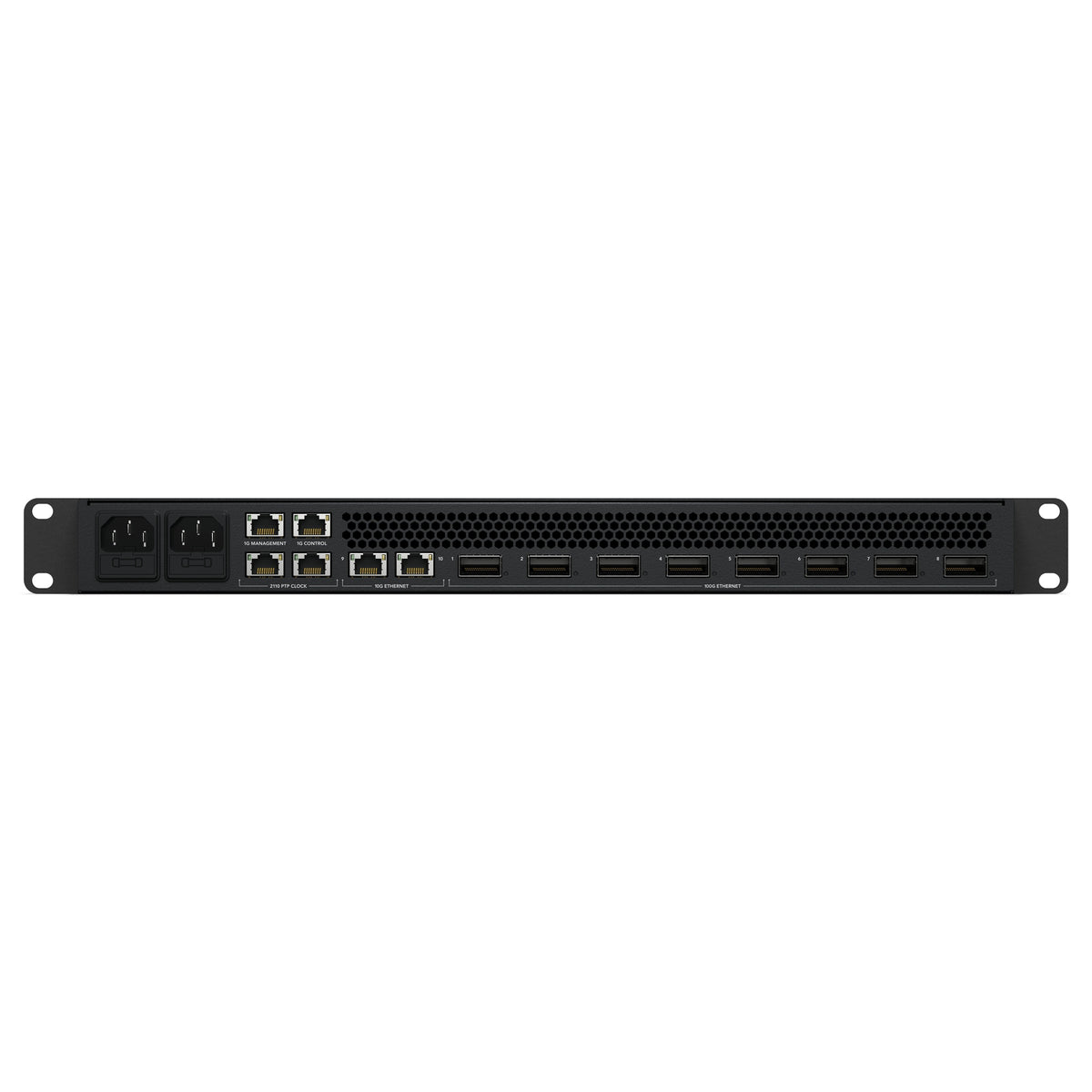

Every network connection on the 820 sits on the rear panel — the same side as your broadcast gear. This sounds obvious until you are looming a broadcast truck at midnight with 40 cables and no room to maneuver. Rear-facing ports mean your looms stay clean and your front panel stays readable under pressure. Front-to-back cooling means you are not blowing hot air onto adjacent gear in a tight rack — a detail that matters in OB vehicles where space is money.

Connect HyperDeck ISO Recorder 100G units directly to the eight QSFP28 ports for massive simultaneous recording bandwidth. Add a Blackmagic Cloud Store Ultra on the same 100G fabric for real-time storage access across multiple DaVinci Resolve workstations. The 10G RJ-45 ports handle lower-bandwidth connections — HyperDeck Extreme 8K records four simultaneous video channels over a single 10G link. The 820 is the hub that makes an all-IP live and post-production workflow possible in a single 1RU unit.

Dual power supplies mean one PSU failure is an event, not a crisis. Dual PTP clock inputs mean a grandmaster failure does not take your timing down with it — the 820 fails over silently. Six cooling fans provide airflow redundancy so a single fan failure does not cause thermal shutdown mid-broadcast. The dedicated management port keeps admin traffic completely isolated from your media network so a firmware update during a show never competes with your video signal for bandwidth.
