Blackmagic Design UltraStudio Express Recorder 3G

Product Highlights

Broadcast-Quality 3G-SDI & HDMI Capture — 10-bit video input up to 1080p60, fully SMPTE compliant across all SD and HD standards
USB4 / Thunderbolt 4 — Bus Powered — single USB-C cable carries both data at 40Gbps and power, no wall adapter needed in the field
Works With Every Major App — OBS Studio, vMix, Wirecast, Zoom, DaVinci Resolve, and more via the Blackmagic DeckLink API
Pocket-Sized for Mac, Windows & Linux — compact form factor with 16-channel SDI audio and 8-channel HDMI audio, 48kHz/24-bit

Blackmagic Design UltraStudio Express Recorder 3G

SKU:: BDLKULSDMAEXREC3G
MPN:: BDLKULSDMAEXREC3G

Pre-Order

Regular price $175.00

Add to Wishlist Enquiry

New Item - Secure Your Order Now

Free Expedited Shipping

Secure payment

Manufacturer Warranty

Authorized Dealer

Description

Product Overview

3G-SDI

Broadcast Input

1080p60

Max HD Capture

10-bit

Color Depth

40Gbps

USB4 Bandwidth

Bus Powered

No Adapter Needed

Mac / Win / Linux

Cross-Platform

The Blackmagic Design UltraStudio Express Recorder 3G is a pocket-sized 3G-SDI capture card built for USB4 and Thunderbolt 4 computers. It pulls broadcast-quality 10-bit video from both 3G-SDI and HDMI sources straight into your Mac, Windows, or Linux machine over a single USB-C cable — and it powers from that same cable. No rack. No wall adapter. Just a clean, bus-powered SDI capture device that goes wherever your laptop goes.

Whether you need to capture SDI video to a laptop on a live event, ingest a broadcast feed into DaVinci Resolve, or run a live streaming workflow in OBS with a broadcast camera — the Express Recorder 3G handles every SD and HD standard up to 1080p60 without fuss. It uses the DeckLink API, so nearly every professional video application already supports it natively: Final Cut Pro, Media Composer, Premiere Pro, vMix, Wirecast, and more. It even works for archiving legacy broadcast decks to computer or recording from game consoles.

Part of the Blackmagic Design collection at Coremicro — your professional source for broadcast and AV production equipment.

UltraStudio Express Recorder 3G

Blackmagic Design · 10-Bit 3G-SDI + HDMI · USB4 / Thunderbolt 4 · Bus Powered

Why Engineers Choose This 3G-SDI Capture Card

🎬

10-Bit 3G-SDI — SMPTE Compliant

Single-link 3G-SDI up to 3Gb/s, meeting SMPTE 259M, 274M, 296M, 424M, and 425M Level A and B. This is what separates a real broadcast capture card from a consumer grab box.

🖥️

HDMI 2.0 Input with Deep Color

Full HDMI 2.0 type A input with Deep Color, Rec 2020 support, and 8-channel embedded audio. Capture from cameras, monitors, streaming boxes, or game consoles in 10-bit quality.

⚡

USB4 / Thunderbolt 4 — Truly Bus Powered

40Gbps USB Type-C delivers full bandwidth for uncompressed capture. Draws power from the laptop — a genuine bus-powered SDI capture device with no wall adapter required in the field.

🎧

16-Ch SDI Audio · 8-Ch HDMI Audio

16 channels of embedded SDI audio and 8 channels of HDMI audio, both at 48kHz/24-bit. Captures the full audio payload — no companion audio interface needed for broadcast ingest.

🌐

DeckLink API — Every App Just Works

DaVinci Resolve, Final Cut Pro, Media Composer, Premiere Pro, OBS Studio, vMix, and Wirecast all support it natively via the DeckLink API. No patching. No workarounds. Install the driver, open the app, capture.

📦

ProRes, DNxHD, Uncompressed — Full Codec Stack

ProRes capture from SDI across all tiers. Plus DNxHD/HR, uncompressed 10-bit 4:2:2 and 4:4:4, HEVC, DPX, XDCAM, DVCPRO, AVCHD, and AVC-Intra. Whatever your pipeline demands, it is covered.

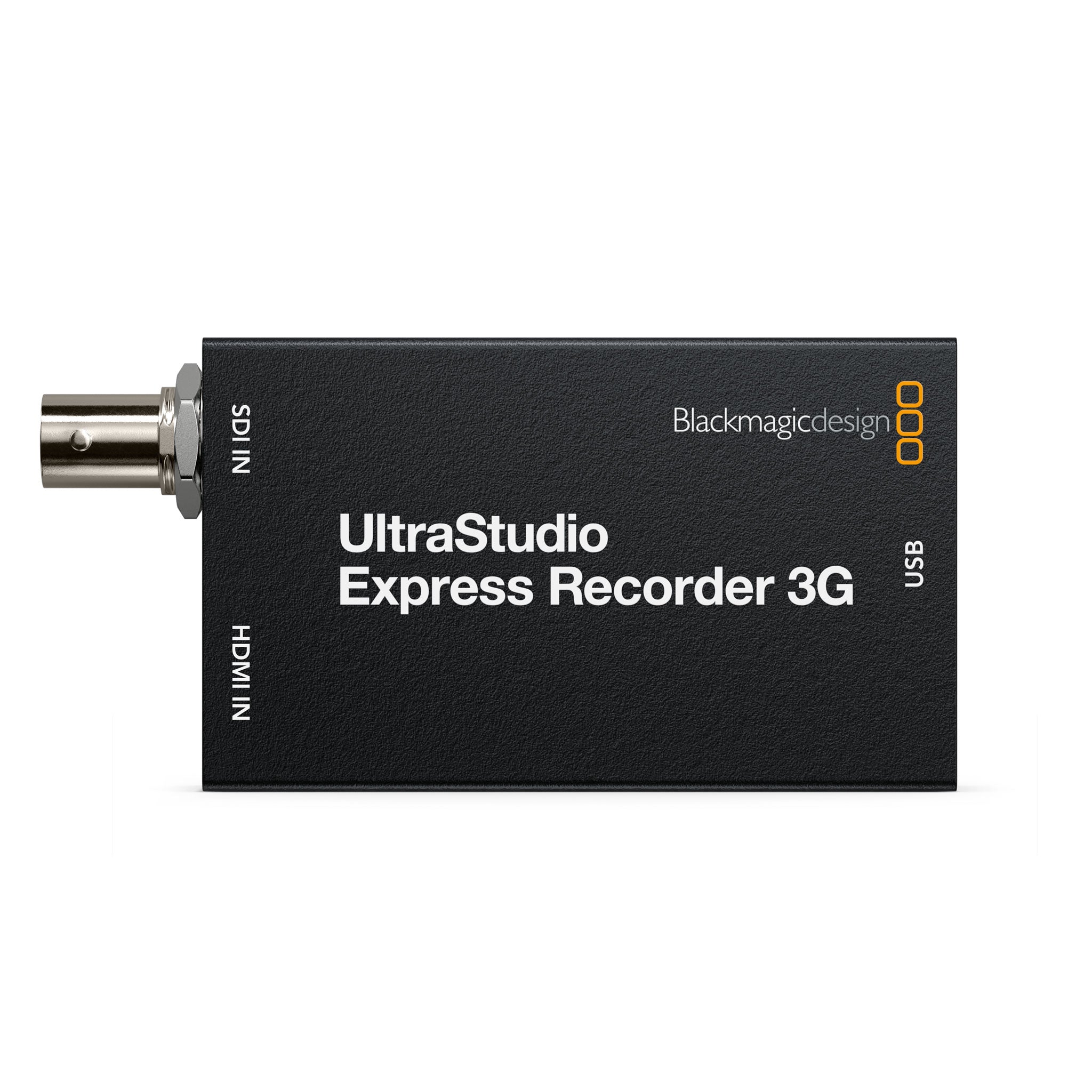

Blackmagic Design UltraStudio Express Recorder 3G front view — pocket SDI capture USB4 device

Pocket-Sized. Broadcast-Grade.

Most portable broadcast capture devices ask you to give something up. The Express Recorder 3G gives up nothing. It fits in a jacket pocket and captures at the same 10-bit quality as rackmount gear three times its price.

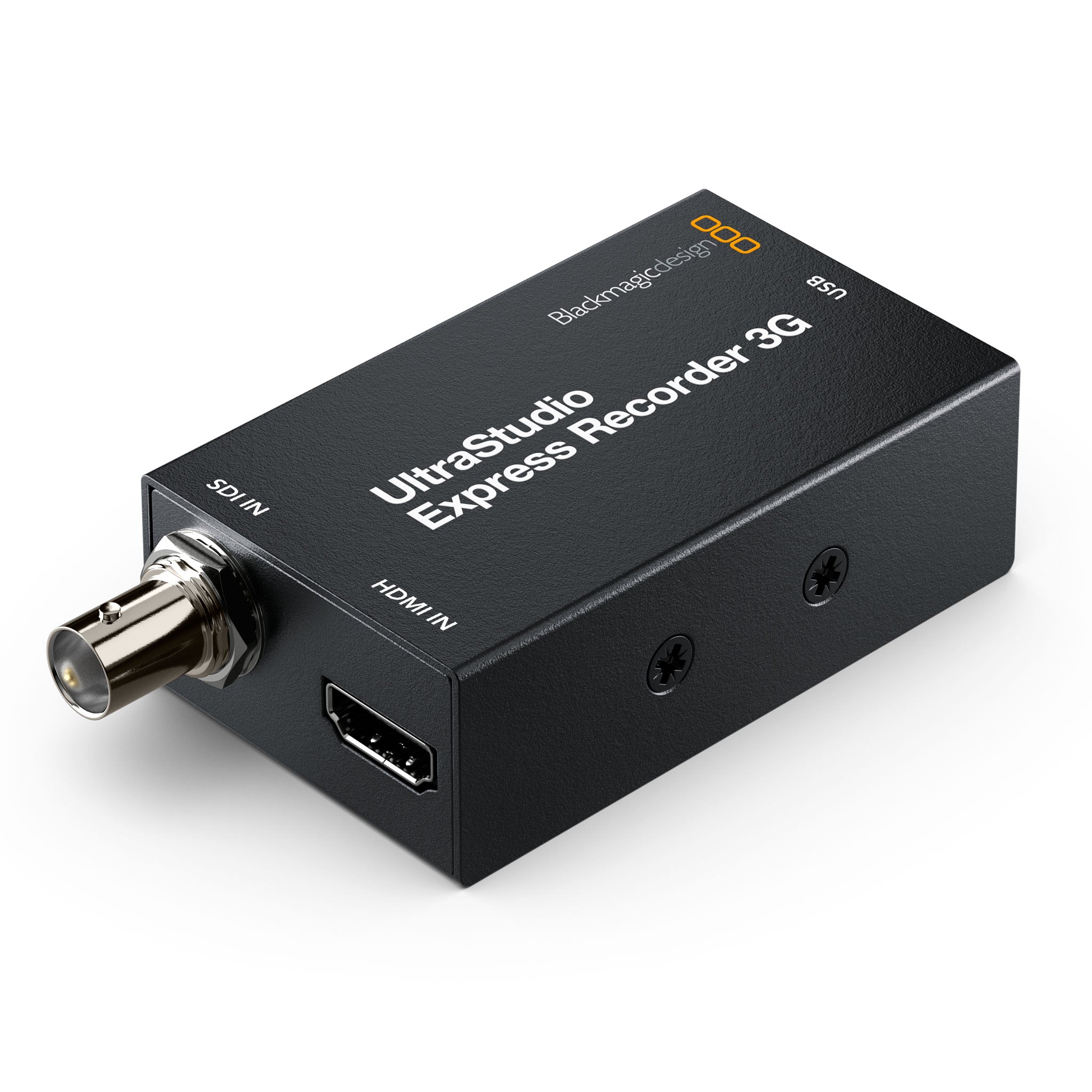

UltraStudio Express Recorder 3G angle view showing 3G-SDI and HDMI input connectors

SDI In. HDMI In. One Cable Out.

Two broadcast inputs, one USB-C cable to the laptop, zero power adapters. Hardware colorspace conversion happens on the device — your CPU stays free for the application doing the recording.

Where Professionals Use This Device

Live Streaming via OBS / vMix / Wirecast Broadcast Ingest & Archive DaVinci Resolve Capture Final Cut Pro SDI Capture Media Composer Ingest Field Production Laptop Recording Legacy Broadcast Deck Archiving Game Console Video Capture Remote & Travel Production Corporate AV & Events Campus Broadcast Facilities

Supported Codecs — ProRes Capture from SDI and Beyond

Codec Family	Formats	Best For
Apple ProRes	4444, 422 HQ, 422, 422 LT, 422 Proxy	ProRes capture from SDI for Final Cut Pro and DaVinci Resolve post-production
Avid DNx	DNxHD, DNxHR	Native Media Composer SDI capture and Avid broadcast workflows
Uncompressed	8-bit 4:2:2 · 10-bit 4:2:2 · 10-bit 4:4:4	Maximum quality broadcast ingest, VFX pipeline source material
HEVC / H.265	HEVC	Efficient delivery recording and streaming archive
DPX	DPX	Cinema and VFX pipeline compatibility
XDCAM	XDCAM EX · HD · HD422	Sony broadcast camera ingest and archiving
DVCPRO	DVCPRO50, DVCPROHD	Archive broadcast deck to computer — legacy Panasonic format support
Other	AVC-Intra · AVCHD · Canon XF MPEG2 · DV · HDV · Digital SLR	Mixed-source broadcast ingest, multi-format capture workflows

Full Technical Specifications

Specification	Detail
SDI Input	1 x 10-bit SD/HD switchable — 270Mb, 1.5G, 3G
HDMI Input	1 x HDMI 2.0 type A, Deep Color, Rec 2020
SDI Audio Capture	16 channels embedded, 48kHz / 24-bit
HDMI Audio Capture	8 channels embedded, 48kHz / 24-bit
Computer Interface	USB Type-C, 40Gbps — USB4 and Thunderbolt 4 compatible
Power	Bus-powered via USB-C — no external power supply required
SDI Color Precision	12-bit RGB 4:4:4 to 1080p30 · 8 and 10-bit YUV 4:2:2 in all standards
SDI Color Space	Rec 601, Rec 709, Rec 2020
SMPTE Compliance	259M · 274M · 296M · 424M · 425M Level A and B
HD Standards	720p50/59.94/60 · 1080i50/59.94/60 · 1080p23.98–60 · 1080PsF23.98–30
SD Standards	525i59.94 NTSC · 625i50 PAL
Maximum Resolution	1080p60 — HD only (no 4K/UHD on this model)
Timecode	RP 188 and VITC pass-through
Operating Temperature	5° to 40°C (32° to 104°F)
OS Support	macOS Sequoia / Tahoe · Windows 10/11 (64-bit) · Linux
Software Included	Media Express · Disk Speed Test · LiveKey · Blackmagic Desktop Video Utility & driver
Compatible Applications	OBS Studio · vMix · Wirecast · DaVinci Resolve · Final Cut Pro · Media Composer · Premiere Pro · Zoom · Cinegy · Softron MovieRecorder · ToolsOnAir
SDK	Free Blackmagic Desktop Video SDK for Mac, Windows, and Linux
Warranty	1 Year Limited Manufacturer Warranty

All Blackmagic Design Products · Video Capture Cards · Contact Coremicro

Blackmagic Design UltraStudio Express Recorder 3G

Product Specifications
Video Inputs	SDI Video Inputs 1 x 10-bit SD/HD switchable SDI Rates 270Mb, 1.5G, 3G HDMI Video Inputs 1 x HDMI 2.0 type A connector
Audio Inputs	SDI Audio Inputs 16 Channels embedded in SD/HD HDMI Audio Inputs 8 Channels embedded in SD/HD
Video Standards	SDI Video Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 2K Video Standards 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI SDI Compliance SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M level A and B. SDI Metadata Support RP 188/SMPTE 12M-2 and closed captioning. SDI Audio Sampling Television standard sample rate of 48 kHz and 24-bit. SDI Video Sampling 4:2:2 and 4:4:4 SDI Color Precision 8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards. SDI Color Space Rec 601, Rec 709 and Rec 2020. Multiple Rate Support SDI video connection is switchable between SD and HD. HDMI Video Standards SD Video Standards 525i59.94 NTSC, 625i50 PAL HD Video Standards 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 HDMI Audio Sampling Television standard sample rate of 48 kHz and 24 bit. HDMI Video Sampling 4:2:2 and 4:4:4 HDMI Color Precision 8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards. HDMI Color Configuration HDMI 2.0 supports Deep Color. HDMI Color Space Rec 601, Rec 709 and Rec 2020. Multiple Rate Support HDMI video connection is switchable between SD and HD. Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Product Specific	Hardware Frame Buffer v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).
Supported Applications	Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom. These are third-party applications, and support may vary; check with your software vendor.
Computer Interface	Requires a computer with a USB Type-C® port with a 40Gbps signalling rate.
Supported Codecs	AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
Processing	Colorspace Conversion Hardware-based real-time.
Operating Systems	Mac OS, Windows, and Linux
Power Specifications
Power I/O	Power Requirements Powered by Type-C® cable. Requires computer with a USB Type-C® 40Gb/s port.
Physical / Environmental Specifications
Dimension	Dimensions: 3.62 x 1.77 x 0.98" / 92 x 45 x 25 mm Weight: 5.57 oz / 158 g (0.35 lb)
Environment	Operating Temperature 5° to 40° C (32° to 104° F) Storage Temperature -20° to 45° C (-4° to 113° F) Relative Humidity 0% to 90% non-condensing
Warranty	1-Year Limited Manufacturer’s Warranty
UPC / GTIN	9338716010855
