Description
UltraStudio 4K v2 has 6G-SDI, HDMI 4K, analog component video, 16 channels of SDI audio, 2 channels of balanced analog, 2 channels of unbalanced AES/EBU audio, timecode, up/down/cross conversion, reference and serial deck control. UltraStudio 4K has a rack based ‘breakout box‘ design with the latest high performance 6G-SDI video technology, and is perfect for equipment racks, post production suites or flyaway kits!
Rack mount Thunderbolt or Thunderbolt 2 based capture and playback "break out box" with latest high performance technology including 4:4:4 and dual channel 3D stereoscopic, Ultra HD and 4K capture and playback. UltraStudio 4K is the solution you need when doing high performance work that demands quality. Packed with the latest SDI, HDMI and analog video, and timecode connections, as well as AES/EBU, balanced and unbalanced analog audio. There is no better solution for video capture and playback!
UltraStudio for Thunderbolt models are perfect for high performance work that demands the highest quality. Using a single Thunderbolt cable, you can easily connect any Thunderbolt computer or laptop for amazing on set color correction, editing, visual effects and video streaming.

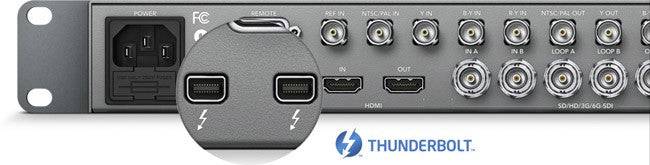

The Power of Thunderbolt™
Built on revolutionary Thunderbolt™ technology, UltraStudio uses a blazingly fast single cable connection to your computer that has the bandwidth to handle the highest resolution video formats easily! Thunderbolt ensures low latency and highly accurate time synchronization for the highest quality capture and playback. UltraStudio Express and UltraStudio Mini models are powered via the Thunderbolt connection so they are extremely portable. The high performance UltraStudio 4K model is the world's first Thunderbolt 2 solution! Featuring double speed Thunderbolt 2 with loop thru and dual link 6G-SDI, it is ideal for demanding 3D stereoscopic workflows, Ultra HD and DCI 4K.
UltraStudio 4K supports popular compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video, so you’re not locked into a single file format. When working with uncompressed video all captured images are a perfect pixel-for-pixel clone of the source without any quality loss, so you have the confidence you’re working at the absolute highest quality possible. Get the sharpest keying with green screens, cleanest compositions, superior color correction and more! Ultra HD 4K has 4 times the resolution of 1080HD for amazing looking images!
Work in 10 bit 4:4:4 for results that are simply beautiful.
UltraStudio 4K includes some of the most advanced video technologies available! The built in 6G-SDI operates at 4 times the speed of a regular HD-SDI connection, which means you get Ultra HD and 4K with only 1 BNC cable instead of the 4 BNC cables required in the past!
This high bandwidth connection is perfect for full color resolution 4:4:4 video that's great for video effects and high frame rate video up to 1080p60. UltraStudio 4K also supports dual stream 3D with capture and playback of 2 independent channels.
Attractive Design

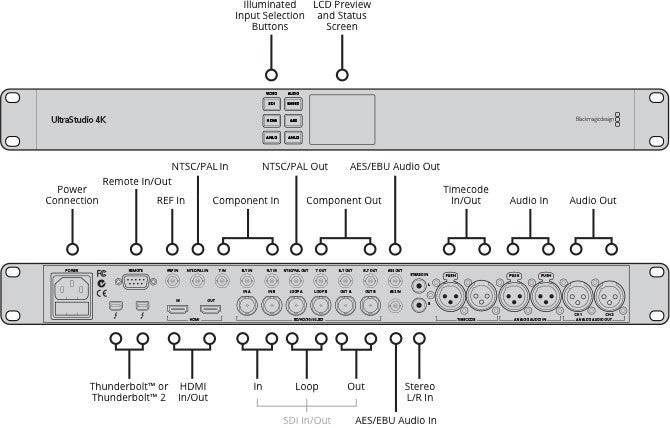

UltraStudio 4K’s elegant front panel has an integrated color LCD and fast to use video and audio input buttons, all with built in video and audio connections using standard BNC, HDMI and XLR connectors. UltraStudio Express is machined from a solid block of aluminum to provide fantastic strength and portability.
For flexibility the design includes breakout cables with professional BNC and XLR connections or consumer RCA connections. UltraStudio Mini models fit into the palm of your hand and feature SDI and HDMI connections at one end and a Thunderbolt connection at the other!
Mac OS X
Use your Favorite Software
UltraStudio is supported by a huge range of software applications for Mac OS X. Get drivers that work with fantastic editing software such as Apple Final Cut Pro X, Apple Final Cut Pro 7, Adobe Premiere Pro, Avid Media Composer, Avid Symphony and Avid News Cutter. For visual effects get full compatibility with Adobe After Effects, The Foundry Nuke and Adobe Photoshop. For audio get compatibility with ProTools, Steinberg Nuendo and Cubase. For streaming use Flash Media Encoder, Wirecast, Livestream Procaster.
Windows
Unrivalled compatibility
For Windows you get access to a massive range of software because UltraStudio supports WDM, DirectShow and QuickTime! For editing you can use Avid Media Composer, Avid News Cutter, Adobe Premiere Pro, Sony Vegas Pro, Corel VideoStudio, CyberLink Power Director and MAGIX Video Pro. For visual effects use After Effects, The Foundry Nuke, Adobe After Effects and Adobe Photoshop. Audio software supported includes Steinberg Nuendo and Cubase. When streaming you get compatibility with Flash Media Encoder, Xsplit Broadcaster, Wirecast and Livestream Procaster.
Specifications
Blackmagic Design UltraStudio 4K 2 Specifications
