Blackmagic Design Smart Videohub 20 x 20 6G-SDI - Open Box

Blackmagic Design Smart Videohub 20 x 20 6G-SDI - Open Box

• Shows signs of wear
• Includes all original parts/accessories
• Limited 1-year warranty

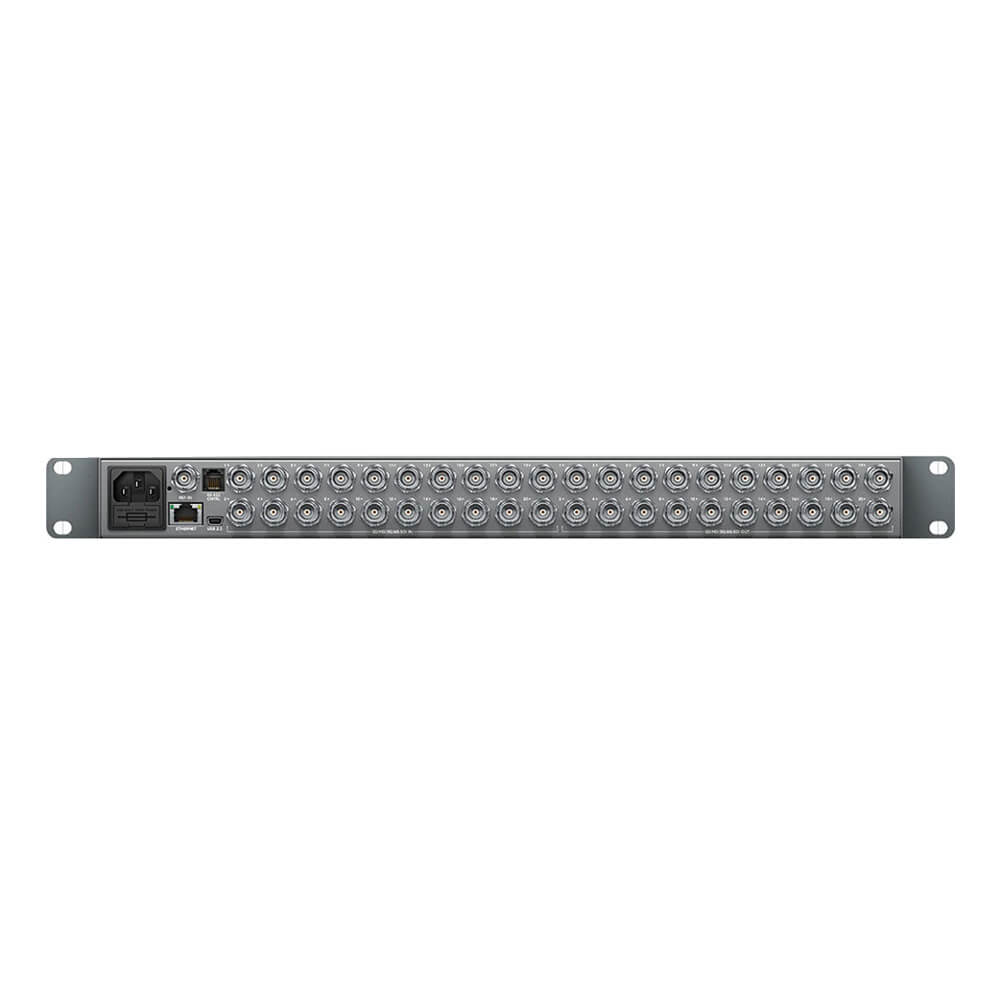

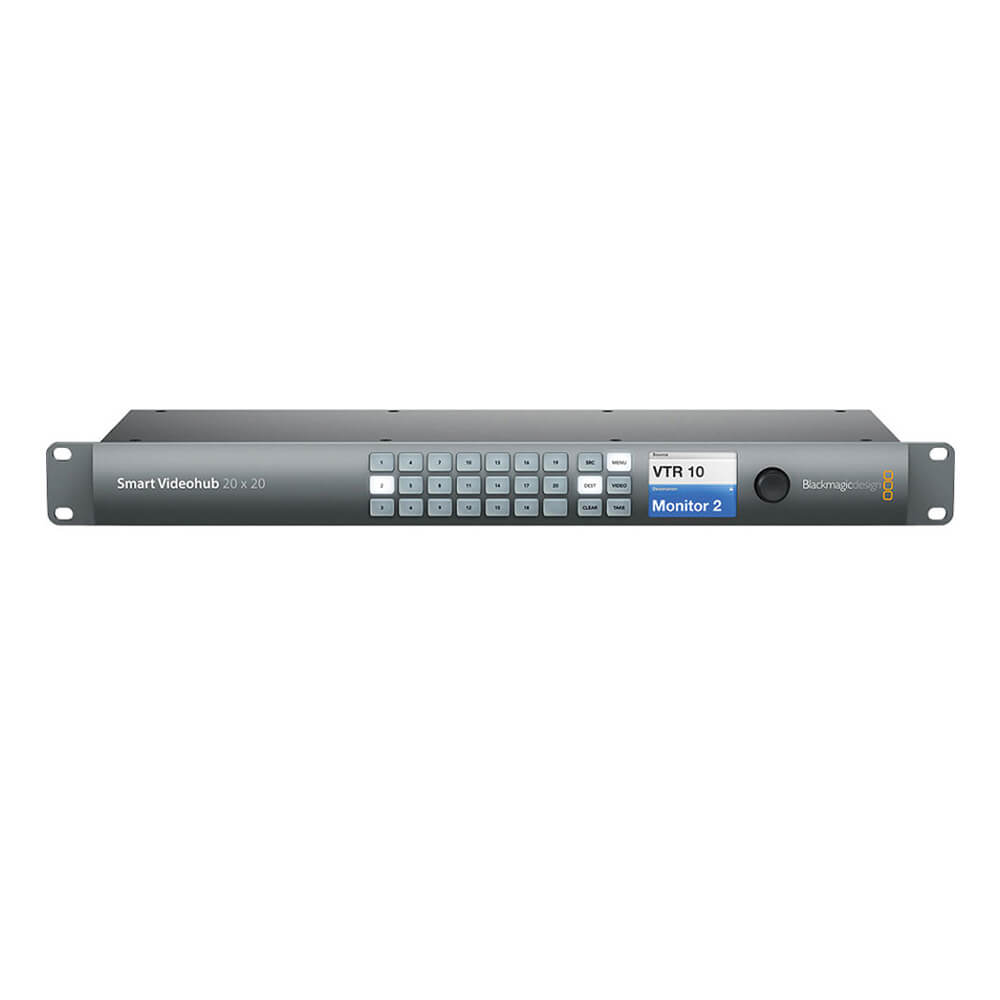

The Blackmagic Design Smart Videohub 20 x 20 6G-SDI is a larger advanced Ultra HD mixed format router with a control panel and monitoring built in. It contains powerful 6G-SDI connectors, allowing you to connect and route any mix of SD, HD, and Ultra HD video on the same router at the same time, making it ideal for bigger workgroups and mobile broadcasts. With the distinctive spin knob control, push-button panel, and built-in LCD screen, you also get innovative new visual routing. Ethernet for remote control is also included, as well as a completely customizable software development kit for Mac and Windows.

Not just supporting 4:2:2 and 4:4:4 color sampling, this Smart Videohub 20 x 20 6G-SDI also provides you support for 10-bit processing for smoother gradations. With the 1RU frame in size, this unit fits for usage in small, medium or small productions. Other connections are also available, such as Reference input that gives the capability to process Blackburst and TriSync for SD, HD, and UHD 4K. This device gives you the function of Auto detection of SD, HD, or 6G-SDI and concurrent routing of 4K, HD, SD video, and DVB-ASI.

When you want to update the firmware of the Smart Videohub 20 x 20 6G-SDI, you can use the available USB 2.0 high speed (480 Mb/s) interface or via Ethernet. Configuring can be an easy task and can be processed via the front panel LCD or using the RJ45 Ethernet USB 2.0 for setting IP address only. Details SDI Color Precision is at 4:2:2 and 4:4:4 10-bit with the Color Space is at YUV and RGB. As for the SDI Audio Sampling, this device has 48 kHz and 24-bit. With the Power Fail Protection, you will have the router connections preserved and restored instantly at power ON.

Note: IEC power cable is not included.
