Blackmagic Design Smart Videohub 20 x 20 6G-SDI

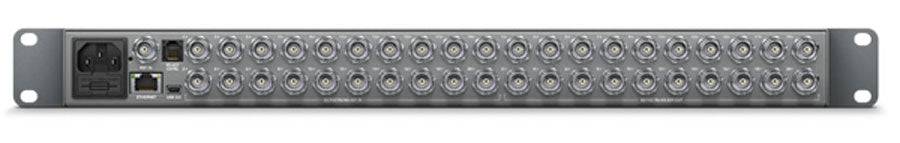

Made with the main function as a Mixed Format Router, Smart Videohub 20 x 20 6G-SDI by Blackmagic Design has adequate connections: 20 6G-SDI inputs and 20 6G-SDI outputs for routing any combination of the SD, HD, Ultra HD 4K, and DCI 4K video. With the available “Reclocking”, all of the SDI is more secure during the operation.

Not just supporting 4:2:2 and 4:4:4 color sampling, this Smart Videohub 20 x 20 6G-SDI also provides you support for 10-bit processing for smoother gradations. With the 1RU frame in size, this unit fits for the usage in small, medium or small productions. Other connections that are also available, such as Reference input that gives the capability to process Blackburst and TriSync for SD, HD, and UHD 4K. This device gives you the function of Auto detection of SD, HD, or 6G-SDI and concurrent routing of 4K, HD, SD Video and DVB-ASI.

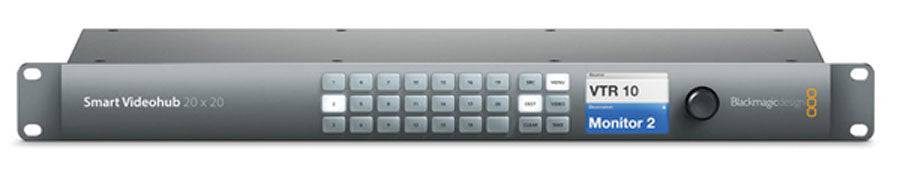

When you want to update the firmware of the Smart Videohub 20 x 20 6G-SDI, you can use the available USB 2.0 high speed (480 Mb/s) interface or via Ethernet. Configuring can be an easy task and can be processed via the front panel LCD or using the RJ45 Ethernet USB 2.0 for setting IP address only. Details SDI Color Precision is at 4:2:2 and 4:4:4 10-bit with the Color Space is at YUV and RGB. As for the SDI Audio Sampling, this device has the 48 kHz and 24-bit. With the Power Fail Protection, you will have the router connections preserved and restored instantly at power ON.

Note: IEC power cable is not included.
