Blackmagic Design Smart Videohub 12 x 12 6G-SDI Insights

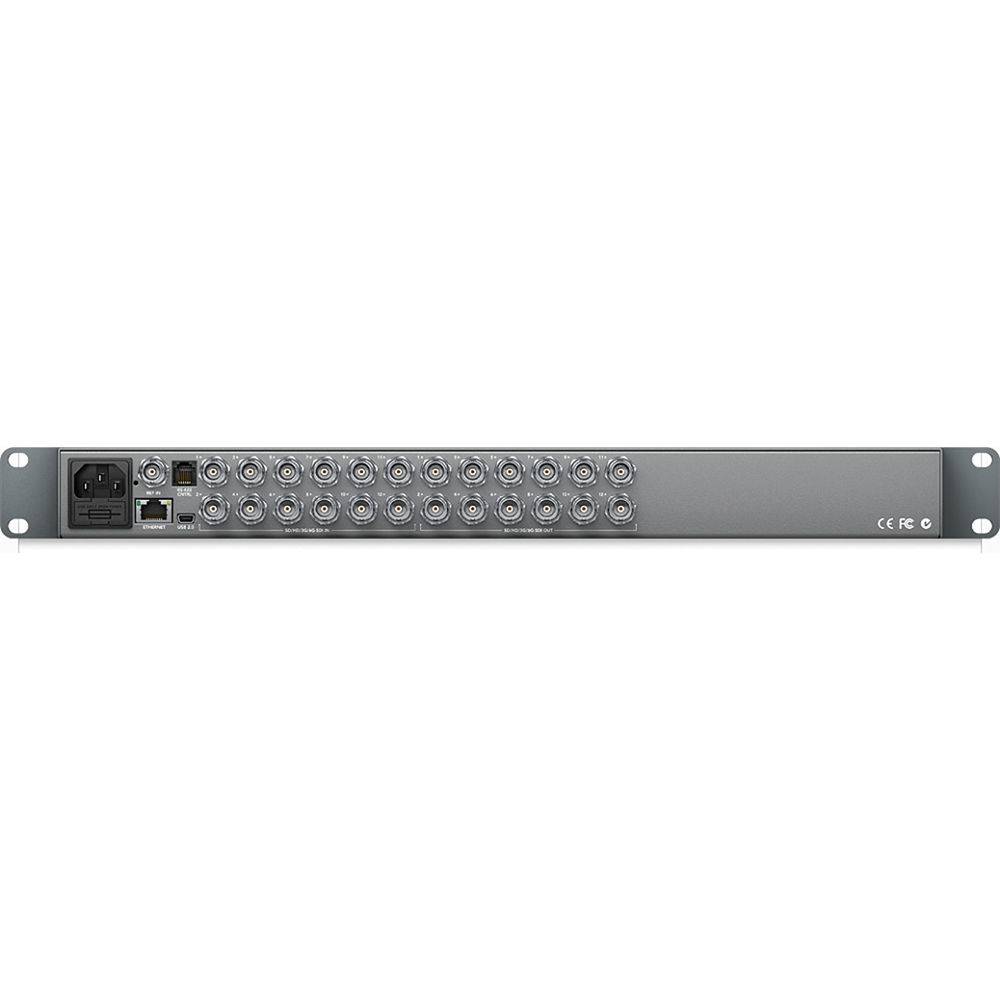

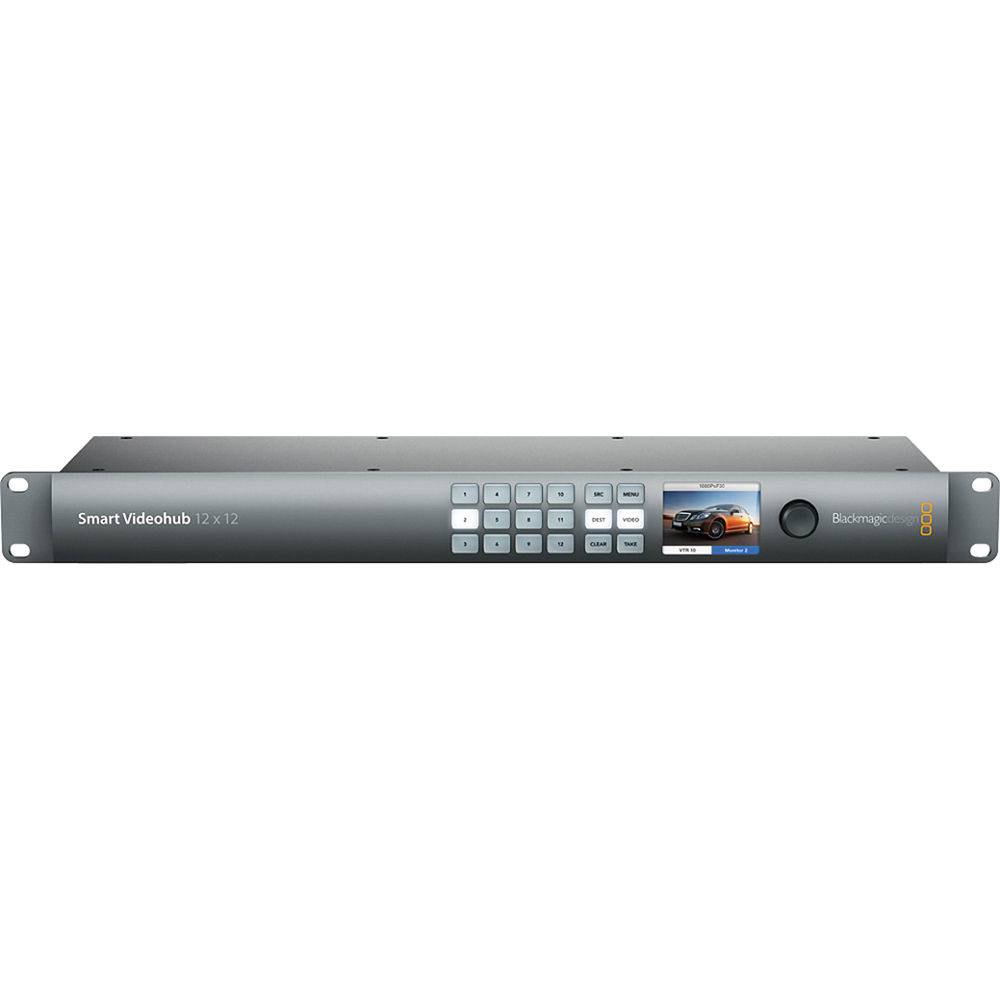

The Blackmagic Design Smart Videohub 12 x 12 6G-SDI is a rack-mounted Mixed Format Router that comes with 12 6G-SDI inputs and outputs. Any combination of the SD, HD, Ultra HD 4K as well as DCI 4K Video can be routed with this unit. There are other connectivities such as Reference input, USB 2.0 as well as Reclocking for more secure operation on all SDI outputs.
Construction-wise, this Smart Videohub 12 x 12 6G-SDI is made in the 1RU frame size (rack-mounted), therefore, suitable for big production and also small. For Multi-Rate support, it gives you the Auto detection of SD, HD, or 6G-SDI and provides you simultaneous routing towards SD, HD, 4K Video, and DVB-ASI. Making configuration can be performed through the LCD front panel or via the RJ45 Ethernet USB 2.0 (for setting the IP address only). Some details for the SDI Video Rates are SD-SDI: 270 Mb/s, HD-SDI: 1.5 Gb/s, 3G-SDI: 3 Gb/s, and 6G-SDI: 6 Gb/s.
Similar to other Smart products series, this Smart Videohub 12 x 12 6G-SDI version also comes with the Software Control to have router control from Windows and Mac OS X computers. To have the internal software upgraded, you can access the included updater application. Apart from those capabilities, the Power Fail Protection becomes another key supporting function for the Router connections preserved and restored instantly at power ON.
Note: IEC power cable is not included.
Specifications
Blackmagic Design Smart Videohub 12 x 12 6G-SDI Specifications
Reviews
What's included
Included on Blackmagic Design Smart Videohub 12 x 12 6G-SDI
