Description

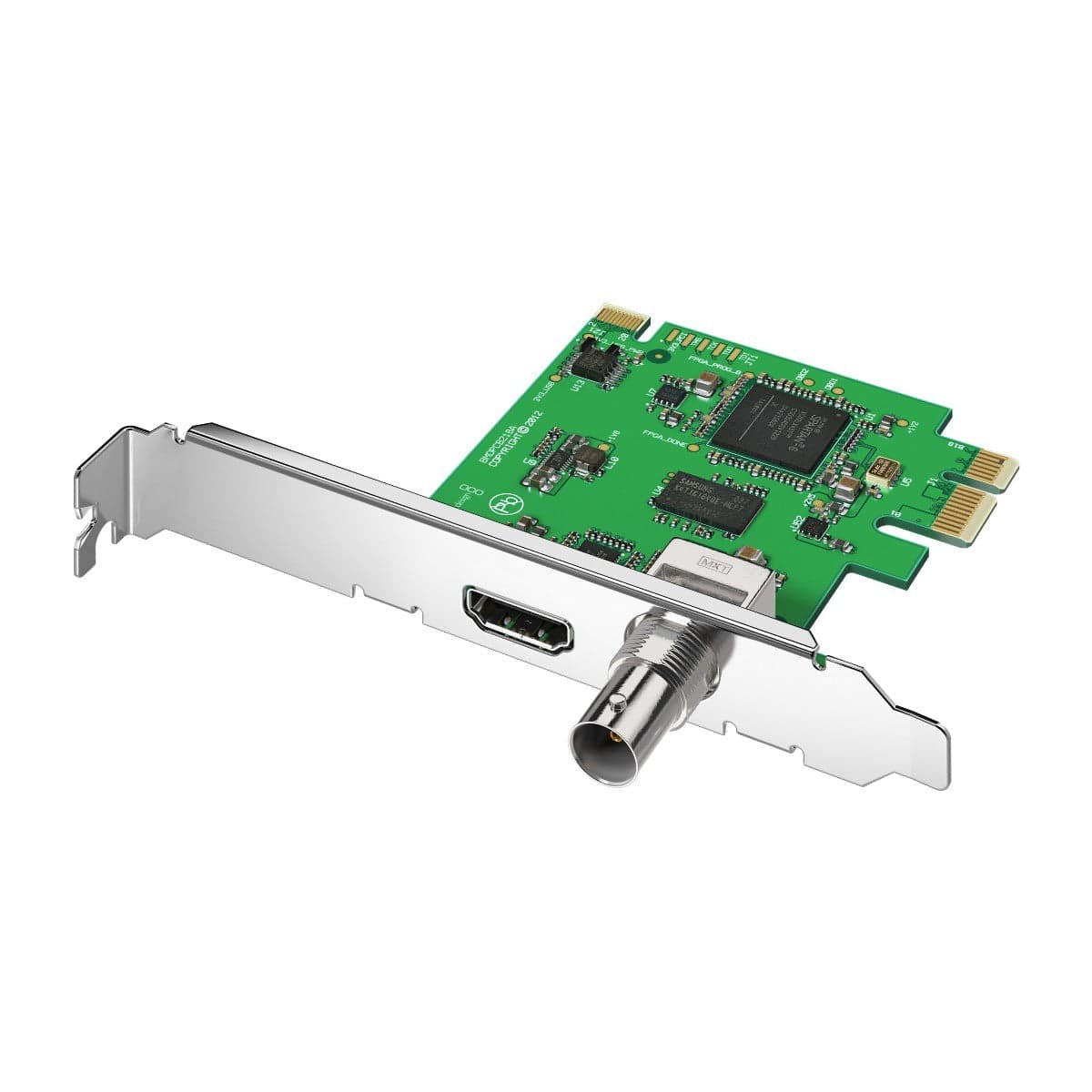

Blackmagic Design DeckLink Mini Monitor Insights
The Blackmagic Design DeckLink Mini Monitor is PCIe Playback for 3G-SDI and HDMI. The Mini Monitor uncompressed 10-bit video from your computer. This playback card Includes 3G-SDI and HDMI outputs for connecting to any television or monitor. DeckLink Mini Monitor auto switches between SD and HD so it handles all common video formats. DeckLink Mini Monitor is the perfect solution for monitoring from editing software while you edit. Includes two PCIe shields for both full height and low profile slots.
Mini Monitor Features:
- HDMI with 8 ch audio embedded in SD and HD
- Outputs up to 10-bit uncompressed video
- REC 601/709 color space support
- SDI output, 10-bit SD/HD switchable, supports 8 channels of embedded audio
- Supports up to 1080p30 resolution
Support with a wide variety of Applications:
- Nuke, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster
Codec Support:
- AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
Specifications
Blackmagic Design DeckLink Mini Monitor Specifications
Reviews
What's included
Included on Blackmagic Design DeckLink Mini Monitor
