Blackmagic Design ATEM Television Studio HD8 ISO

The Blackmagic Design ATEM Television Studio HD8 ISO is a powerful all-in-one live production switcher made for serious broadcasters, educators, streamers, and event producers. It supports up to eight 3G-SDI video sources and records each input as an individual ISO file. With built-in streaming, real-time audio mixing, and multi-cam support, this switcher transforms compact setups into full-scale live studios.

Broadcast-Grade Live Switching

The HD8 ISO blends a professional switcher and control panel into one compact unit. It features 8 standards-converted 3G-SDI inputs, each supporting up to 1080p60. All sources are automatically re-synced, so different frame rates and formats don’t interrupt your workflow. The switcher supports program/preview or A/B switching, offering options for both seasoned broadcasters and volunteer users.

ISO Recording + Cloud Integration

Each input is recorded as a timecode-synced H.264 file with AAC audio. You also get a DaVinci Resolve project file, making multi-cam editing easy. Connect to Blackmagic Cloud to share files in real time with editors and collaborators, even while you're still recording.

Advanced Video Effects and Transitions

The HD8 ISO includes ATEM Advanced Chroma Keyers, a powerful DVE engine for picture-in-picture and animated transitions, and customizable SMPTE wipes. The SuperSource processor gives you four additional DVE layers plus background—perfect for multi-guest interviews and creative layouts.

Integrated Media and Graphics

Load up to 20 stills and motion graphics into the internal media pool. Titles, stingers, and overlays are rendered with full RGB and alpha support. The included ATEM Software Control and Photoshop plug-in let you manage content easily.

Flexible Audio Routing and Mixing

The built-in Fairlight mixer supports live audio from SDI inputs, MADI, XLR, and RCA. It includes a full suite of tools—6-band parametric EQ, compressor, limiter, expander, and gate. Use audio-follow-video or take full manual control from the front panel or software interface.

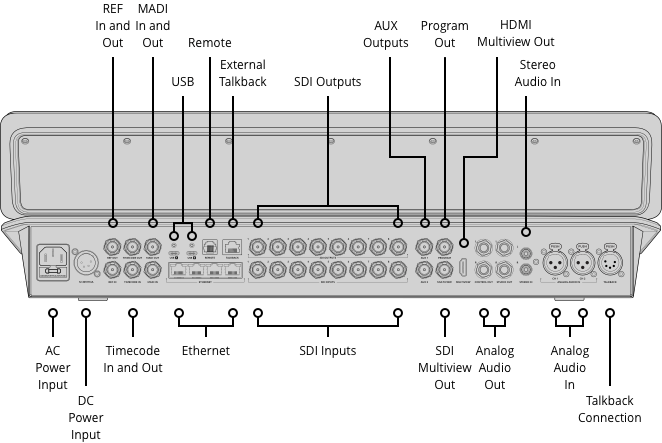

Connectivity and Control

Stream directly to YouTube, Facebook, or other platforms with the built-in streaming encoder. Connect webcams via USB-C, use 9 SDI program outputs, and drive monitors with 2 aux outputs. There's even talkback support with camera tally and control return over SDI.

Built for Broadcast and Beyond

Whether you're producing a high school sports game, a corporate webinar, or a live music show, the Blackmagic ATEM Television Studio HD8 ISO gives you professional power in a portable form. With networked recording, built-in media management, and support for robotic camera control, this switcher is ready for any live event.
