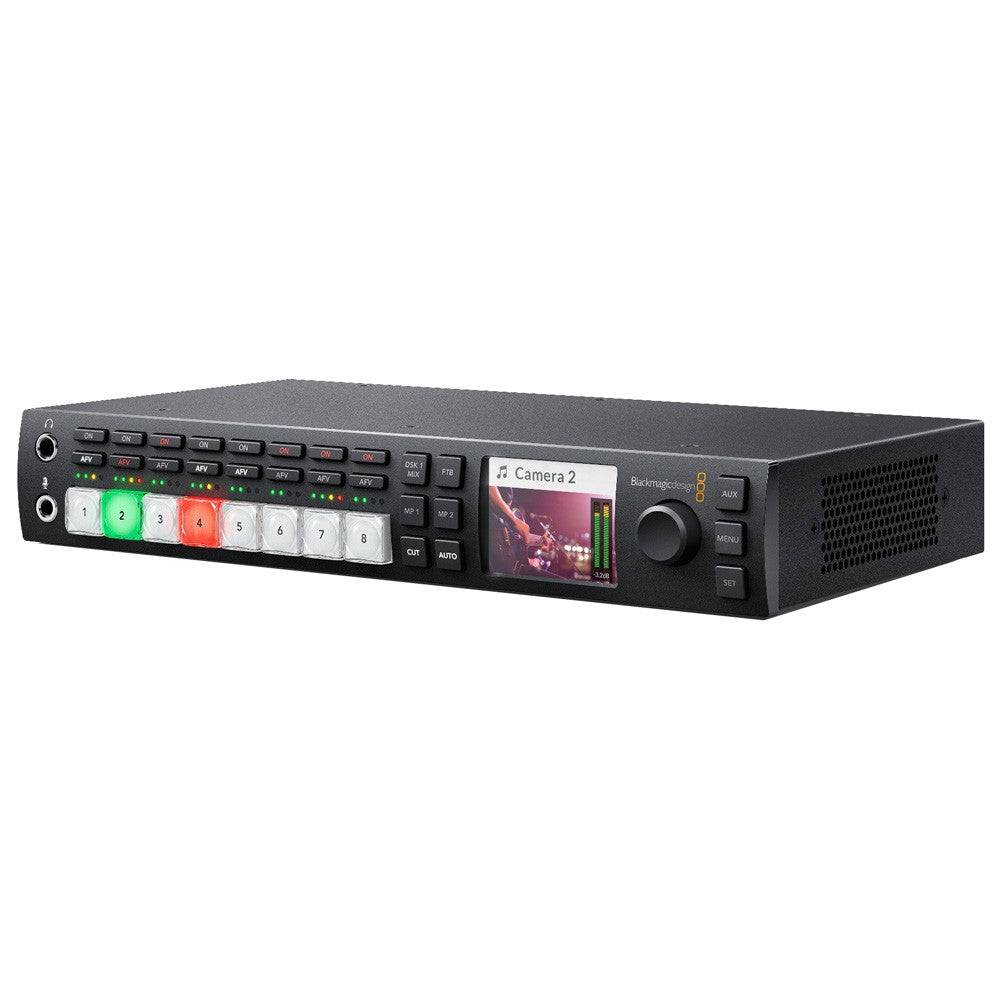

Blackmagic Design ATEM Television Studio HD

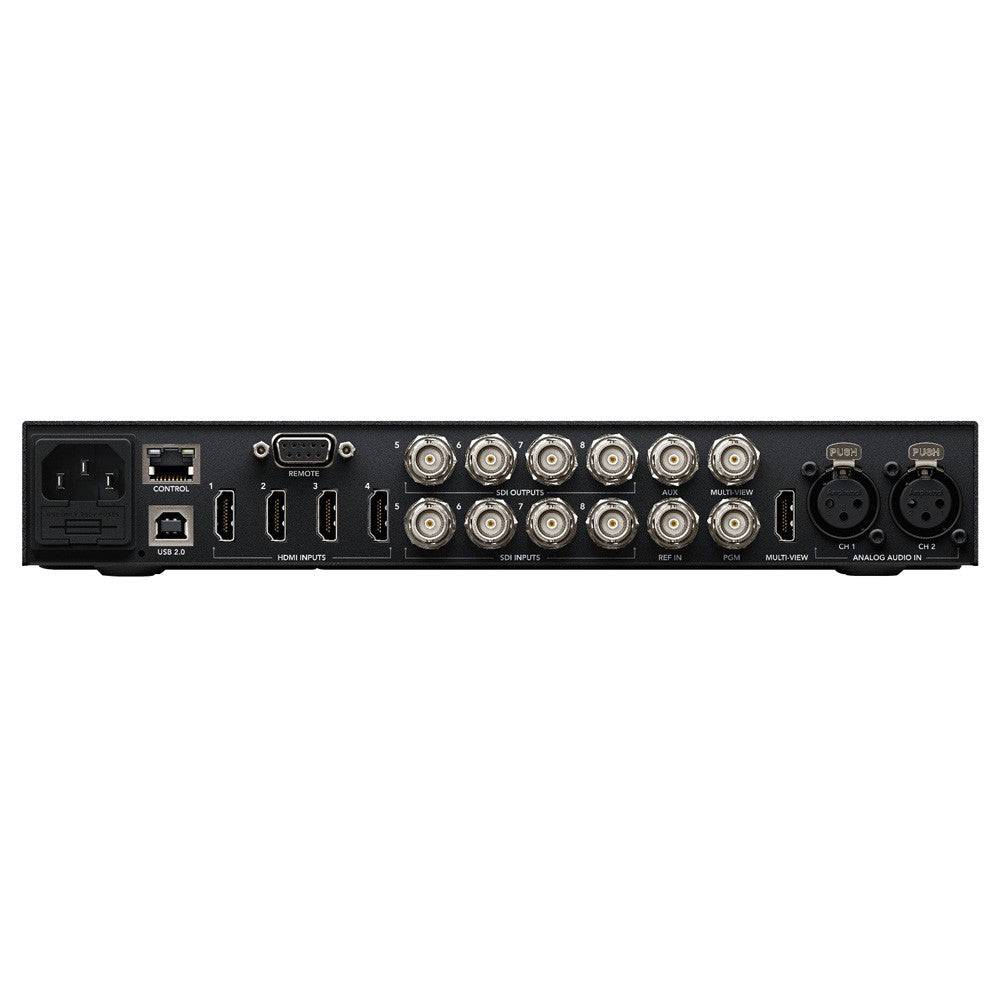

The Blackmagic ATEM Television Studio HD features 4 HDMI and 4 SDI inputs; the user can connect up to 8 sources and supports up to 1080p60. ATEM Television Studio HD has built-in; reference input, analog audio in, RS-422 PTZ control, and Ethernet port with the built-in talkback utilizing embedded SDI channels 15 and 16 to send talkback audio to and from the camera. The front side chassis comes with headset connections for listening as well as talking from cameras that compatible with SDI talkback.

Blackmagic ATEM Television Studio HD also comes with built-in MultiView, Broadcast Quality Transitions, Built-in 2D DVE, Professional titles and graphics, Real-Time Keyers, Mix audio from all sources in real-time, and Remote Camera Control to control Blackmagic Studio Camera.

ATEM Television Studio HD switcher is made with broadcast-quality features, there are plenty of possibilities to explore. Unlike other devices, this rack-mounted unit presents you with the most cost-effective and fastest way to create brilliant HD programs for live events. Wide platforms can be used altogether with this device: Facebook Live, Twitch.tv, Youtube Live and to name a few. Not to be left out, this Blackmagic ATEM Television Studio HD allows you to have easy switching between multiple cameras or even game consoles as well as computers in the real time-based. To that end, you can use the great effects that are available: transitions, and effects.

Switching Live Production
The Blackmagic ATEM Television Studio HD is the most affordable and fastest method of creating great quality HD programs right away from live events. Therefore, this is ideal for professional sports, broadcasters, seminars, concerts, or the new generation of web broadcasters by using platforms like Twitch TV, Facebook Live, and YouTube Live.

Highly Portable Design

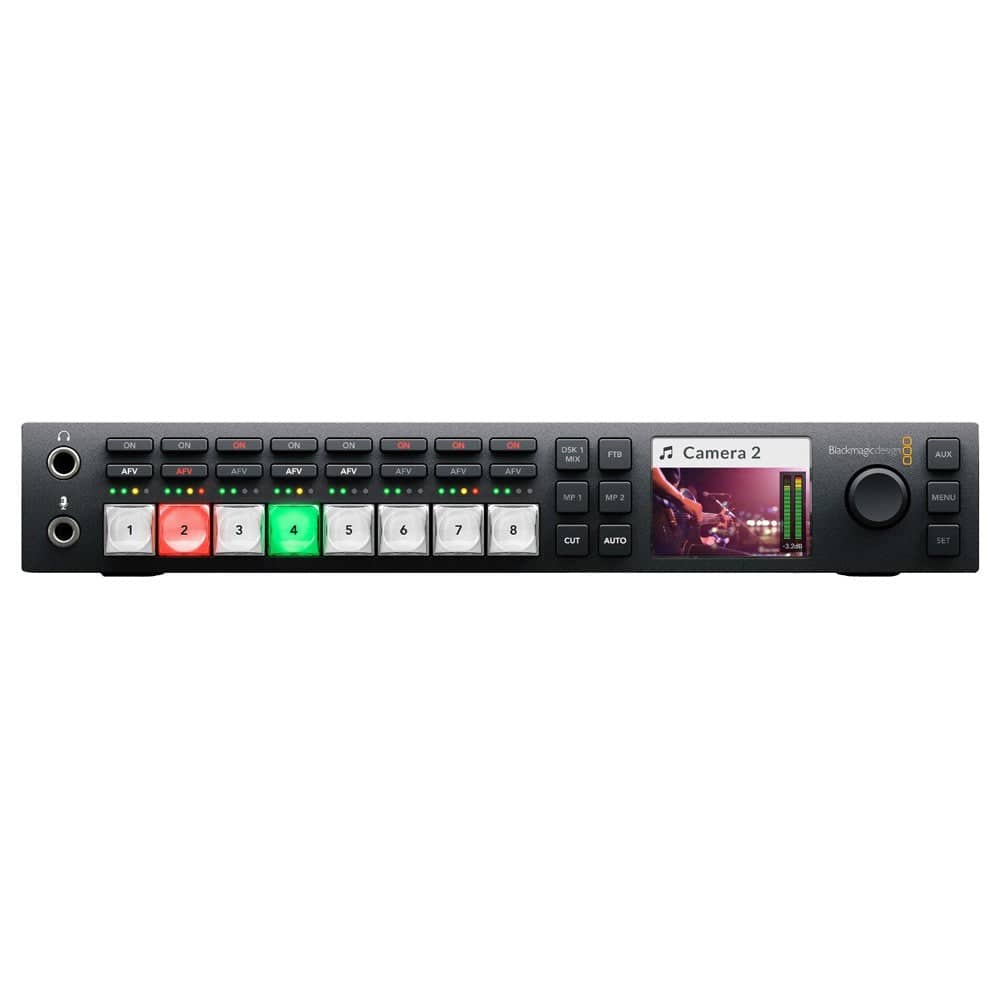

Blackmagic ATEM Television Studio HD is really compact and therefore it is portable and compact enough to carry and use everywhere. The all in one design of this device includes full front panel controls with the input source buttons for switching, an inbuilt AC power supply, spin knob, an inbuilt LCD screen, and more.

Multiviewer
When a user creates a live program from multiple cameras, it is necessary to be able to see all the sources of video at the same time. With the help of multiview output, the user can see a maximum of 8 channels of video on an SDI monitor or single HDMI television. Besides, one can also see the tally indicators, cameras, previews, and final programs output and graphics all one a similar display.

Powerful Transitions
Blackmagic ATEM Television Studio HD allows the users to choose and use the broadcast quality transitions like dips, wipes, mixing, and more while it comes to switching between the sources. One can also adjust the transition durations along with different types of options like width and border color, border, direction and position, and more. In fact, there are completely 18 types of customizable transitions, which will give the HD programs a high-end broadcast look.
