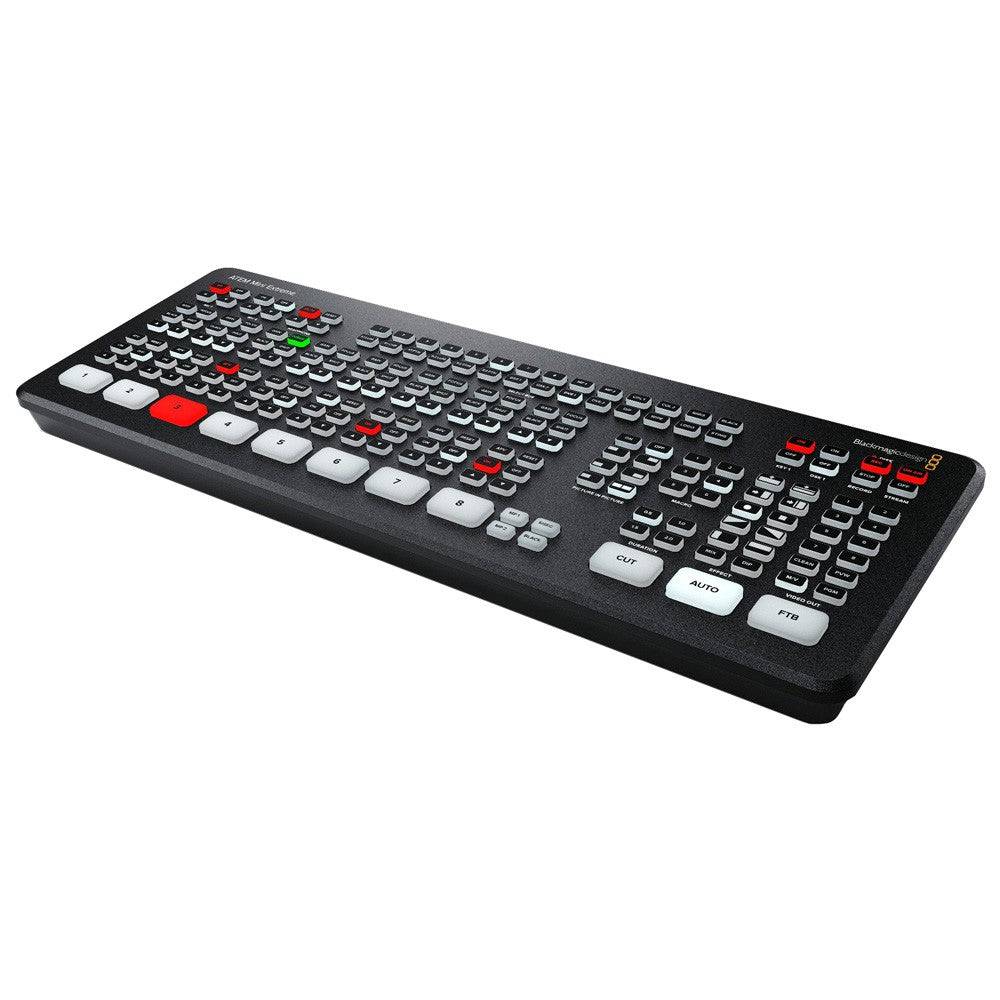

Blackmagic Design ATEM Mini Extreme

The Blackmagic Design ATEM Mini Extreme is a compact and powerful live switcher made for pro users. It gives you 8 HDMI inputs, perfect for cameras, laptops, or gaming systems. These inputs support high-quality signals, so you get clean, pro-level video every time—even in low light.

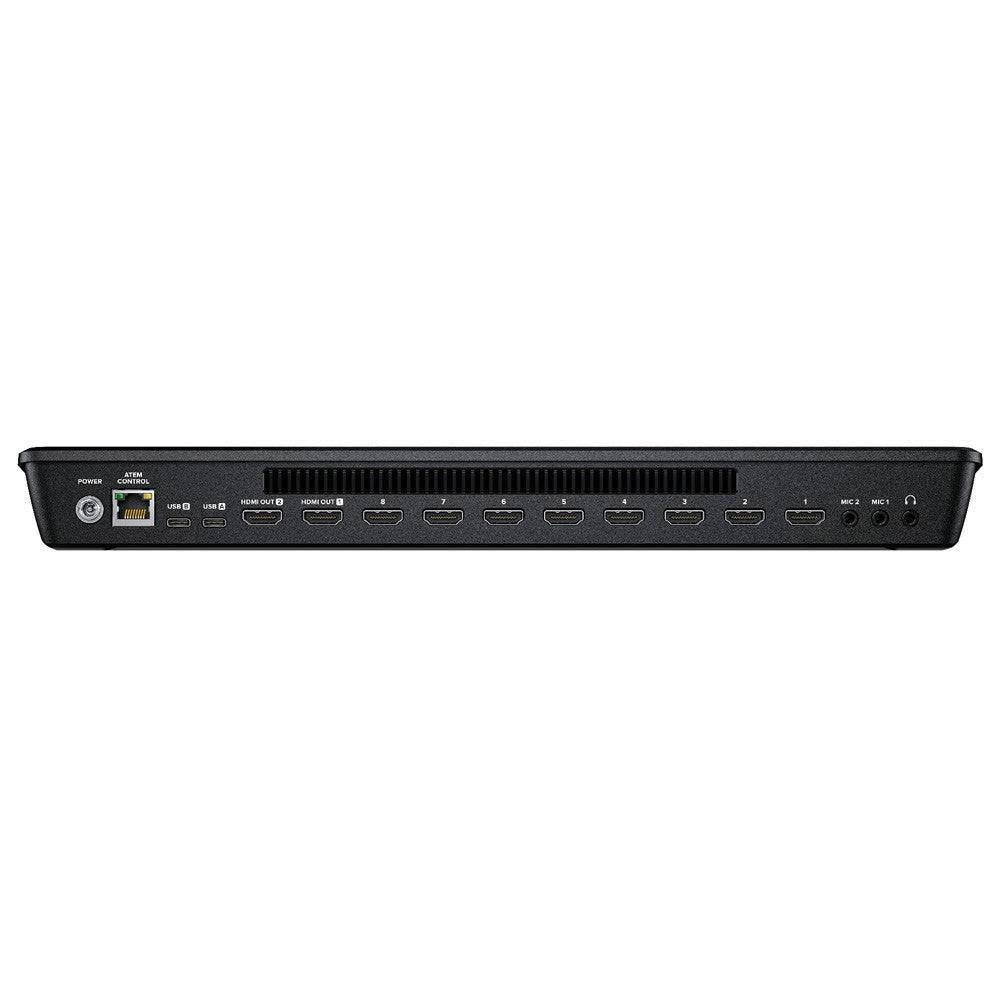

Use the 2 HDMI outputs to send your program feed or multiview to external monitors. Want to stream or record? The 2 USB-C ports make it easy to send a webcam signal to your computer or save footage. A headphone jack lets you check your audio in real time.

Create polished shows with 4 advanced chroma keyers—great for green screen effects—and 6 picture-in-picture DVEs for interviews or commentary. The 2 media players let you load custom graphics, titles, or lower thirds with ease.

The built-in 16-view multiview shows all your sources at once, including cameras, graphics, and key signals. Every HDMI input has built-in resync, so you don’t need to match formats. Just plug in and start switching.

Whether you’re live streaming concerts, gaming events, or corporate meetings, the ATEM Mini Extreme gives you the tools to deliver smooth, professional results.

Blackmagic Design ATEM Mini Extreme Features:

• Supports connecting up to 8 cameras or computers
• Supports streaming via Ethernet or tethered phones via USB
• Support 5G or 4G phones for mobile remote streaming
• Records to USB flash disks in H.264
• Two stereo audio inputs for connecting desktop or lapel microphones
• Automatically standards converts and re-sync all HDMI inputs
• Includes free ATEM Software Control for Mac and Windows
• Internal media for 20 RGBA graphics for titles, opening plates, and logos
• 4 upstream ATEM Advanced Chroma keyers for green/blue screen work
• 2 independent DVEs plus SuperSource with 4 extra DVEs
• 16 way multiview for monitoring all cameras, recording, and streaming status

Live Stream via Ethernet
The Blackmagic ATEM Mini Extreme models feature an integrated hardware streaming engine, enabling seamless live streaming through their ethernet connections. With our advanced technology, you can effortlessly enhance the quality of your live streams on popular platforms like YouTube, Facebook, and Twitch. Say goodbye to dropped frames and complicated settings, as our solution ensures seamless streaming experiences. To begin streaming, simply choose your preferred streaming service and input the designated streaming key. The Blackmagic Design ATEM Mini Extreme Software Control offers a wide range of palettes for efficient streaming setup, while also conveniently displaying the streaming status in the multiview. Understanding streaming status is made simple by the presence of a data rate indicator, which conveniently displays the necessary internet speed for the specific video format being utilized. If you possess technical expertise, you have the ability to modify the streaming profiles within an XML settings file in order to incorporate additional services.

Connect 5G or 4G Phones
If you are engaged in on-location live production, the Blackmagic Design ATEM Mini Extreme offer the capability to connect an Apple or Android phone to the USB port, enabling the utilization of mobile data. The secondary Ethernet connection serves as an excellent backup option. Phone tethering is compatible with both the latest high-speed 5G phones and the more commonly used 4G phones. The Blackmagic Design ATEM Mini Extreme switcher is designed to seamlessly detect phone connections and automatically switch internet connections, eliminating the hassle of manual settings adjustment. When the phone is connected, it will draw power from the USB port to ensure continuous charging from the switcher. The Blackmagic Design ATEM Mini Extreme offer exceptional mobile production solutions through the utilization of phone tethering and mobile data.

Record Direct to USB Flash Disks
The Blackmagic Design ATEM Mini Extreme models offer the convenient feature of direct recording of streaming data to USB flash disks. This implies that you can obtain lengthy recordings in H.264 video format with AAC audio, which can be streamed and easily uploaded to various online video platforms like YouTube or Vimeo. Recording to multiple disks is also supported through a USB hub or Blackmagic MultiDock. This feature allows for seamless recording to a second disk when the first one becomes full, ensuring uninterrupted recording. The setup of record settings and disk selection can be conveniently done using ATEM Software Control. Additionally, users can easily monitor the record status through the built-in multiview feature. With our cutting-edge technology, you have the incredible ability to activate recording on your connected Blackmagic Pocket Cinema Cameras. Experience the seamless integration and enhanced functionality that our innovative system provides.

Audio
With two independent 3.5mm stereo audio inputs, you can connect desktop and lapel microphones. You can even connect a music player to generate introduction music after the live stream commences but before the program starts. With 2 extra stereo audio inputs, you can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to Blackmagic Design ATEM Mini Extreme include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer. Plus all models feature a Fairlight audio mixer with all HDMI inputs and both microphone inputs are all connected to the audio mixer so you can live mix from all audio sources. The Blackmagic Design ATEM Mini Extreme also adds a headphone output.

Monitor Sources
When doing larger live productions with multiple cameras, it’s very useful to see all your video sources at the same time on a single monitor. The Blackmagic Design ATEM Mini Extreme models include a professional multiview that lets you see all video inputs, preview, and programs on a single HDMI television or monitor! Simply select M/V on the front panel video output control buttons to select multiview! Each camera view includes tally indicators so you know when each source is on-air, and each view also has custom labels and audio meters. Plus the Blackmagic Design ATEM Mini Extreme models allow you to select up to 16 custom views! Multiview even includes a status for recording, streaming, and the audio mixer!

Camera Control
For a more broadcast-style workflow, you can remote control your cameras from Blackmagic Design ATEM Mini Extreme! Blackmagic Pocket Cinema Camera 4K and 6K models can work as studio cameras with control sent via the HDMI connection to Blackmagic Design ATEM Mini Extreme. That means you can control the camera settings as well as the camera’s color corrector from ATEM Software Control. Imagine changing ISO and tint, plus lens iris, focus, and zoom, so camera operators can focus on the shot! There are two types of control interface, a CCU layout for traditional tint color control and a DaVinci color corrector interface allowing the camera’s built-in DaVinci color corrector to add incredible digital film "looks" to your live production!
