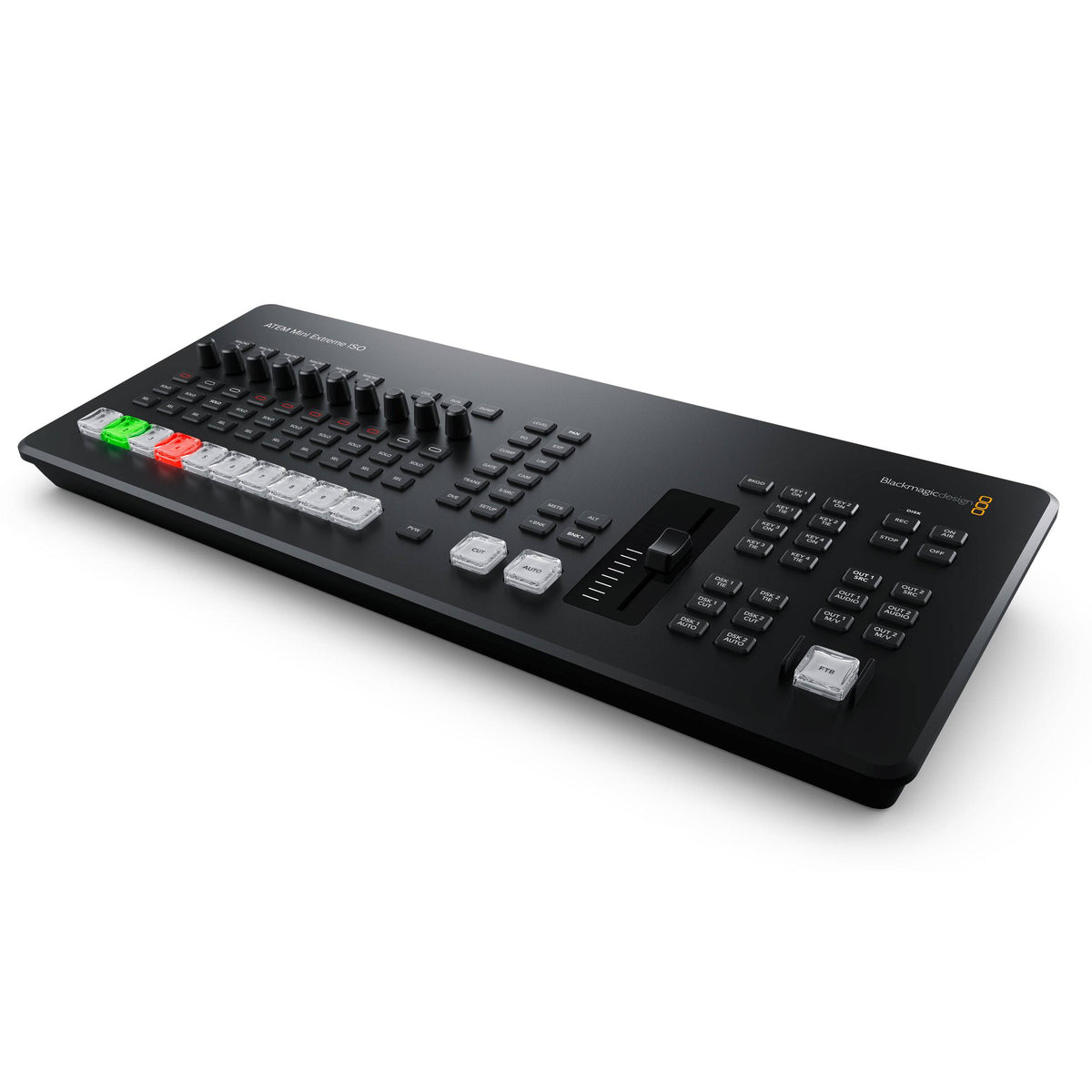

Blackmagic Design ATEM Mini Extreme ISO G2 video switcher with right-angle connections, compact professional live production hardware

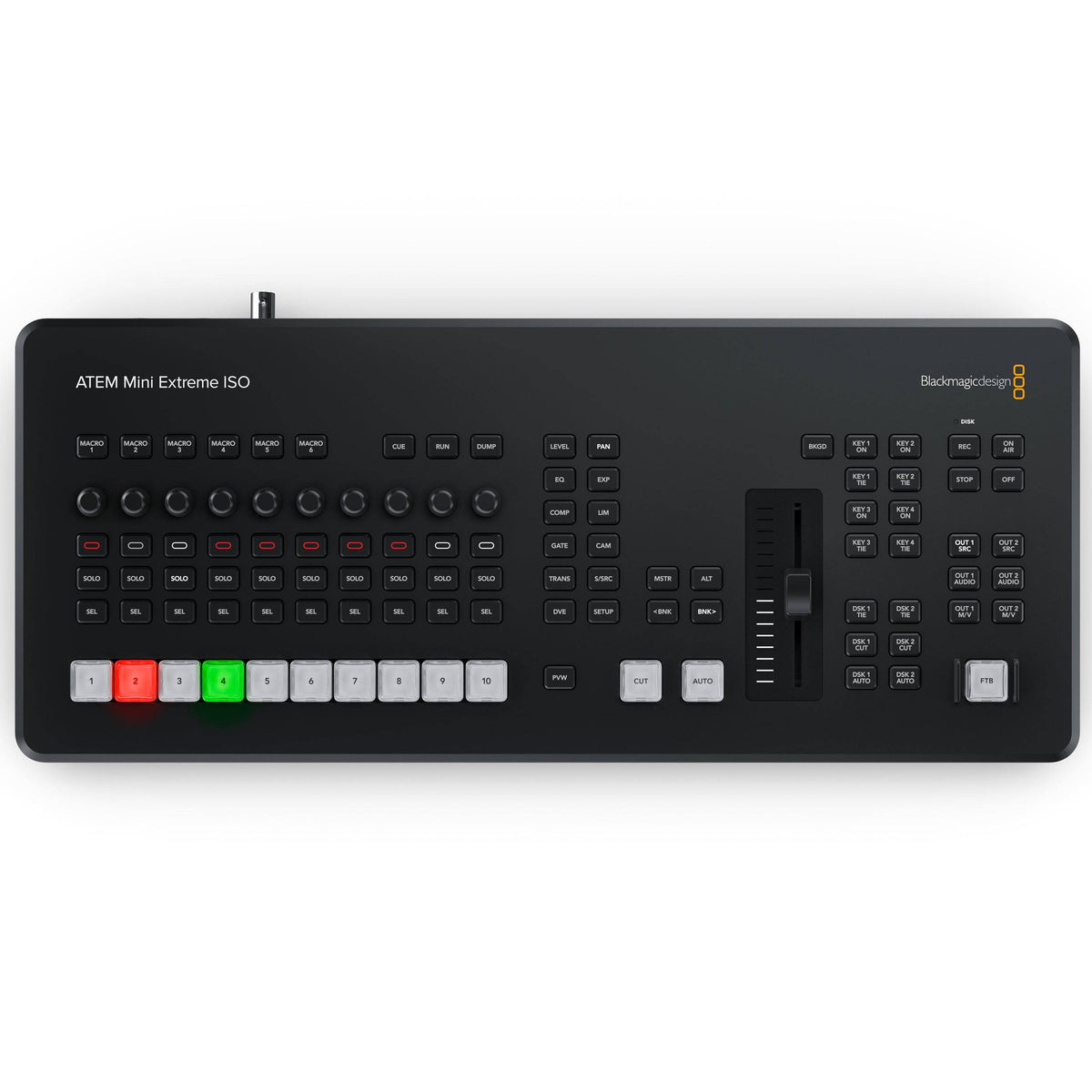

Blackmagic Design ATEM Mini Extreme ISO G2 video switcher with multiple control buttons and input ports on the front panel.

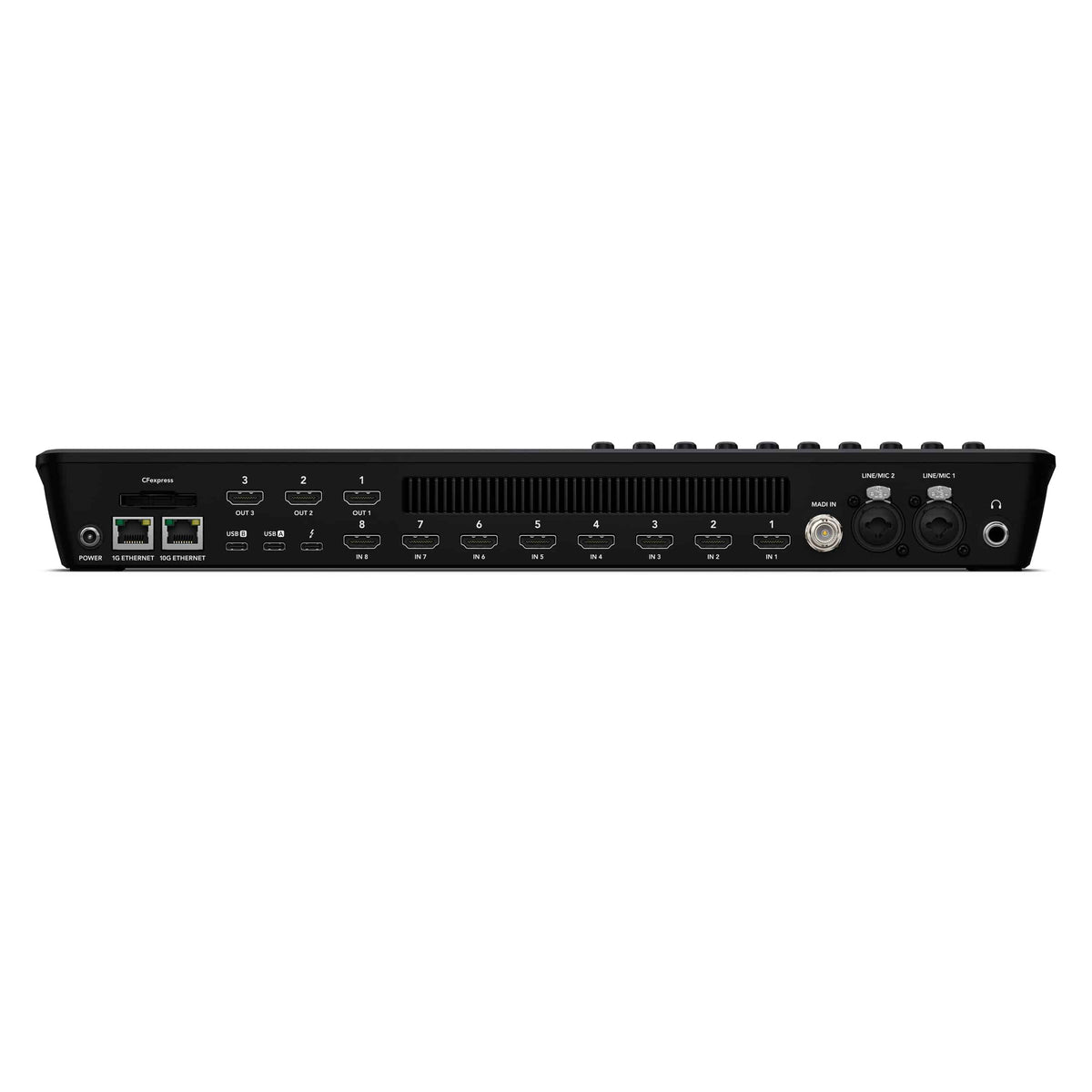

Blackmagic Design ATEM Mini Extreme ISO G2 video switcher with multiple HDMI inputs and control panel, shown from the back.

Product Highlights

8 HDMI inputs with conversion
Records all 8 HDMI inputs
CFexpress and Thunderbolt workflows
1G and 10G Ethernet

Authorized Blackmagic Design Dealer

Blackmagic Design ATEM Mini Extreme ISO G2

SKU:: BMD-SWATEMMINICEXTISOG2
MPN:: SWATEMMINICEXTISOG2

Special Order

Regular price $2,245.00

Add to Wishlist Have questions? Contact us

Ships in 1-3 Business Day

Free Expedited Shipping

Secure payment

Manufacturer Warranty

Authorized Dealer

Description

Product Overview

8 HDMI

Standards-Converted Inputs

3 HDMI

Independent Outputs

1080p60

Maximum Video Standard

10G

Ethernet Recording

8 ISO

H.264 Input Recordings

Blackmagic Design ATEM Mini Extreme ISO G2 is an 8-input HDMI live production switcher built for multi-camera streaming, studio production, and fast post-production turnaround. Each HDMI input includes re-sync plus frame-rate and format conversion, while three independent HDMI outputs, USB webcam output, Thunderbolt, CFexpress recording, and 1G/10G Ethernet cover demanding production workflows. ISO recording keeps every HDMI angle available for the edit, and the saved DaVinci Resolve project lets the live cut become the starting point instead of the end of the job.

Blackmagic Design ATEM Mini Extreme ISO G2 8-input HDMI switcher for streaming and studios

Key Features

ATEM HDMI switcher multi-camera investor presentation workflow with computer graphics

HDMI Live Switcher

Multi-Camera Investor Presentation Switching

Multi-camera investor presentation switching gives a presenter dedicated angles for the speaker, product close-up, and computer graphics without rebuilding the signal chain between segments. The eight HDMI inputs accept cameras or computers and convert supported 720p, 1080i, and 1080p sources to the switcher standard. Three independent HDMI outputs make it practical to feed program, multiview, or another routed source to separate displays in corporate communications and hybrid event setups.

ISO Recording

Live Production Switcher with ISO Recording

Live production switching with ISO recording preserves all eight HDMI inputs as individual H.264 MP4 files while also recording the program output. Separate audio sources are captured as 24-bit 48 kHz WAV files, and synchronized metadata keeps the production organized for post. Record to CFexpress or USB-C media when a live event needs both an immediate program master and editable camera originals.

DaVinci Resolve

ISO Recording Switcher for DaVinci Resolve

ISO recording for DaVinci Resolve saves the live switching decisions as a Resolve project file so an editor can reopen the show with cuts and media already organized. The recorded ISO feeds make it possible to replace shots, refine timing, rebuild graphics, and remix audio after the event. For post-production teams handling conferences, sports highlights, or recurring studio programs, the live production becomes an editable first pass rather than a flattened master.

ATEM XLR microphone inputs and MADI audio workflow for interviews and live broadcast mixing

Fairlight Audio

XLR and MADI Audio for Live Production

XLR and MADI audio for live production brings professional microphones and larger digital audio workflows directly into the switcher. Two balanced XLR combo inputs provide 48 V phantom power, while the BNC MADI input carries 32 channels of digital audio. Fairlight processing includes level control, metering, a 6-band parametric EQ, gate, compressor, and limiter, with a 6.35 mm headphone output for direct monitoring.

ATEM standards conversion for mixed 720p 1080i and 1080p HDMI sources in live production

HDMI Standards Conversion

Automatic HDMI Format Conversion for Mixed Sources

Automatic HDMI format conversion lets mixed cameras and computers enter the same production without external frame synchronizers on each source. Every HDMI input and supported remote source includes re-sync plus frame-rate and format conversion. Supported input standards extend from 720p50 through 1080p60 and 1080i formats, while HD output and streaming standards run up to 1080p60.

ATEM Mini Extreme ISO G2 connections with 10G Ethernet Thunderbolt USB-C HDMI XLR and MADI

RTMP and SRT Streaming

Live Switcher with 10G Ethernet and Thunderbolt

Live switching with 10G Ethernet separates high-speed recording access from the dedicated 1G Ethernet connection used for streaming, control panels, and internet connectivity. Direct live streaming supports RTMP and SRT over Ethernet or a shared internet connection over USB-C.

Thunderbolt adds fill-and-key video output, video input, Ethernet-to-storage transfer, and power. That opens a direct path to computer-based graphics, capture, playback, and storage workflows without turning the switcher into a USB-only production endpoint.

ATEM HDMI video standards chart showing supported 720p 1080i and 1080p production formats

HDMI Inputs

8 × HDMI Type A · 10-bit HD · 2-channel embedded audio

HDMI Outputs

3 independent HDMI program outputs

Input Standards

720p50–60 · 1080i50–60 · 1080p23.98–60

Video Processing

10-bit · 4:2:2 YUV · Rec.709 · hardware real-time colorspace conversion

Real-World Workflows

Corporate Communications

HDMI Video Switcher for Zoom Presentations

Use camera close-ups, wide shots, and a presentation computer as separate sources, then send the switched program to a conferencing computer through USB webcam output. The two USB-C webcam outputs support 720p or 1080p at the program frame rate, making the switcher useful for executive briefings, webinars, and hybrid corporate events.

1080p60 HDMI live switcher workflow for eSports competition cameras and gaming sources

eSports Production

1080p60 HDMI Switcher for eSports Streaming

Connect gaming systems, presenter cameras, and graphics computers across the eight HDMI inputs, then monitor the show with configurable multiview. Support for 1080p60 production and streaming standards keeps high-motion gameplay workflows practical, while DVE, chroma key, media players, and SuperSource support commentary and branded layouts.

Education AV

Multi-Camera Switcher for Training and Lecture Capture

Combine instructor cameras, demonstration views, document cameras, and presentation computers in one compact production desk. ISO recording gives education AV teams clean source files for lesson revisions, while the program master can be delivered immediately for lecture capture, remote learning, or internal training libraries.

Who It's For

Broadcast Studios

Compact control, multiview, professional audio, streaming, and ISO recording fit small studio and live broadcast control rooms.

Live Event Producers

Eight converted HDMI inputs and three routed outputs simplify conference, stage, and venue production signal paths.

eSports Teams

1080p60 switching, multiview, keying, and direct streaming support gameplay plus presenter and graphics sources.

Education AV

Lecture capture teams can switch multiple teaching sources live while retaining ISO media for revised course content.

Corporate Video Teams

USB webcam output and multi-camera switching support executive communications, webinars, investor updates, and hybrid meetings.

Post-Production Teams

DaVinci Resolve project recording and synchronized ISO media shorten the handoff from live production to editorial finishing.

Blackmagic Design Support

The Blackmagic Design ATEM Mini Extreme ISO G2 carries a 1-year limited manufacturer warranty. Buying through Coremicro gives production teams an authorized Blackmagic Design dealer contact for product selection, workflow planning, and compatibility questions before deployment.

Technical Specifications

Specification	Detail
HDMI Video Inputs	8 × HDMI Type A, 10-bit HD switchable, 2-channel embedded audio
HDMI Video Outputs	3
Video Input Re-Sync	On all 8 HDMI inputs and remote sources
Frame Rate and Format Converters	On all 8 HDMI inputs and remote sources
HD Video Input Standards	720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
HD Video Output Standards	1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Video Streaming Standards	1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
Video Sampling	4:2:2 YUV
Color Precision	10-bit
Color Space	Rec.709
Total Audio Inputs	2 × XLR combo with phantom power; 1 × BNC 32-channel MADI digital audio
Total Audio Outputs	1 × 6.35 mm headphone jack
Audio Mixer	26 input × 2 channel mixer with level and peak metering, 6-band parametric EQ, compressor, gate and limiter
Webcam Output	2 × USB-C supporting 720p or 1080p at program frame rate
Multi View	1 multiview, configurable to 16, 13, 10, 7 or 4-up layouts
Ethernet	1 × 1G Ethernet for streaming, control panels and internet; 1 × 10G Ethernet for recording
Computer Interface	2 × USB Type-C 3.1 Gen 1; 1 × Thunderbolt for fill/key video out, video input, Ethernet-to-storage and power
Direct Streaming	RTMP and SRT over Ethernet or shared internet connection over USB-C
Direct Recording	CFexpress slot and USB-C recording
Video Recording	8 × HDMI ISO inputs as H.264 MP4 up to 70 Mb/s plus 1 × program H.264 MP4 with AAC audio
Audio Recording	Separate 24-bit 48 kHz WAV files for recorded audio sources
Switching Project	Program switching recorded as a DaVinci Resolve DRP project file
Upstream Keyers	4
Downstream Keyers	2
Advanced Chroma Keyers	Up to 4
DVEs	2
SuperSource	1
Media Players	2
Media Pool Still Capacity	20 with fill and key
Media Pool Animation Capacity	200 frames in 1080 HD
Control Panel	Built-in control panel; ATEM Software Control for Mac and Windows included
Power Supply	1 × external 12 V power supply
Power Usage	120 W maximum
Operating Temperature	5° C to 40° C / 41° F to 104° F
Storage Temperature	-10° C to 60° C / 14° F to 140° F
Relative Humidity	0% to 90% non-condensing
Warranty	1-year limited manufacturer warranty

Deploy an 8-Input HDMI Live Production Switcher with Confidence

As an authorized Blackmagic Design dealer, Coremicro supports the Blackmagic Design ATEM Mini Extreme ISO G2 across broadcast studios, live events, eSports production, education AV, and corporate communications. Contact our team for current ATEM Mini Extreme ISO G2 price and availability, and to confirm camera formats, recording media, audio routing, network storage, and streaming compatibility.

Talk to a Specialist

Blackmagic Design ATEM Mini Extreme ISO G2
12 VDC Universal Power Supply
Warranty Booklet

Product Specifications
Video Inputs	HDMI Video Inputs: 8 x HDMI type A, 10-bit HD switchable.
Audio Inputs	Audio Inputs: 2 x XLR Combo with phantom power. 1 x BNC 32 Ch MADI digital audio.
Video Outputs	HDMI Video Outputs: 3 Webcam Output: 2 x USB-C supporting 720p or 1080p at PGM frame rate.
Audio Outputs	1 x 6.35mm headphone jack
Video Standards	HD Video Input Standards 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 HD Video Output Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Streaming Standards 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 Video Sampling 4:2:2 YUV Color Precision 10-bit Color Space Rec 709 HDMI Input Resolutions from Computers 1280 x 720p 50Hz, 59.94Hz and 60Hz 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz 1920 x 1080i 50, 59.94Hz and 60Hz Colorspace Conversion Hardware based real time.
Product Specific	Number of Mix Effects Rows:1 Direct Cross Points:10 Crosspoint Button Type: NKK Buttons Preview Transition: 1 Source Select Bus: Set using Multi Function Controls and Fairlight Audio Status Output. Dedicated Macro Buttons: 6 Transition Type Buttons: Set using Multi Function Controls and Fairlight Audio Status Output. Transition Rate: Set using Multi Function Controls and Fairlight Audio Status Output. Key Buttons: 8 AUX Buttons: 6 Fader Bar: 1 Record Buttons: 2 Stream Buttons: 2 DSK Transition Selectors: 6 Fade to Black Buttons: 1 NKK button Upstream Keyers: 4 Downstream Keyers: 2 Advanced Chroma Keyers: Up to 4 SuperSource: 1 DVEs: 2 Linear/Luma Keyers: Up to 4 Transition Keyer (Stinger/DVE): DVE only Color Generators: 2 Control Panel Set using Multi Function Controls and Fairlight Audio Status Output. Routable Windows: 16 Tally: Red for program and green for preview indication. Control Panel: Built-in control panel. Software control panel with camera control included. Supports optional hardware panel. Control Panel Connection: Ethernet supports 10/100/1000/10G BaseT. Ethernet used for direct connection between panel and chassis or via network. Also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software. Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM Micro Panel, ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. Can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro. Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Sonoma, Mac 10.15 Sequoia or later later and Windows 11, Windows 10 64 bit only.
Multi View	Multi View Monitoring: Configurable to 16, 13, 10, 7 or 4 up views including Program, Preview, 8 HDMI inputs, SuperSource, Clean Feed, Media Player, Streaming Status, Recording Status and Audio Meters. Multi View Video Standard: HD
Recording	Direct Recording Video and Audio: CFExpress slot for recording Network Recording USB-C Recording Video Recording: 8 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio. 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio. Audio Recording: 26 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 1 x analog 2 channel audio input, 8 x Input source 2 channel embedded audio inputs and 32 x MADI audio channels. Switching: Program switching recorded as a DaVinci Resolve project .drp file. Media Format: Supports media formatted ExFAT (Windows/Mac). APFS or HFS+ (Mac).
Media	Media Players: 2 Channels: Fill and key for each Media Player. Media Pool Still Image Capacity: 20 with fill and key. Media Pool Still Image Format: 200 frames in 1080 HD. Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG and TIFF. Media Pool Video File Format: TGA Sequence. Media Pool Audio File Format: WAV, MP3 and AIFF.
Network	1 x 1G Ethernet for simple streaming, control panels and internet connection 1 x 10G Ethernet connection for recording.
Computer Interface	2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection. 1 x Thunderbolt for fill key video out, video input, ethernet to storage, and power
Streaming	Direct Streaming: Supports direct live streaming using Real Time Messaging Protocol (RTMP) and Secure Reliable Transport (SRT) over ethernet or a shared internet connection over USB‑C. Total Streaming Sources: Up to 8 Streaming Source Format: RTMP/SRT video with audio over a local network or internet connection from compatible Blackmagic Design cameras outputting HyperDeck High, HyperDeck Medium, HyperDeck Low, Streaming High, Streaming Medium or Streaming Low quality setting. See user manual for data rates. Streaming Source Setup: Mapped to inputs in ATEM Software Control Settings.
Processing	Audio Mixer: 58 Channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter. Camera Control: When used with most Blackmagic Design cameras, ATEM can control focus, iris and zoom of compatible lenses and camera settings including gain, white balance, tint, shutter, ND filter, color corrector, tally and record start/stop.
Operating Systems	Windows and Mac OS
Power Specifications
Power I/O	Power Supply: 1 x External 12V power supply.
Physical / Environmental Specifications
Dimension	Dimensions: 16.3 x 7.35 x 1.97" / 41.4 x 18.67 x 5 cm Weight: 4.09 lb / 1.86 kg
Environment	Operating Temperature: 5° C to 40° C (41° - 104° F) Storage Temperature: -10° to 60° C (14° to 140° F) Relative Humidity: 0% to 90% non-condensing
Warranty	1 Year Limited Manufacturer’s Warranty.
UPC / GTIN	9338716009965
