Blackmagic Design ATEM Constellation 8K

The Blackmagic Design ATEM Constellation 8K is the most advanced Ultra HD and native 8K live production switcher on the market. It features 40 independent 12G-SDI inputs, each with its own format converter. This means you can mix sources in HD, Ultra HD, and 8K — all at the same time — without needing external converters.

With its 4 M/E architecture, the ATEM Constellation 8K gives you a powerful set of tools. These include 4 DVEs, 2 SuperSource engines, and 16 advanced chroma keyers. You also get 4 media players, a 156-channel Fairlight audio mixer, and 4 Ultra HD multiview outputs. In 8K mode, all resources scale natively — including 10 Quad Link 12G-SDI 8K inputs, full 8K multiview, and 4 8K chroma keyers.

The ATEM Constellation 8K is ideal for concerts, sports, and multi-camera live productions. Its 24 independently routable 12G-SDI aux outputs let you send different program feeds to displays, recorders, or live streamers. You can output any source to any output — perfect for IMAG screens, clean feeds, or external monitoring.

This ATEM Constellation also features 4 multiview outputs that can be customized to show 4, 7, 10, 13, or 16 windows. In 8K mode, they combine into a single full-resolution 8K multiview. Each view includes tally indicators, custom labels, and audio meters.

Audio is equally powerful. The Fairlight audio mixer inside the ATEM Constellation 8K handles up to 156 input channels — including SDI embedded audio, MADI, analog, and talkback mics. You get full 6-band EQ, limiter, expander, noise gate, and compressor on every input. Mix audio live or hand it off to an external engineer using 2 MADI outputs for the first 30 video inputs.

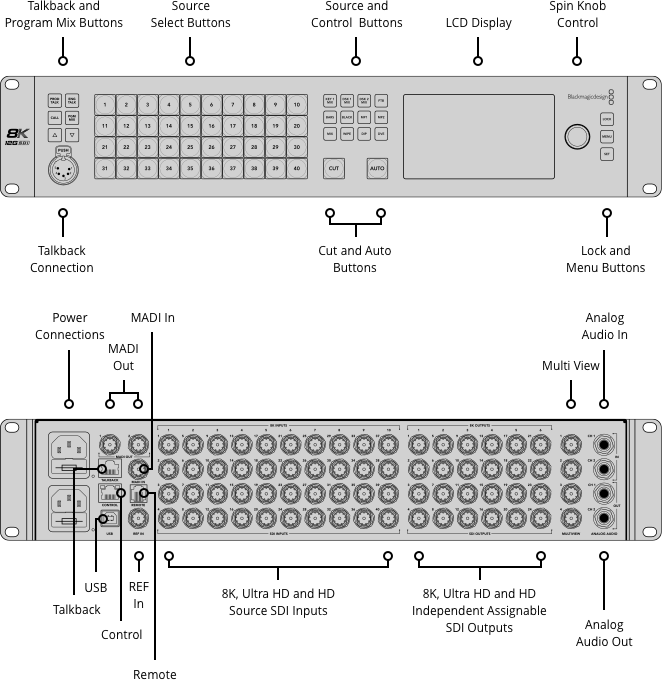

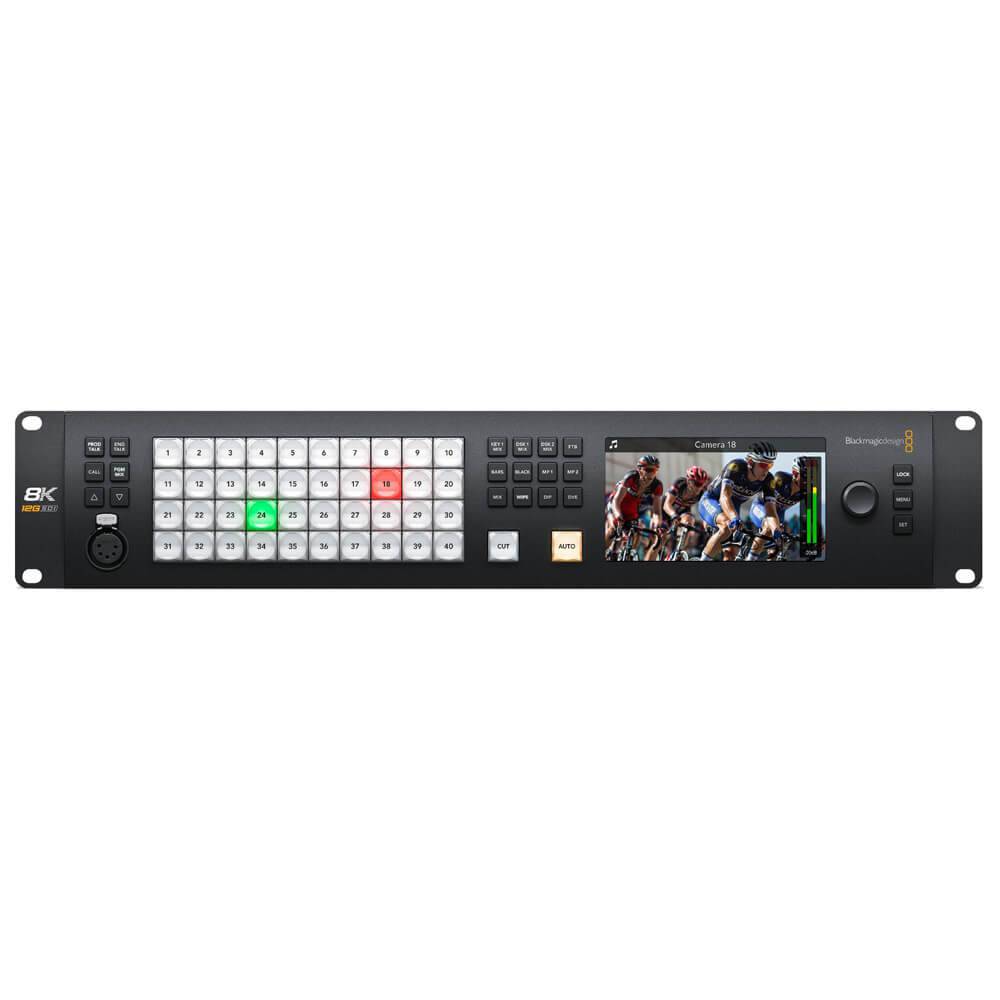

For control, the switcher includes a front panel with LCD display, 42 backlit buttons, and full menu navigation. You can switch sources, control transitions, adjust settings, and trigger macros directly from the front. It also includes RJ45 talkback ports, RS-422 remote, and full software control over Ethernet or USB.

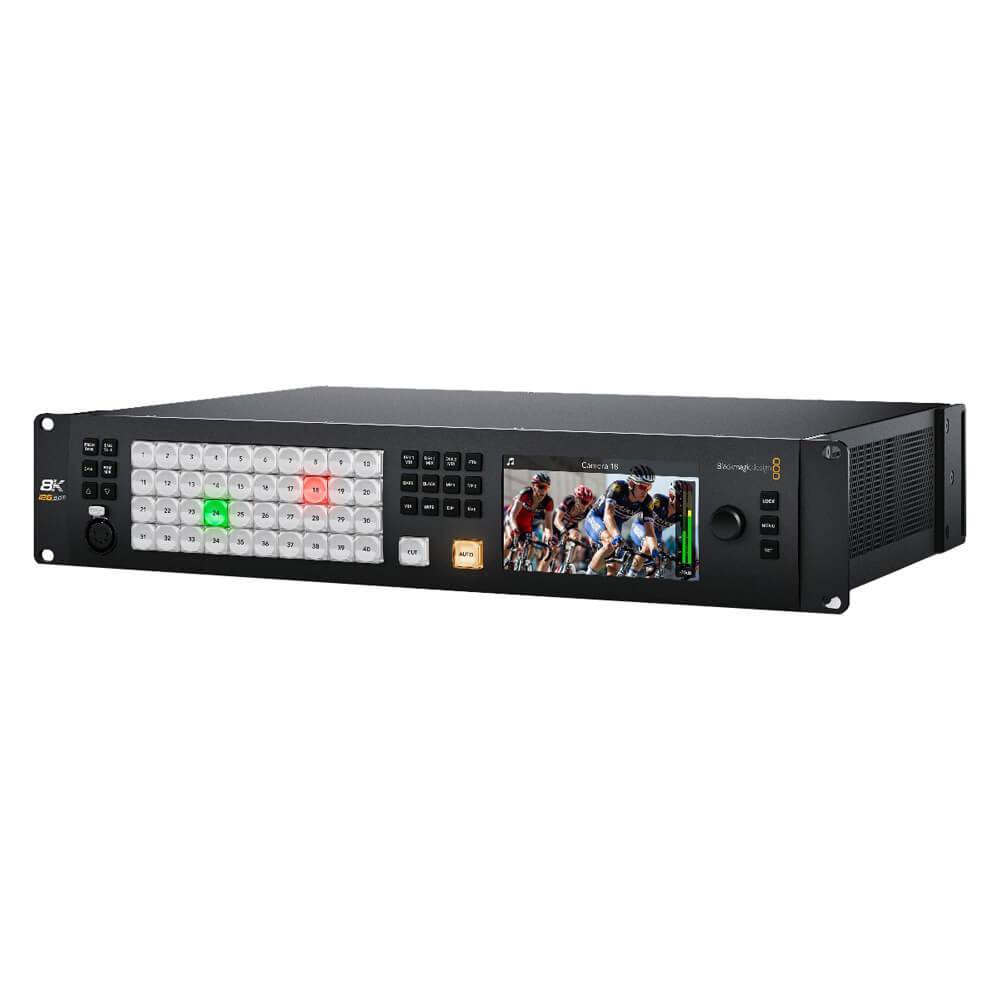

Even with all this power, the ATEM Constellation 8K fits in a compact 2RU rack-mount chassis. Its quiet cooling system includes 3 low-speed fans and high-efficiency thermal design, making it ideal for OB trucks and mobile production units.

You can build incredible layered effects with 4 full-resolution 8K DVEs, 3D borders, and motion transitions. The ATEM also supports custom stinger transitions, DVE wipes, and graphics overlays using internal media players. Create professional effects on the fly — perfect for fast-paced productions.

This switcher is optimized for today and ready for tomorrow. It supports HD, Ultra HD, and full 8K (4320p60) via Quad Link 12G-SDI. Switch between formats instantly without changing gear. With support for SMPTE standards, REC 709, and REC 2020, your workflow stays compatible with broadcast specs.

The internal media pool lets you store up to 24 8K stills or 2 motion clips. Use these for lower-thirds, stingers, transitions, or branding graphics. Import media directly or use the ATEM Photoshop plug-in to send graphics straight to the switcher.

For virtual sets, green screen work, or weather graphics, the 16 advanced chroma keyers deliver clean, professional results. Each includes color sampling, edge correction, spill suppression, and foreground color matching.

Whether you’re working in HD, Ultra HD, or 8K, the Blackmagic Design ATEM Constellation 8K gives you full creative control. With unmatched input flexibility, powerful real-time processing, and a deep feature set, this switcher is built for high-end productions.

ATEM Constellation 8K Features

• 40 x 12G‑SDI Inputs Switcher
• 2 x 12G-SDI Outputs
• 24 x 12G‑SDI Aux outputs
• 4 x DVE, 16 x Keyers
• 4 x Media Players
• 4 x Multiview Outputs
• Built-In Fairlight Audio Mixer
• Front Panel or Ethernet ControlBuilt-In Fairlight Audio Mixer
• Professional Talkback Compatible with ClearCom and RTS
• Stills and Motion Graphics Internal Media Player
• 2 x SuperSource
• Requires IEC Power Cable
