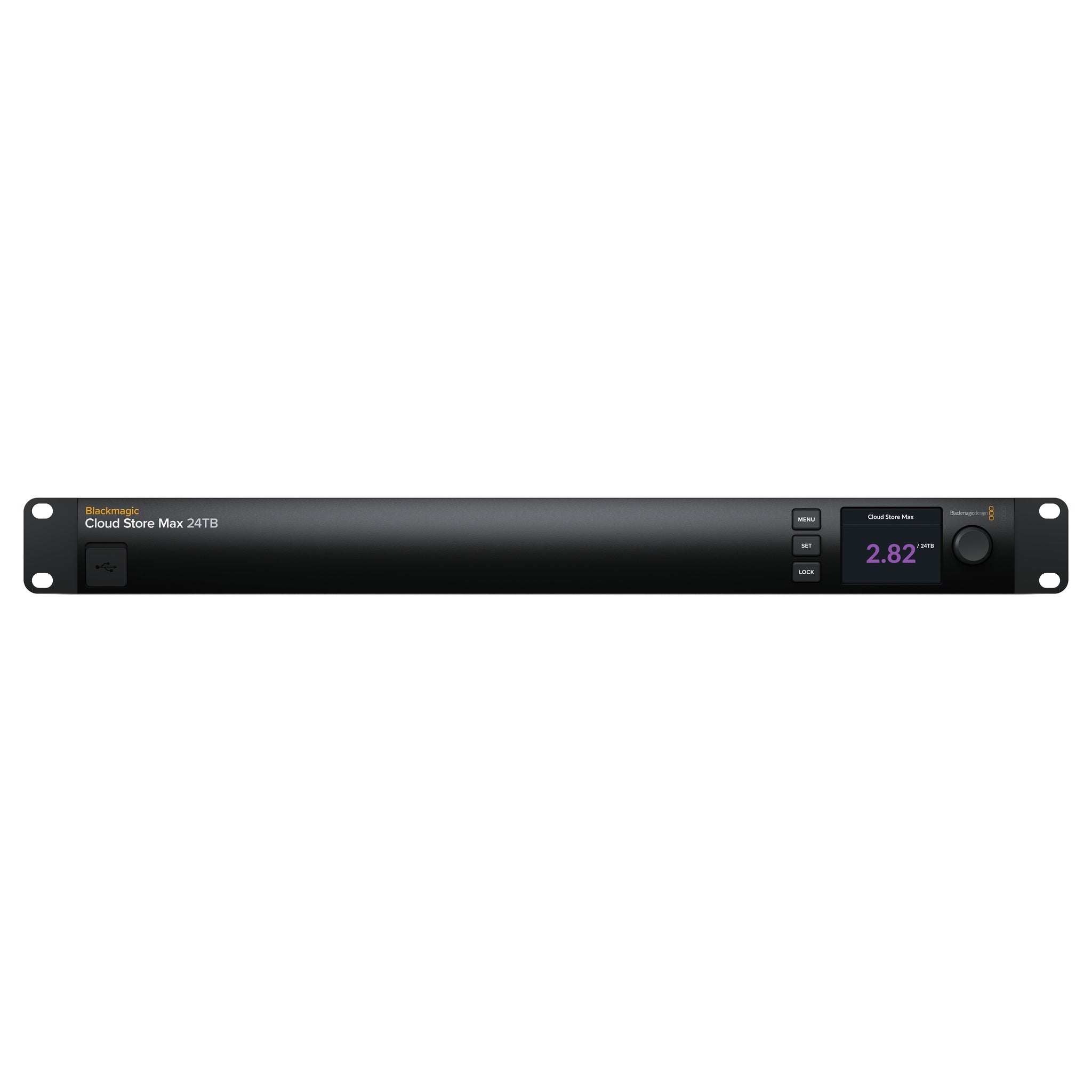

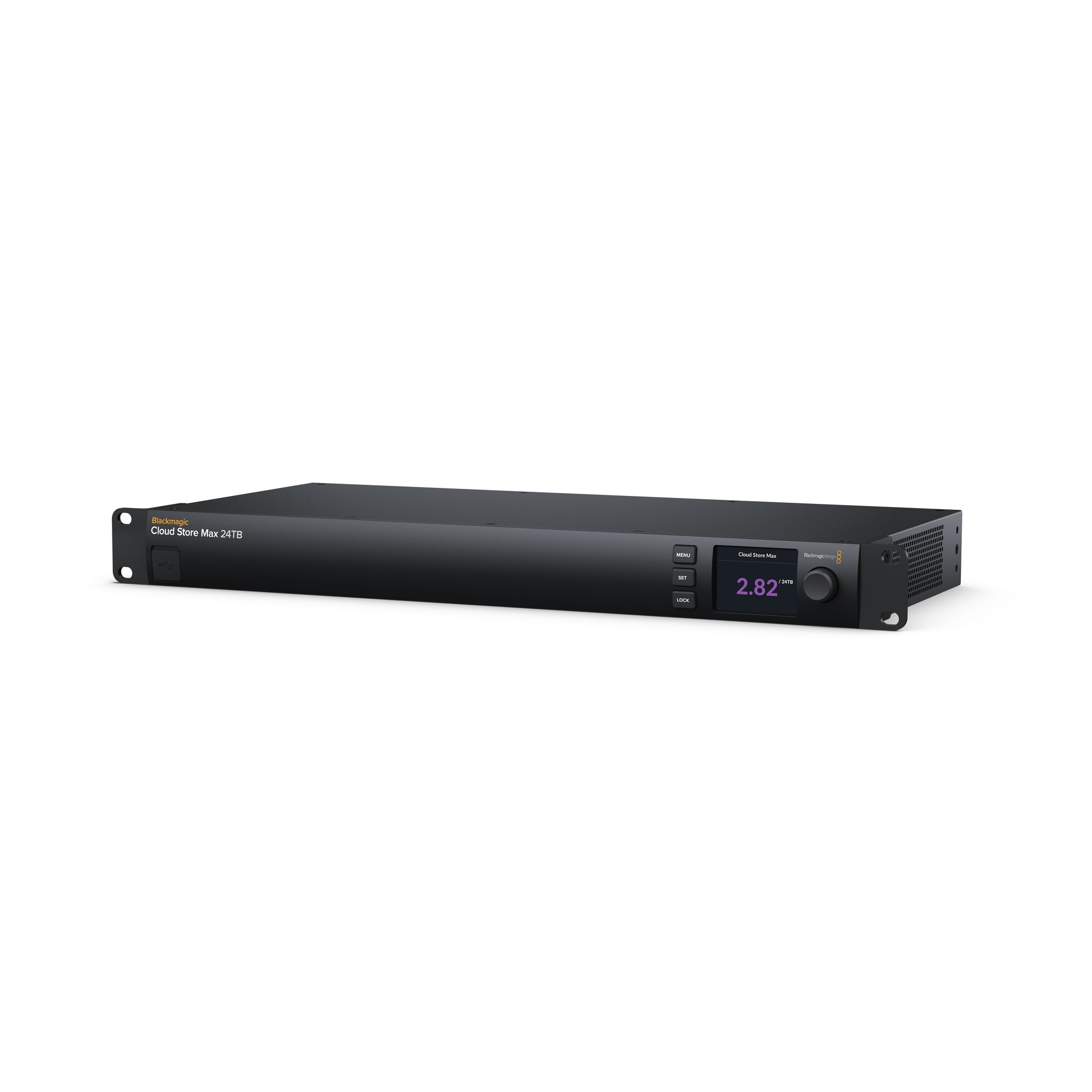

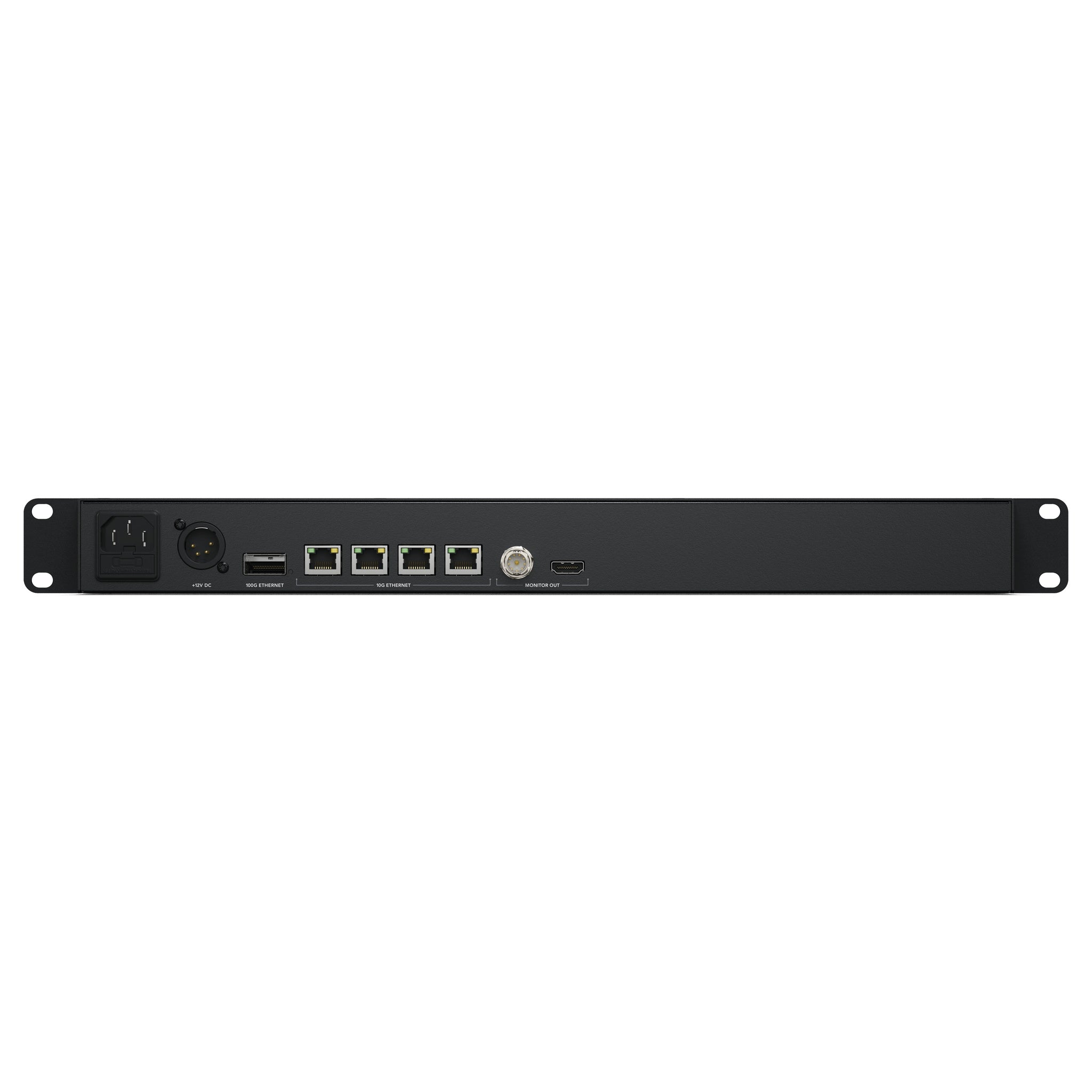

Blackmagic Cloud Store Max 24TB

The Blackmagic Cloud Store Max 24TB is an extremely high-performance flash storage solution in a compact 1RU rack-mount design, built for film and television productions that need to share massive media files across multiple users simultaneously.

Featuring a 12-card RAID 0 NVMe flash memory core, the Cloud Store Max 24TB delivers enough speed to saturate all four 10G Ethernet ports simultaneously — even with dozens of users accessing large media files at the same time. It also includes a 100G Ethernet port via QSFP28 for ultra-high-speed connectivity, plus a USB-C port with built-in network adapter. HDMI and SDI monitoring outputs let you view real-time storage status on any display.

Designed to work seamlessly with Blackmagic Cloud and DaVinci Resolve, it supports proxy file workflows so remote teams can begin editing within seconds of footage arriving from set. No subscriptions, no licenses, no user data tracking.

Key Features

• 24TB capacity with 12-card RAID 0 NVMe flash memory core
• 4 x 10G Ethernet ports for high-speed multi-user access
• 1 x 100G Ethernet port (QSFP28) for ultra-high-speed connectivity
• HDMI and SDI monitoring outputs with live storage status
• USB-C port with built-in Ethernet network adapter
• Blackmagic Cloud sync for global media distribution
• AWS S3 sync support
• Compact 1RU rack-mount design with silent cooling
• No subscriptions, no licenses, no user data tracking
• Free software utility for Mac and Windows
• Handles 12K Blackmagic RAW digital cinema files

Technical Specifications

• Capacity: 24TB
• Memory Core: 12-card RAID 0 NVMe M.2 flash memory
• 10G Ethernet: 4 x 10GbE ports
• 100G Ethernet: 1 x QSFP28 (supports high-speed copper and optical fiber cables)
• USB: 1 x USB-C (Ethernet over USB), 1 x USB 3.0 (up to 5Gb/s)
• Management Ethernet: 1 x RJ45 (10/100/1000 BASE-T)
• Monitoring Outputs: HDMI + SDI
• Cloud Sync: Blackmagic Cloud, AWS S3
• Display: Built-in 2.2-inch LCD
• Form Factor: 1RU rack-mount
• OS Support: Mac and Windows
• Power: Internal AC power supply
