Product Highlights
- Standard 8 and Super 8
- HDR film gate upgrade
- Designed for Cintel Scanner
- Archival film scanning workflow

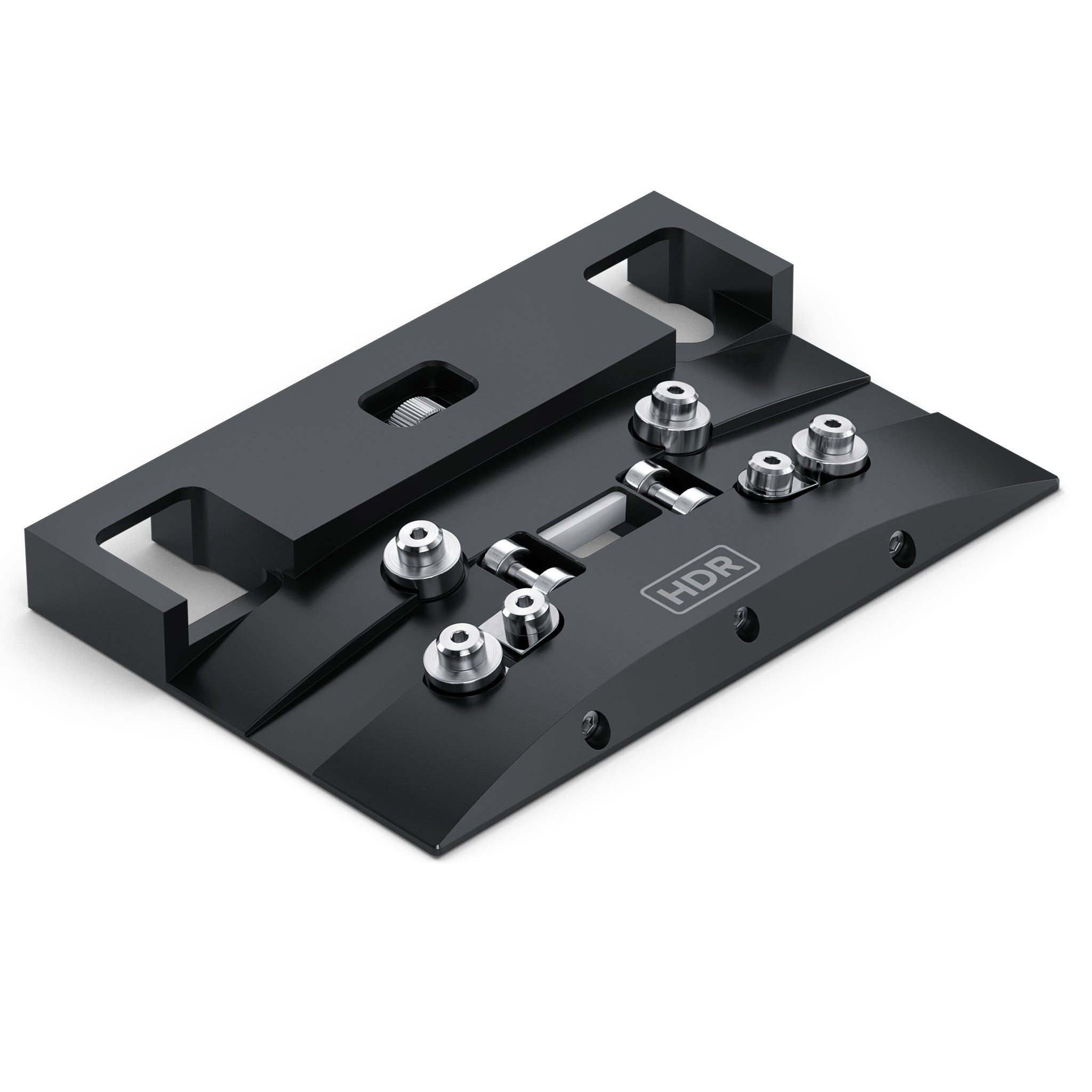

Blackmagic Cintel Scanner 8mm Gate HDR
- SKU:
- BMD-CINTELSGATE08MMHDR
- MPN:
- CINTELSGATE08MMHDR
Product Inquiry Form
Description
Product Overview
The Blackmagic Cintel Scanner 8mm Gate HDR from Blackmagic Design adds an 8mm film gate setup to compatible capstan-based Cintel scanners for Standard 8 and Super 8 work. It is built for film archives, post-production facilities, education AV collections and government broadcast preservation workflows that need small-gauge film digitization on an existing Cintel platform. The kit supplies the gate, reel adaptors and spacer hardware required for the conversion. One scanner platform, more archive formats.
Standard 8 and Super 8 Film Gate Support
Standard 8 and Super 8 film scanning is the core reason to add this gate to a compatible Cintel system. Blackmagic lists both 8mm and Super 8mm among the supported Cintel film gauges. The accessory lets an archive team adapt an existing capstan scanner for small-gauge originals without moving the project to a separate scanning platform.
HDR 8mm Film Scanning on Cintel
HDR 8mm film scanning stays inside the imaging workflow of the compatible Cintel scanner. The kit consists of the mechanical gate, spacer and reel adaptor components needed to handle the smaller film gauge. Capture performance and effective resolution remain characteristics of the Cintel scanner configuration rather than the gate accessory alone.
Capstan Cintel Scanner Compatibility
Capstan Cintel scanner compatibility is a required check before ordering this upgrade. Blackmagic identifies the 8mm gate for capstan models only, including C-Drive, G3 and G3 HDR+. Older or different transport generations should not be assumed compatible, so Coremicro can confirm the installed scanner model before purchase.
Cintel Gate Kit for Film Digitization
The Cintel gate kit for film digitization includes one 8mm gate, two inner spacers, two outer spacers and two reel adaptors. Those matched components configure the transport for small-gauge reels while keeping the scanner in its existing production environment. For archive departments, the upgrade stays focused on film handling rather than replacing the capture platform.
DaVinci Resolve Film Scanning Workflow
A DaVinci Resolve film scanning workflow remains available after the 8mm conversion because scanner control stays on the Cintel platform. Blackmagic supports scanning through DaVinci Resolve or third-party software using the Cintel SDK. Post-production teams can move from ingest into grading, restoration and finishing without changing the established scanner control environment.
Cintel Resolution Depends on Scanner Model
Cintel resolution depends on the scanner configuration rather than the gate accessory by itself. Current Blackmagic specifications publish different effective 8mm resolutions across Cintel scanner configurations. For preservation planning, use the installed scanner model to determine expected image dimensions instead of treating the gate as a standalone 4K resolution upgrade.
Film Archives
Extend a compatible Cintel installation to Standard 8 and Super 8 preservation projects without adding another scanner platform.
Post-Production Facilities
Bring small-gauge film into an existing Cintel and DaVinci Resolve restoration pipeline for grading and finishing.
Education AV
Digitize teaching collections, student films and historical 8mm materials for preservation and classroom access.
Government Broadcast
Convert legacy small-gauge holdings for preservation and future access within a professional broadcast workflow.
Museums and Libraries
Create digital access copies and preservation masters from institutional 8mm and Super 8 collections.
Documentary Production
Prepare historical home movies and archive footage for editorial, restoration and content creation projects.
Blackmagic Design Support
Contact Coremicro to confirm current Blackmagic Design accessory warranty coverage, ordering status and compatibility with your specific Cintel transport before purchase.
| Specification | Detail |
|---|---|
| Product | Blackmagic Cintel Scanner 8mm Gate HDR |
| Accessory Type | Optional 8mm film gate kit |
| Supported Film Gauges | 8mm and Super 8mm on compatible Cintel scanners |
| Scanner Compatibility | Capstan models only, including C-Drive, G3 and G3 HDR+ |
| 8mm Gate | 1 |
| Inner Spacers | 2 |
| Outer Spacers | 2 |
| Reel Adaptors | 2 |
| Scanning Control | DaVinci Resolve or third-party software using the Cintel SDK |
Buy the Cintel Scanner 8mm Gate HDR for Your Archive Workflow
Buy Blackmagic Cintel Scanner 8mm Gate HDR from Coremicro, an authorized Blackmagic Design dealer. Contact our team for current Cintel 8mm gate price, ordering status and compatibility with your capstan scanner.
Talk to a SpecialistSpecifications
Blackmagic Cintel Scanner 8mm Gate HDR Specifications
