Blackmagic ATEM Monitoring Rack Panel 40

The Blackmagic Design ATEM Monitoring Rack Panel 40 is the larger sibling of the Panel 20 — a full 2RU video converter and switcher control panel built for operators who need more buttons, a bigger display, and broadcast-grade reliability in a rack-mountable form factor.

Where the Panel 20 gives you 20 source buttons in 1RU, the Panel 40 doubles that to 40 buttons across 2RU, and trades up to a large 5-inch built-in LCD that gives you a real-size video monitor right on the rack panel face.

Like the Panel 20, it handles SMPTE-2110 to SDI/HDMI conversion — two redundant 10G Ethernet inputs convert to 2 x 12G-SDI and HDMI for local monitoring. The front-panel talkback connection is included, and the dedicated NMOS control port keeps IP routing separate from the production network.

For larger productions where 20 source buttons aren't enough, or where operators need a bigger local display without adding a separate monitor to the rack, the Panel 40 is the answer. Announced at NAB 2026 on April 14, 2026.

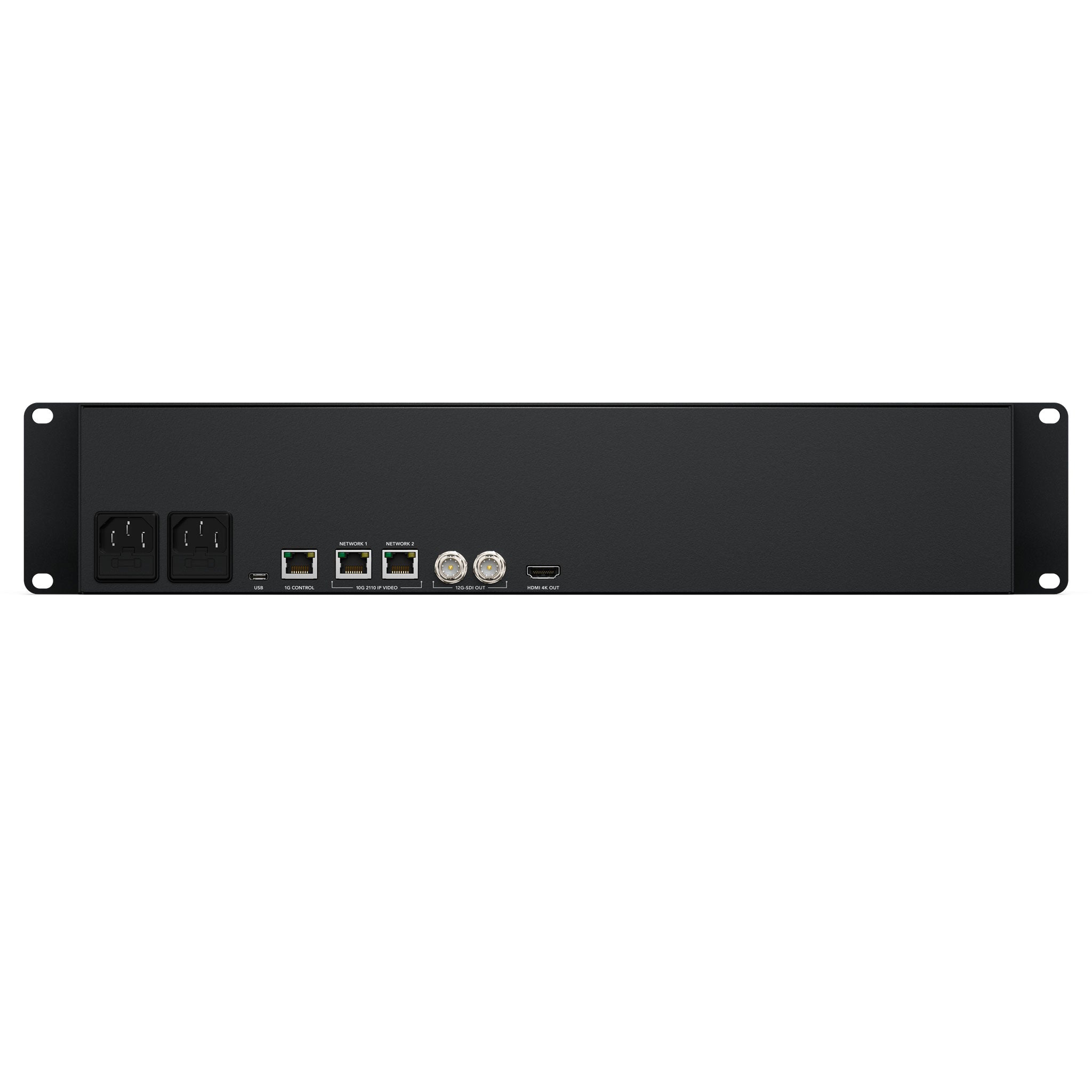

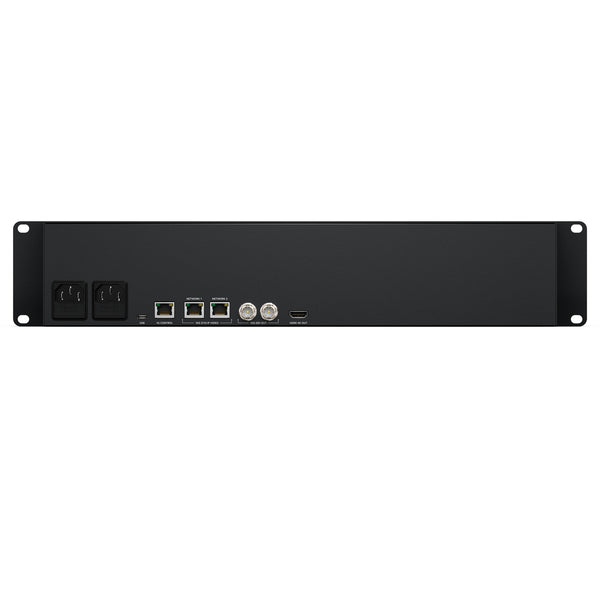

Two independent 10G RJ45 ports with SMPTE-2022-7 compliance. One path drops mid-broadcast — the other takes over instantly, no frames lost.

Converts native SMPTE-2110 IP video to 2 x 12G-SDI and HDMI simultaneously. Connect local broadcast monitors directly — no external converter needed.

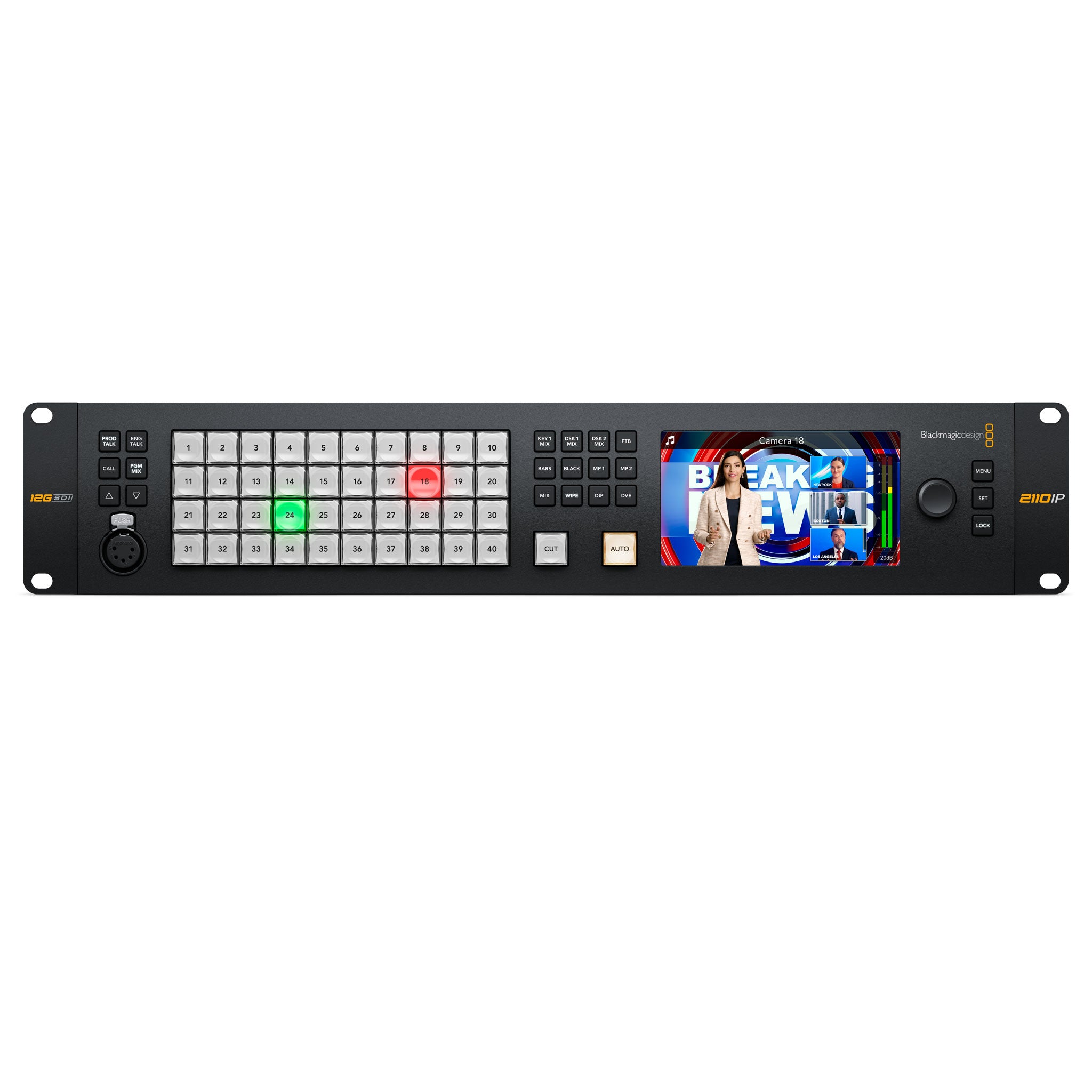

Double the button row of the Panel 20. Assign, cut, and switch up to 40 sources from the rack panel with physical lit buttons — no software, no laptop, no delay.

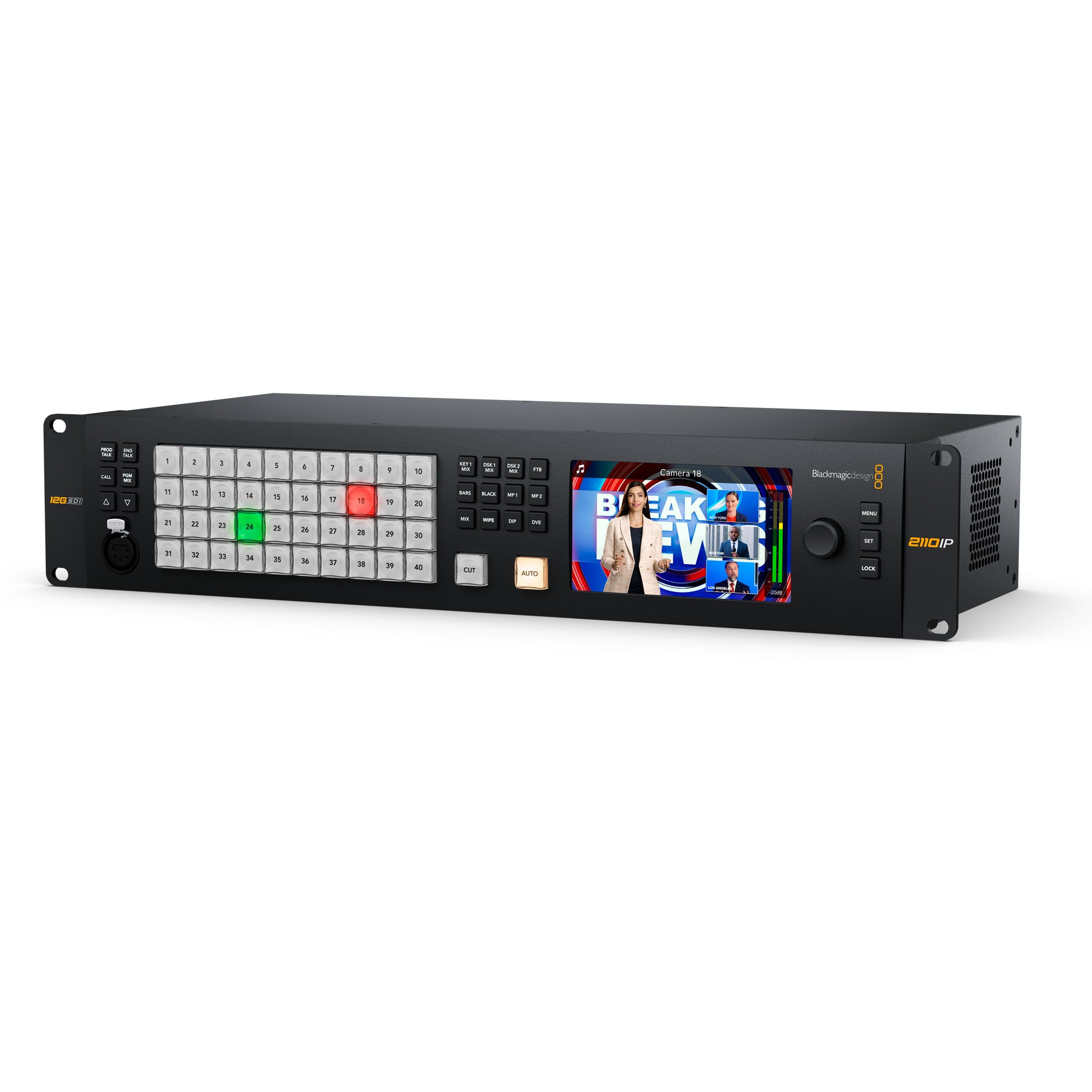

A proper 5-inch built-in LCD displays live video directly on the panel face. Local rack monitoring without a separate monitor occupying rack space.

Standard 5-pin XLR talkback connector on the front panel. Broadcast headset connects directly — stay in communication without extra intercom cabling.

A dedicated 1G RJ45 Ethernet port for ATEM switcher connection and NMOS control — keeps IP routing traffic isolated from the production network.

Pairs with ATEM Constellation IP in permanent installations. 40 lit buttons cover every source directly — no shifted mappings, no software panel required at the rack.

2RU and dual redundant power give you a reliable, self-contained control and monitoring unit. The built-in 5-inch LCD eliminates a separate monitor from the rack entirely.

Physical 40-button control and large on-panel display let operators manage the full production from the rack room without a software panel or separate video monitor.

Fast-paced multi-source environments benefit most from 40 direct-access buttons. Reach any camera or source instantly during a live news or sports broadcast.
