Product Highlights
- 100G SMPTE 2110 IP Live Production Switcher
- 64 Inputs And 52 Outputs Ultra HD Video
- Redundant ST 2022-7 IP Streaming Reliability
- 16 Advanced Keyers And 12 Built-In DVEs
- Four Multiview Outputs With Dual SuperSource Engines
Blackmagic ATEM 4 M/E Constellation IP Plus
- SKU:
- SWATEMSCN2/3ME4/IP/P
- MPN:
- SWATEMSCN2/3ME4/IP/P
Pre-Order
Regular price
$14,295.00
New Item - Secure Your Order Now
Free Expedited Shipping
Secure payment
Manufacturer Warranty
Authorized Dealer
15
Product Inquiry Form
Description
Product Overview
64
Standards-converted
video inputs
video inputs
52
Total video
outputs
outputs
16
100G QSFP28
connections
connections
16
ATEM Advanced
Keyers
Keyers
12
Total DVEs
(2 × SuperSource)
(2 × SuperSource)
Verified specs — Blackmagic Design official · April 2026
Maximum scale. Zero compromise.
The largest ATEM IP switcher — built for broadcast-grade live production
The ATEM 4 M/E Constellation IP Plus is Blackmagic's flagship native SMPTE-2110 production switcher. It delivers 64 inputs and 52 outputs over 16 × 100G Ethernet connections — all with SMPTE-2022-7 seamless protection switching on every port. Every single input has a dedicated hardware standards converter, so you can route any format from anywhere and the switcher handles it automatically.
Large-scale broadcast Sports arena Network news Live events Production truck
Sixteen 100G QSFP28 connections — eight pairs, each pair running full SMPTE-2022-7 redundancy across two independent network switches. Each connection handles 8 Ultra HD channels bidirectionally. That's 64 inputs and 52 outputs over just sixteen cables, replacing hundreds of BNC connectors.
Real-world IP productions never run one clean standard. The Plus has a dedicated hardware standards converter on every one of its 64 inputs — route 720p feeds alongside 2160p60 sources and the switcher normalizes everything automatically, with no external gear required.
Rather than just adding a lot of 10G Ethernet connections, we realized we needed a whole new design. Not only does front to back cooling mean they are quiet, but using bi-directional 100G Ethernet means each port can handle 8 video inputs and outputs.
Grant Petty, CEO — Blackmagic Design

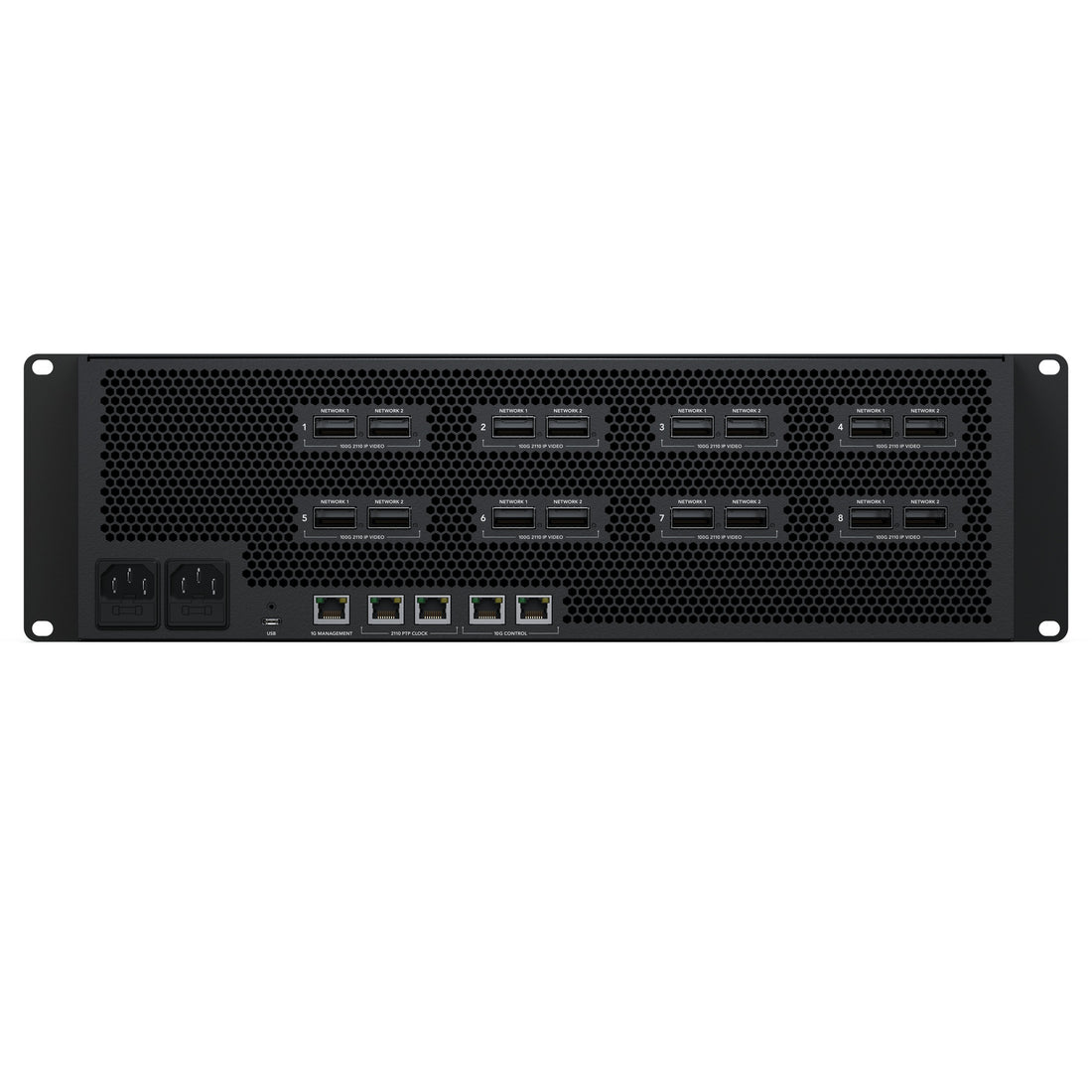

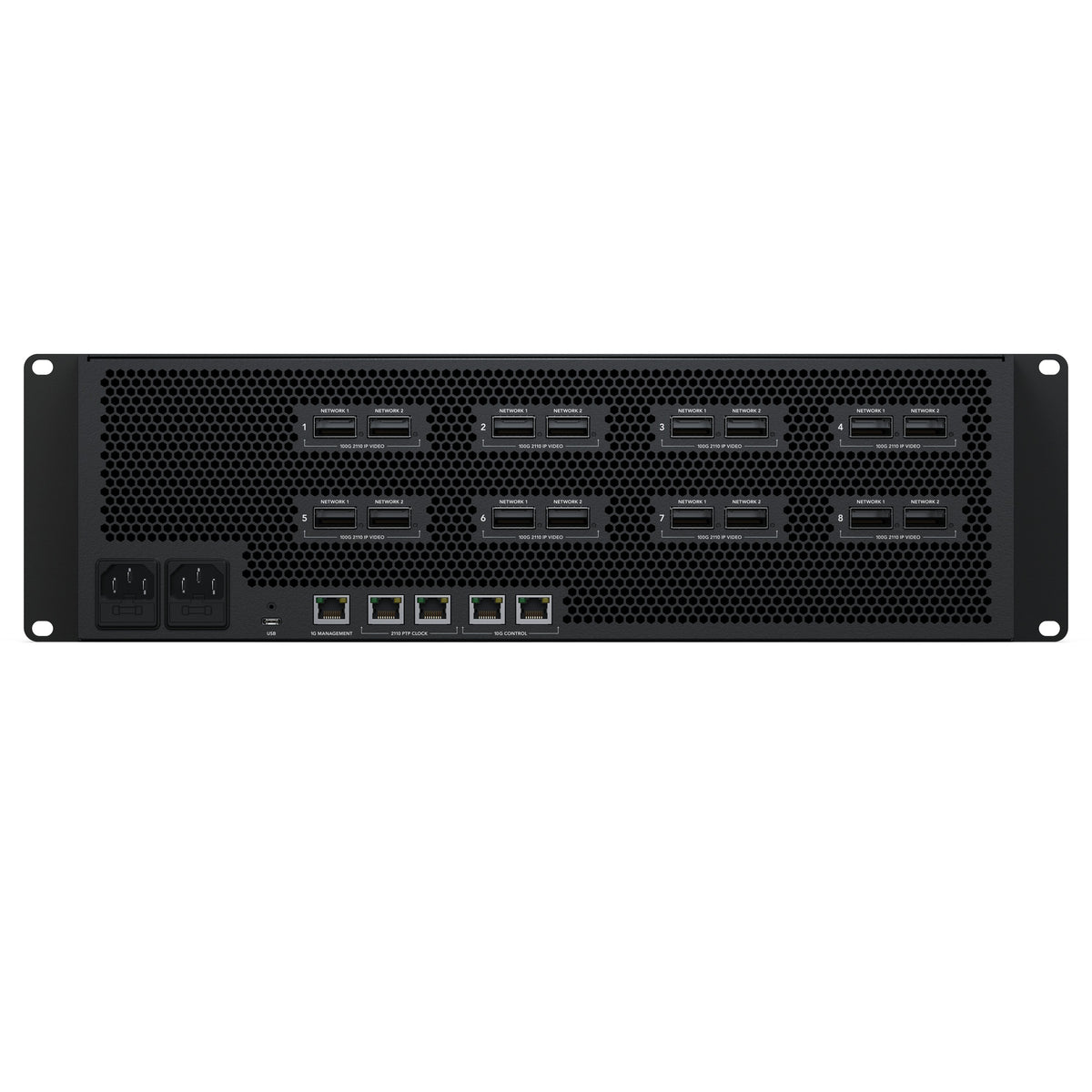

Rear panel — 16 × 100G QSFP28 connections with SMPTE-2022-7 redundancy on every port
Signal path — SMPTE-2022-7 seamless protection switching
64 video sources
Any standard
720p – 2160p60
720p – 2160p60
8 × Path A
100G switch 1
8 × Path B
100G switch 2
Per-input standards
converter × 64
converter × 64
RTP packet compare
first valid frame wins
first valid frame wins
Seamless failover
4 M/E bus
16 Adv. Keys
4 DSK · 2 SS
4 DSK · 2 SS
52 outputs
48 aux +
program/preview
program/preview
Product images

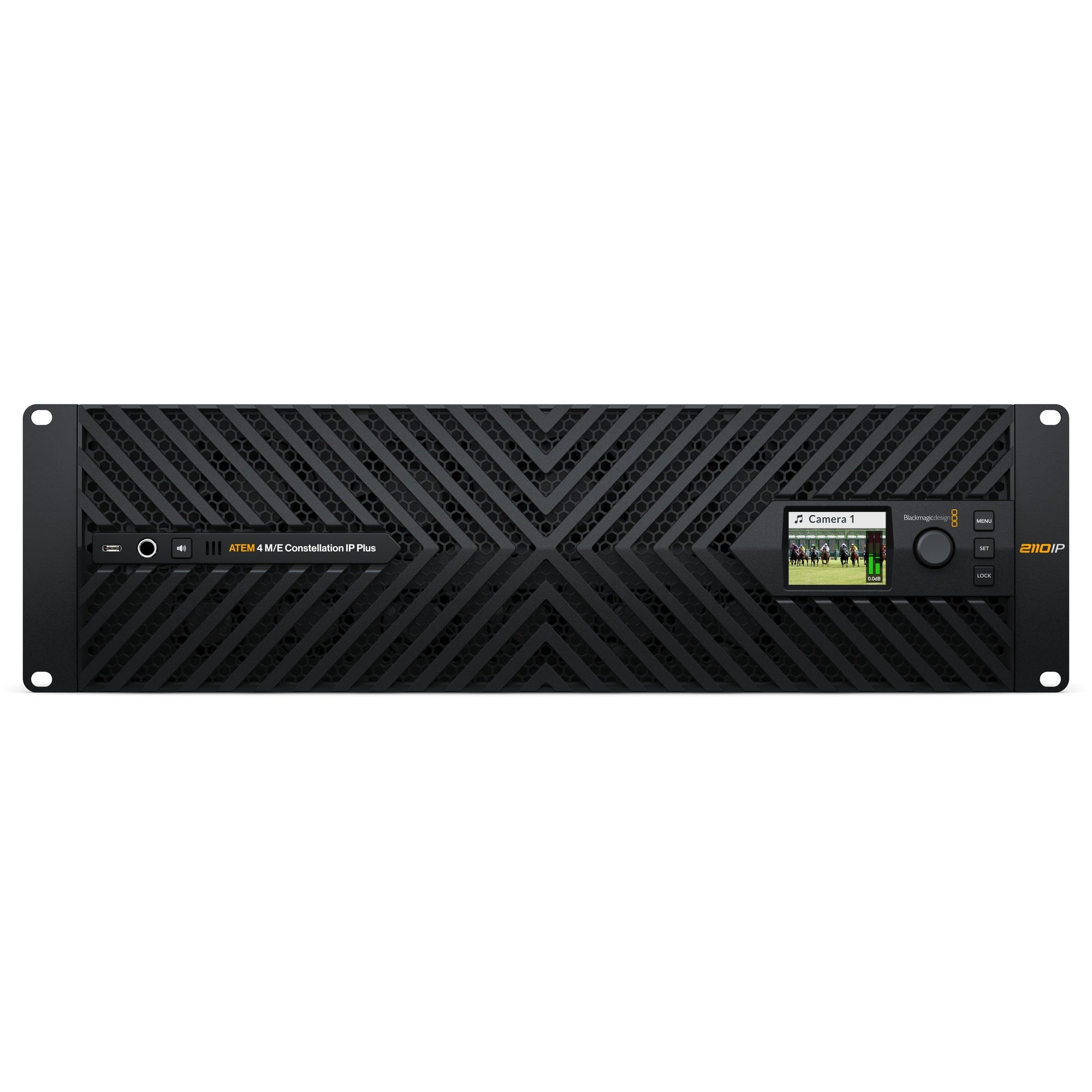

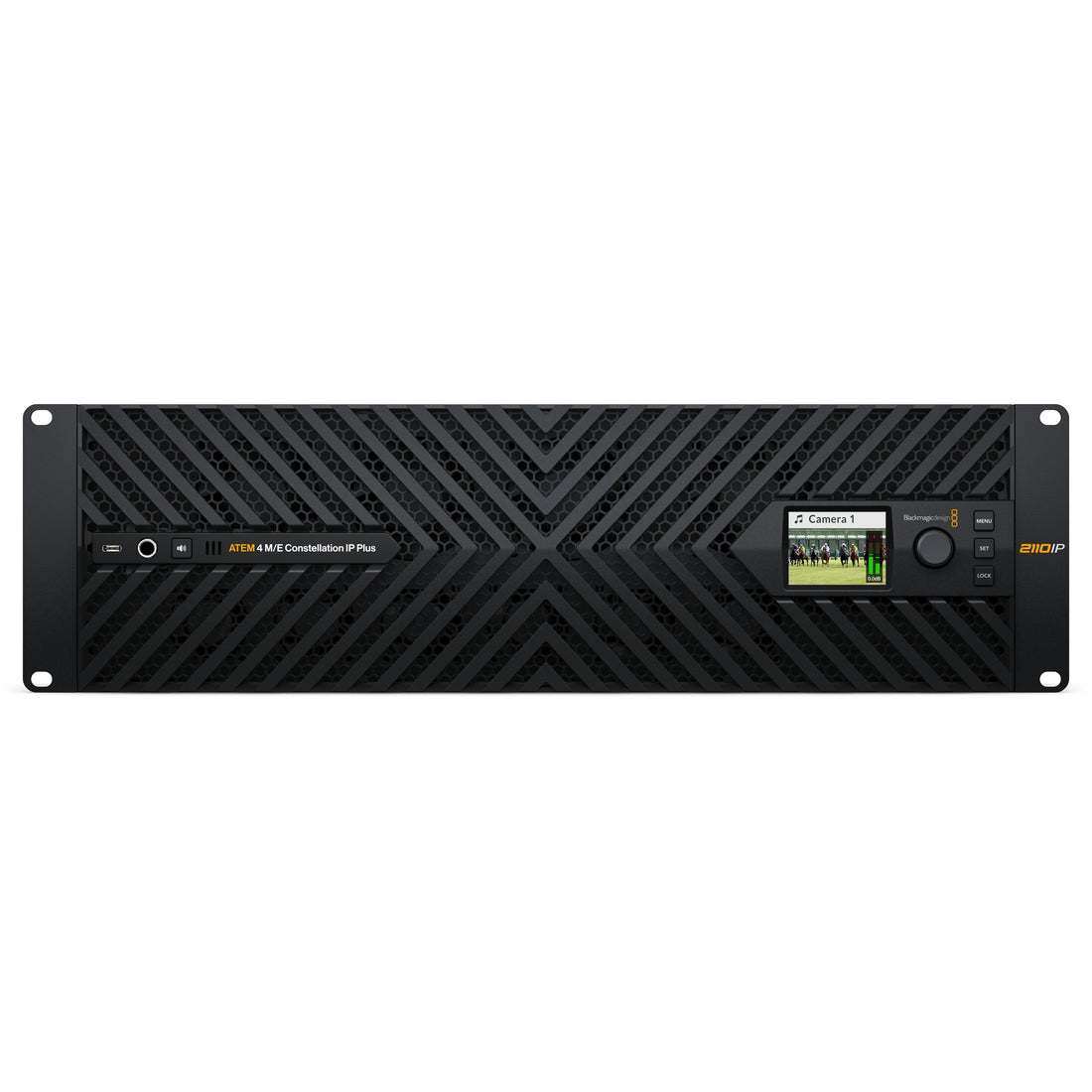

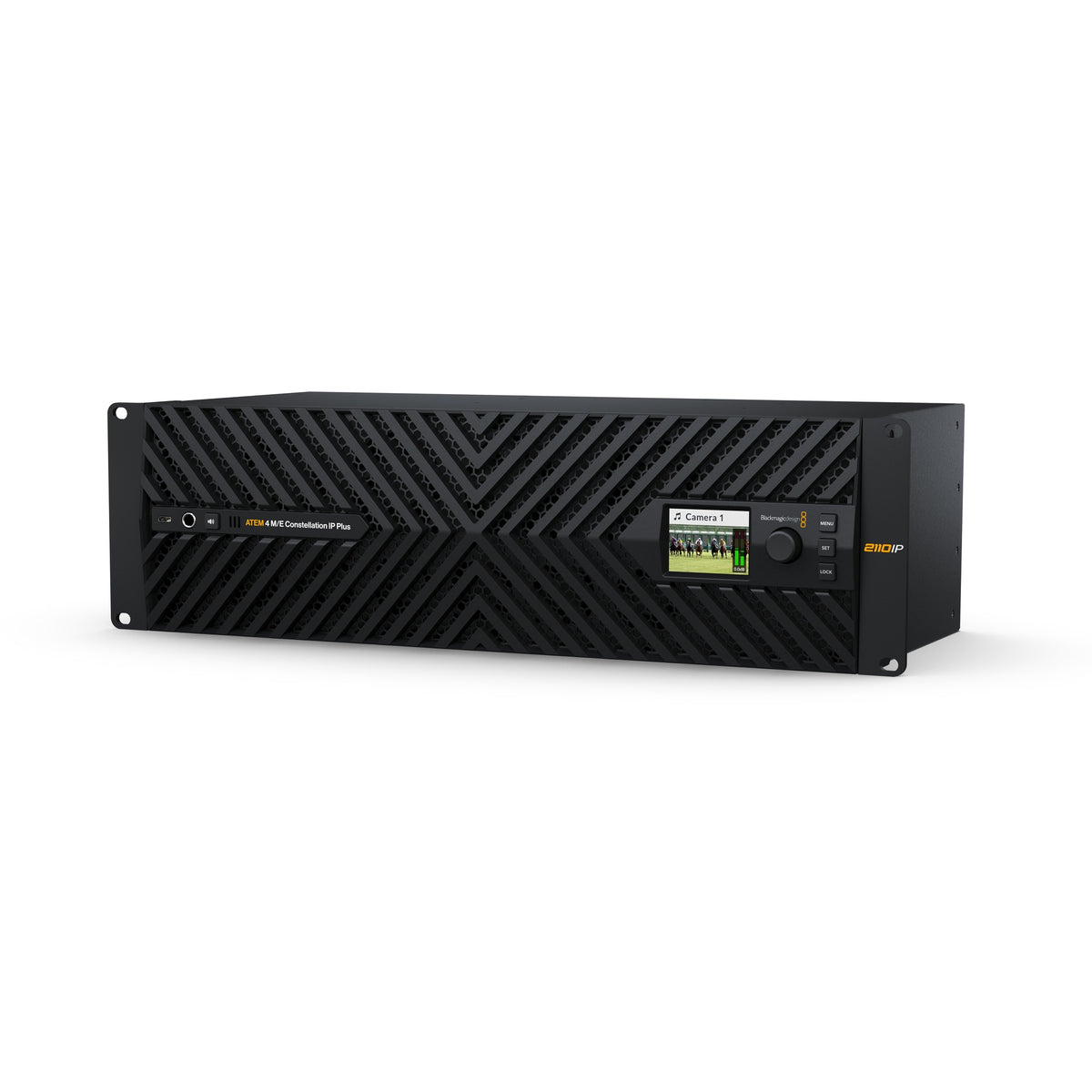

ATEM 4 M/E Constellation IP Plus
Official specifications
ATEM 4 M/E Constellation IP Plus — technical specifications
Verified from Blackmagic Design official specifications — model W-APS-51.
| Specification | Detail |
|---|---|
| Connections | |
| 100G IP networks | 16 × 100G QSFP28 connections — supports SMPTE ST 2022-7 redundant delivery over two independent 2110 networks |
| Senders / receivers per 100G pair | 8 × Ultra HD channels bidirectional |
| 10G control network | 2 × 10G RJ45 Ethernet — NMOS control, media loading, presets |
| Reference / PTP clock | 2 × RJ45 Ethernet for SMPTE ST 2059 PTP clock (redundant) |
| 1G management | 1 × RJ45 — 10/100/1000 BASE-T for ATEM Setup utility and software updates |
| Analog audio output | 1 × 6.35 mm headphone jack |
| Computer interface | Rear USB-C (USB 3.0) — Fairlight Live audio, webcam out, ATEM Setup, firmware updates Front USB-C (USB 2.0) — setup and firmware updates only |
| Power inputs | 2 × IEC C14 — 100–240V AC 50/60 Hz (redundant) |
| Video I/O | |
| Total video inputs | 64 |
| Total video outputs | 52 |
| Total aux outputs | 48 |
| Webcam output | USB-C — 720p or 1080p at program frame rate |
| Standards conversion | Hardware standards converter on all 64 inputs — automatic, no external converters required |
| Frame rate converters | On all 64 inputs |
| SDI program outputs | Any of the 48 aux outputs |
| SDI preview outputs | Any of the 48 aux outputs |
| Audio | |
| Total audio outputs | 1 × 6.35 mm headphone jack · 1 × built-in speaker |
| Extra audio output | Headphone jack carries mix of PGM + engineering, production, and side tone |
| External audio mixing | Fairlight Live via USB-C — stereo, surround, and immersive audio |
| Talkback | Yes — multiple buses via Fairlight Live, ClearCom and RTS compatible |
| Mix minus | Yes |
| Switcher capabilities | |
| M/E rows | 4 |
| Upstream keyers | 16 |
| Downstream keyers | 4 |
| Advanced Chroma Keyers | 16 |
| Linear / luma keyers | 20 |
| Transition keyers | 4 Stinger · 4 DVE |
| Total layers | 28 |
| DVEs | 4 |
| SuperSource processors | 2 (each with 4 DVEs — 12 DVEs total) |
| Multi-view | 4 × 16 multiview — up to 64 total views. Routable windows: 64 |
| Pattern generators | 21 |
| Color generators | 2 |
| Media players | 4 |
| Internal timecode generator | Yes |
| Tally | Red for program · Green for preview |
| Switching styles | Cut-bus and professional mix effects |
| IP / Network standards | |
| IP video compliance | IGMP v2 |
| Precision Time Protocol | IEEE 1588-2008 (PTP v2) · ST 2059-1 · ST 2059-2 |
| NMOS IS-04 | Discovery and Registration v1.3.2 — peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 | Connection Management v1.1.2 |
| NMOS BCP-002-01 | Natural Grouping |
| NMOS BCP-004-01 | Receiver Capabilities |
| Ancillary data | Full access — RP 188/SMPTE 12M-2, closed captioning, HDR static metadata |
| Optional codec | Blackmagic IP10 — for 2160p59.94 and 2160p60 as 2110 IP video |
| Video standards supported | |
| HD standards | 720p50/59.94/60 · 1080i50/59.94/60 · 1080p23.98/24/25/29.97/30/47.95/48/50/59.94/60 |
| Ultra HD standards | 2160p23.98/24/25/29.97/30/47.95/48/50/59.94/60 |
| Physical | |
| Rack units | 3 RU |
| Cooling | Front-to-back airflow — 4 fans |
| Display | Front panel LCD — status and settings menus |
| Local monitoring | 1 × 6.35 mm headphone jack · 1 × built-in speaker |
| Power supply | 2 × 100–240V AC 50/60 Hz — dual redundant IEC C14 |
| Software | |
| ATEM Software Control | Included free — macOS 14.0 Sonoma, macOS 15.0 Sequoia or later · Windows 10 and 11 |
| Operating systems | macOS 15.0 Sequoia · macOS 26.0 Tahoe or later |
| Environmental | |
| Operating temperature | 0° to 40°C (32° to 104°F) |
| Storage temperature | −20° to 60°C (−4° to 140°F) |
| Relative humidity | 0% to 90% non-condensing |
| In the box | |
| What's included | ATEM 4 M/E Constellation IP Plus · Welcome wallet with QR code for software download |
| Warranty | 1 Year Limited Manufacturer's Warranty |
Standard vs Plus
Which model fits your production?
Both share the same native SMPTE-2110 architecture, full SMPTE-2022-7 redundancy, and complete feature set. The Plus scales everything up for large-venue and network broadcast.
Standard
ATEM 4 M/E Constellation IP
US$8,795
Video inputs32
Video outputs28
100G connections8 × QSFP28
Advanced Keyers16
Multi-views4
SuperSource2
Total DVEs12
Rack units3 RU
Plus — selected
ATEM 4 M/E Constellation IP Plus
US$14,295
Video inputs64
Video outputs52
100G connections16 × QSFP28
Advanced Keyers16
Multi-views4 (64 total views)
SuperSource2
Total DVEs12
Rack units3 RU
Key capabilities
Everything a large production needs — included
No usage tiers, no license add-ons, no per-seat charges. Every feature ships with the hardware from day one.
SMPTE-2022-7 seamless redundancy
16 × 100G QSFP28 connections run in 8 redundant pairs across two independent network switches. Dual RTP streams compared by sequence — first valid packet wins. Cable fails mid-show, you never see it.
64-input standards conversion
Every one of the 64 inputs has a dedicated hardware standards converter. Route 720p, 1080i, 1080p, and 2160p60 sources simultaneously — automatic normalization, no external converters, no patching.
Fairlight Live audio integration
Full SMPTE-2110 software audio mixing via USB-C. Multiple talkback buses, camera and engineering loops, commentator mixes, AFL/PFL solo, third-party plug-ins, immersive audio — all included.
4 multi-views — up to 64 views
Four independent multi-view outputs with 4 × 16 pattern options, giving up to 64 routable windows simultaneously. Different operators can monitor completely different source groupings at the same time.
NMOS IS-04 / IS-05 native
Full NMOS IS-04 discovery and registration (v1.3.2) and IS-05 connection management (v1.1.2). Peer-to-peer via mDNS/DNS-SD. Integrates cleanly into NMOS-managed IP infrastructure without proprietary control layers.
Front-to-back cooling — 3 RU
Four quiet fans, front-to-back airflow, front panel LCD for status and menus, integrated headphone jack, built-in speaker, and dual redundant IEC C14 power supplies. Designed for a real broadcast rack.
Everything included — no hidden charges
ATEM Software Control — free for macOS and Windows
16 ATEM Advanced Chroma Keyers across 4 M/E rows
Mix, wipe, DVE, and stinger transitions
2 × SuperSource processors — each with 4 DVEs
USB-C webcam output — 720p or 1080p
Professional talkback — ClearCom and RTS compatible
4 media players — stills and motion graphics
Compatible with ATEM Monitoring Panel and Camera Control
Common questions
What engineers ask before they spec the Plus
How many network switches do I need for full SMPTE-2022-7 redundancy?
Two independent 100G-capable managed switches supporting IGMP multicast. The Plus has 16 QSFP28 connections in 8 redundant pairs — connect each pair to a separate switch. Arista, Cisco Nexus, and Mellanox Spectrum are commonly deployed at this scale in professional broadcast IP infrastructure.
Can I use SDI cameras and equipment alongside the IP inputs?
Yes. Connect a Blackmagic SDI Expander 8x12G to bridge 12G-SDI sources into the IP workflow. The expander passes talkback, tally, camera control, and program return back to SDI cameras — keeping your existing camera fleet operational during a phased IP migration.
What is the difference between the 52 outputs and the 48 aux outputs?
The 52 total outputs include program, preview, and 48 aux outputs. The aux outputs are fully routable — any of the 48 can be used as SDI program or preview outputs. This gives you maximum flexibility for multi-destination delivery from a single switcher.
Does the Plus support the Blackmagic IP10 codec for high-frame-rate Ultra HD?
Yes — the Blackmagic IP10 codec is optional and supports 2160p59.94 and 2160p60 as SMPTE-2110 IP video, enabling high-frame-rate Ultra HD over the existing 100G infrastructure.
Is ATEM Software Control included at no extra cost?
Yes — free for macOS (Sonoma 14.0 / Sequoia 15.0 or later) and Windows 10 and 11. No software subscriptions, no per-seat licensing, no usage-based charges. All features are included in the hardware purchase price.
