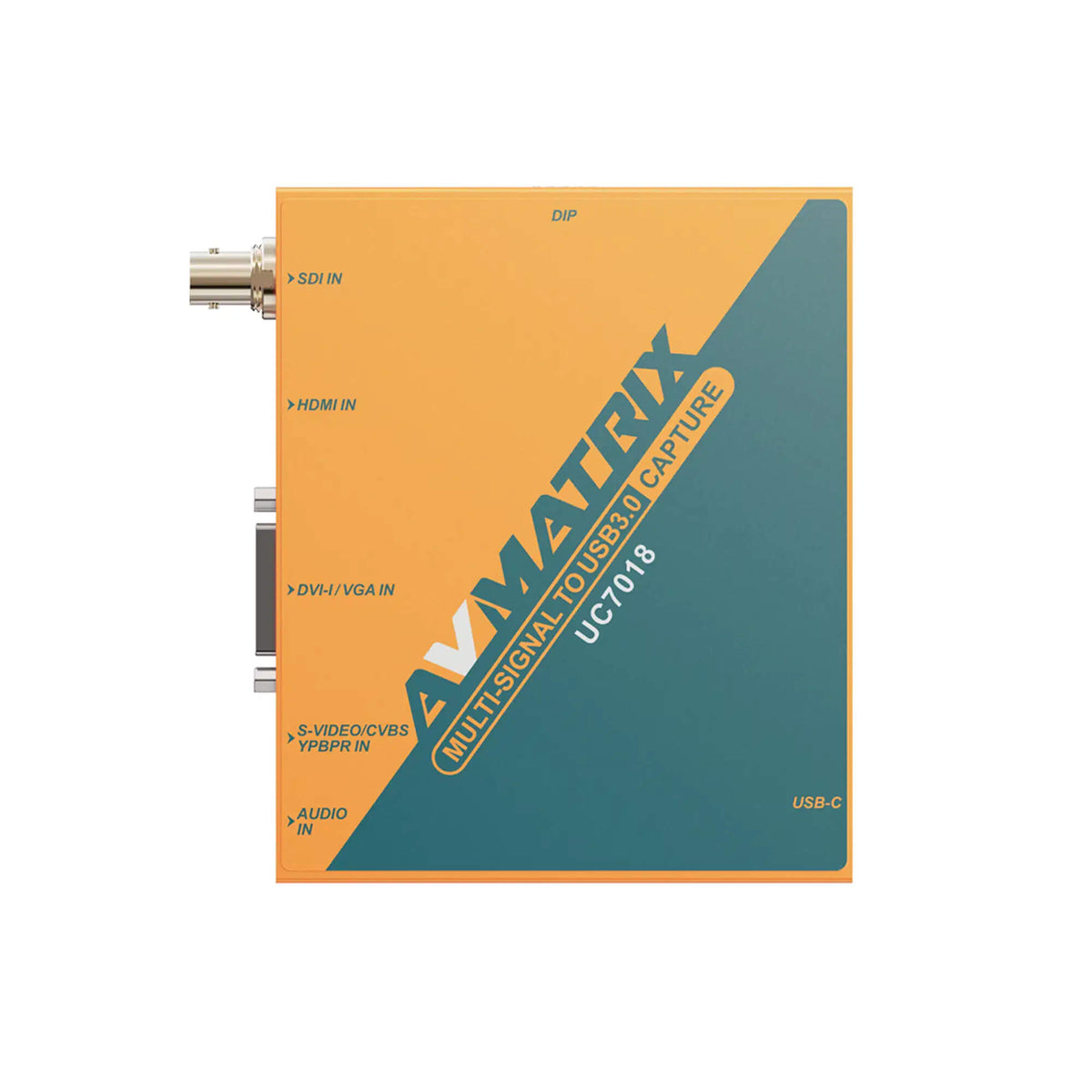

AVMATRIX UC7018 Multi-Signal to USB 3.0 Capture Box

The AVMATRIX UC7018 Multi-Signal to USB 3.0 Capture Box brings a wide range of video sources into a computer for streaming, recording, conferencing, or production. It accepts SDI, HDMI, DVI-I, VGA, composite, S-Video, and component video signals, with capture support up to 1080p60.

Connect the UC7018 through its USB-C port for video capture and power. The device supports uncompressed capture and follows UVC and UAC standards, so it works without a separate driver on supported Windows and Linux systems. A 3.5 mm input lets you add analog audio to the captured signal, while status LEDs make it easy to check power and video at a glance.

Highlights

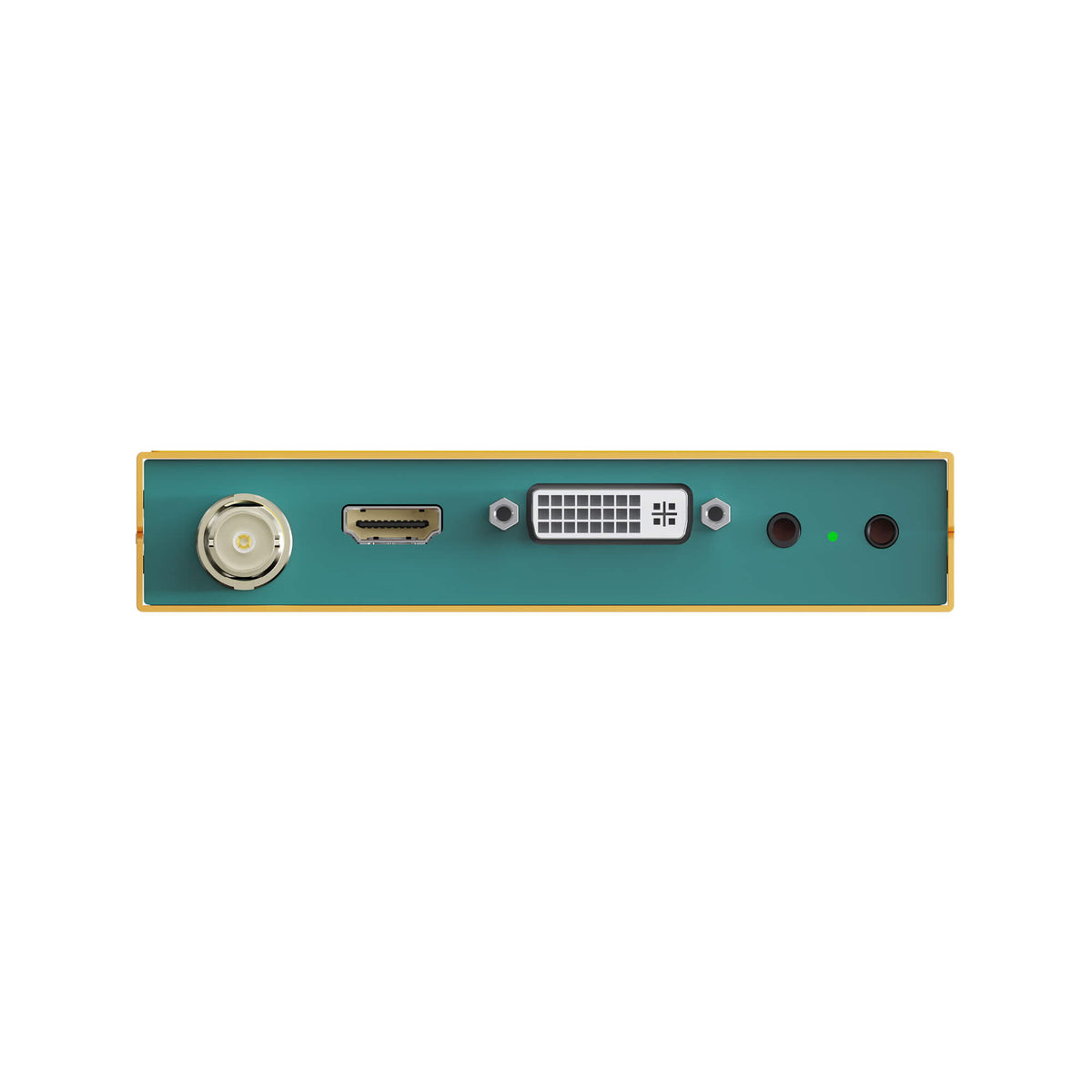

• Captures SDI, HDMI, DVI-I, VGA, composite, S-Video, and component video sources
• Supports video resolutions up to 1080p60
• Provides uncompressed capture over USB 3.0
• Works with UVC and UAC compatible software without a separate driver
• Embeds audio from a 3.5 mm analog input
• Uses USB-C for capture, power, and firmware upgrades

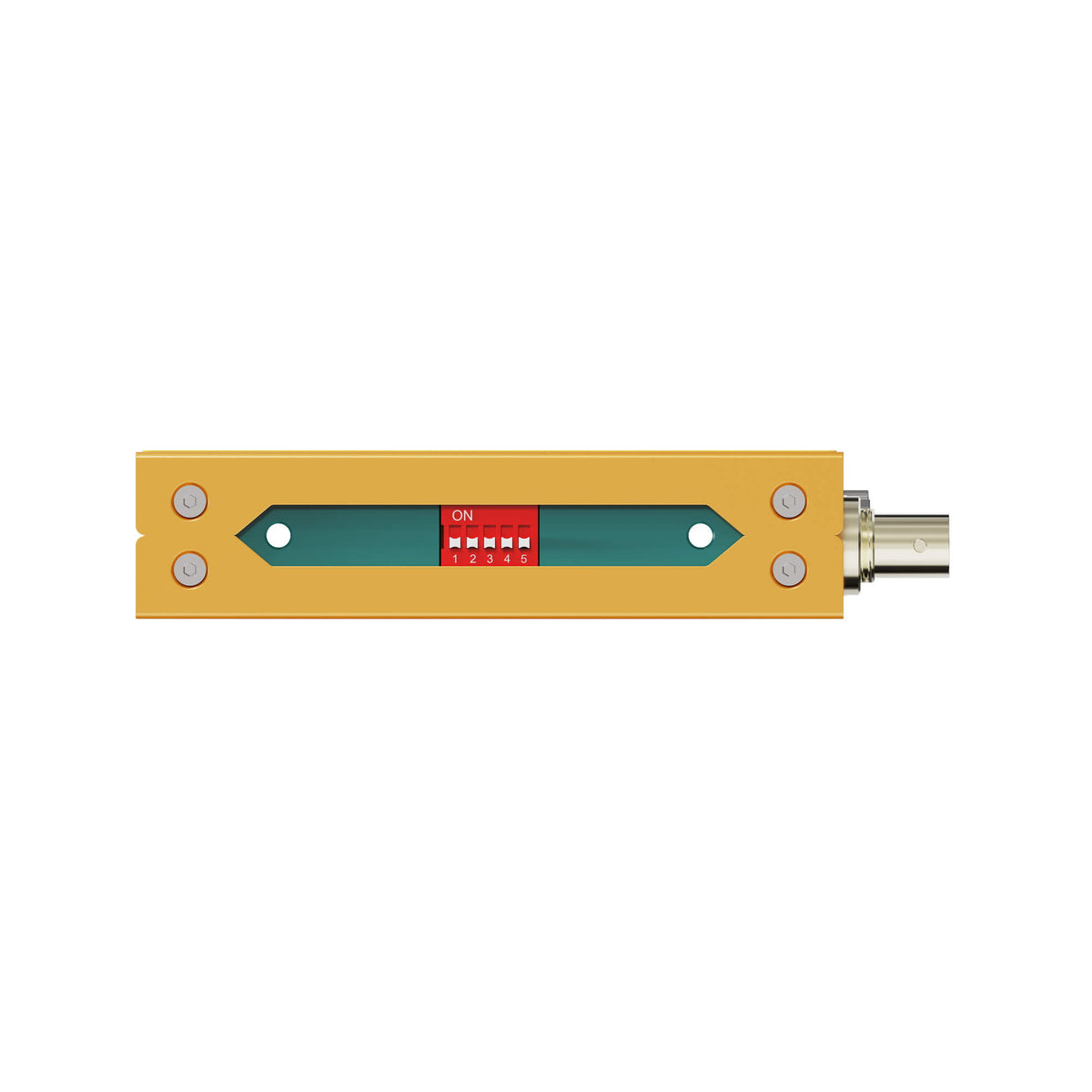

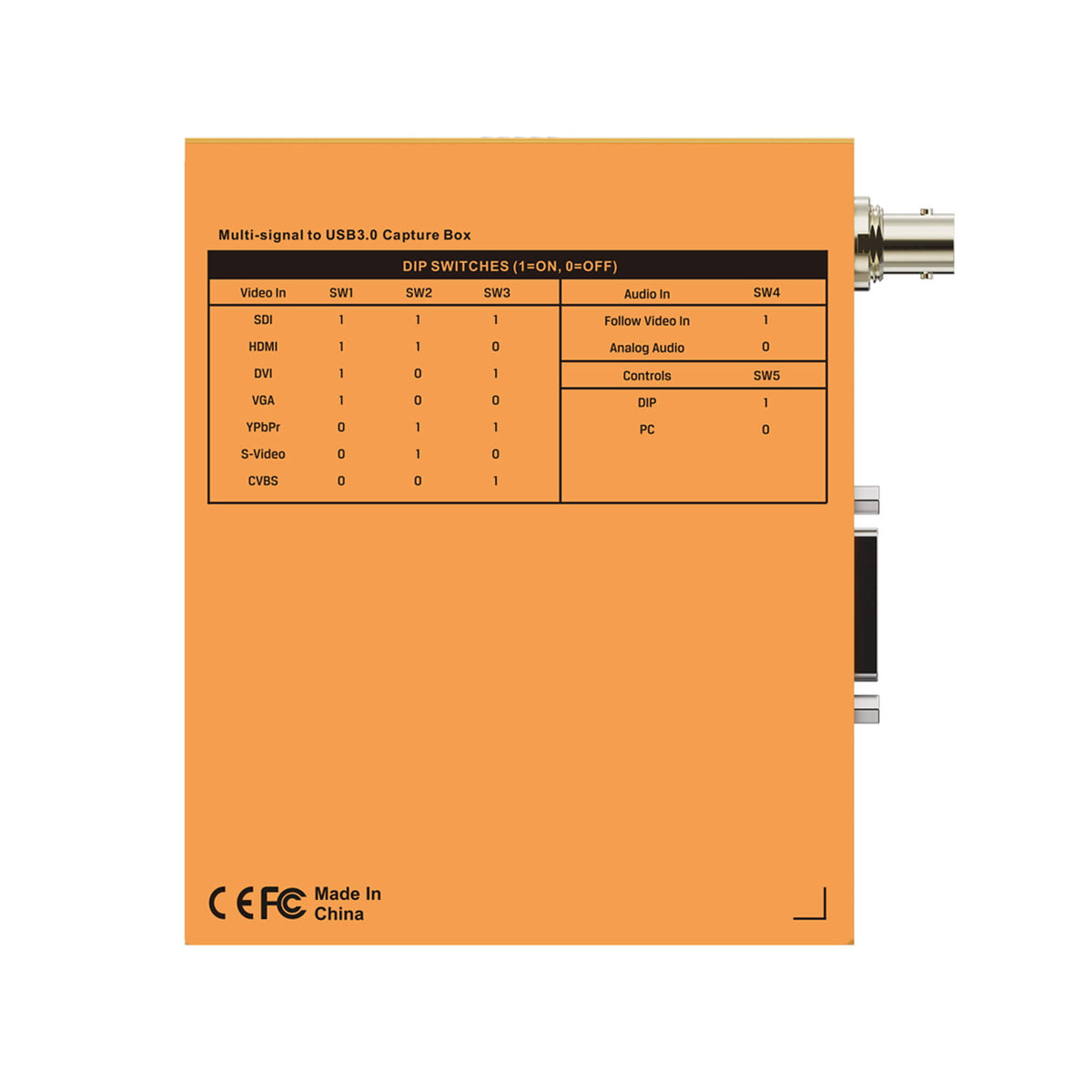

• Includes DIP switch and software controls

Quick Specs & Uses

• Video inputs: SDI, HDMI, DVI-I, VGA, CVBS, S-Video, and YPbPr
• Maximum supported resolution: 1080p60
• Video formats: RGB32, YUY2, and NV12
• Computer connection: USB-C, using the included USB-C to USB-A cable
• Audio input: 3.5 mm analog
• Typical uses: Live streaming, recording, web conferencing, and capturing legacy video sources
