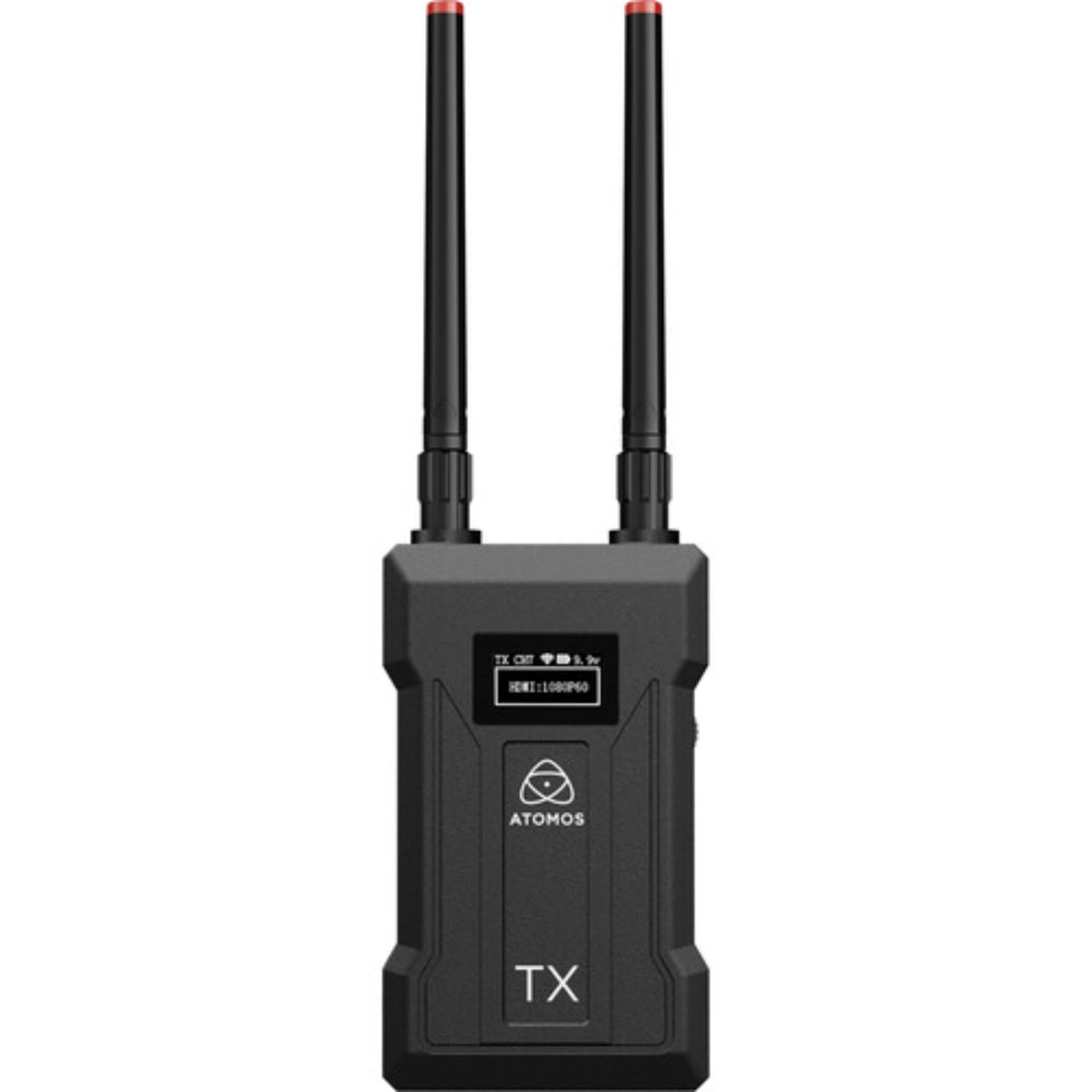

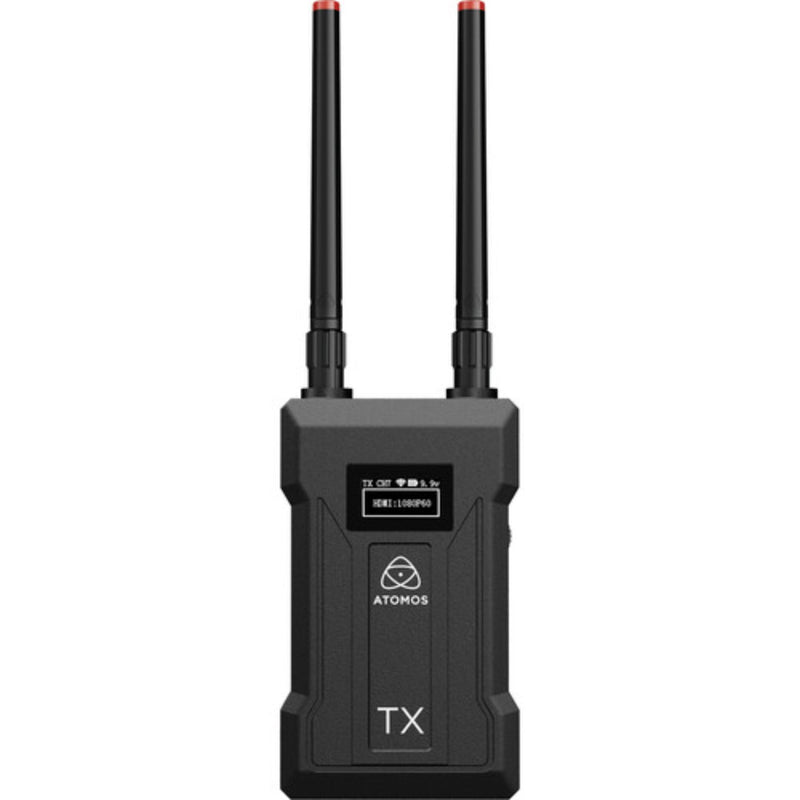

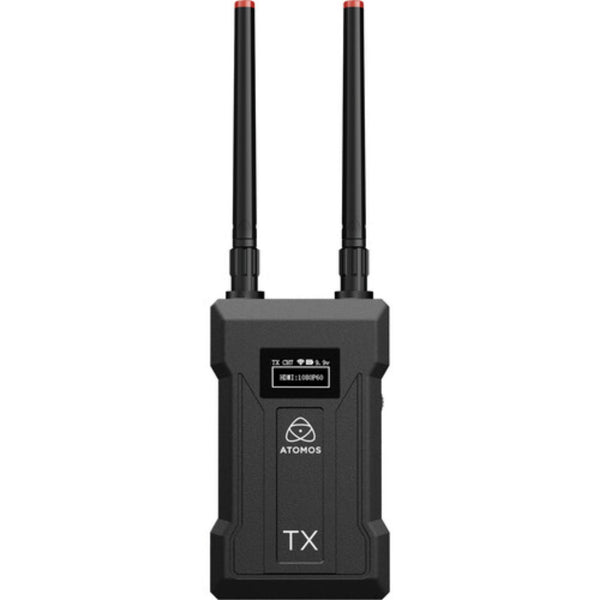

Atomos TX 4K/HD Wireless Video Monitoring Transmitter Only

Atomos TX 4K/HD Wireless Video Monitoring Transmitter Only is made for sending wireless video from a camera or production source to compatible Atomos receivers. The source material lists transmission up to UHD 4K30 from up to 985' / 300.2 m line-of-sight over a 5 GHz frequency band.

On set, the transmitter is the piece that lets the camera feed move away from the camera position without dragging a video cable across the floor. It provides HDMI input, 3G-SDI input, and an HDMI loop output, so it can fit into both HDMI and SDI source setups while still passing a local HDMI feed when needed.

Highlights

• Professional wireless video transmitter
• Transmits up to UHD 4K30 up to 985'
• HDMI and SDI inputs with HDMI loop output
• Can transmit to up to four receivers
• DC, L-Series, and USB-C power options

Quick Specs & Uses

• Antenna I/O: 2x RP-SMA male

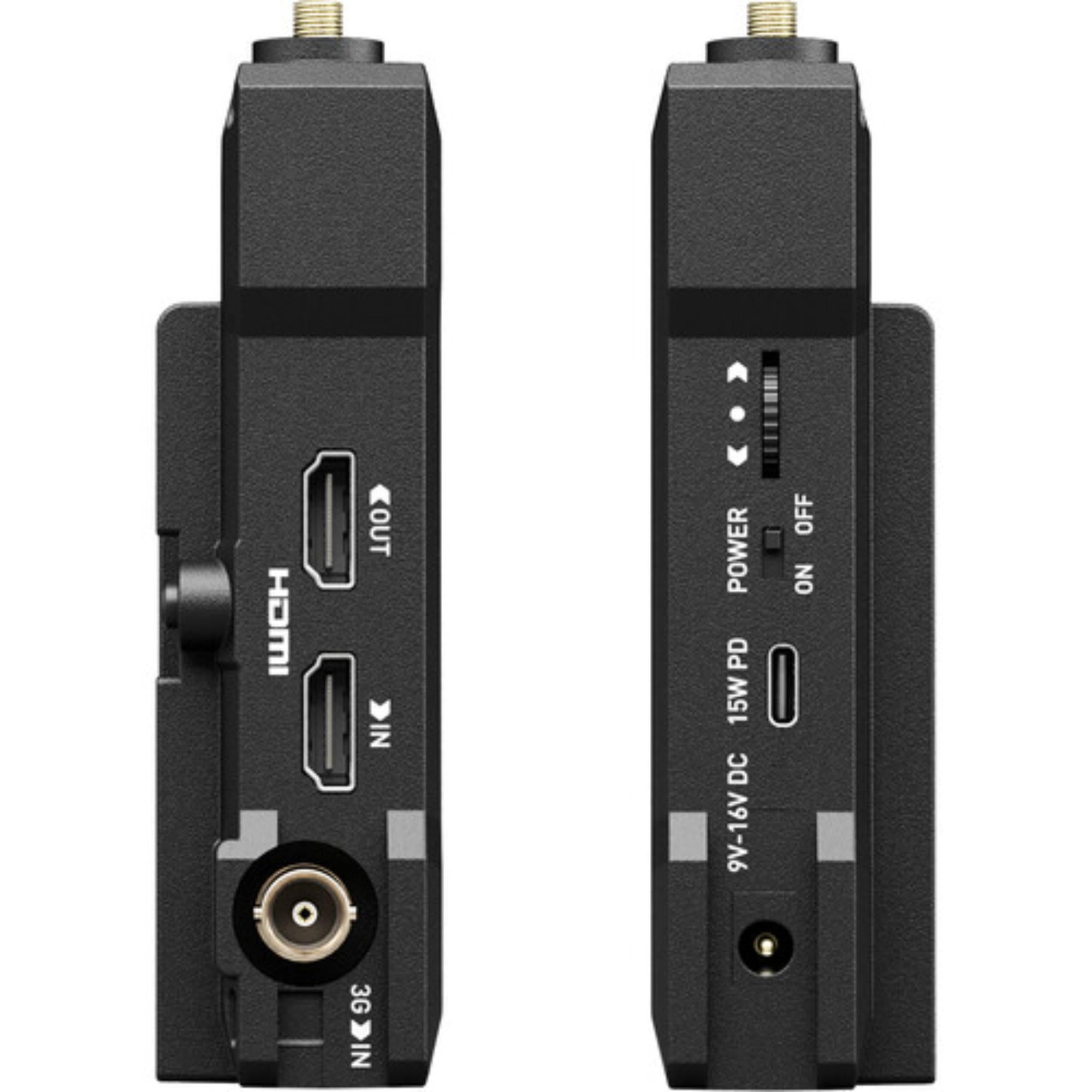

• Video I/O: 1x HDMI input, 1x BNC 3G-SDI input, 1x HDMI loop output
• Embedded audio: HDMI/SDI
• Audio I/O: No
• Power I/O: 1x barrel 16 VDC input, 1x USB-C input
• Encryption: No
• Wireless: Wi-Fi
• Wireless range: 985' / 300.2 m line-of-sight
• Frequency range: 5 GHz
• Mobile app compatible: Yes, Android and iOS
• Cellular support: No
• Video format: HDMI UHD 4K: 30, 1080p: 60/30; SDI 1080p: 60/30
• Wireless video compression: Uncompressed
• Timecode support: Yes
• Input power: 9 to 16 VDC
• Battery: 1x L-Series mount on fixed plate
• Status display: Yes

Why It Helps

Wireless video is useful when the director, client, or monitoring station needs a feed away from the camera. Instead of running long HDMI or SDI cables, the transmitter sends the signal over 5 GHz Wi-Fi to compatible receivers or supported Android and iOS devices.

The HDMI loop output is helpful on camera builds because it lets one HDMI feed stay local while the transmitter sends the wireless signal out to the rest of the monitoring setup.

System Characteristics

• Wireless transmit workflow for Atomos 4K/HD video monitoring
• HDMI and 3G-SDI source support for mixed production gear
• Multi-receiver transmission to up to four compatible Atomos receivers
• 5 GHz Wi-Fi operation for line-of-sight wireless video transmission
• L-Series battery mount, DC input, and USB-C input for power flexibility

What’s In The Box

• 1 x Atomos TX 4K HD Wireless Video Transmitter
• 1 x USB-C to USB-A power cable
• 1 x Mounting accessories
• 1 x Quick Start Guide
