Atomos Shinobi GO 5 Inch Camera Monitor

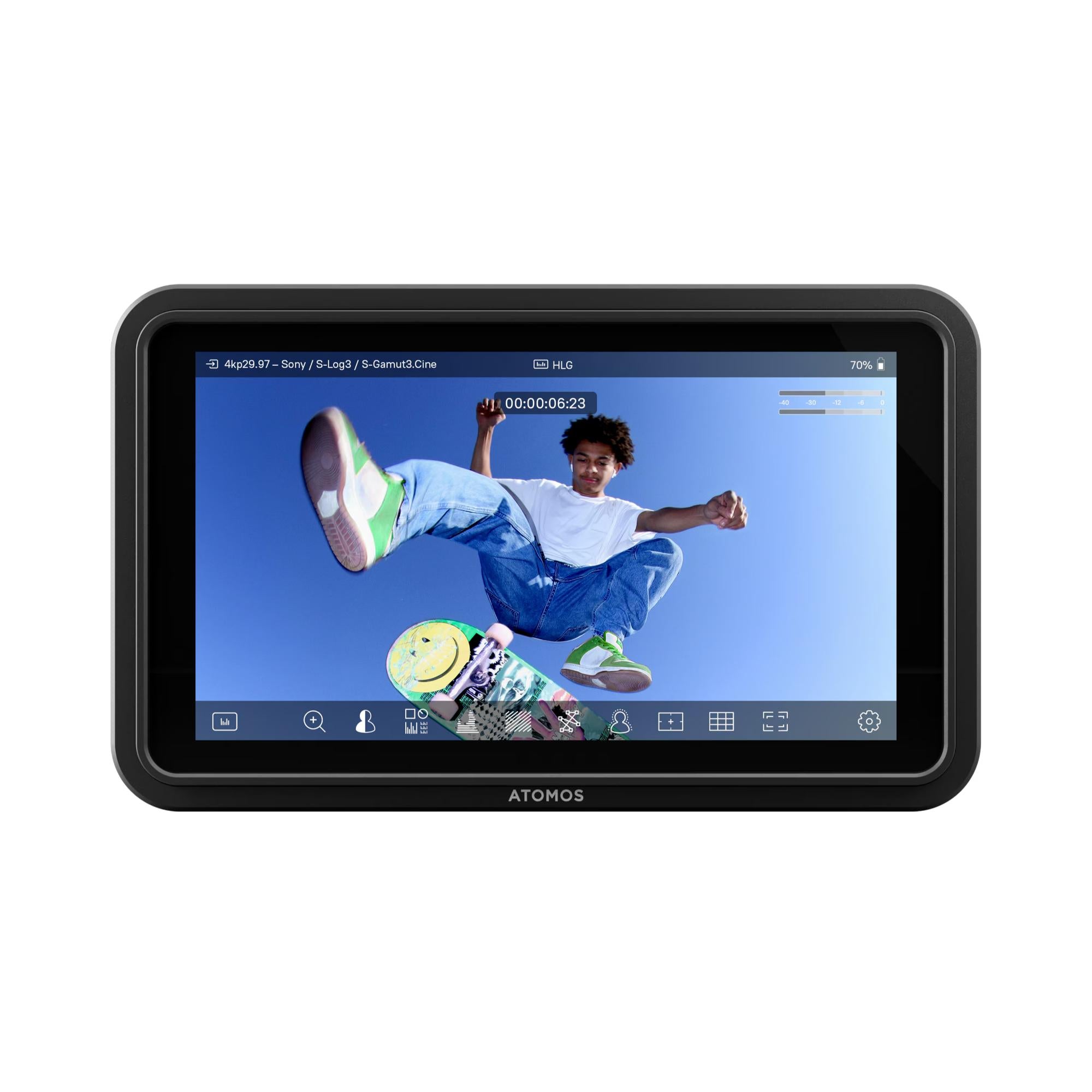

Atomos Shinobi GO 5 Inch Camera Monitor is a compact on-camera monitor built for small camera rigs that need a brighter, clearer viewing screen. The source material lists a 5.2" IPS-type LCD touchscreen, 1920 x 1080 resolution, 1500 cd/m² brightness, and support for UHD 4K HDMI input.

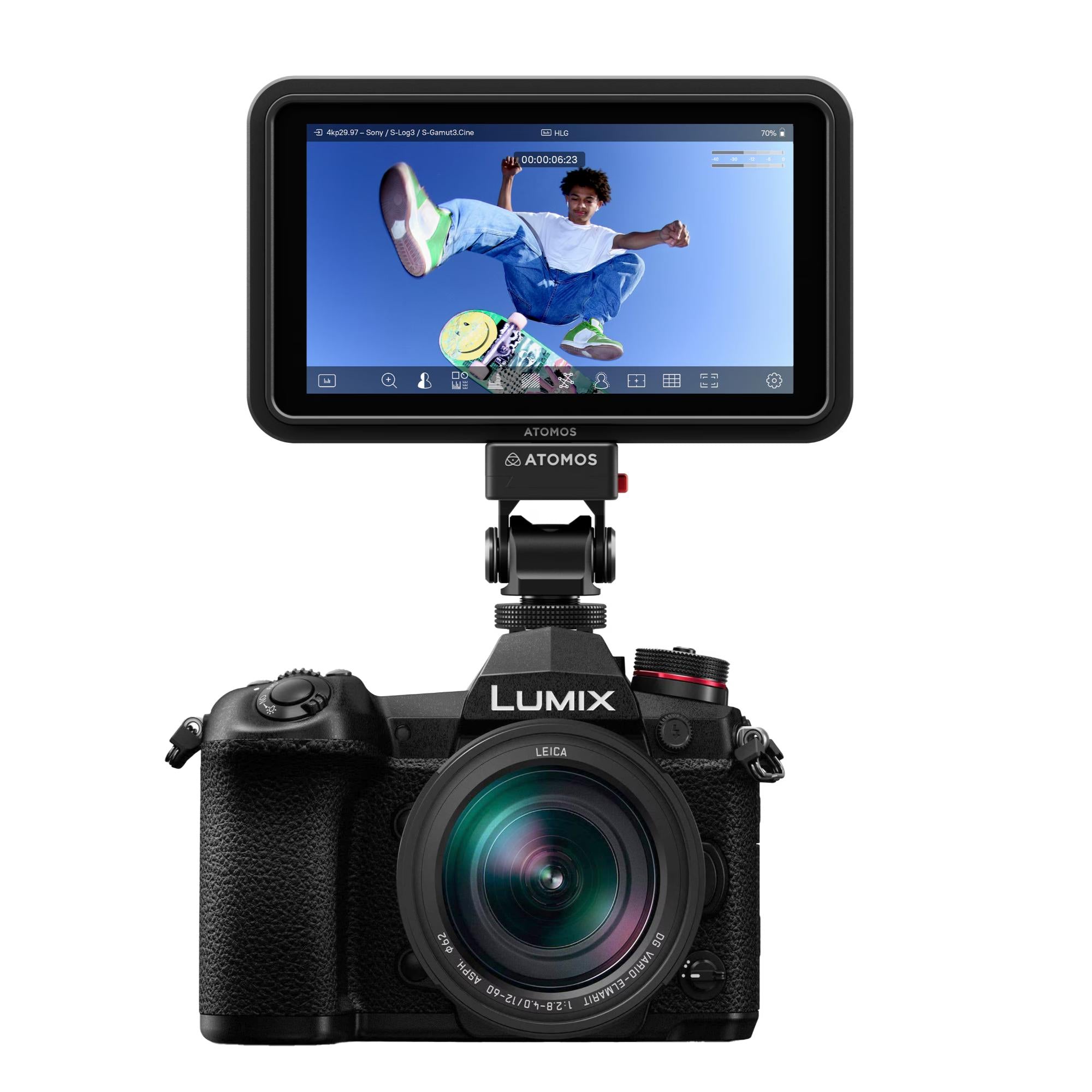

For operators working with compact cameras, the Shinobi GO gives a practical monitoring upgrade without adding much weight. It includes built-in image tools such as waveform, vectorscope, histogram, RGB parade, focus peaking, false color, zebra, screen markers, pixel-to-pixel zoom, and image flip.

Highlights

• 5.2" 1920 x 1080 touchscreen display
• 1500 cd/m² brightness for clearer viewing
• UHD 4K HDMI input support
• USB-C PD power input/output
• L-Series battery plate on the rear

Quick Specs & Uses

• Panel type: IPS-Type LCD
• Display size: 5.2" / 13.2 cm
• Native resolution: 1920 x 1080
• Aspect ratio: 16:9
• Viewing angle: 178° horizontal / 178° vertical
• Touchscreen: Yes
• Maximum brightness: 1500 nits / cd/m²
• HDR support: Hybrid Log Gamma
• Color gamut: 100% Rec. 709
• LUT support: Yes

Why It Helps

Small camera screens are often hard to judge for focus and exposure, especially outdoors. A 1500-nit 5.2" monitor gives the operator a brighter, easier reference while keeping the rig compact.

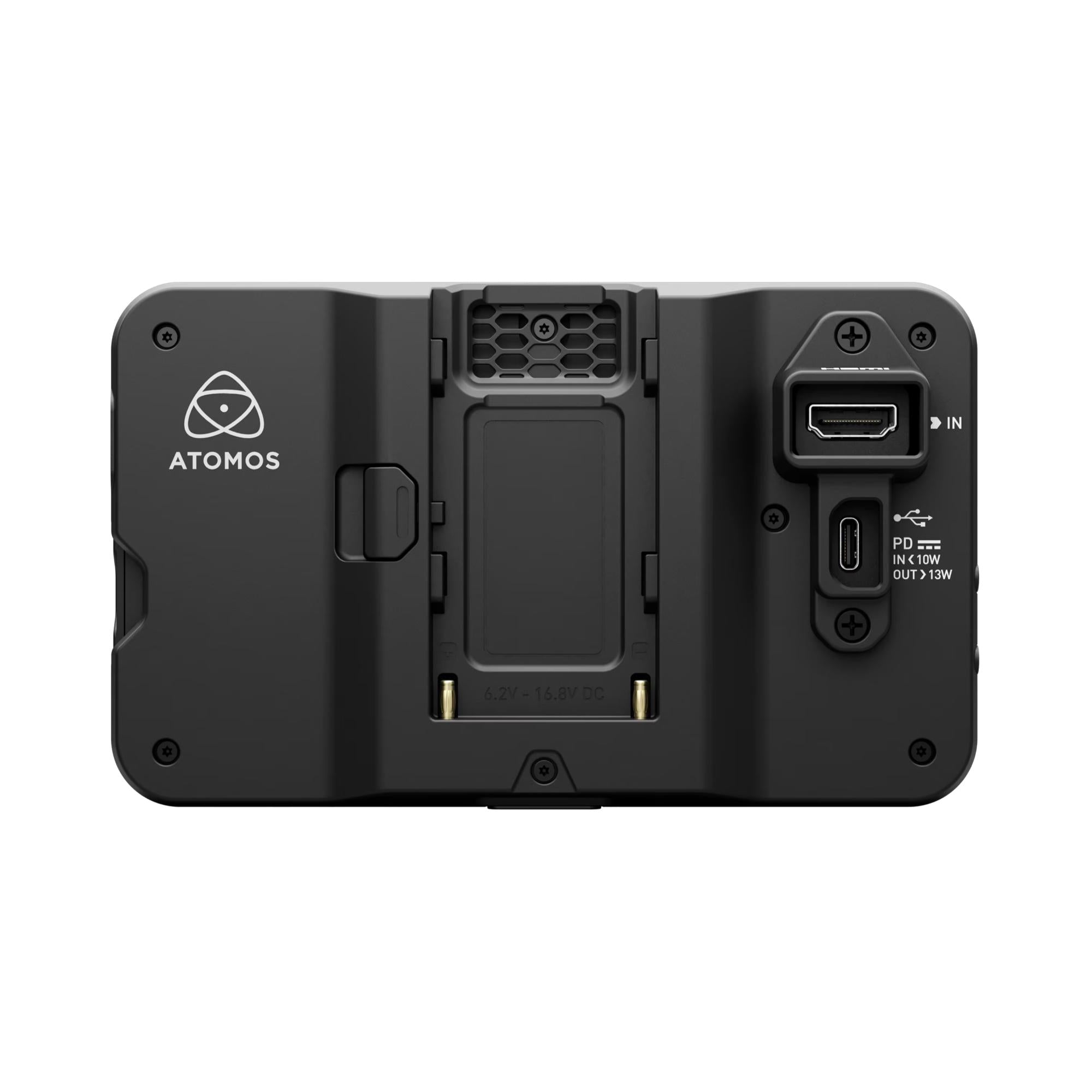

The USB-C PD input/output and rear L-Series battery plate give the monitor flexible power options, while the HDMI and USB-C locking cable adapter helps keep the cable side more secure during setup.

System Characteristics

• Video I/O: 1 x HDMI 1.4 input
• Audio support: HDMI 2-channel, 3.5 mm headphone output
• Power I/O: 1 x USB-C 16.8 VDC input/output
• Media slot: SD/SDHC/SDXC UHS-I for LUT and firmware update only
• Monitoring tools: blue only, false color, focus peaking, histogram, RGB parade, screen markers, vectorscope, waveform, zebra, image flip, and pixel-to-pixel zoom

What’s In The Box

• 1 x Shinobi GO
• 1 x USB-C 2.0 cable
• 1 x HDMI + USB-C locking cable adapter
• 1 x Quick Start Guide
