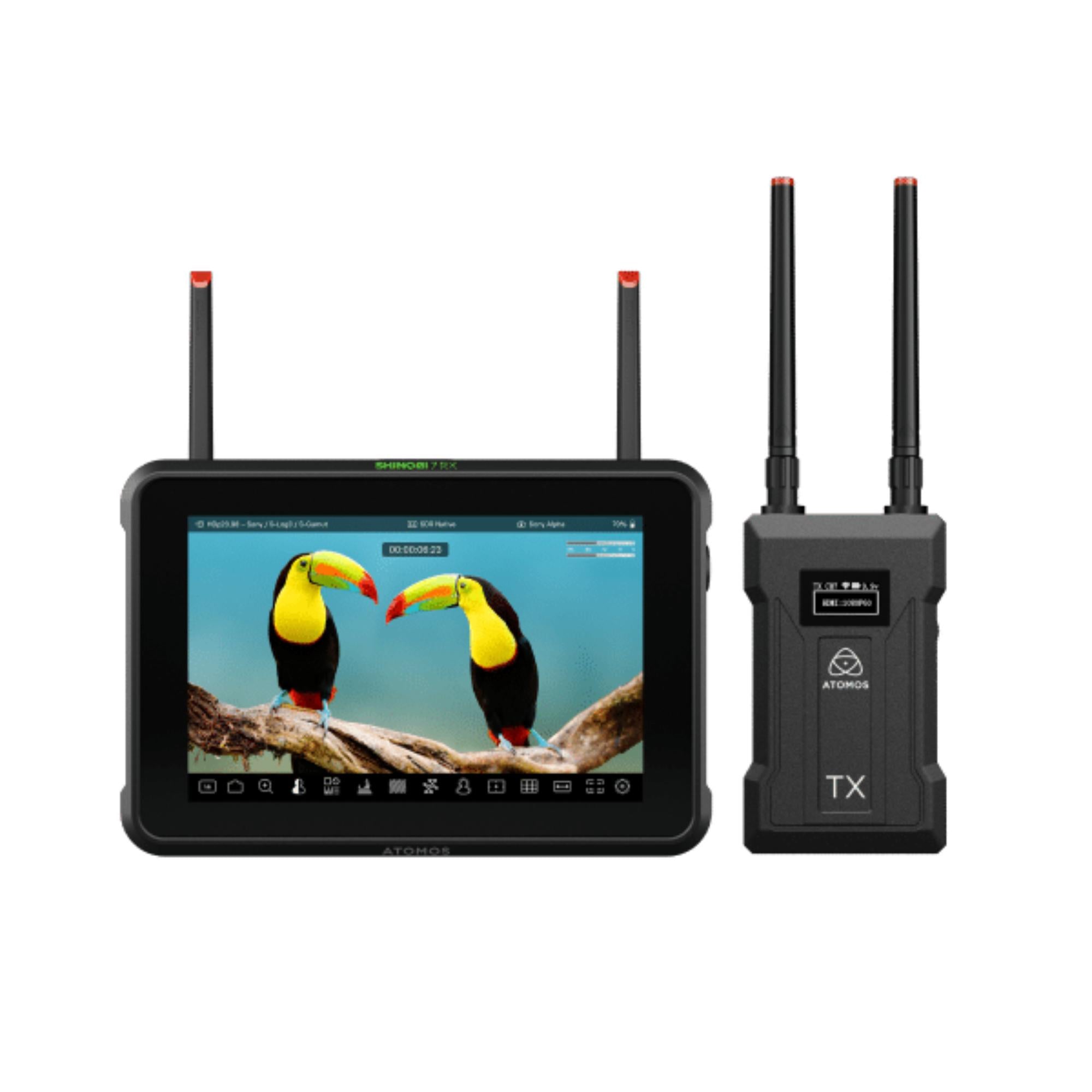

Atomos Shinobi 7 RX Monitor & Receiver + TX Transmitter Bundle

Atomos Shinobi 7 RX Monitor & Receiver + TX Transmitter Bundle is made for wireless on-set monitoring when the monitor needs to move away from the camera without running another video cable. The source material describes the Shinobi 7 RX as a 7-inch 1920 x 1200 touchscreen with 2200 nits brightness and built-in wireless video receiving.

Paired with the included Atomos TX 4K HD Wireless Video Transmitter, the Shinobi 7 RX can receive up to 4Kp30 or 1080p60 HDMI wireless video. The TX side supports up to 4Kp30 from HDMI input and 1080p60 from SDI input, giving crews a cleaner way to monitor without crowding the camera position.

Highlights

• Shinobi 7 RX monitor and receiver bundle with TX transmitter
• 7-inch 1920 x 1200 touchscreen with 2200-nit brightness
• Wireless video support up to 4Kp30 or 1080p60 HDMI
• TX transmitter supports HDMI/SDI input with HDMI loop output
• Wi-Fi 6E connectivity with support for Android and iOS monitoring

Quick Specs & Uses

• Display size: 7-inch HDR screen
• Resolution: 1920 x 1200
• Brightness: 2200 nits
• Panel ratio: 16:10
• Color gamut: Rec.709
• Video input: HDMI 2.0, SDI up to 1080p60, Wi-Fi 6E, USB-C 2.0/3.0
• Video output: HDMI 2.0, 3G-SDI, Wi-Fi 6E, USB-C 2.0/3.0
• Power input: 6.2V to 16.8V
• Operating power: 26W
• Continuous power: NP-F battery or USB-C PD power
• Dimensions: 198mm x 133mm x 39mm
• Weight: 580g excluding batteries and antennas

Why It Helps

Wireless monitoring is useful when the director, focus puller, client, or video team needs a clean feed without standing right beside the camera. The RX monitor receives the image, while the TX transmitter keeps the camera side connected through HDMI or SDI.

The 2200-nit display also helps when the monitor is used outdoors or under bright production lighting. With AtomOS 11 tools such as waveform, histogram, vectorscope, EL Zone, ARRI false color, LUTs, frame guides, anamorphic de-squeeze, and zoom, the monitor is built for more than just viewing the picture.

System Characteristics

• Wireless monitor workflow for director, focus, program, or preview display use
• TX compatibility for wireless video transmission to Shinobi 7 RX
• Camera control support for Canon, Fujifilm, Nikon, Panasonic, and Sony via USB-C, plus Z CAM via optional USB-C to serial cable
• Dual Sony L-series battery slots for extended runtime
• Monitoring tools: waveform, histogram, vectorscope, RGB parade, focus peaking, false color, zebra, frame guides, safe areas, grid markers, zoom, anamorphic de-squeeze, and display flip

What’s In The Box

• 1 x Shinobi 7 RX
• 1 x Wi-Fi antenna
• 5 x antenna tips: black, white, yellow, green, red
• 2 x antenna caps
• 1 x USB-C 2.0 cable (1m)
• 1 x Quick Start Guide
• 1 x Atomos TX 4K HD Wireless Video Transmitter
• 1 x USB-C to USB-A power cable
• 1 x Mounting accessories
• 1 x Quick Start Guide
