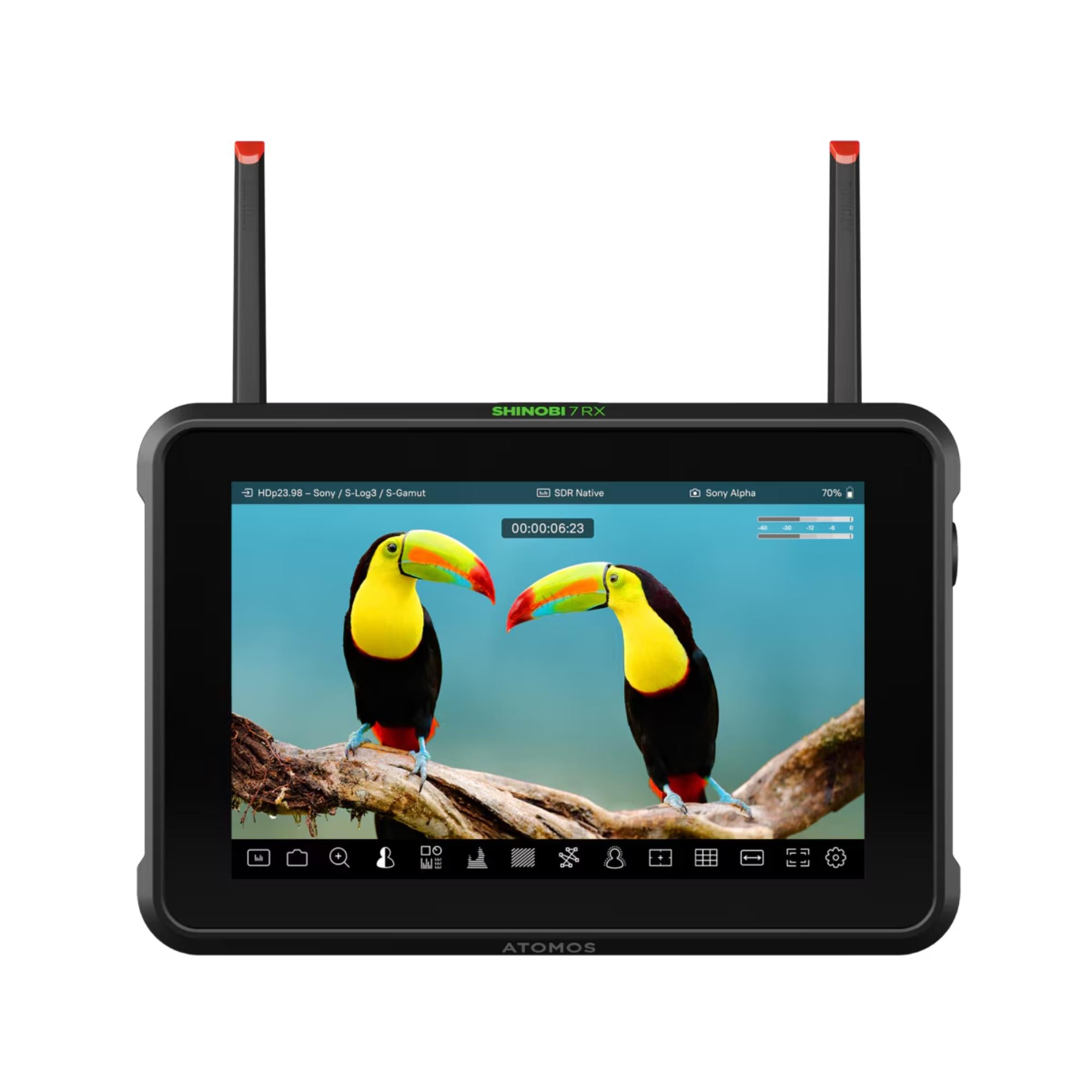

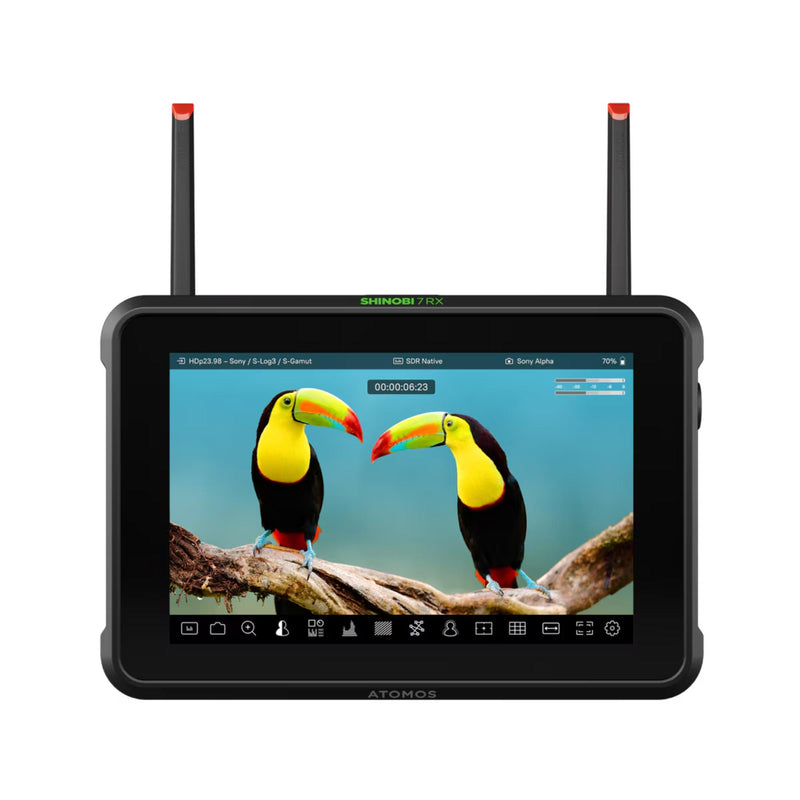

Atomos Shinobi 7 RX 7 Inch HDMI & SDI Monitor

Atomos Shinobi 7 RX 7 Inch HDMI & SDI Monitor is a bright 7" on-camera monitor with built-in wireless video receiving for production monitoring. The source material lists a 1920 x 1200 IPS-type LCD touchscreen, 2200 cd/m² brightness, 10-bit color support, and Wi-Fi 6E wireless operation.

For directors, focus pullers, camera assistants, or small crews, this monitor gives a clear viewing point without always needing to stand beside the camera. It supports HDMI and SDI input/output, HDMI/SDI cross conversion, LUT support, focus and exposure tools, and wireless monitoring through compatible Atomos TX/RX workflows.

Highlights

• 7" 1920 x 1200 HDR touchscreen display
• 2200 cd/m² brightness for bright set conditions
• HDMI 2.0 and 3G-SDI input/output
• Built-in Wi-Fi 6E wireless receiver
• Dual L-Series battery slots and USB-C PD input support

Quick Specs & Uses

• Panel type: IPS-Type LCD
• Display size: 7.0" / 17.8 cm
• Native resolution: 1920 x 1200
• Aspect ratio: 16:10
• Touchscreen: Yes
• Maximum brightness: 2200 nits / cd/m²
• Color support: 1.07 billion colors, 10-bit
• HDR support: Advanced HDR
• Color gamut: 100% Rec. 709
• Wireless range: 984.3' / 300 m
• Latency: 60 ms
• Power consumption: 13 W maximum
• Dimensions: 7.8 x 5.2 x 1.5" / 198 x 133 x 39 mm
• Weight: 1.3 lb / 580 g

Why It Helps

A 2200-nit monitor is useful when the image needs to stay readable outdoors or under bright lighting. The 7" screen gives the operator enough size for focus, framing, and exposure checks without turning the camera build into a large monitor station.

The built-in wireless receiver is the workflow advantage here. It lets the Shinobi 7 RX work as a wireless monitor when paired with a compatible transmitter, while the HDMI and SDI ports keep it useful as a conventional wired monitor as well.

System Characteristics

• Video I/O: 1 x HDMI 2.0 input, 1 x BNC 3G-SDI input, 1 x HDMI 2.0 loop output, 1 x BNC 3G-SDI output
• Other I/O: 2.5 mm LANC output, USB-C Gen 1 input, 2 x USB-C Gen 1 output
• Audio support: HDMI 8-channel, SDI 12-channel, 3.5 mm line input, 3.5 mm headphone output
• Monitoring tools: anamorphic de-squeeze, blue only, false color, focus peaking, histogram, RGB parade, screen markers, vectorscope, waveform, zebra
• Power options: 6.2 to 16.8 VDC input, 2 x L-Series mounts, USB-C PD input

What’s In The Box

• 1 x Shinobi 7 RX
• 1 x Wi-Fi antenna
• 5 x antenna tips: black, white, yellow, green, red
• 2 x antenna caps
• 1 x USB-C 2.0 cable (1m)
• 1 x Quick Start Guide
