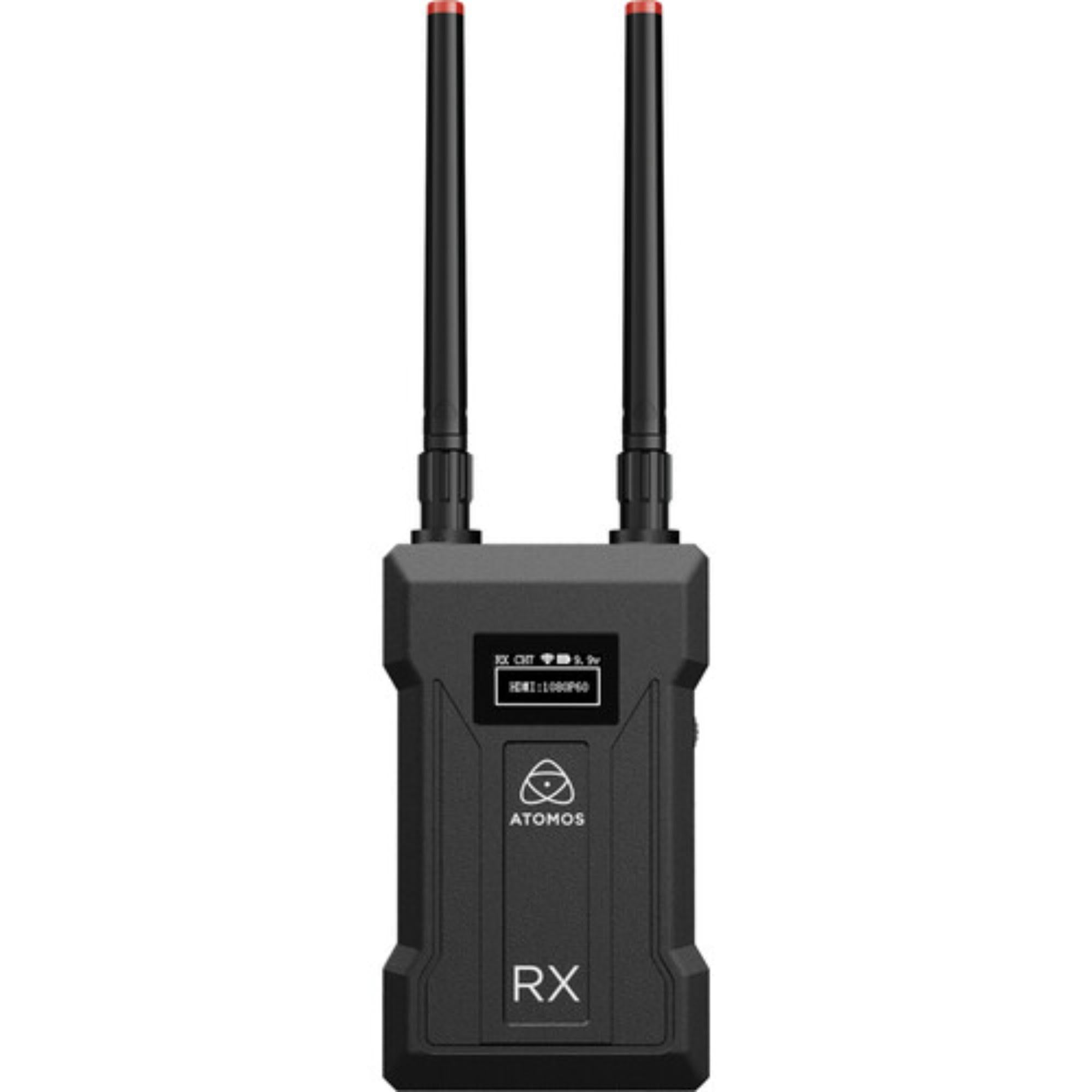

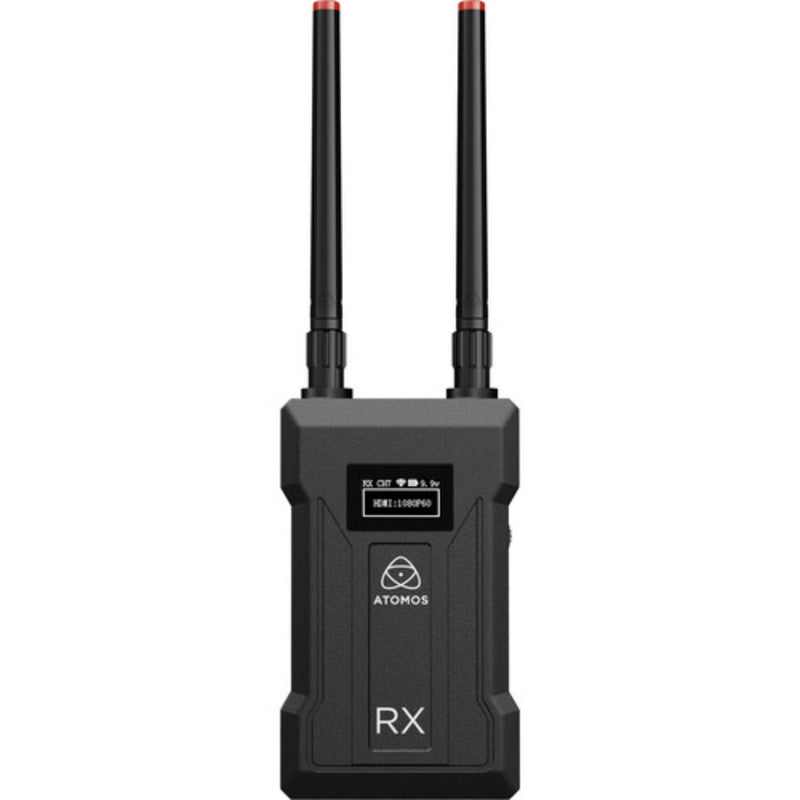

Atomos RX 4K/HD Wireless Video Monitoring Receiver Only

Atomos RX 4K/HD Wireless Video Monitoring Receiver Only is made for receiving wireless video from a compatible Atomos transmitter. The source material lists support for receiving up to UHD 4K30 from up to 985' / 300.2 m line-of-sight over a 5 GHz frequency band.

On a production floor, a wireless receiver is useful when the monitor position needs to be away from the camera or transmitter. This unit provides 2 HDMI outputs and 1 BNC 3G-SDI output, so the received signal can be sent to multiple viewing or monitoring destinations at the same time.

Highlights

• Professional wireless video receiver
• Receives up to UHD 4K30 from up to 985'
• 2 HDMI outputs and 1 SDI output
• 5 GHz frequency band
• Uncompressed wireless video with embedded HDMI/SDI audio

Quick Specs & Uses

• Antenna I/O: 2x RP-SMA male

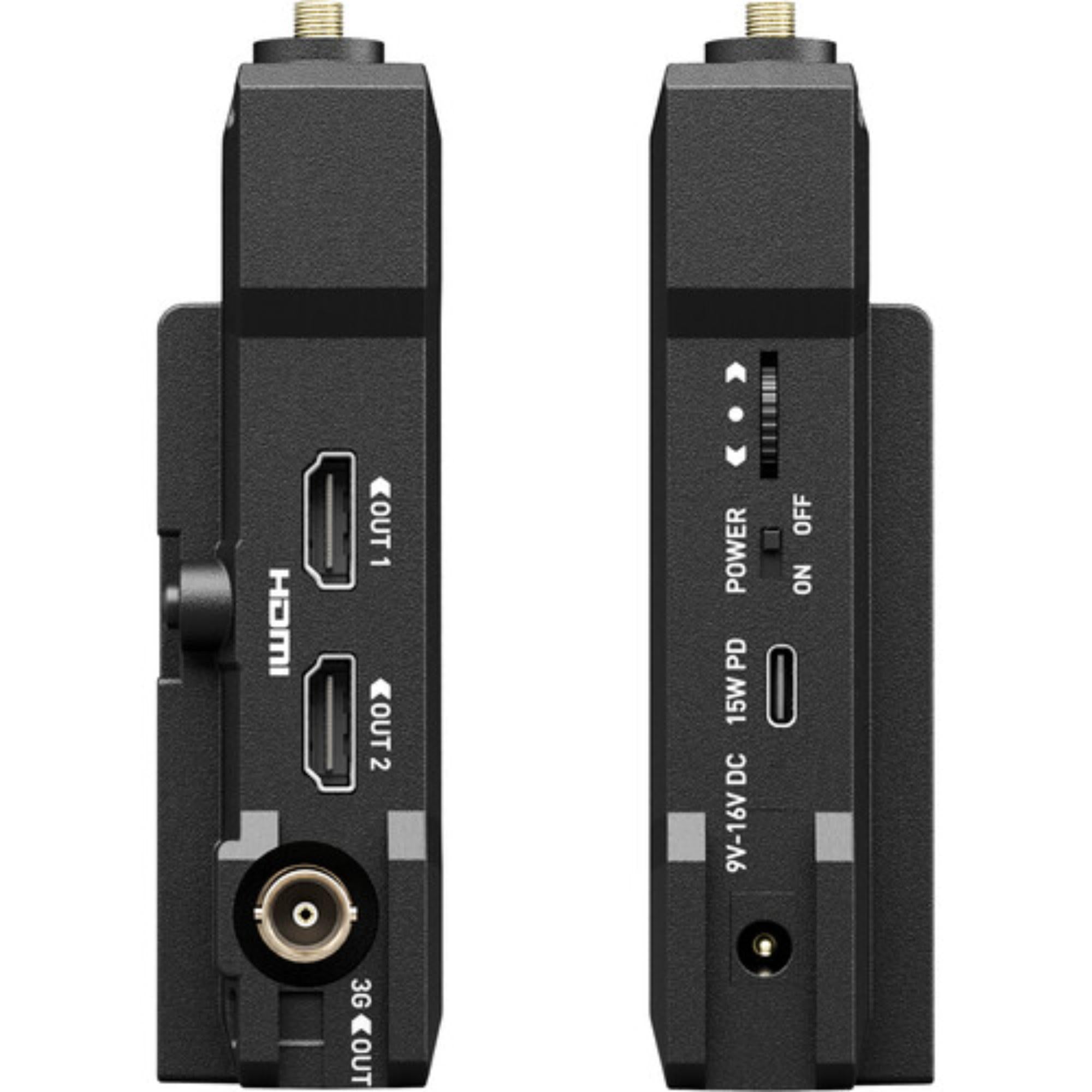

• Video I/O: 2x HDMI output, 1x BNC 3G-SDI output
• Embedded audio: HDMI/SDI
• Audio I/O: No
• Power I/O: 1x barrel 16 VDC input, 1x USB-C input
• Encryption: No
• Wireless: Wi-Fi
• Wireless range: 985' / 300.2 m line-of-sight
• Frequency range: 5 GHz
• Mobile app compatible: Yes, Android and iOS
• Video format: HDMI UHD 4K: 30, 1080p: 60/30; SDI 1080p: 60/30
• Wireless video compression: Uncompressed
• Timecode support: Yes
• Input power: 9 to 16 VDC
• Battery: 1x L-Series mount on fixed plate
• Status display: Yes

Why It Helps

Wireless monitoring is useful when the person watching the feed cannot stay beside the camera. A receiver like this gives the crew a way to bring the video signal back to a monitor station, cart, or viewing area without running a long video cable across the set.

The dual HDMI outputs and single SDI output make the receiver easier to fit into mixed monitoring setups. One output can feed a local display while another goes to a second monitor or downstream device.

System Characteristics

• Wireless receive workflow for Atomos 4K/HD video monitoring
• Multi-output monitoring with 2 HDMI outputs and 1 3G-SDI output
• 5 GHz Wi-Fi operation for wireless video reception
• Timecode support for sync-aware production setups
• L-Series battery mount and DC input options for field power

What’s In The Box

• 1 x Atomos RX 4K HD Wireless Video Receiver
• 1 x USB-C to USB-A power cable
• 1 x Mounting accessories
• 1 x Quick Start Guide
