Atomos Ninja RAW 5 Inch HDMI Monitor-Recorder

Atomos Ninja RAW 5 Inch HDMI Monitor-Recorder is a compact wired monitor-recorder designed for HDMI camera setups. The source material lists a 5.2" 1920 x 1080 IPS touchscreen, 1500 cd/m² brightness, HDMI 2.0 input/output, and recording support to CFexpress Type B or USB-C.

For creators and camera operators, this unit gives a small HDMI rig a brighter screen, proper monitoring tools, and a dedicated recording path. It is listed with ProRes RAW recording support, camera control, a bright touchscreen display, and the updated AtomOS Linux operating system.

Highlights

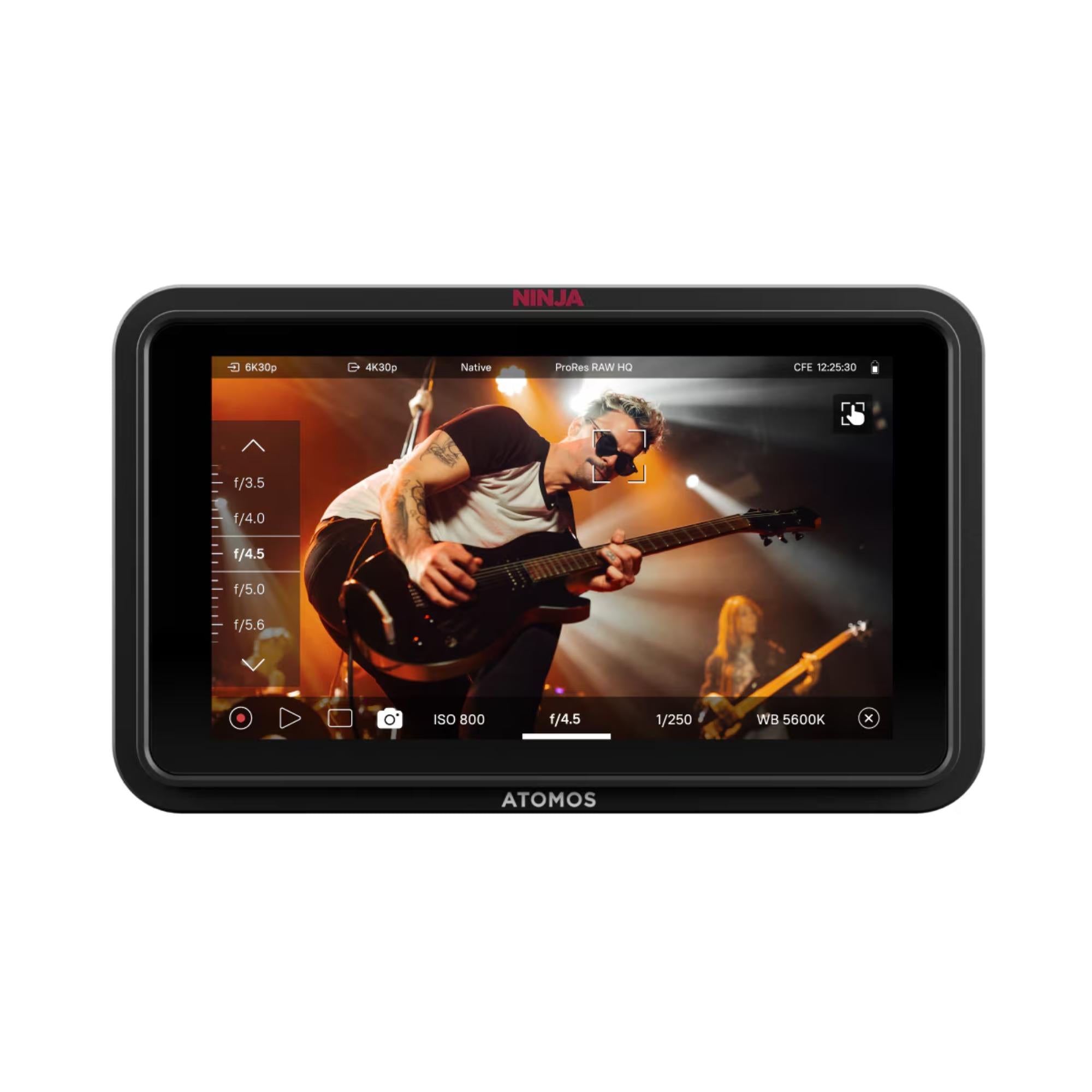

• 5.2" 1920 x 1080 IPS touchscreen
• 1500 cd/m² brightness
• HDMI 2.0 input and output
• Records to CFexpress Type B slot or USB-C
• Supports up to 6K30 ProRes RAW video

Quick Specs & Uses

• Panel type: IPS-Type LCD
• Display size: 5.2" / 13.2 cm
• Native resolution: 1920 x 1080
• Aspect ratio: 16:9
• Touchscreen: Yes
• Maximum brightness: 1500 nits / cd/m²
• HDR support: Hybrid Log Gamma
• Color gamut: 100% Rec. 709
• LUT support: Yes
• Power consumption: 30 W
• Weight: 14.1 oz / 400 g

Why It Helps

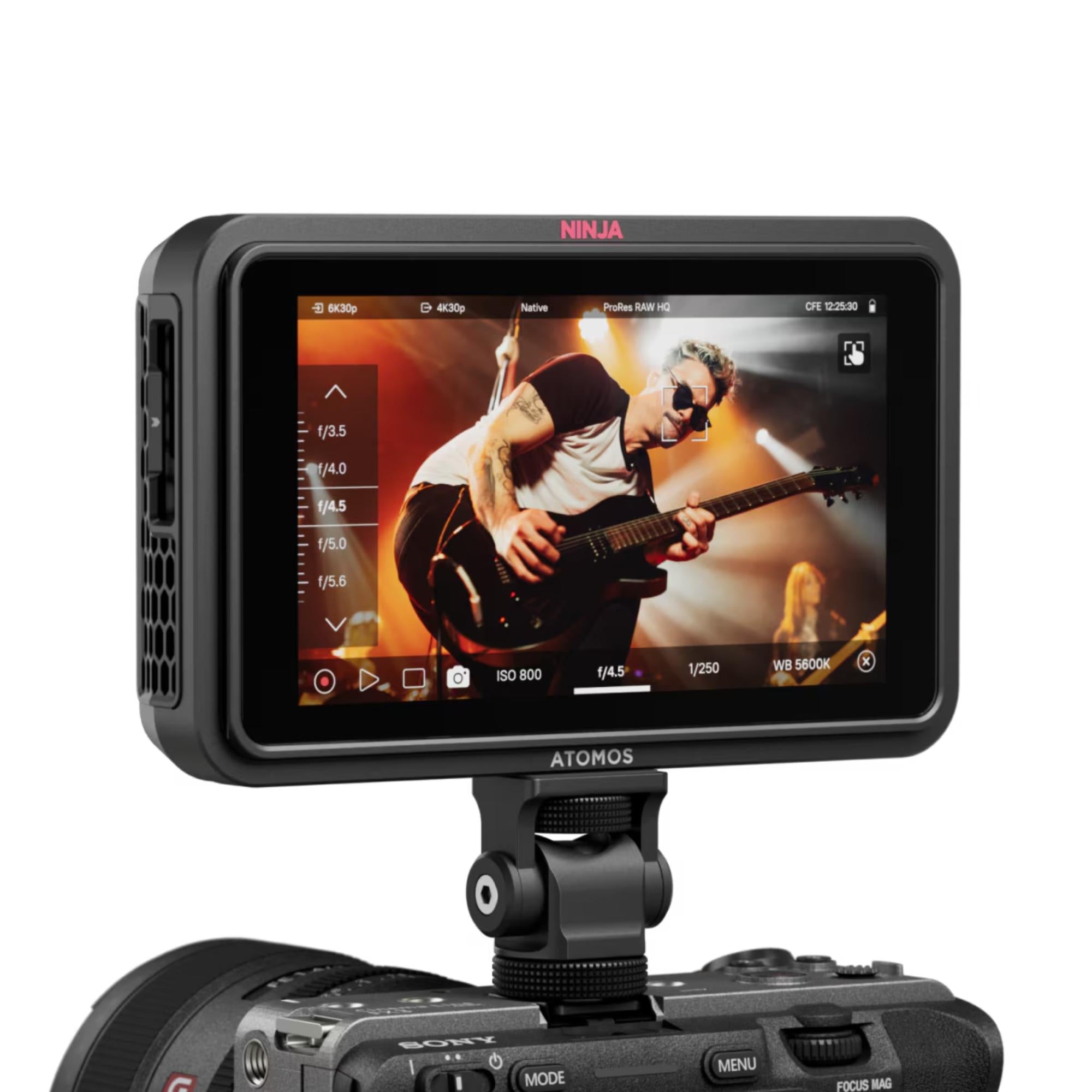

A compact HDMI camera often benefits from a brighter monitor and a cleaner recording workflow. The Ninja RAW gives operators a 5.2" touchscreen for checking focus, exposure, framing, and signal tools while also recording to supported media.

The locking cable adapters are useful on small rigs because HDMI and USB-C connections can get bumped during handling. Keeping those cable runs more secure helps the monitor-recorder stay practical in real production use.

System Characteristics

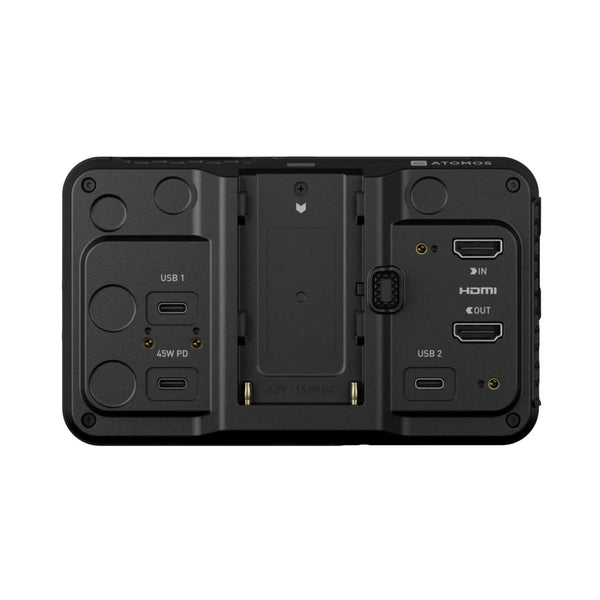

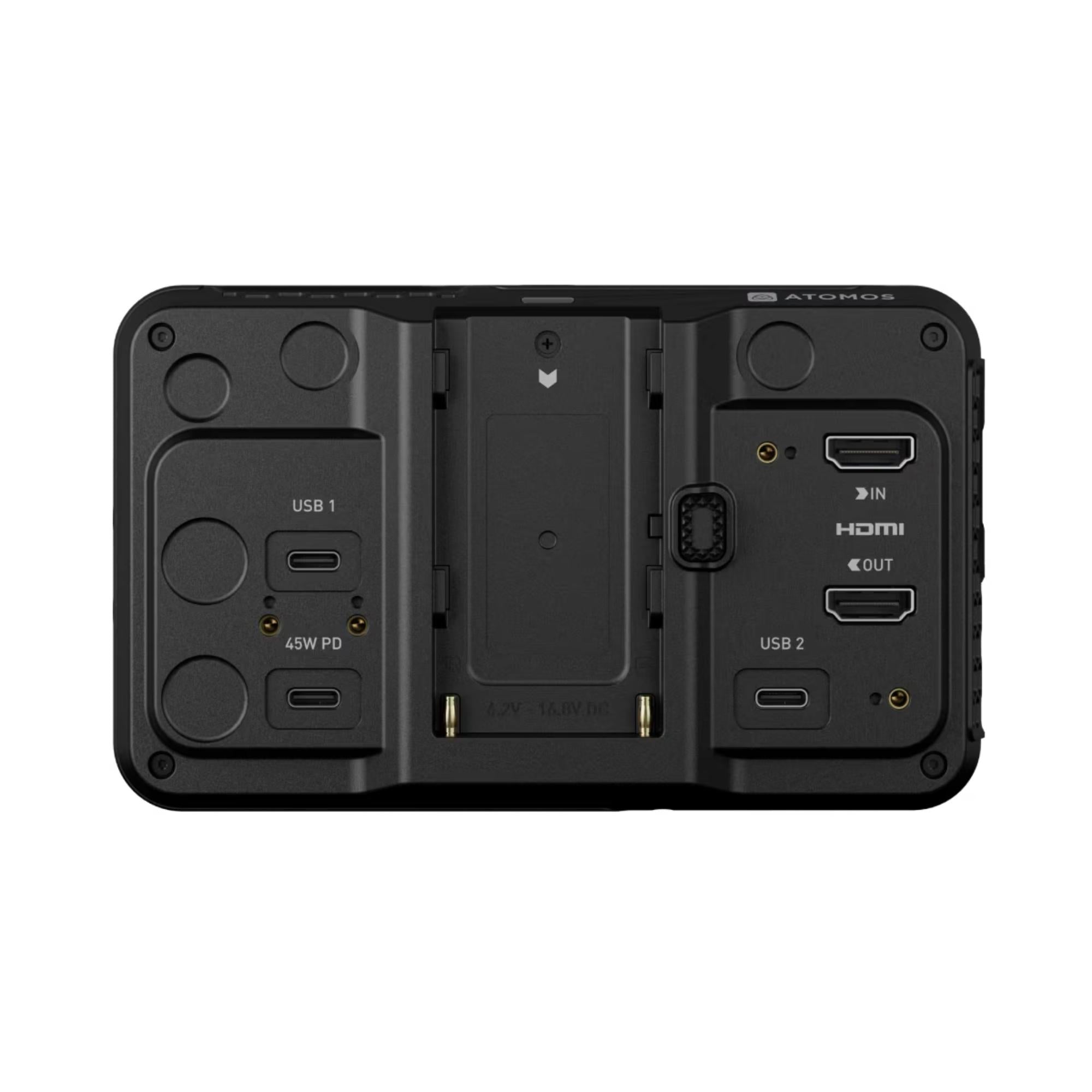

• Video I/O: 1 x HDMI 2.0 input, 1 x HDMI 2.0 output
• Media slot: CFexpress Type B for record, LUT, and firmware
• Video formats: 6K Raw, 3.5K Raw, DCI 4K, UHD 4K, 1080p, 1080PsF, 1080i, and 720p
• Encoding formats: DNxHD, DNxHR, ProRes 422, ProRes RAW, and H.265 options
• Image controls: anamorphic de-squeeze, blue only, false color, focus peaking, image flip, OSD flip, RGB parade, screen markers, vectorscope, waveform, and zebra

What’s In The Box

• 1 x Ninja RAW monitor-recorder
• 1 x USB-C locking cable adapter
• 1 x HDMI locking cable adapter
• 1 x USB-C locking cable (45cm)
• 1 x Quick Start Guide
