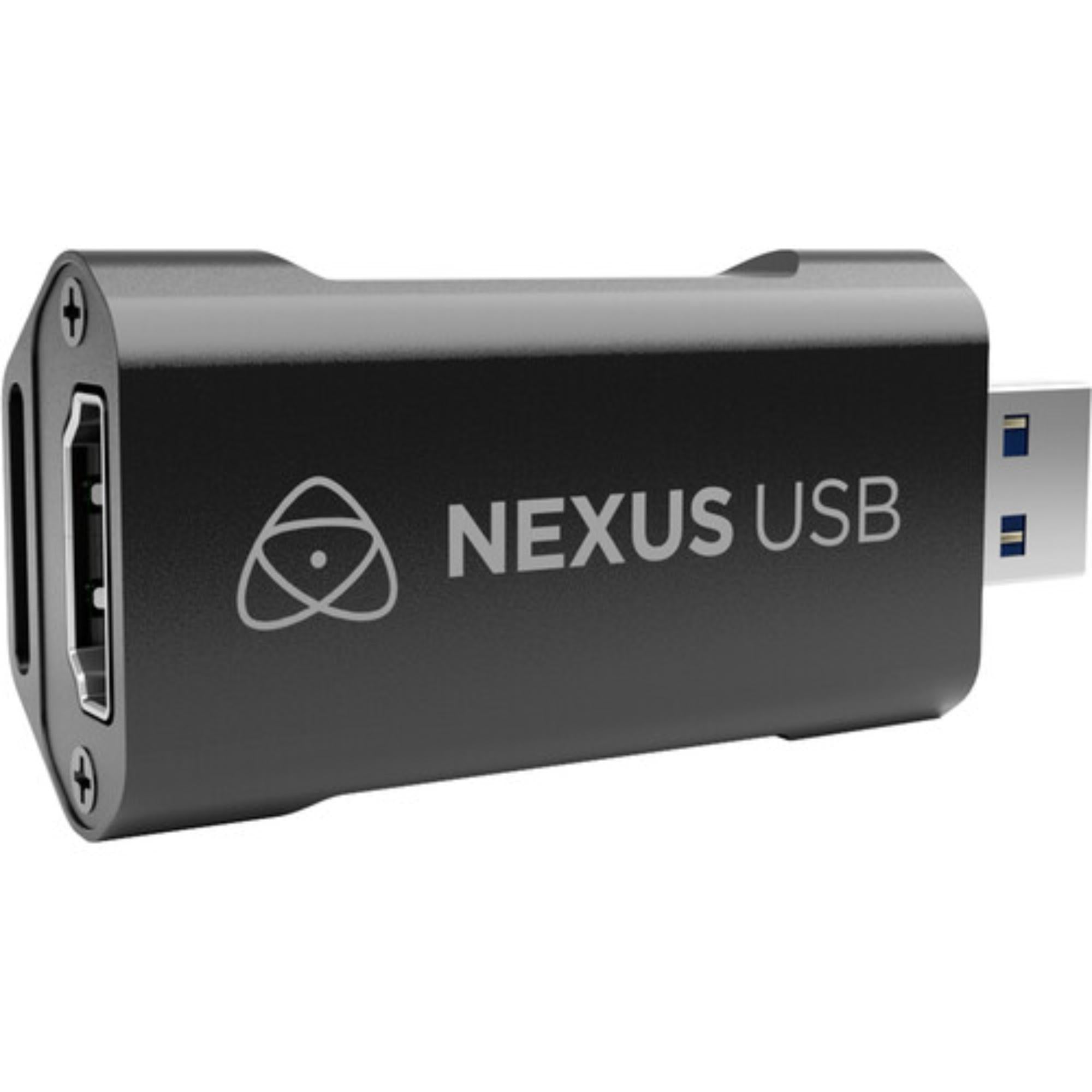

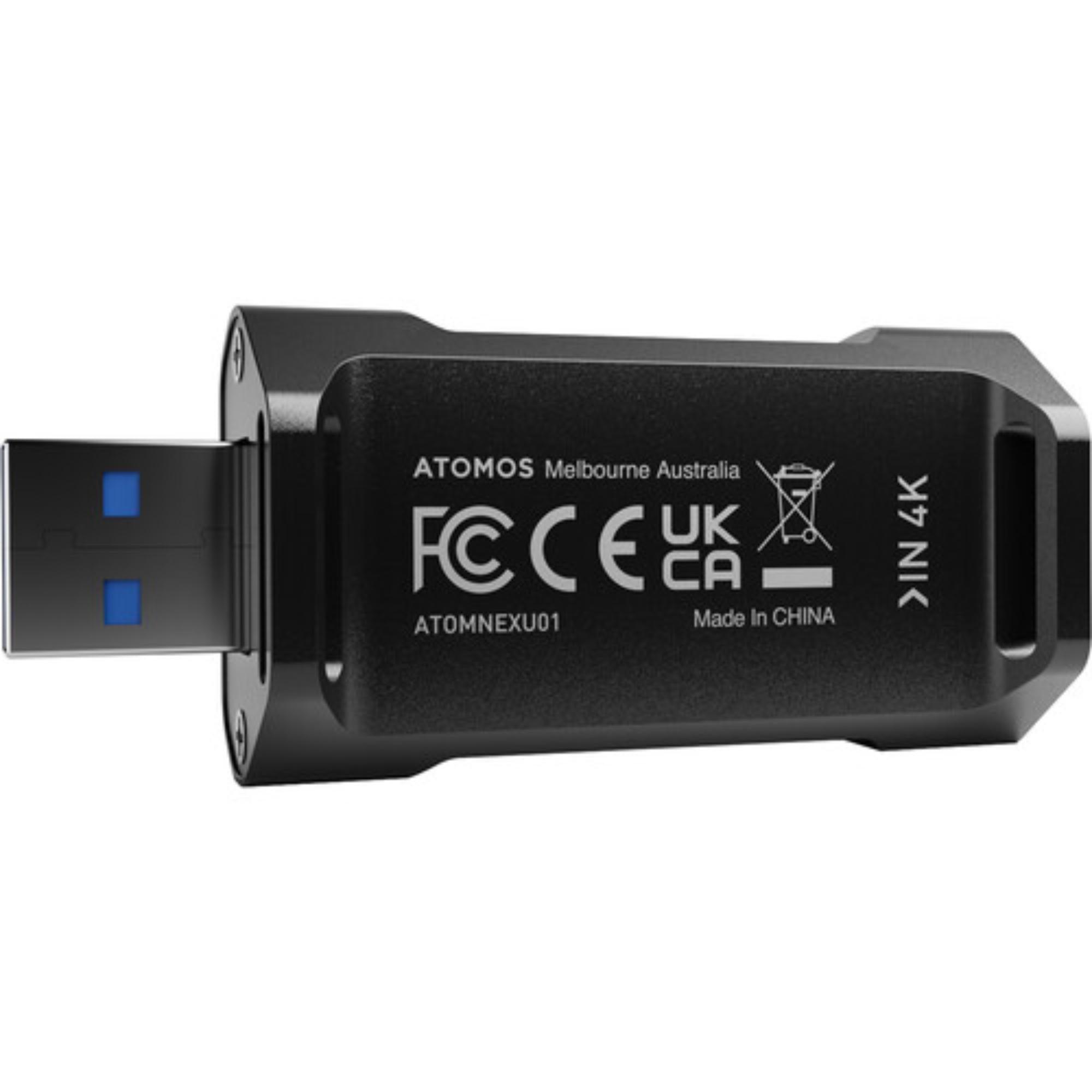

Atomos NEXUS HDMI to USB Converter for 4K Video/Audio Capture

Atomos NEXUS HDMI to USB Converter for 4K Video/Audio Capture is made for turning an HDMI camera or Atomos monitor/recorder output into a USB feed for streaming or computer capture. The source material lists HDMI input support up to 4Kp30 and USB output up to 1080p60.

For a small streaming desk, this kind of converter keeps the signal path simple. HDMI comes in from the camera or Atomos device, then USB goes out to the computer. No driver install or external power supply is listed, so the setup is mostly about connecting the right cables and selecting the device in the streaming software.

Highlights

• HDMI to USB converter for video/audio capture
• Accepts up to 4Kp30 HDMI input
• Outputs up to 1080p60 over USB
• No external power required
• Works with popular streaming services including Skype, MS Teams, Zoom, Twitch, YouTube, and more

Quick Specs & Uses

• HDMI input: Up to 4Kp30 / 1080p60
• USB output resolution: Up to 1080p60 (YUV, JPEG)
• Color depth: Supports 8/10/12-bit deep color
• HDMI support: Certified AWG26 HDMI cables up to 15 meters
• USB support: USB Video and UVC standard, USB Audio UAC standard (L-PCM format)
• Power: No external power required
• Maximum working current: 0.44A / 5V DC
• Operating temperature range: -10 to +55°C
• Dimensions: 64 x 28 x 13 mm
• Weight: 21.4 g

Why It Helps

Not every stream needs a full switcher or capture rack. When the job is simply getting a clean HDMI source into a laptop, a small HDMI-to-USB converter is easier to carry, easier to explain, and faster to set up.

It is also useful when an HDMI camera needs to act like a webcam for calls, online teaching, worship streams, gaming, events, or social media content. The source notes support for common acquisition software on Windows, Android, and Mac OS.

System Characteristics

• HDMI capture workflow for cameras and Atomos monitor/recorders
• USB streaming output for computer-based production
• Driver-free operation based on the source material
• UVC and UAC support for video and audio over USB
• Compact converter body for laptop and travel streaming kits

System Requirements

• PC: i5-3400 or above
• Notebook: i7-3537U 2.0GHz or above
• Graphics card: PC NVIDIA GT630 or above; notebook NVIDIA GT735M or above
• RAM memory: 4G RAM

Popular In Combination With

• Skype
• MS Teams
• Zoom
• Twitch
• YouTube
• Facebook
• GoToMeeting
• Vimeo

What’s In The Box

• 1 x Atomos Nexus HDMI to USB Converter
• 1 x USB 3.1 Gen 1 Type-A to Type-C Cable (7.9")
• 2 x Hook-and-Loop Strip
