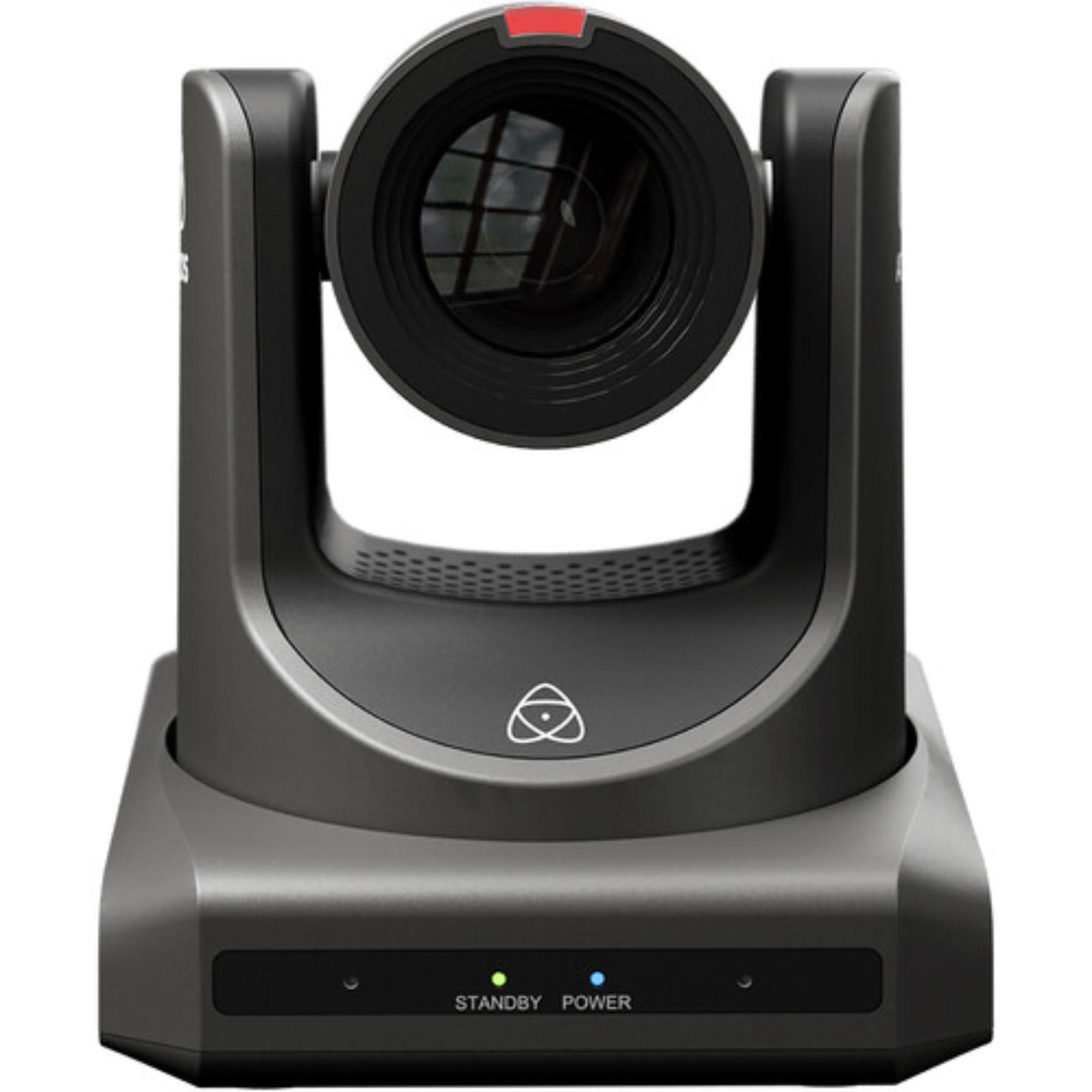

Atomos A-Eye 4K-20X PTZ Camera

Atomos A-Eye 4K-20X PTZ Camera is a 4K PTZ camera built for controlled camera positions in studios, classrooms, live events, houses of worship, and production spaces. The source material lists a 1/1.8"-type CMOS sensor, 8.42MP effective resolution, 20x optical zoom, and 16x digital zoom.

For broadcast-style setups, the value is in having clean remote movement, multiple output paths, and flexible control. This camera outputs up to 3840 x 2160 at 60 fps via HDMI, RJ45, SDI/BNC, or USB, with camera control over IP, NDI, H.323, RS-232, RS-485, and VISCA.

Highlights

• 4K PTZ camera with up to 3840 x 2160 at 60 fps output
• 20x optical zoom and 16x digital zoom
• Autofocus and manual focus support
• HDMI, 3G-SDI, RJ45 NDI, and USB 3.0 outputs
• PoE+ 802.3at support with 12VDC input option

Quick Specs & Uses

• Image sensor: 1/1.8"-type CMOS
• Effective sensor resolution: 8.42 megapixel
• IR cut filter: No
• Focus control: Autofocus, manual focus
• Max optical zoom: 20x
• Max digital zoom: 16x
• Video output: 3840 x 2160 up to 60.00 fps via HDMI / RJ45 / SDI/BNC / USB
• Embedded audio: HDMI/IP/NDI/SDI/USB
• Audio recording: AAC Audio
• Broadcast output: NTSC/PAL

Why It Helps

A PTZ camera is useful when the camera position needs to be repeatable, remote, and clean. Instead of placing an operator at every camera, the A-Eye 4K-20X can be controlled from a desk, control room, or production position.

The 20x optical zoom gives room to frame tighter shots from a fixed location, while the HDMI, SDI, NDI/RJ45, and USB outputs make the camera easier to fit into different production systems.

System Characteristics

• Pan/tilt movement: tilt 120° from -30° to 90° at 1.7 to 100°/s; pan 340° from -170° to 170° at 1.7 to 69.9°/s
• Control protocols: IP, NDI, H.323, RS-232, RS-485, VISCA

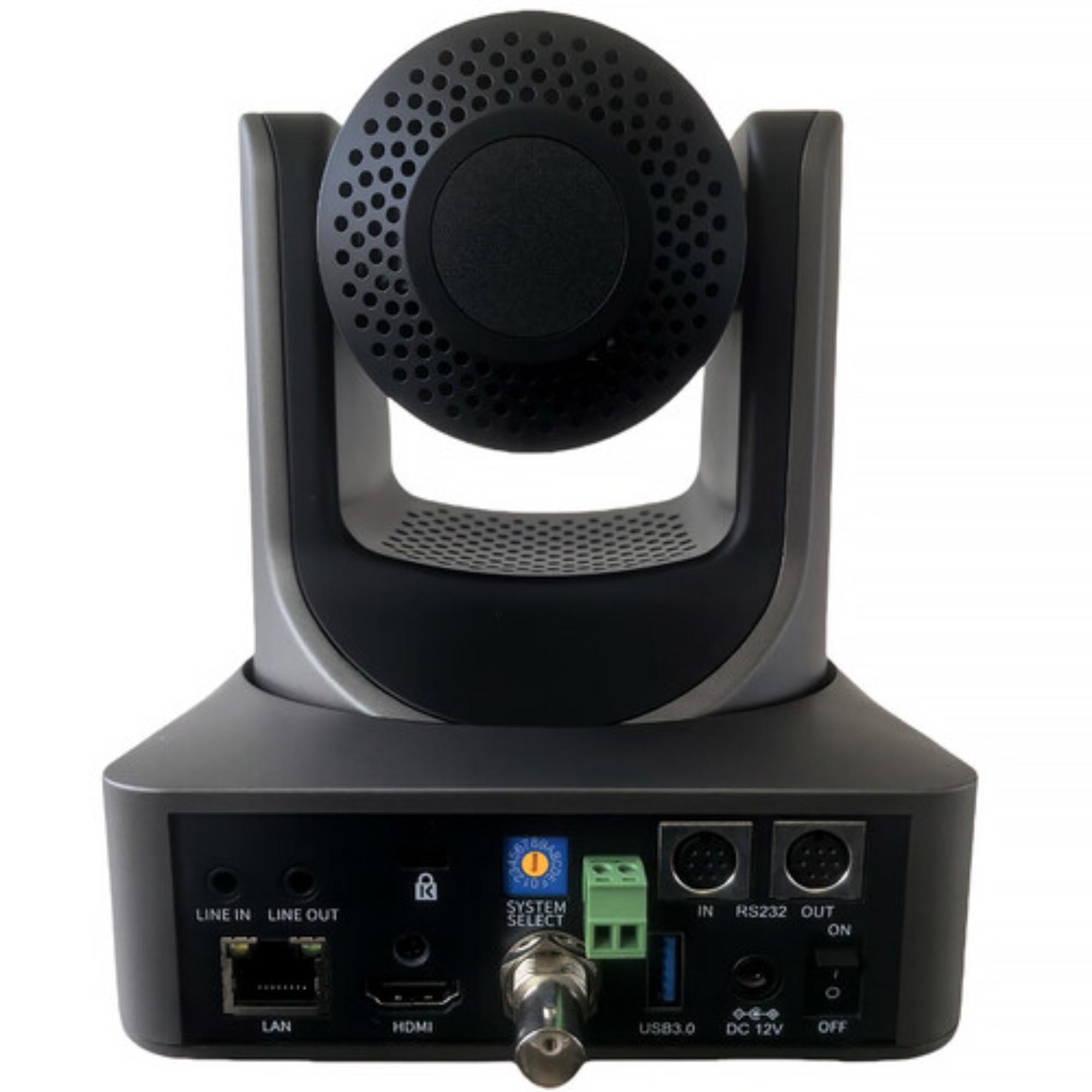

• Interface: HDMI 1.4 output, BNC 3G-SDI output, RJ45 NDI output, USB-A 3.0 output
• Audio I/O: 3.5 mm TRS stereo line input and 3.5 mm TRS stereo line output
• Power: PoE+ 802.3at or 1 x DC 12V input

What’s In The Box

• 1 x A-EYE 4K-20X PTZ camera
• 1 x RS-232 serial cable (2m)
• 1 x USB 3.0 A-A cable (1.5m)
• 1 x Lens cover
• 1 x Remote controller
• 1 x Accessory tray
• 1 x Wall mount rack
• 1 x Screw pack
• 1 x Power adapter with 4 international plugs
• 1 x Quick Start Guide
