Atomos A-Eye 4K-12X PTZ Camera

Atomos A-Eye 4K-12X PTZ Camera is a UHD PTZ camera built for classrooms, houses of worship, conference rooms, remote meetings, and streaming setups. The source material lists a 1/2.5"-type CMOS sensor, 8.51MP effective resolution, 12x optical zoom, and 16x digital zoom.

For live production and fixed-room installs, this camera gives teams flexible output and control options from one compact unit. It can output up to 3840 x 2160 at 60 fps via HDMI, RJ45, SDI/BNC, or USB, with support for camera control over IP, NDI, H.323, RS-232, RS-485, and VISCA.

Highlights

• Capture up to UHD 4K60 video
• 12x optical zoom and 16x digital zoom
• HDMI, 3G-SDI, USB-A 3.0, and IP outputs
• RS-485, UVC, and IP control support
• PoE+ 802.3at support with tally light

Quick Specs & Uses

• Image sensor: 1/2.5"-type CMOS
• Effective sensor resolution: 8.51 megapixel
• IR cut filter: No
• Focus control: Autofocus, manual focus
• Max optical zoom: 12x
• Max digital zoom: 16x
• Video output: 3840 x 2160 up to 60.00 fps via HDMI / RJ45 / SDI/BNC / USB
• Embedded audio: HDMI/IP/NDI/SDI/USB
• Audio recording: AAC Audio
• Broadcast output: NTSC/PAL

Why It Helps

A PTZ camera is useful when the camera needs to stay installed but still cover different angles. With pan, tilt, zoom, and remote control, the operator can frame speakers, presenters, panels, or stage positions without placing a camera operator at the camera.

The mixed output options make it easier to fit into different systems. HDMI works for simple local video paths, SDI helps with production cabling, USB supports computer workflows, and RJ45/NDI supports network-based setups.

System Characteristics

• Pan/tilt movement: tilt 120° from -30° to 90° at 1.7 to 100°/s; pan 340° from -170° to 170° at 1.7 to 69.9°/s
• Control protocols: IP, NDI, H.323, RS-232, RS-485, VISCA

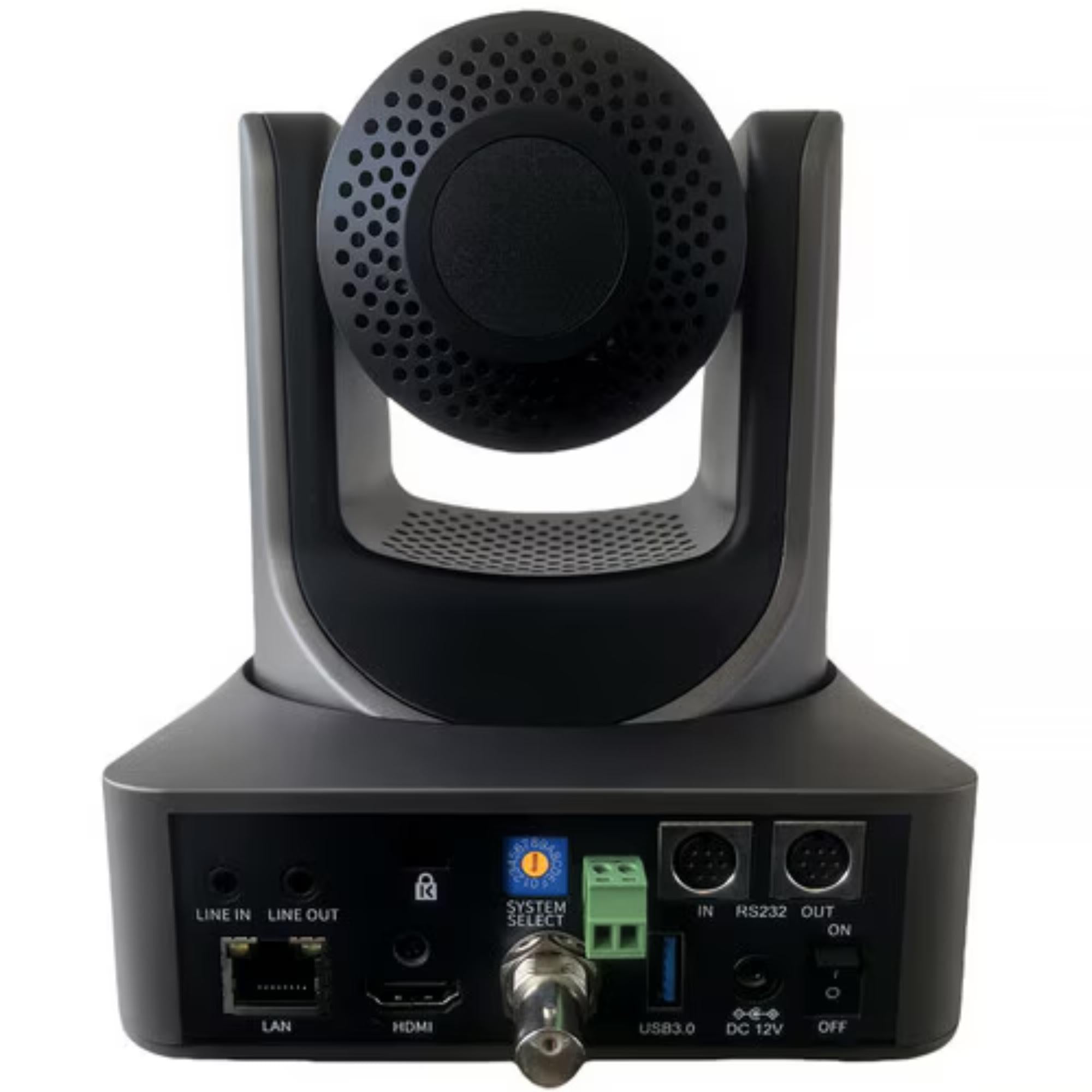

• Interface: HDMI 1.4 output, BNC 3G-SDI output, RJ45 NDI output, USB-A 3.0 output
• Audio I/O: 3.5 mm TRS stereo line input and 3.5 mm TRS stereo line output
• Power: PoE+ 802.3at or 1 x DC 12V input

What’s In The Box

• 1 x A-Eye 4K-12X PTZ camera
• 1 x RS-232 serial cable (2m)
• 1 x USB 3.0 A-A cable (1.5m)
• 1 x Lens cover
• 1 x Remote controller
• 1 x Accessory tray
• 1 x Wall mount rack
• 1 x Screw pack
• 1 x Power adapter with 4 plugs
• 1 x Quick Start Guide
